Time for a Stretch...A Buildup Thread

Ok the time has come to stretch the TJ's wheelbase. Over the next 2-3 months I will continue this buildup thread which will go through the following...

PSC Full Hydraulic Steering
Fuel Cell
Fabricating New Long Arms
Narrowing the Frame to fit coilovers in the rear
Stretching the wheelbase

and then of course wheeling it...

I have to say thanks to my buddy Dave Amour from DCC 4x4 in Charlton for letting me have access to his shop and his fabrication tools as well as him as a resource

Here is how she stands now...







Time to get rid of that huge tank & skid



Pics...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


TJ Stretch Thread...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by BigJeepJay; 12-08-2006 at 10:15 PM.
BigJeepJay is offline
Sponsored Links
Advertisement

post #2 of 140 Old 12-07-2006, 10:08 PM Thread Starter
BigJeepJay
Registered User

BigJeepJay's Avatar

Join Date: Aug 2004
Location: Freetown, Ma
Posts: 2,106
First up...Full Hydro

Here is the new Pump and Pulley

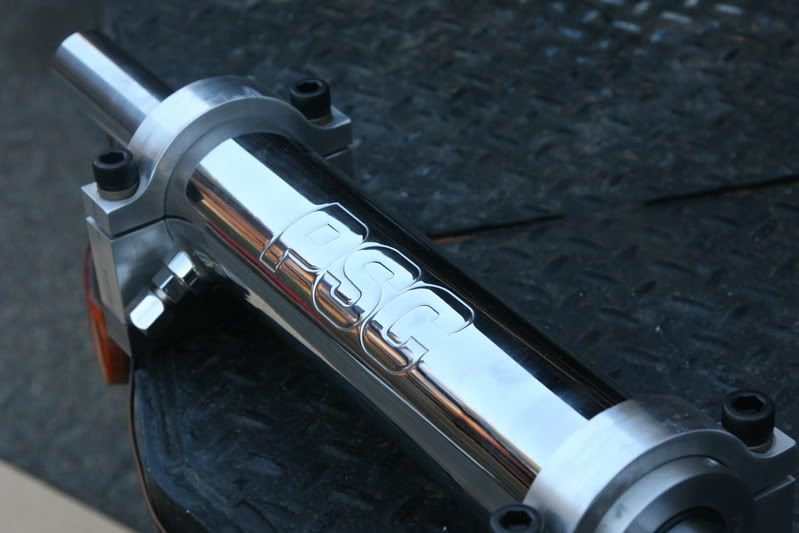

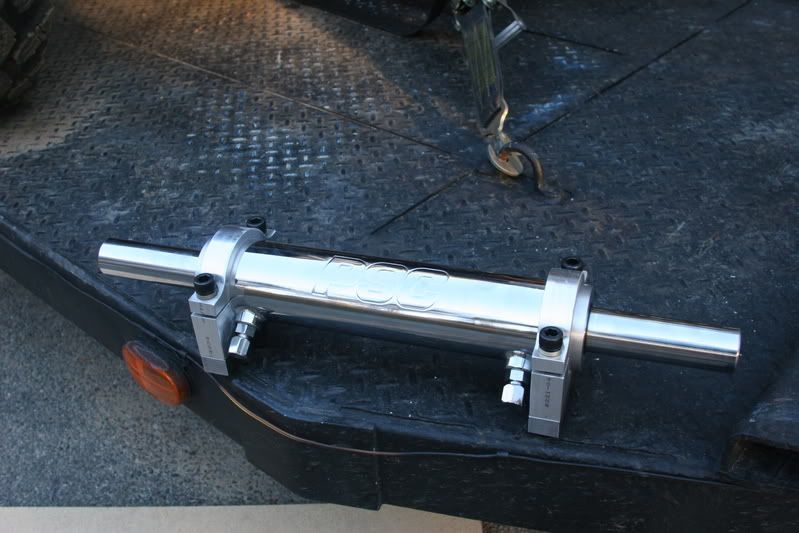

The double ended ram



New Resevoir


Everything Stripped out

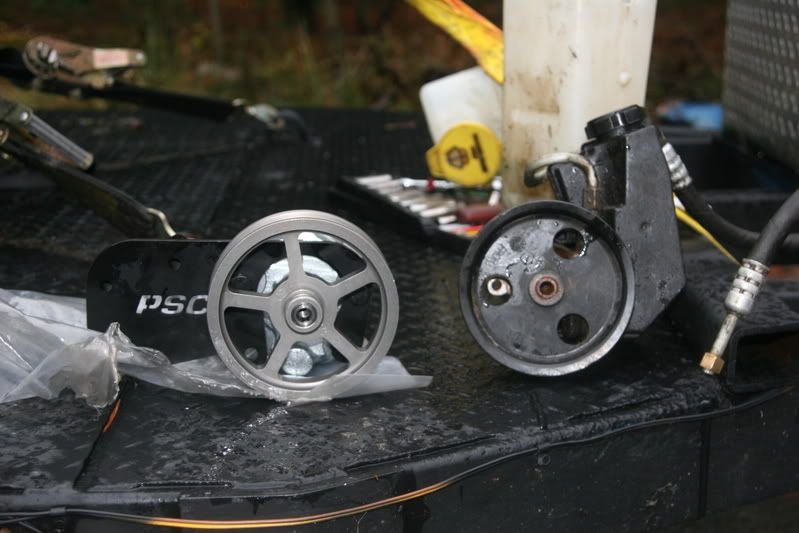

Old Vs. New Pump


Just need to get some pictures of the Orbital Valve and the new steering shaft and steering wheel.

The orbital Valve is a 7.5 GPM and has return to center functionality so when there is no tension on the system or the steering wheel, the ram will automatically re-center. The steering wheel is being setup with quick disconects so if (when) I roll I take the wheel off fast to help me get out easy. And hopefully since this gets rid of my steering box and crossover steering, I might finally be able to use my Anti-Rock again.

Pics...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


TJ Stretch Thread...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BigJeepJay is offline
post #3 of 140 Old 12-07-2006, 10:09 PM Thread Starter
BigJeepJay
Registered User

BigJeepJay's Avatar

Join Date: Aug 2004
Location: Freetown, Ma
Posts: 2,106

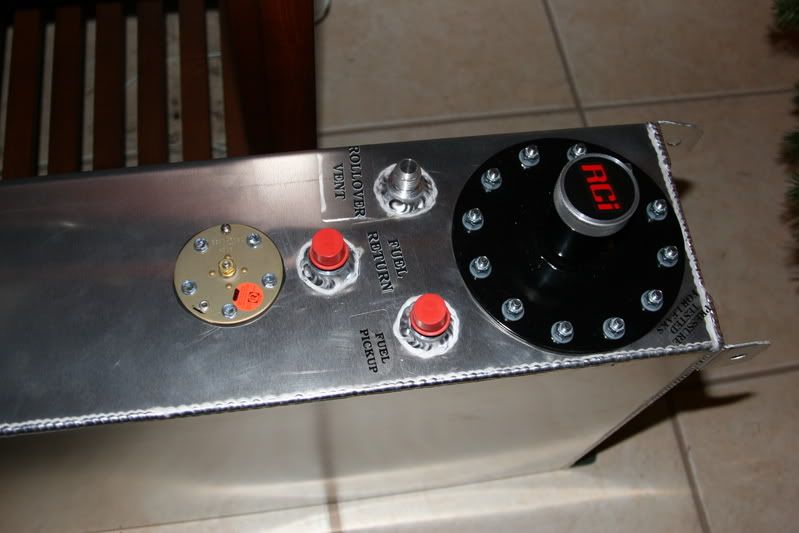

Just recieved the Fuel Cell...





As well as the rollover valve


and the external Holley Fuel Pump
(Insert Pictures Here )

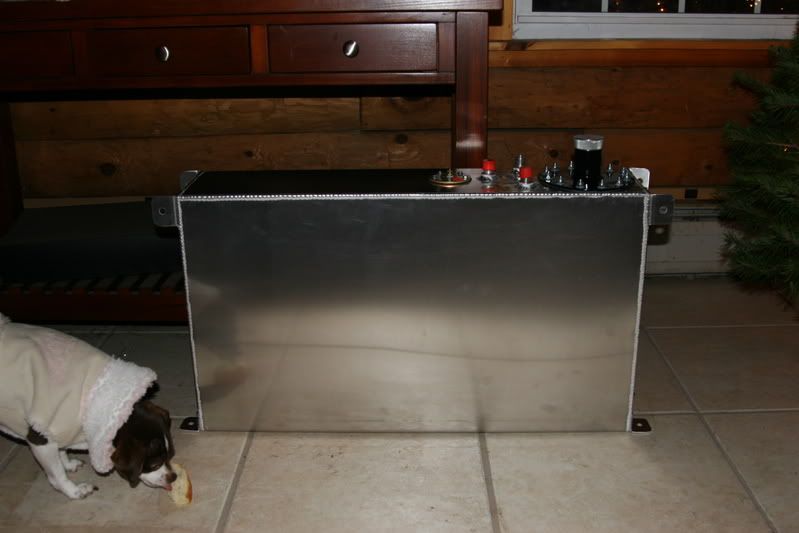

The Fuel Cell is a 17 Gallon by RCI and I beleive the dimentions are 30"L 7"W 17H so it will fit nice and compact behind the seat and be easy to fill as it will almost be level with the top of the tailgate.

Pics...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


TJ Stretch Thread...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by BigJeepJay; 12-18-2006 at 01:17 PM.
BigJeepJay is offline
post #4 of 140 Old 12-07-2006, 10:16 PM
Jeepinty
Registered User
2002 TJ Wrangler

Join Date: Nov 2006
Location: Groves, Texas
Posts: 1,251
YES, some hardcore stuff. Are you going to use the fuel cell rings for the stock TJ pump? Keep it coming.


PS. what the hell is your dog wearing?
Jeepinty is offline
post #5 of 140 Old 12-07-2006, 10:25 PM Thread Starter
BigJeepJay
Registered User

BigJeepJay's Avatar

Join Date: Aug 2004
Location: Freetown, Ma
Posts: 2,106
No I am going to use an external Holley pump for the fuel. After talking to the guys at PolyPerformance, that is how they are doing all their fuel cells now.

As for the dog, well it was quite cold here yesterday and so my wife put a jacket on her when she left for work

Pics...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


TJ Stretch Thread...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BigJeepJay is offline
post #6 of 140 Old 12-07-2006, 10:32 PM
Jeepinty
Registered User
2002 TJ Wrangler

Join Date: Nov 2006
Location: Groves, Texas
Posts: 1,251
Let me know how the fuel pump works. I want to get the stock tank out of the bed when I buggy the back end of mine. There is a guy on Pirate who sells rings to use the stock fuel pump in a fuel cell but it has to be a certain depth. Good luck and keep us updated. PS are you running claytons?
Jeepinty is offline
post #7 of 140 Old 12-07-2006, 10:34 PM
spyder6
Got that Toyota chit

spyder6's Avatar
2010

Join Date: Feb 2006
Location: Louisville, KY
Posts: 12,037
it looks like a dog sweater, i blame his wife

2010 Magnetic Toyota 4Runner Trail Teams

My builds:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
and
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
or follow us on
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
spyder6 is offline
post #8 of 140 Old 12-07-2006, 10:34 PM Thread Starter
BigJeepJay
Registered User

BigJeepJay's Avatar

Join Date: Aug 2004
Location: Freetown, Ma
Posts: 2,106
Quote:
Originally Posted by Jeepinty
PS are you running claytons?
Yeah I am running Clayton's now but I think when I make new Long Arm's for the rear, I am going to make a set for the front as well so I can then sell the Clayton arms.

Pics...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


TJ Stretch Thread...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BigJeepJay is offline
post #9 of 140 Old 12-07-2006, 10:38 PM Thread Starter
BigJeepJay
Registered User

BigJeepJay's Avatar

Join Date: Aug 2004
Location: Freetown, Ma
Posts: 2,106
Quote:
Originally Posted by Jeepinty
There is a guy on Pirate who sells rings to use the stock fuel pump in a fuel cell but it has to be a certain depth.
Yeah they have to be a certain depth because the TJ Fuel pump uses a spring which presses against the bottom of the tank. If the cell is too large and you hit some bumps, the spring can come off which will cause your pump to die out. I have heard this problem happening to a bunch of people recently and it is an easy fix just a PIA.

Pics...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


TJ Stretch Thread...


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
BigJeepJay is offline
post #10 of 140 Old 12-07-2006, 10:51 PM
Jeepinty
Registered User
2002 TJ Wrangler

Join Date: Nov 2006
Location: Groves, Texas
Posts: 1,251
PMed you.....
Jeepinty is offline
post #11 of 140 Old 12-08-2006, 07:24 AM
JeepNazi101
Registered User

JeepNazi101's Avatar
1997 TJ Wrangler

Join Date: Nov 2005
Location: IL
Posts: 478
Dang.... Good Luck

I will be doing a similar build soon

"Professional Driver on a Closed Course"


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


i has a kool buggy
JeepNazi101 is offline
post #12 of 140 Old 12-08-2006, 08:45 AM
tweba99
Registered User

tweba99's Avatar
2008 JK Wrangler

Join Date: Apr 2004
Location: Mississippi
Posts: 1,652
Quote:
Originally Posted by JeepNazi101
Dang.... Good Luck

I will be doing a similar build soon

Nice to see a some good builds on the board lately.

1999 Jeep TJ on 1 tons (OLDER)
2003 Jeep Rubicon (OLD)
2008 Jeep Unlimited X (NEW)
tweba99 is offline
post #13 of 140 Old 12-08-2006, 11:34 AM
ErikJordan
Pimp Hand

ErikJordan's Avatar
1995 YJ Wrangler

Join Date: Apr 2002
Location: Lakewood CA
Posts: 5,088
nice parts list. i look forward to the build up progress.

___________________________________________


What is all of this talk of Savvily designed products?
ErikJordan is offline
post #14 of 140 Old 12-08-2006, 12:13 PM
JSBlu974X4
Registered User
2005 LJ Wrangler

Join Date: Feb 2003
Location: Ellicott City MD
Posts: 2,218
looks like a sweet plan. lemmie know when ya sell ya suspension...i want it badly

2005 Unlimited Rubicon Hard N Soft Tops, Clayton Long Arm on RE Coils, Warn Bumper/Tire Carrier, Warn Winch N Bumper, Currie Steering, JKS Quicker Disconnects, JKS Front Trac Bar, Bilsteins, CO2 System..Yada Yada Yada
JSBlu974X4 is offline
post #15 of 140 Old 12-08-2006, 04:45 PM
BNovak
Registered User

BNovak's Avatar

Join Date: Jun 2004
Location: Portland, Oregon
Posts: 2,061
Quote:
Originally Posted by BigJeepJay
First up...Full Hydro


Just need to get some pictures of the Orbital Valve and the new steering shaft and steering wheel.

The orbital Valve is a 7.5 GPM and has return to center functionality so when there is no tension on the system or the steering wheel, the ram will automatically re-center. The steering wheel is being setup with quick disconects so if (when) I roll I take the wheel off fast to help me get out easy. And hopefully since this gets rid of my steering box and crossover steering, I might finally be able to use my Anti-Rock again.

Finally someone else going hydro that wants to talk about it.

But...quick question. You say it is completely replacing your steering box - so no more crappy link's in the front and just the ram is going to do the steering? Never seen a setup like that and the big question is road - legality.

Reason I ask is I'm looking at hydro in the short future but just replaced my steering box. All the kit's I've seen require you to send in your old steering gear and they replace it with new stuff with the fittings on it. Well, that's fine except I have a durango box now

Keep us all posted - looks like a fun winter project. (I'm doing gears if it makes you feel better!)

'97 Forest green. ~6" total lift, 8.8, etc. 36" TSL's, winch. You get the drill.
BNovak is offline
