Teraflex Tera low vs. NP231 read here!

So while I've been building up my NP231, I was given 2 Tera 4:1 cases, both of them were trashed(thus free). I decided to pull one of the Tera cases the rest of the way apart to look a little closer as to what happened. Both tera cases had the same failures at the planetary gear set, here is why:

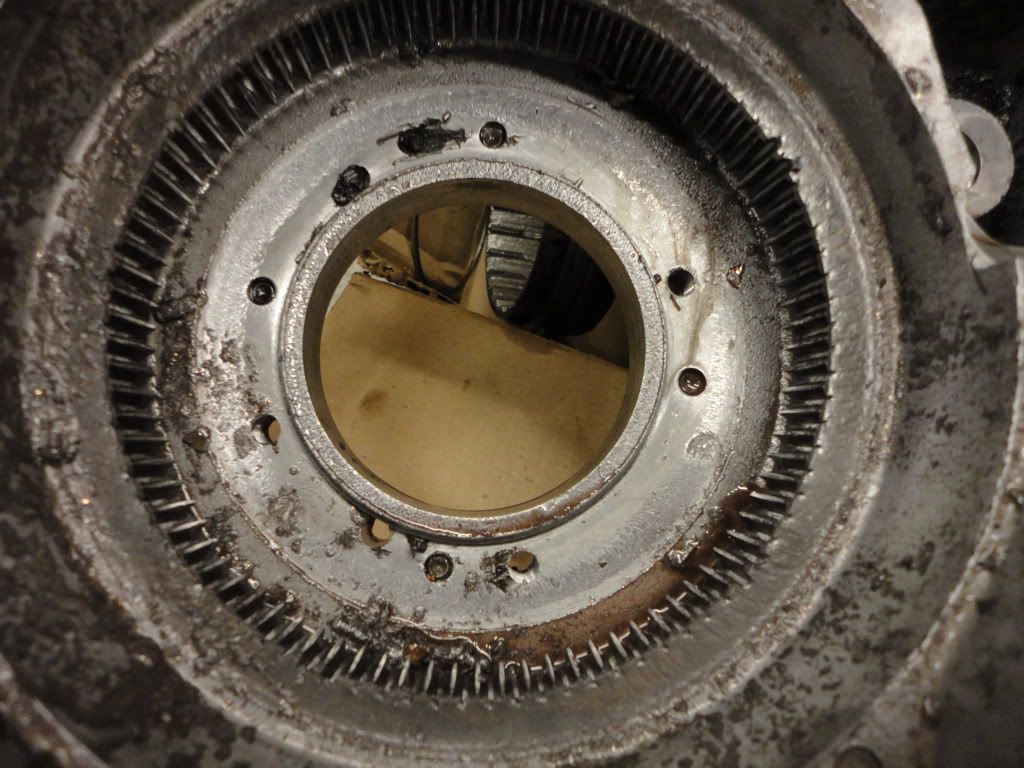

Here is the Tera case ring gear that the planetary gear rides in:

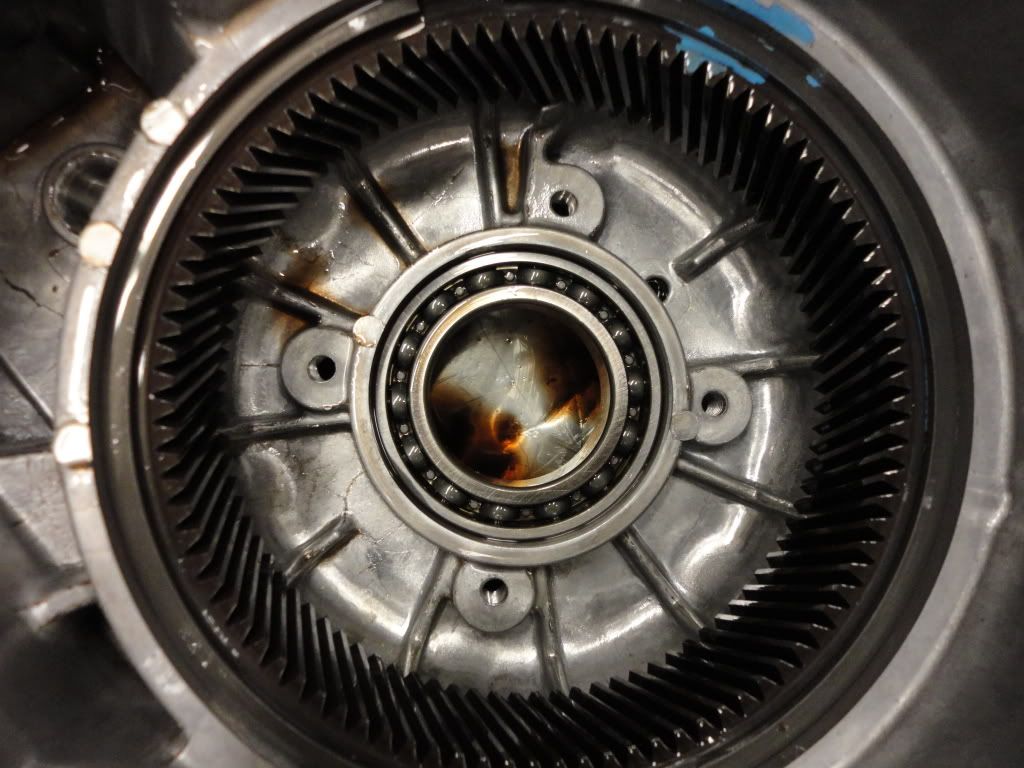

231 case:

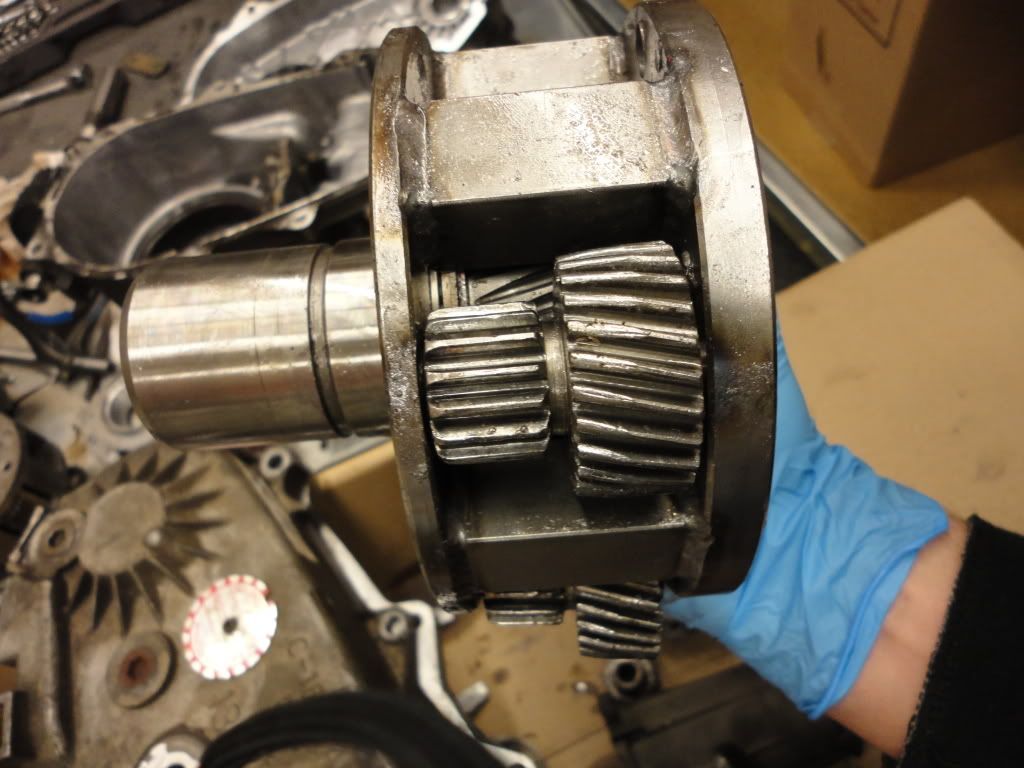

Planetary gears: Tera on the left, 231 on right

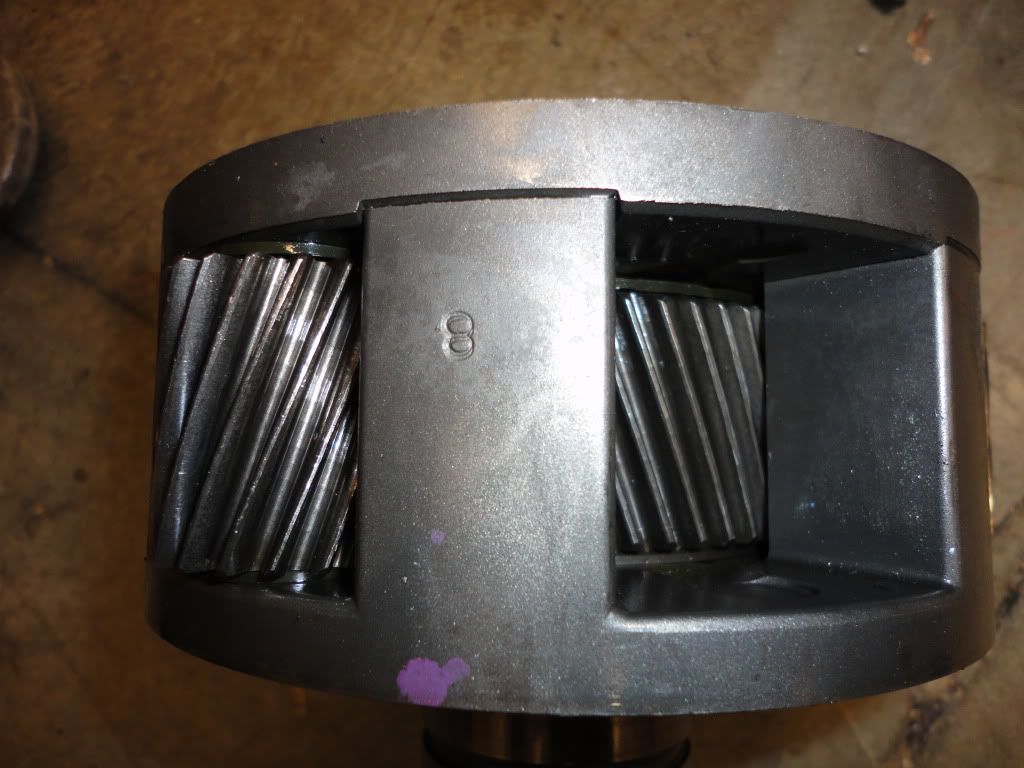

Tera, 5 pinion:

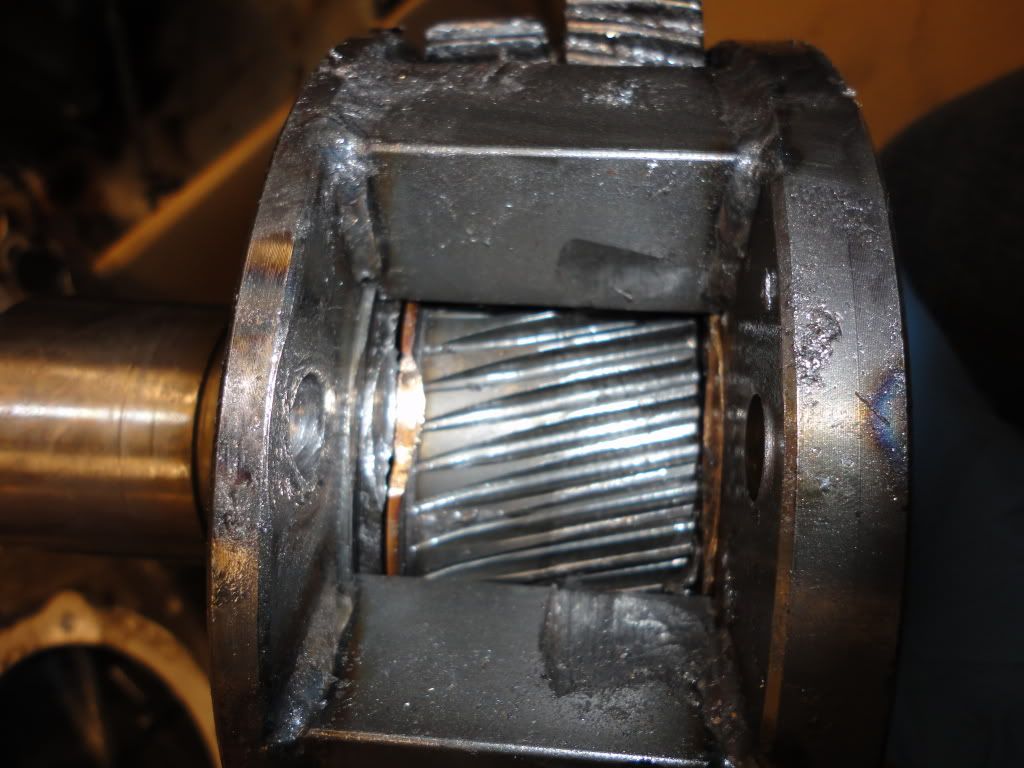

231, 3 pinion:

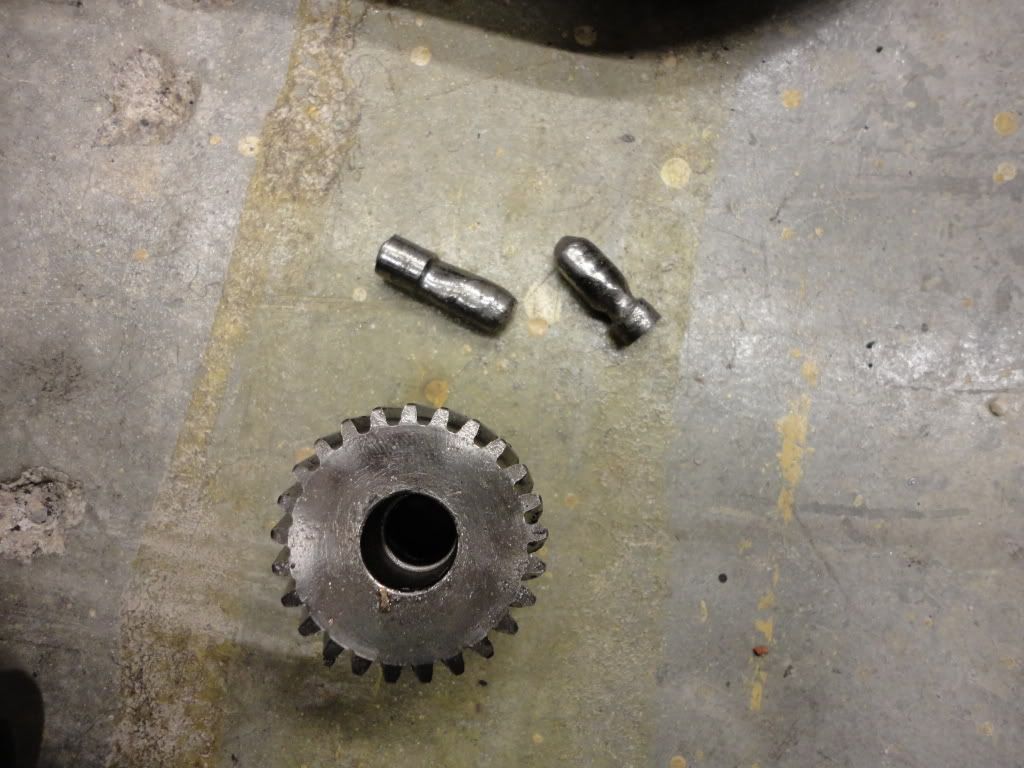

The pinion that fell out of the Tera planetary set, and the shaft that is supposed to hold it in place



RockRodHooligan is offline
Sponsored Links
Advertisement

post #2 of 61 Old 02-04-2011, 10:37 PM Thread Starter
RockRodHooligan
Web Wheeler

RockRodHooligan's Avatar
1996 XJ Cherokee

Join Date: Mar 2007
Location: Noblesville
Posts: 5,455
This is the problem I see with the Tera 4:1, the smaller straight cut gear is all that rides on the ring gear in the case, the larger helical cut gear rides on the inner gear(sun gear?)


But there is nothing on the opposite side of either of those gears to help support large torque loads. The straight cut gear is pushed in by the ring gear, and the helical gear is pushed out by the sun gear(may not be the right name for it, but thats what I'm going to call it until someone corrects me), causing large amounts of stress on the shaft that holds the pinion in place. EVERY ONE of the pinions on the Tera planetary gear had large amounts of play, the shafts probably don't look too much better than the one that fell out, there was so much play, that the pinions barely make contact with the sun gear as it turns.

The 231 planetary set has much wider contact surfaces, the ring gear, pinions, and sun gear, are all the same width, so the ring gear supports full width of the pinion under heavy torque loads from the sun gear, and vice versa. I do not have a detailed pic of the 231 planetary gear, but you can get an idea of it from the pics above, I'll take some more pics of it tomorrow and post them up.
RockRodHooligan is offline
post #3 of 61 Old 02-04-2011, 10:42 PM
03GoldTJ
Registered User
2003 TJ Wrangler

Join Date: Oct 2010
Location: Oakland
Posts: 175
Very interesting!
03GoldTJ is offline
post #4 of 61 Old 02-04-2011, 11:10 PM
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 697
wow alot of damage!!!
lclark2074 is offline
post #5 of 61 Old 02-05-2011, 10:34 PM Thread Starter
RockRodHooligan
Web Wheeler

RockRodHooligan's Avatar
1996 XJ Cherokee

Join Date: Mar 2007
Location: Noblesville
Posts: 5,455

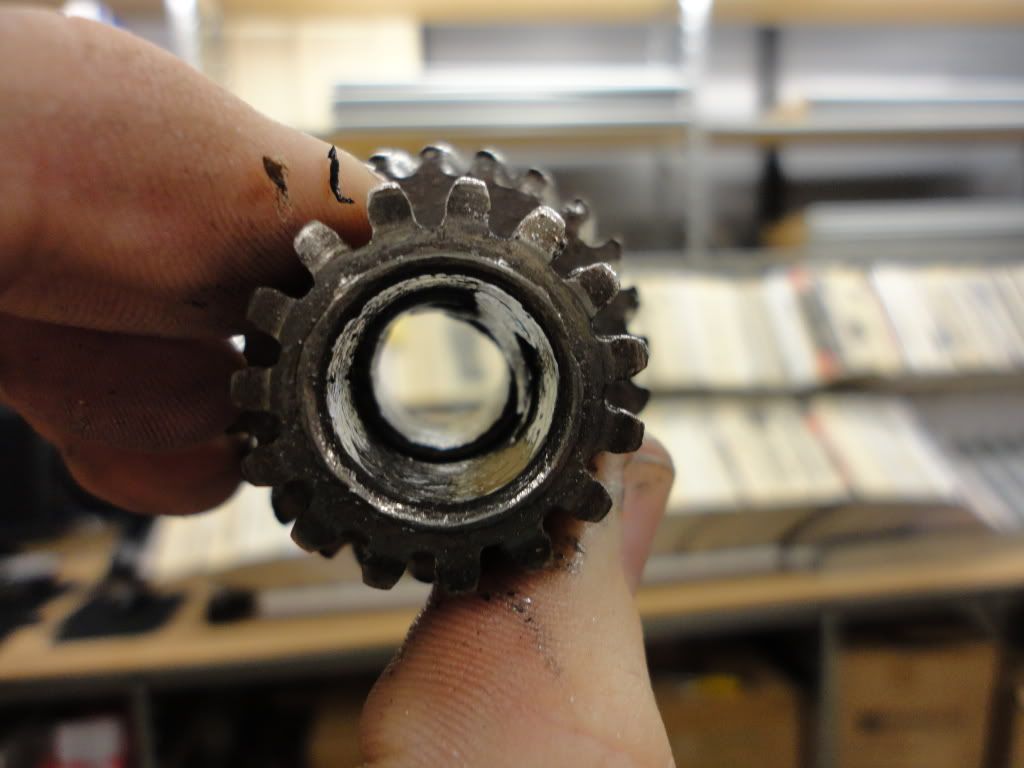

NP231 planetary pinion and sun gear:
