Superior C-Clip Eliminator install & Testing

Copied my thread from JU for anyone here that doesnt browse that forum.

Superior requested to have one testing candidate from up North. Luckily we had the oppourtunity to get our names in the hat, and ended up with a shiny new Dana 35 C-Clip eliminater chromoly axle kit from Superior.

I selected a freind of mine that I thought would be perfect for putting this kit to the test.

He runs a 99 sahara with a mild lift, 33" ssr's, winch, 2.5" lift, and a bit of armor. A frequent wheeler, this Sahara see's trail time anywhere's from 2-6 times per month. In addition to his jeep being ideal for the strength portion of the testing, it is also a daily driver that logs 3-6k miles per month. Also making it a perfect tester rig for a kit that changes the sealing process at the axles.

By all means this kit is for the do it yourselfer. I think total time was about 3 hours for us to do the intstall. That was taking things slow, and included a few additional steps that wont be included in the production kits.

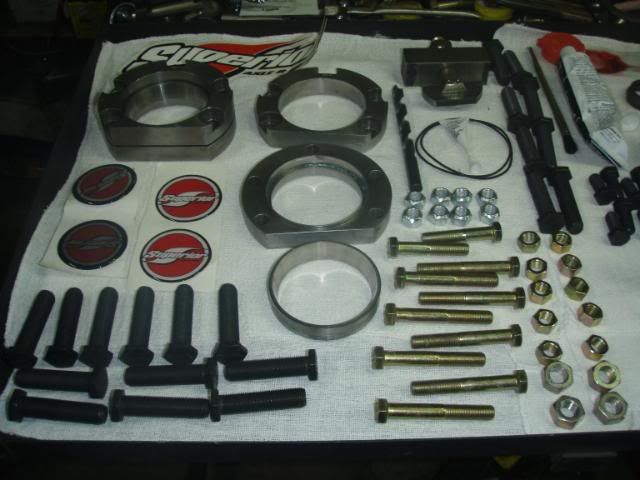

We started by laying everything out and matching all the parts to the list supplied with Superiors directions.

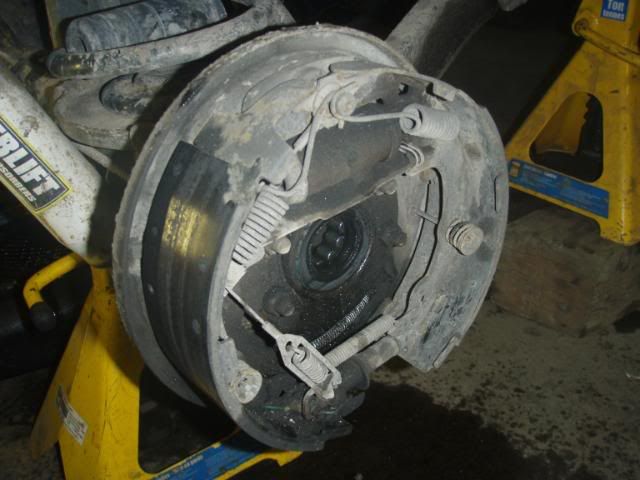

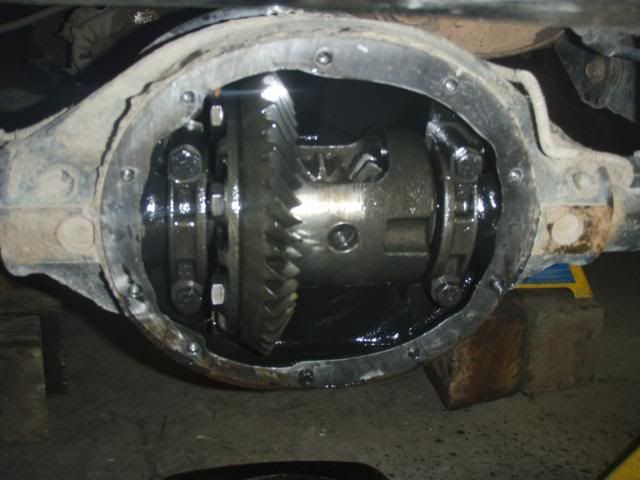

Then we tore into the sahara's rear axle. Pulling the cover, c-clips, shafts, and brakes.







Little sidenote. We got ahead of ourselves and actually pulled all the shoes off the brakes. This can be avoided if you follow the instructions, simply unbolt the baking plates, and hang the entire assemble to the side.

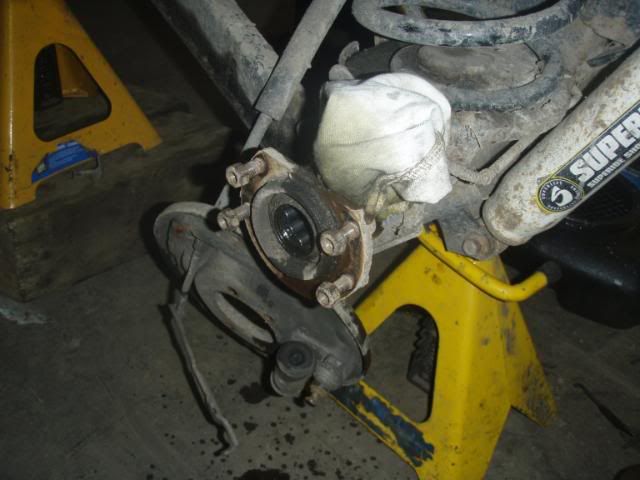

Next we popped the original backing plate studs out of the housing ends.

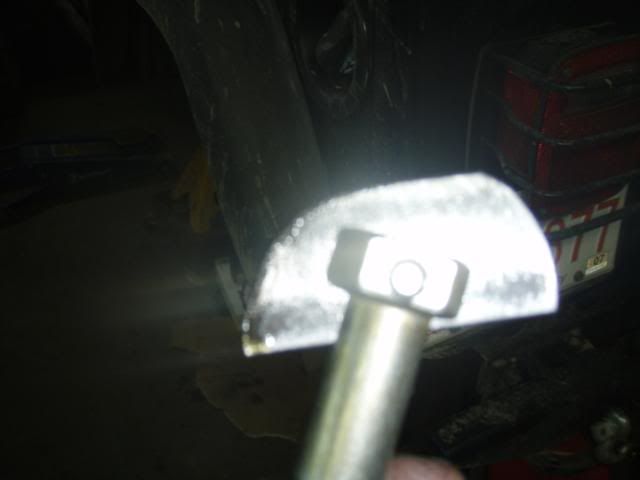

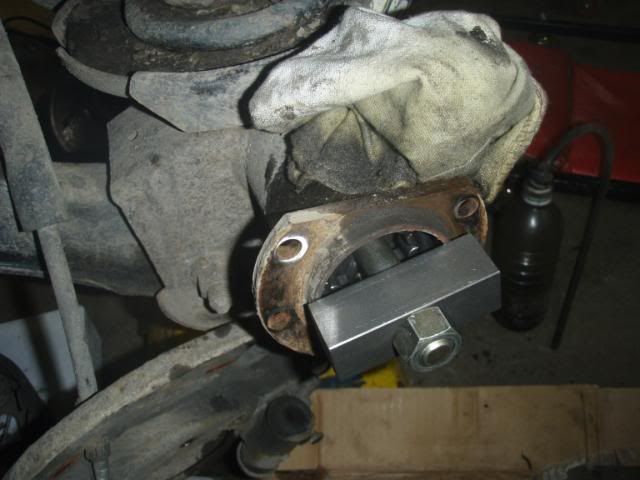

Used a small bearing puller supplied with the test kit, and removed the stock bearings. After popping the seals out with a pry bar of course.

Loved this puller. Really simple and easy to use. Doesnt slip out like those habor freight slide hammer types.

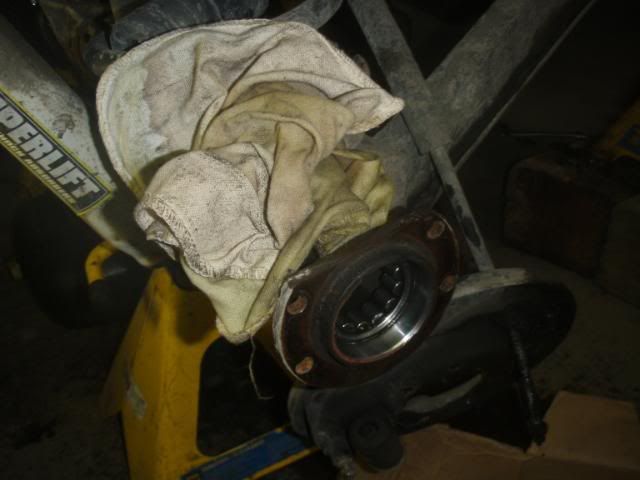

Next came the fun part. The cleaning. Probably the most important step in assuring a leak free install. We followed the directions to a "T" on this one, cleaning all the surcafes with non abbrassives like wire wheels and brake cleaner.

Shiny, see?




continued

bnine is offline   Reply With Quote
Unread 03-28-2008, 08:22 AM   #2
bnine
Registered User
2003 TJ Wrangler

Join Date: Mar 2008
Location: canada
Posts: 1,002
Now it was time for the good stuff. Installing the new components.

The new seal and bearing housing is a two peice unit, that has a d44 axle bearing race pressed ione, and another that is designed to bolt on over the d44 race.

It is very important to get the torque sequences right to ensure good sealing, so we again, followed the supplied directions perfectly.

Using the large nuts that were supplied as spacers, we torqued the first plate to spec against the original housing flange.



Next, with a supplied drillbit, we drilled a 5th hole though the housing, using the new retainer plate as a guide.



Next came the stock drum brake backing plate. For people who can follow directions from the beginning, your shoes will still on the plate at this time. :thup2:



Next came the second half of the seal housing. Again, we used the 5th hole in the housing as a guide (after torqueing to spec), and drilled through the stock backing plate.

You can see in the picture that the 5th bolt installs from the opposite direction as the other 4. This bolt goes in before the axle shaft.




Unfortunately our camera sense faded towards the end as it was getting late. The remainder of the job was pretty much the reverse of the start, except this time we didnt need to address c-clips :thup2: :thup2:

Slid the shafts in, slip the retainer plates over the 4 protuding studs, and torq them to spec.

Here is a shot of one of the axles supplied with the kit.



I can honestly say this was one of the best thought out and well manufactured after market products I've installed to date. No additional grinding, fitting, modifying, or anything of that type was required. It just went exactly how the directtions said it was supposed to.

The kit has been in for just about a week, and about 600k now. No signs of leaks what so ever.

It goes out on its first trail test this weekend.

Just as a disclaimer, this is by no means meant to be detailed install intructions for anyone getting the kit. Superior supplies a 6 page set of instrucitons with some of the best pictures and details I've ever seen for an after market product.

This is just a writeup and review from some guys testing the kit. Hopefully providing some feedback for anyone interested in this type of upgrade.
