Stock air box questions, 97 TJ

I had an aftermarket air filter and wanted a stock one. I got this used and installed it but have a couple questions. The air intake horn points right at the fan shroud. Does that look right? The way the alignment notches are designed it can only go on the box one way so it’s pointed the way it was designed but it looks wrong. Also does anyone know what is supposed to be attached to this nipple on the cover? I taped it up for now. The valve cover vents into the tube going to the intake so that’s not it. Thanks.







BigRodney is offline   Reply With Quote Quick reply to this message
Unread 12-03-2012, 08:36 PM   #2
wushaw
Rockin jeep

wushaw's Avatar
2000 TJ Wrangler

Join Date: Jan 2007
Location: Texas
Posts: 8,163
No it's not right, point it up slightly outboard or you will not like deep water crossings when the fan hits the water and you suddenly stop due to hydraulic lock of a piston.
wushaw is offline   Reply With Quote Quick reply to this message
Unread 12-03-2012, 09:10 PM   #3
bail315
Registered User
2003 TJ Wrangler

Join Date: Mar 2008
Location: Castle Rock, CO
Posts: 122
The "nipple" on the air box is for the ccv tube. The design was changed after 2004 and the breather tube was moved from the intake tube to the air box. Your air box cover is from a later model. As long as your seal it well it shouldn't cause you a problem.
bail315 is offline   Reply With Quote Quick reply to this message
Unread 12-04-2012, 07:38 AM   #4
BYuen
Registered User
2001 TJ Wrangler

Join Date: Jun 2007
Location: , Arkansas
Posts: 4,658

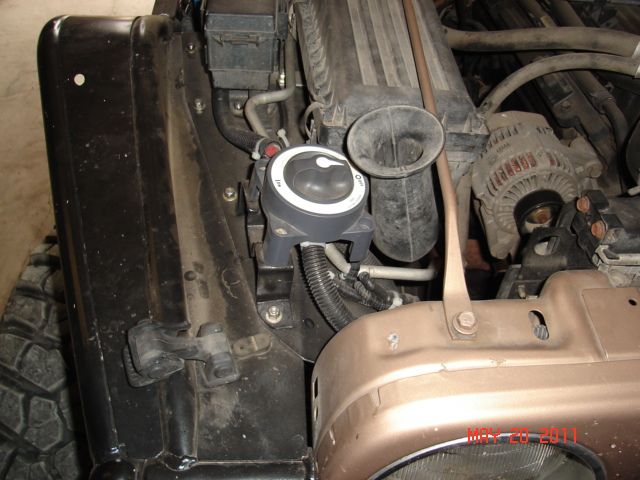

You can see the minor difference in an '06 engine:



Just plug up and airbox vent and you're good to go.
BYuen is offline   Reply With Quote Quick reply to this message
Unread 12-04-2012, 07:50 AM   #5
1FuddyMucker
Registered User
1983 CJ7

Join Date: Jan 2012
Location: Leicester, North Carolina
Posts: 325
Quote:
Originally Posted by BigRodney View Post
Also does anyone know what is supposed to be attached to this nipple on the cover? I taped it up for now. The valve cover vents into the tube going to the intake so that’s not it. Thanks.


Thats for those with a 4cylinder to hook up the nitrous line.
__________________
Don't breed em' if you can't feed em'.
1FuddyMucker is offline   Reply With Quote Quick reply to this message
Unread 12-04-2012, 08:32 AM   #6
Jerry Bransford
Administrator

Jerry Bransford's Avatar
2004 TJ Wrangler

Join Date: Jan 2003
Location: Escondido, California, California
Posts: 60,584
If you rotate the "trumpet" as it is called enough to unlock it and pull it out, that you can reinsert it in a different position and lock it so it points upward as it is supposed to. The pic in post #4 shows the trumpet in the correct position.
__________________
Getting Savvy...

Coolest offroad magazine ever! CRAWL Magazine

When you have a choice, buy American.
Jerry Bransford is online now   Reply With Quote Quick reply to this message
Unread 12-04-2012, 08:32 AM   #7
BigRodney
Registered User
1997 TJ Wrangler

Join Date: Mar 2012
Location: Bend, Oregon
Posts: 995
Quote:
Originally Posted by BYuen View Post
You can see the minor difference in an '06 engine:



Just plug up and airbox vent and you're good to go.
Did ya take that picture the day you bought the jeep or do you never drive it? Nice jeep, thanks for the picture.
BigRodney is offline   Reply With Quote Quick reply to this message
Unread 12-04-2012, 08:35 AM   #8
BigRodney
Registered User
1997 TJ Wrangler

Join Date: Mar 2012
Location: Bend, Oregon
Posts: 995
Thanks for the pictures guys. Anyone know why they changed the pcv hose location? Less venture effect, want oil to drip on the filter, could sell a longer hose? Should I update to the new design?
BigRodney is offline   Reply With Quote Quick reply to this message
Unread 12-04-2012, 09:32 AM   #9
BYuen
Registered User
2001 TJ Wrangler

Join Date: Jun 2007
Location: , Arkansas
Posts: 4,658
Quote:
Originally Posted by BigRodney View Post
Did ya take that picture the day you bought the jeep or do you never drive it? Nice jeep, thanks for the picture.
Not my Jeep. I've got an '01. My engine has always like this



Quote:
Originally Posted by BigRodney View Post
Thanks for the pictures guys. Anyone know why they changed the pcv hose location? Less venture effect, want oil to drip on the filter, could sell a longer hose? Should I update to the new design?
Probably for some kind of emissions thing. I would just keep the old design.
BYuen is offline   Reply With Quote Quick reply to this message
Unread 12-04-2012, 09:50 AM   #10
prjohnson
Registered User
2002 TJ Wrangler

Join Date: May 2008
Location: Marietta, GA
Posts: 566
I'd hate to have to clean that & can't imagine what the rest of the jeep looks like. I hate cleaning mud so much!
prjohnson is offline   Reply With Quote Quick reply to this message
Unread 12-04-2012, 10:09 AM   #11
tjstevo
Registered User
2002 TJ Wrangler

Join Date: Nov 2012
Location: pheonix, az
Posts: 78
Quote:
Originally Posted by BYuen View Post
Not my Jeep. I've got an '01. My engine has always like this





Probably for some kind of emissions thing. I would just keep the old design.
