Unread 07-17-2010, 01:58 AM   #1
69injun
Registered User

69injun's Avatar
1997 TJ Wrangler

Join Date: May 2007
Location: South Carolina
Posts: 327
Started Grizzly locker install!

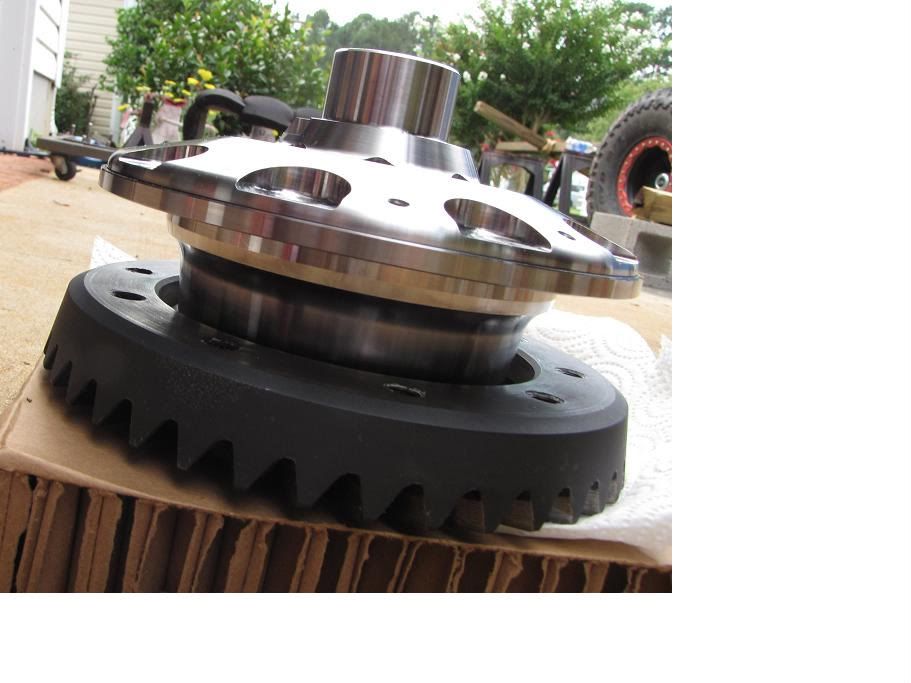

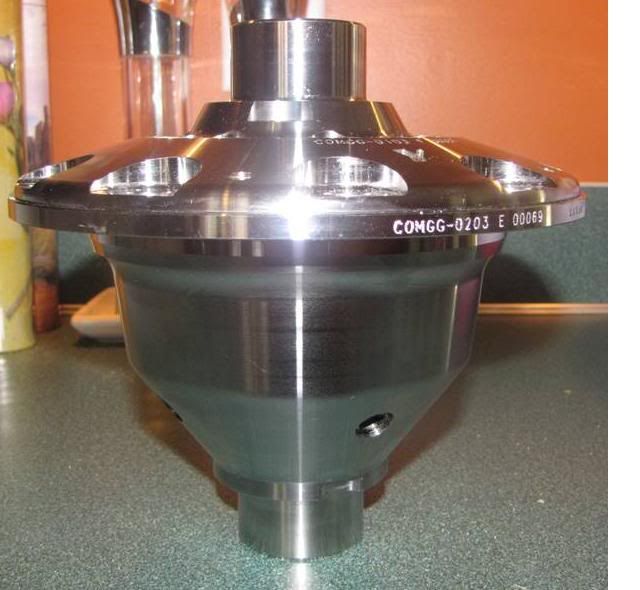

Grizzly Locker that is

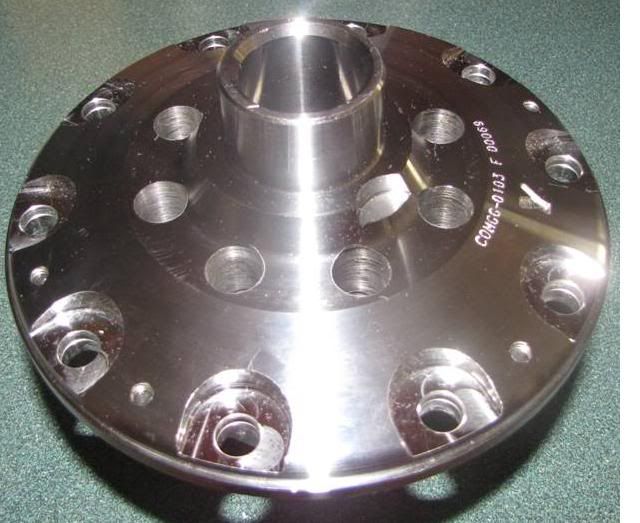

What a work of Art!!



It is going to stink covering it up!

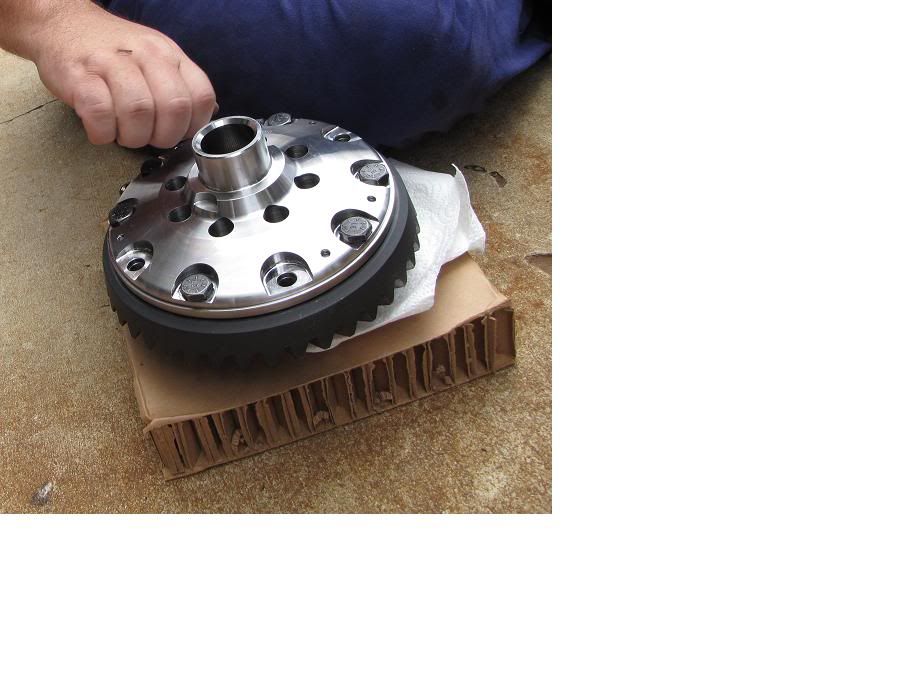

Snugging up the ring gear for test patterns.

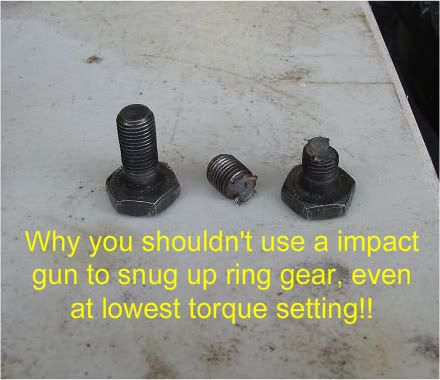

This is why we are just snugging it up. We now are waiting on a bolt set.(and ordered a spare) Local Dealership wanted $6.00 per bolt, however Randy's Ring and pinion was $0.43 each. Hmmmmmm!


Ring gear snugged up for testing.

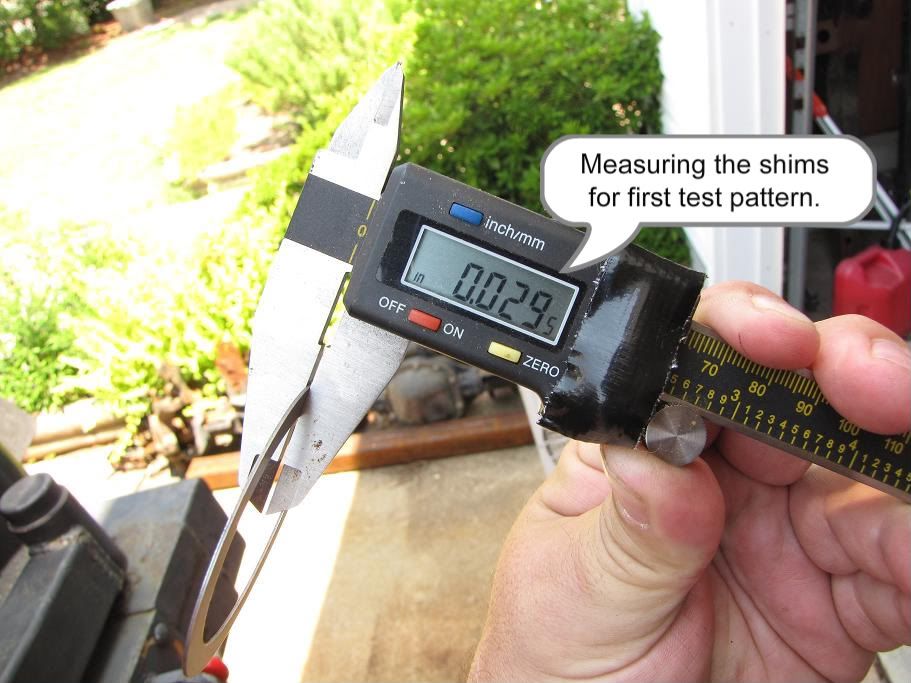

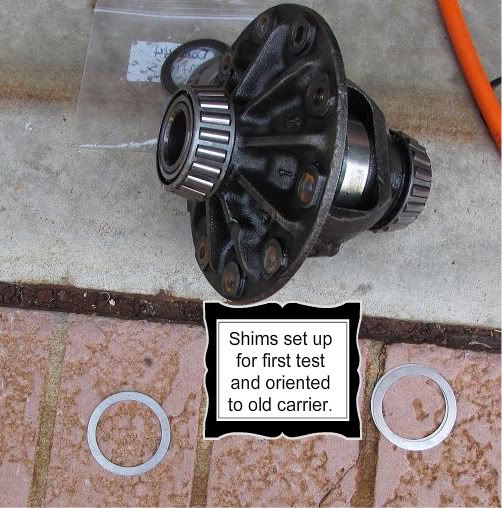

Measuring shims, Veneer Calipers are a must.(I think anyway)

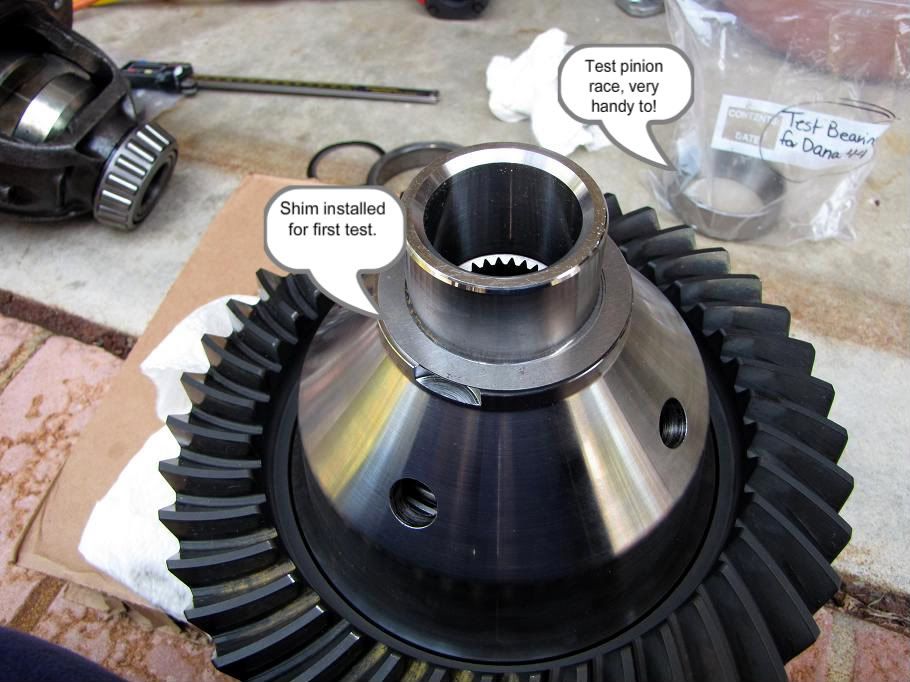

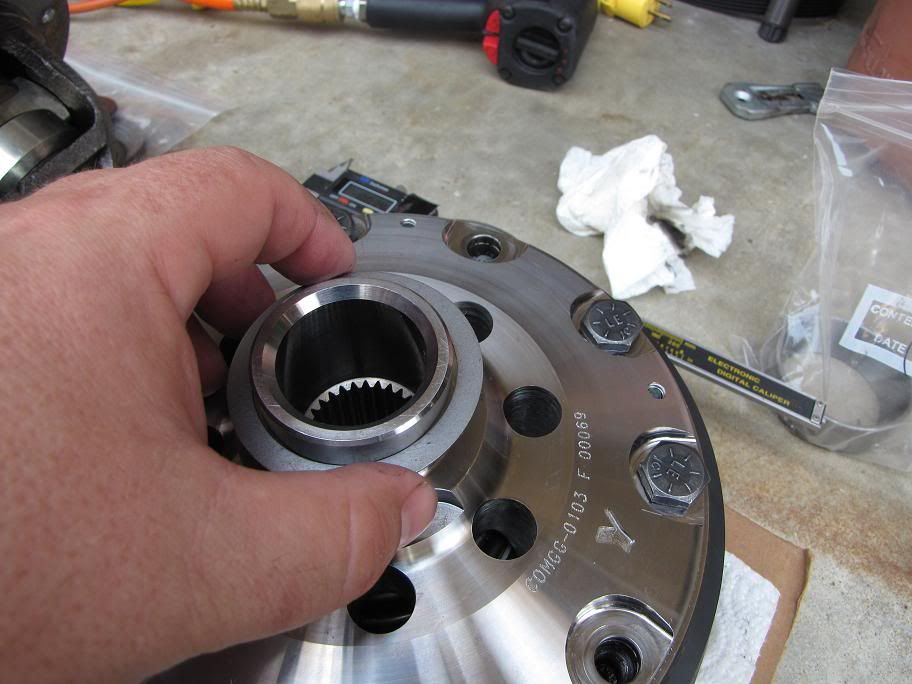

First shim going on!

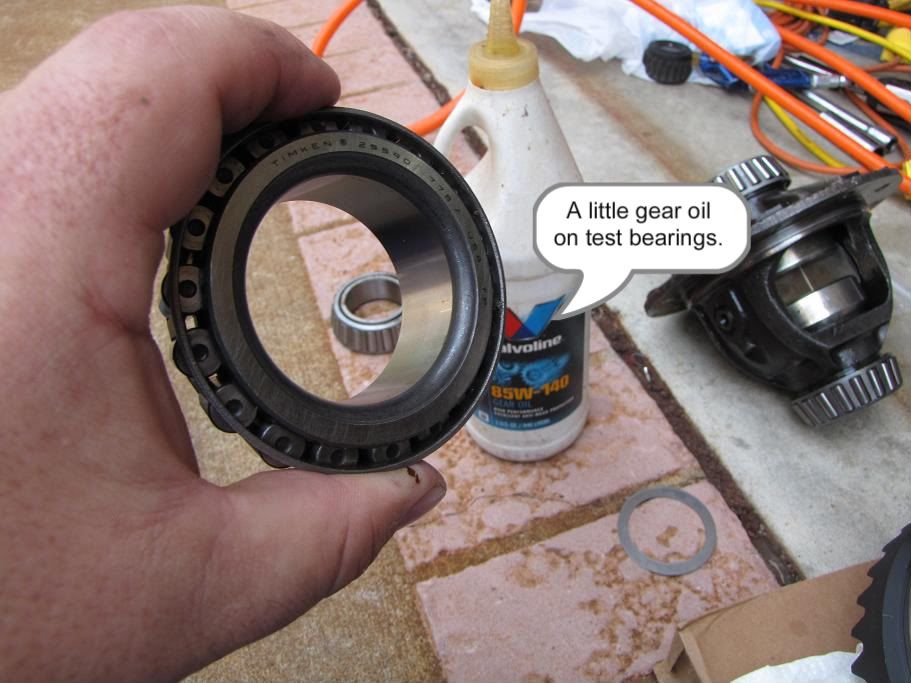

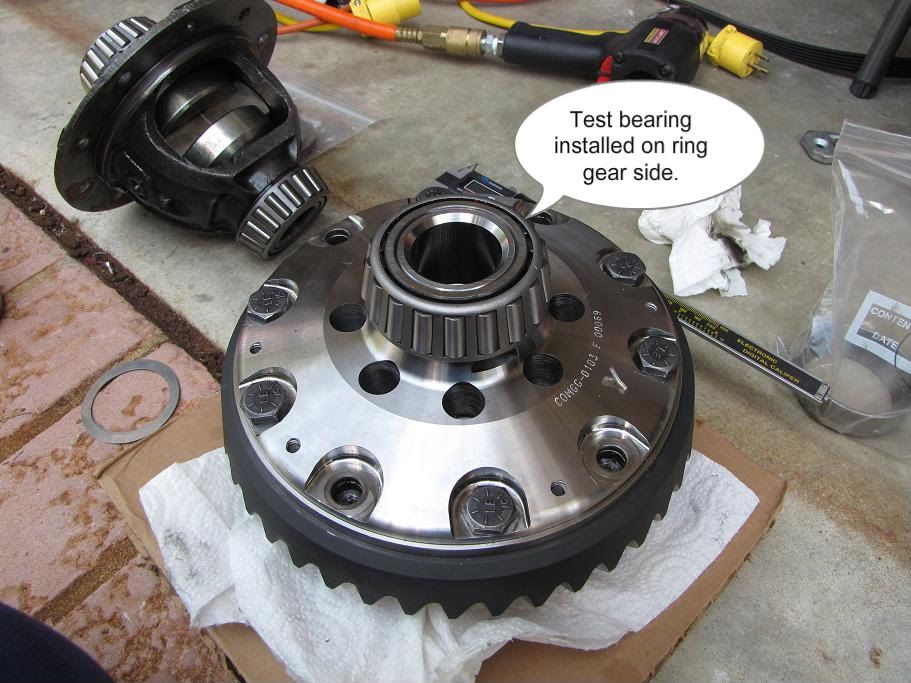

Test bearing ring gear side in place.


Shims Pinion side of carrier.


Clean case ready for carrier.

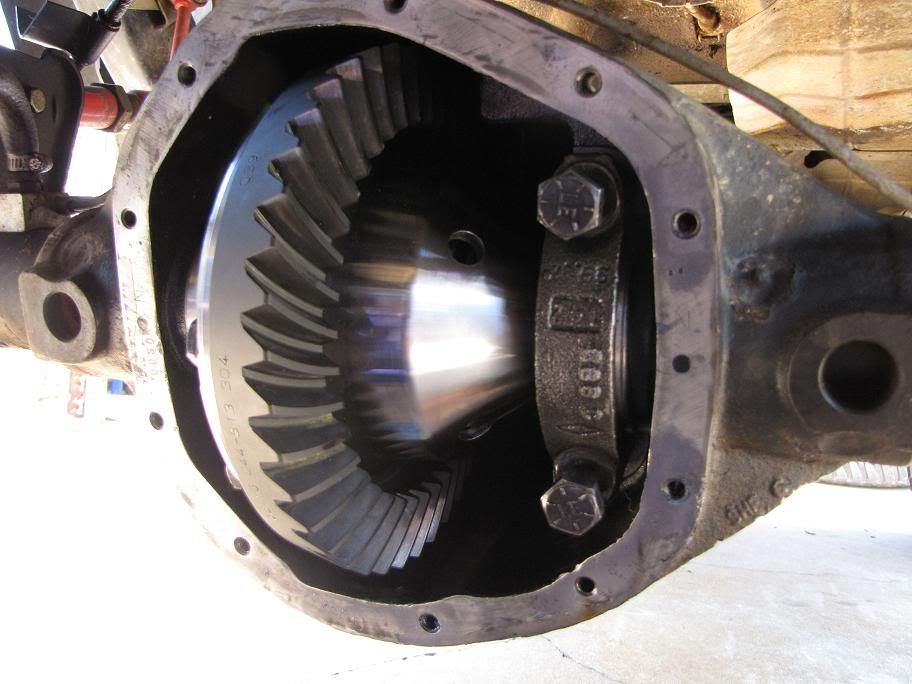

Carrier in place with one bearing cap installed.

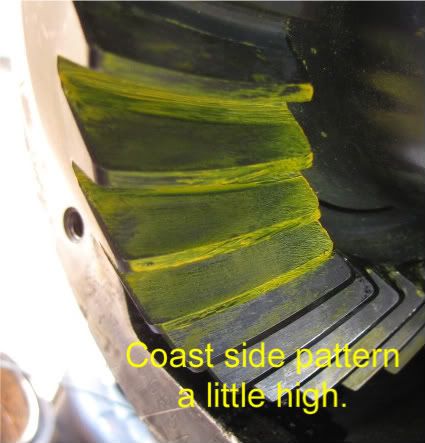

Coast side pattern check first test.


Drive side pattern check first test.

......to be continued!

__________________
Kevin
www.getyourmonkey.com
97 TJ on 37's and 69 Firebird Convertable on blocks

My NP231 build
My Grizzly install

Last edited by 69injun; 07-29-2010 at 08:46 PM..
69injun is offline   Reply With Quote Quick reply to this message
Unread 07-17-2010, 06:06 AM   #2
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 23,324
very nice...can't wait to see the rest. let us know how that grizzly locker performs too
Unlimited04 is offline   Reply With Quote Quick reply to this message
Unread 07-19-2010, 03:52 AM   #3
69injun
Registered User

69injun's Avatar
1997 TJ Wrangler

Join Date: May 2007
Location: South Carolina
Posts: 327
Hope to get my Ring gear bolts early this week. And need a pinion seal and pinion nut and we will be in business. Can't wait to try out the new Grizzly locker!
__________________
Kevin
www.getyourmonkey.com
97 TJ on 37's and 69 Firebird Convertable on blocks

My NP231 build
My Grizzly install
69injun is offline   Reply With Quote Quick reply to this message
Unread 07-25-2010, 11:21 AM   #4
69injun
Registered User

69injun's Avatar
1997 TJ Wrangler

Join Date: May 2007
Location: South Carolina
Posts: 327
Got it done!!

Well I finished the install yesterday and have all the pics on photobucket so tonight I will finish the write up!! And so far I love the Grizzly's street manners. It is quiet. I have had a Ez-locker or Aussie in my TJ since I became it owner. I ran spider gears for about a month between the EZ and Aussie. And for the last two months I have had a mini spool. And this is like having the spider gears, except when a wheel slips. I slipped the inside (left turn) wheel a little on some loose sand and the other wheel grabbed and picked up the front of the jeep hard. It appears it will work great all around. I might need to change the front from a Aussie to a Grizzly! But first I will finish this write up!

And then long arm the rear!

But so far Grizzly locker two thumbs up!!
__________________
Kevin
www.getyourmonkey.com
97 TJ on 37's and 69 Firebird Convertable on blocks

My NP231 build
My Grizzly install
69injun is offline   Reply With Quote Quick reply to this message
Unread 07-29-2010, 10:06 PM   #5
69injun
Registered User

69injun's Avatar
1997 TJ Wrangler

Join Date: May 2007
Location: South Carolina
Posts: 327
Well Finally I have a chance to add some more.


I didn't want to but I had to shim the pinion to. I had a slight pinion leak anyway. So case all cleaned up!

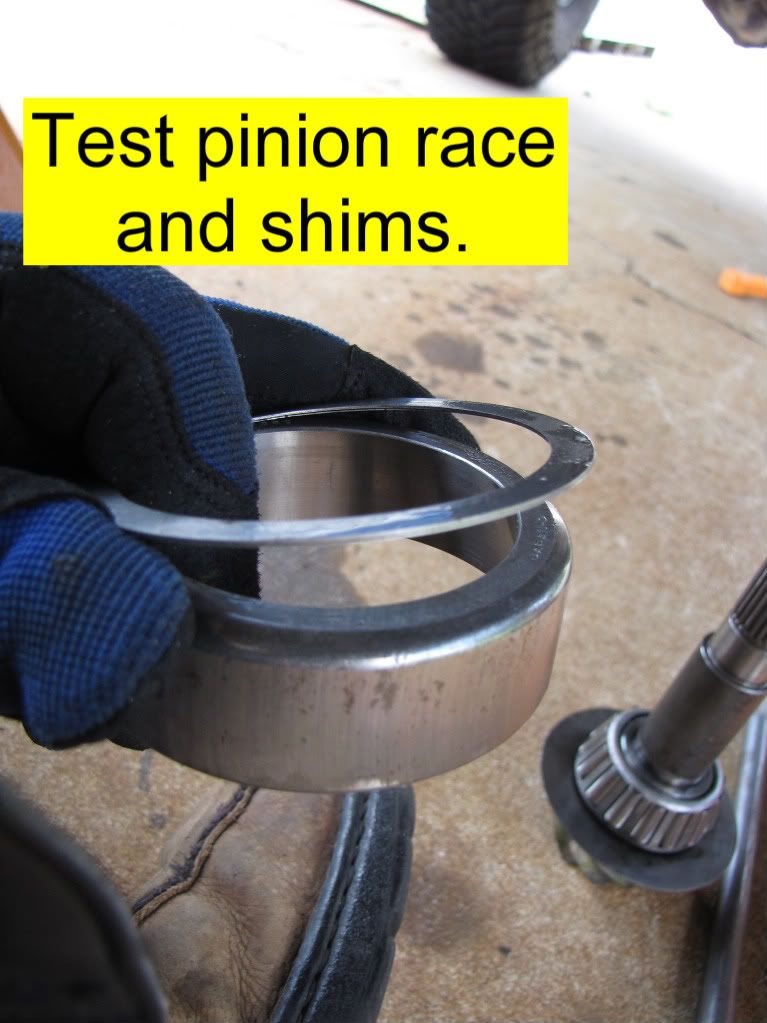

Test pinion race is also a great investment.


Test race slides right in, makes for quick shims changes.


Pinion parts stacked in place. Except Yoke and pinion nut. I didn't show it but I use a non-distortion thread nut for test fits. The on and off again of the distortion thread pinion nut will eventually mess up the threads of the pinion.


I chased the pattern around for a bit and then got down to getting backlash in order. Setting up for checking backlash.

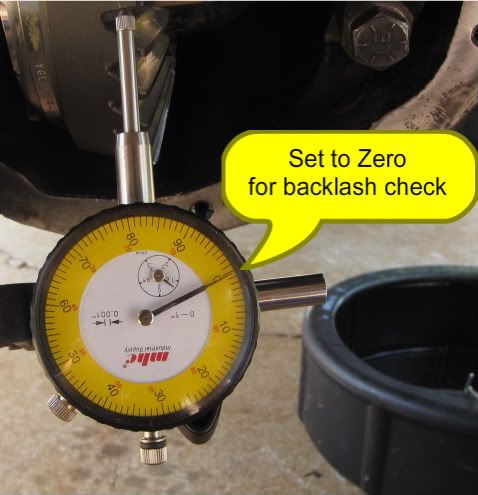

Zero set

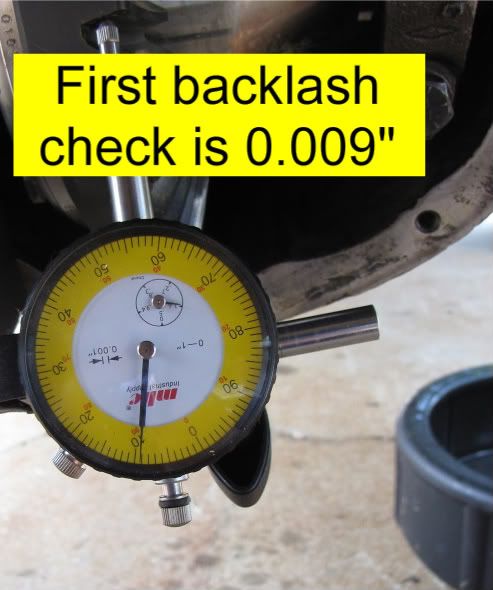

First Backlash reading was 0.011" I adjusted the Carrier bearing shims and got this reading, 0.009". I will try one more adjustment.


Backlash reading 0.008". Dana 44 spec is 0.006" - 0.010", so this is better right in the middle. This is great. now one more pinion check and we should be good to reassemble.


Here is the Crew Chief checking everything for final install!!

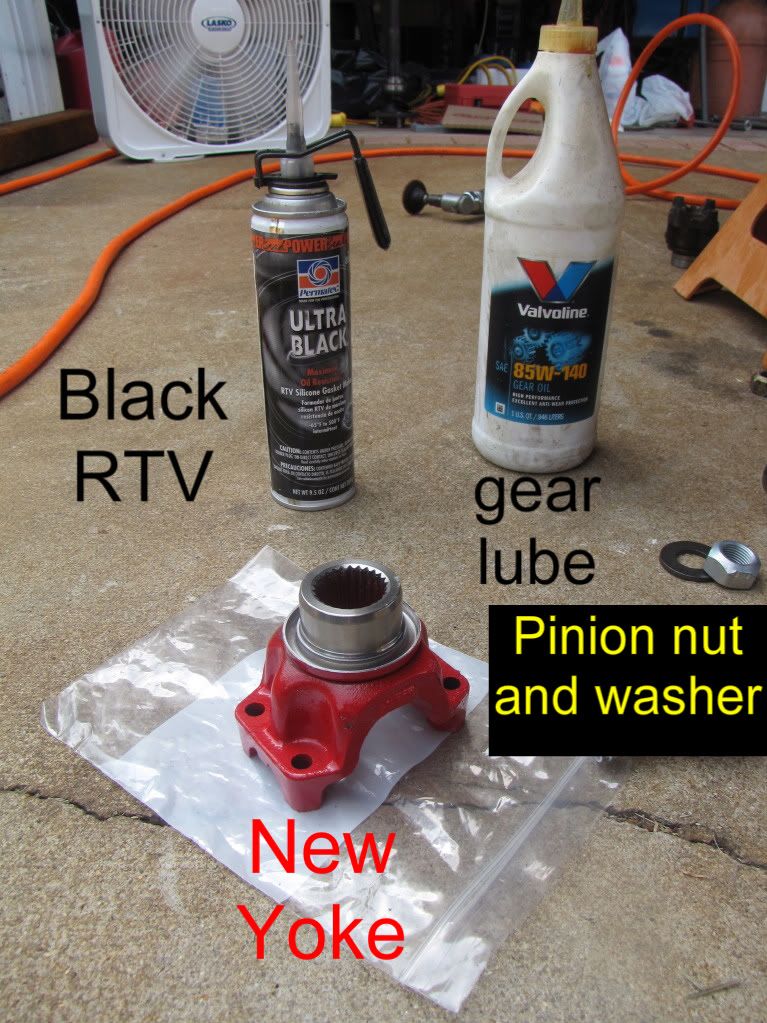

Here is all the stuff for installing pinion for final assembly. I put a light coat of RTV on splines to seal them. I will show a picture later of my tools for pinion install.


Everything ready to torque up.

More to come!!.....









__________________
Kevin
www.getyourmonkey.com
97 TJ on 37's and 69 Firebird Convertable on blocks

My NP231 build
My Grizzly install
69injun is offline   Reply With Quote Quick reply to this message
Unread 08-03-2010, 08:06 PM   #6
69injun
Registered User

69injun's Avatar
1997 TJ Wrangler

Join Date: May 2007
Location: South Carolina
Posts: 327
So far still love the Grizzly

I am loving the grizzly locker. Very quiet I only hear it on very sharp turns. And after the spool it turns like a jeep again. I don't know when I will get to test the off-road manners of the grizzly but I look forward to it.
__________________
Kevin
www.getyourmonkey.com
97 TJ on 37's and 69 Firebird Convertable on blocks

My NP231 build
My Grizzly install
69injun is offline   Reply With Quote Quick reply to this message
Unread 08-04-2010, 08:37 PM   #7
69injun
Registered User

69injun's Avatar
1997 TJ Wrangler

Join Date: May 2007
Location: South Carolina
Posts: 327
final chapter

Here is the last few steps of my install



Locker installed with non-test bearings installed.

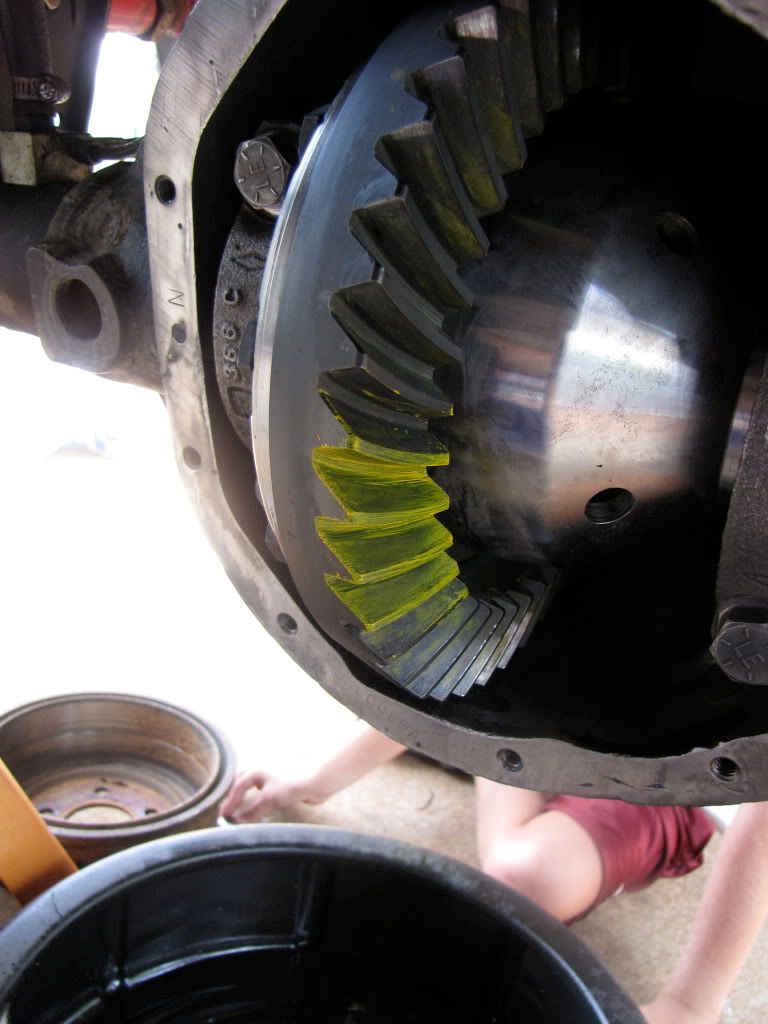

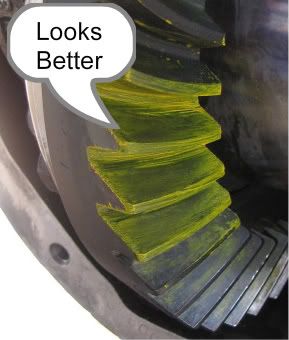

Test pattern check.

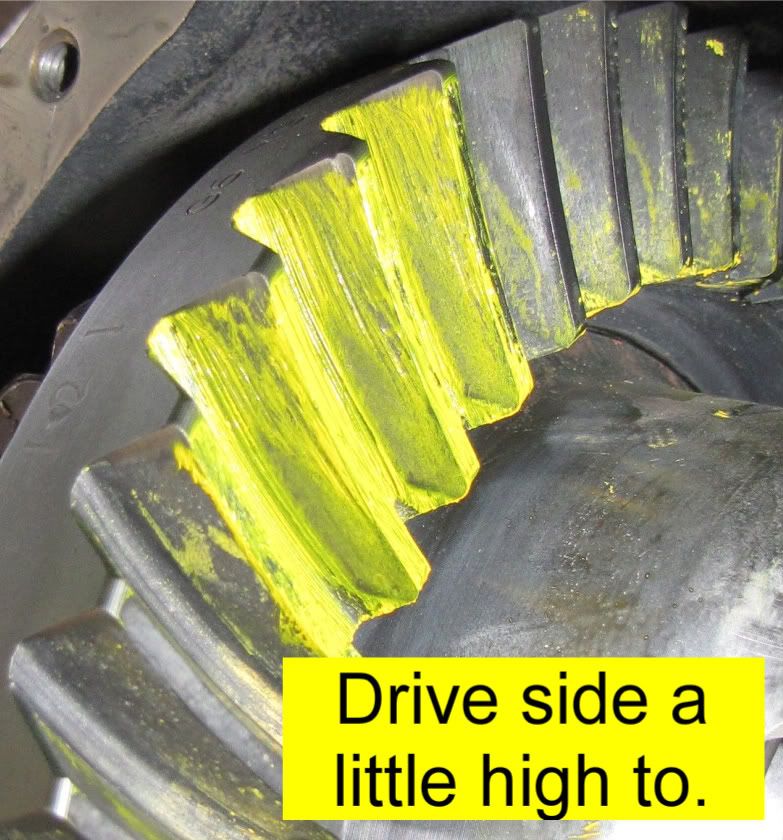

Drive side pattern, which Randy's install guide say's is not as important for used gears. Which mine are.

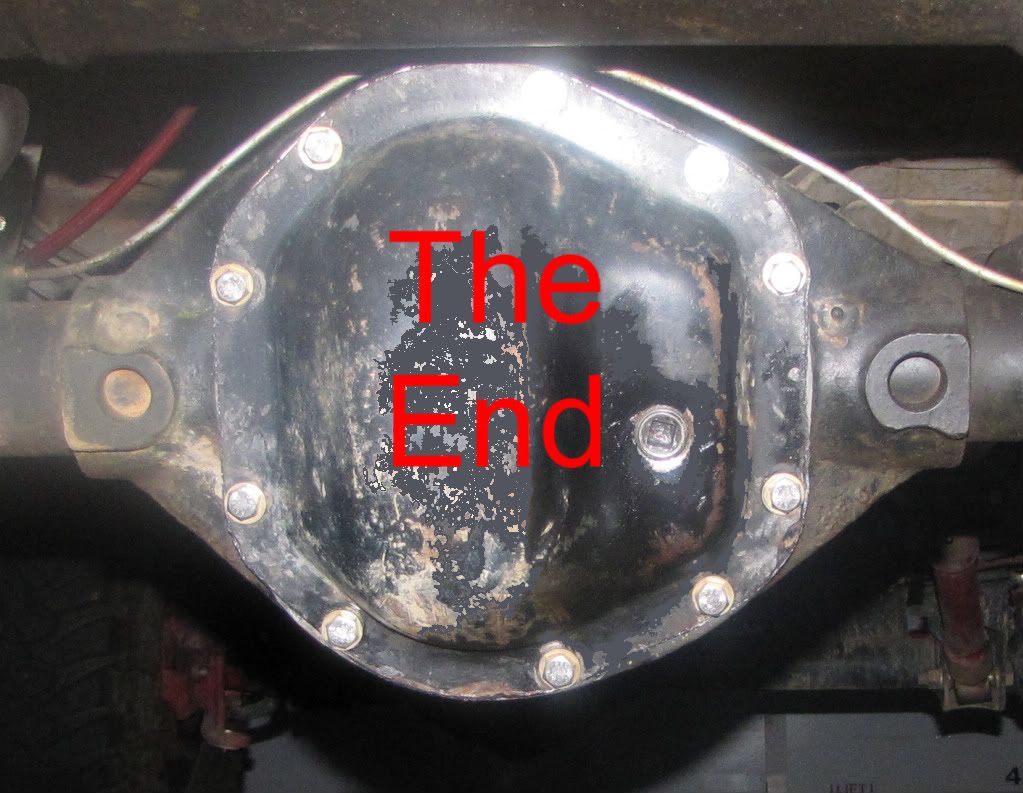

and with all looking good I bring this install to a close!

__________________
Kevin
www.getyourmonkey.com
97 TJ on 37's and 69 Firebird Convertable on blocks

My NP231 build
My Grizzly install
69injun is offline   Reply With Quote Quick reply to this message
Unread 08-04-2010, 11:04 PM   #8
JeepnBlake
Registered User
2004 TJ Wrangler

Join Date: Jan 2008
Location: Lincoln Nebraska
Posts: 3,091
That's awesome, great guide with lots of step by step pictures and not too much text. A+ for you.
__________________
-Blake-

Build Thread: http://www.jeepforum.com/forum/f22/j...thread-985907/
Dad's Build Thread: http://www.jeepforum.com/forum/f22/d...build-1474170/
OEM Fog Light Connectors, Conversions, and Extension Info:http://www.jeepforum.com/forum/f20/o...ngler-1008928/
JeepnBlake is online now   Reply With Quote Quick reply to this message
Unread 08-05-2010, 04:41 AM   #9
69injun
Registered User

69injun's Avatar
1997 TJ Wrangler

Join Date: May 2007
Location: South Carolina
Posts: 327
Thanks

you know a picture is worth a lot of words!! And there are plenty of instructions and books out there with lots of words and stuff. I know the first time I did a set of gears a color picture for a few things would have helped allot. Same thing when I did my transfer case upgrade. Some of the drawings in the jeep manual left me with more questions than answers. But once I got into the case it all made sense.

I just wont to give anyone who tries it a little better visual understanding of what you will see.
__________________
Kevin
www.getyourmonkey.com
97 TJ on 37's and 69 Firebird Convertable on blocks

My NP231 build
My Grizzly install
69injun is offline   Reply With Quote Quick reply to this message
Unread 01-12-2011, 09:48 AM   #10
Tyler99TJ
Registered User
1997 TJ Wrangler

Join Date: Jun 2008
Location: Centerville, Ohio
Posts: 425
How do you like the Grizzly now that you have had it for a few months?
Tyler99TJ is offline   Reply With Quote Quick reply to this message
Unread 01-12-2011, 10:02 AM   #11
Wheelin98TJ
JEEP FREAK

Wheelin98TJ's Avatar
1998 TJ Wrangler

Join Date: Apr 2004
Location: , Southeast MI
Posts: 24,467
Nice work.

Added to the FAQ.
Wheelin98TJ is offline   Reply With Quote Quick reply to this message
Unread 01-12-2011, 08:05 PM   #12
69injun
Registered User

69injun's Avatar
1997 TJ Wrangler

Join Date: May 2007
Location: South Carolina
Posts: 327
Quote:
Originally Posted by Tyler99TJ View Post
How do you like the Grizzly now that you have had it for a few months?
So far great. I have to admit I haven't been able to wheel it yet. I have had it in Snow here twice now. It does pop every now and then, but nothing like my EZ locker or my Aussie locker did. And it does click when cornering but much quieter than the old lockers. I do get the occasional person in the parking lot telling me that my CV joints are going bad! LOL I usually don't have the heart to tell them I don't have CV joints.

And as you can see from the pictures it is a gorgeous piece of machined art, so I feel kind of cool just knowing it is in there looking pretty. Even if I can't see it!!
__________________
Kevin
www.getyourmonkey.com
97 TJ on 37's and 69 Firebird Convertable on blocks

My NP231 build
My Grizzly install
69injun is offline   Reply With Quote Quick reply to this message
Unread 01-12-2011, 08:55 PM   #13
cj777
Registered User
1977 CJ7

Join Date: Apr 2005
Location: Durham, NC
Posts: 334
Nice writeup. I love my Grizzly. It's been great on and offroad.
__________________
Wanna cracker?

'74 CJ5
'81 CJ7
'03 TJ
cj777 is offline   Reply With Quote Quick reply to this message
Unread 01-13-2011, 01:46 AM   #14
anderton_yellow
Registered User
2001 TJ Wrangler

Join Date: Nov 2010
Posts: 11
great work, very inform Thanks.
__________________
TJ 01, Bogger 38.5, 4.88, MM9000+PSC+Warn M8000, LED bars, Truck-Light, UFC Skid
anderton_yellow is offline   Reply With Quote Quick reply to this message
Unread 01-13-2011, 02:28 AM   #15
2006_Sport
Registered User
2006 TJ Wrangler

Join Date: Feb 2009
Location: Sherrills Ford, NC
Posts: 10,829
Quote:
Originally Posted by 69injun View Post
So far great. I have to admit I haven't been able to wheel it yet. I have had it in Snow here twice now. It does pop every now and then, but nothing like my EZ locker or my Aussie locker did. And it does click when cornering but much quieter than the old lockers. I do get the occasional person in the parking lot telling me that my CV joints are going bad! LOL I usually don't have the heart to tell them I don't have CV joints.

And as you can see from the pictures it is a gorgeous piece of machined art, so I feel kind of cool just knowing it is in there looking pretty. Even if I can't see it!!
I had someone say that to me last week when pulling into the gas station. This guy goes "hey man your CVs are goin bad". I was like "CVs? What? No man that's my front aussie locker, Wranglers dont have CVs". He had this baffled look on his face and went inside.
