Serpentine belt replacement help 1997 wrangler

I have been searching for an answer to this question for about 5 hours now and cannot seem to find the correct answer. I am trying to replace my Serpentine belt off my 1997 I6 Wrangler. There is no 1/2 inch drive belt tensioner on it. There is no adjustment screw (RED BOX) like in this picture ( http://www.nakedjeep.com/Projects/TT...x/TTubes10.jpg ). I have the Haynes manual and it tells me to loosen the belt then remove it. Thanks that helps. I can see that I can just loosen the idler pulley with a 15mm socket but I am not sure how i would replace the tension back on.

I am sure I can get it off I just like to be sure I know what I am doing to get the correct tension. I have just finished installing my lift and new clutch on my jeep but feel stupid I can't figure this out. Thanks for any help you can give.

Thanks!

pedal_damn_it is offline   Reply With Quote
Unread 03-18-2011, 06:37 AM   #2
athos76
Registered User
2006 TJ Wrangler

Join Date: Jul 2008
Location: El Paso, TX
Posts: 1,533
The tensioner should be automatic. Put the socket on the tensioner and it should loosen the belt enough to get it off and the new one back ob
__________________
2006 I6 6-Speed X, 33" Goodyear Duratrac, 8.8.
athos76 is offline   Reply With Quote
Unread 03-18-2011, 06:40 AM   #3
trotter8
Registered User
1997 TJ Wrangler

Join Date: Nov 2007
Location: Royal Oak, MI
Posts: 71
See the wheel below the one with your blue squares? You need to loosen the center bolt on that wheel (this is the wheel that moves). Once that bolt is loose (not off) then you can turn the bolt in the red box to adjust the tension.
__________________
97 TJ 4.0L, Auto, 2.5" Lift, 1.25 BL, 1" MML, F&R Tube Fenders, 35" BFG AT, 4.56 HPD30/8.8
trotter8 is offline   Reply With Quote
Unread 03-18-2011, 06:42 AM   #4
pedal_damn_it
Registered User
1997 TJ Wrangler

Join Date: Jan 2011
Location: _, nj
Posts: 104
double
pedal_damn_it is offline   Reply With Quote
Unread 03-18-2011, 06:47 AM   #5
pedal_damn_it
Registered User
1997 TJ Wrangler

Join Date: Jan 2011
Location: _, nj
Posts: 104
Quote:
Originally Posted by trotter8 View Post
See the wheel below the one with your blue squares? You need to loosen the center bolt on that wheel (this is the wheel that moves). Once that bolt is loose (not off) then you can turn the bolt in the red box to adjust the tension.
Thats just it. my jeep does not have the bolt in the RED BOX. I am now thinking the original owner did some of his own "custom" mods. Thanks for the heads up. I will run out and get a bolt and nut on the way home.
pedal_damn_it is offline   Reply With Quote
Unread 03-18-2011, 06:49 AM   #6
freeskier93
Web Wheeler

freeskier93's Avatar
1997 TJ Wrangler

Join Date: Oct 2009
Location: Longmont, Colorado
Posts: 6,558
Quote:
Originally Posted by pedal_damn_it View Post
Thats just it. my jeep does not have the bolt in the RED BOX. So I am guess I need to go out and buy a new bolt and nut (or find one).
So if you look behind tension pulley, just below the power steering pump, there isn't a very long bolt? In other words this pulley can move up and down freely?
freeskier93 is offline   Reply With Quote
Unread 03-18-2011, 06:59 AM   #7
pedal_damn_it
Registered User
1997 TJ Wrangler

Join Date: Jan 2011
Location: _, nj
Posts: 104
Quote:
Originally Posted by freeskier93 View Post
So if you look behind tension pulley, just below the power steering pump, there isn't a very long bolt? In other words this pulley can move up and down freely?
There is a slit that that when I loosen the bolt it will (it should) slide up and release the tension. I just was unsure how to replace the tension. I am guessing I need to get that bolt that is pictured in the RED SQUARE in the picture. I am going to go look at it again during the day today. Anyone know how it is held in? Is it threaded on the black metal bracket? Thanks for your help everyone.
pedal_damn_it is offline   Reply With Quote
Unread 03-18-2011, 07:04 AM   #8
freeskier93
Web Wheeler

freeskier93's Avatar
1997 TJ Wrangler

Join Date: Oct 2009
Location: Longmont, Colorado
Posts: 6,558
Quote:
Originally Posted by pedal_damn_it View Post
There is a slit that that when I loosen the bolt it will (it should) slide up and release the tension. I just was unsure how to replace the tension. I am guessing I need to get that bolt that is pictured in the RED SQUARE in the picture. I am going to go look at it again during the day today. Anyone know how it is held in? Is it threaded on the black metal bracket? Thanks for your help everyone.
I find it hard to believe that bolt is missing. If the tension bolt was missing you would have no tension in the system and nothing would work.

There should be a very long bolt at an angle behind the tensioner pulley, by turning the bolt clockwise or counterclockwise it moves the whole pulley up and down, either relieving pressure on the belt or tightening the belt.
freeskier93 is offline   Reply With Quote
Unread 03-18-2011, 07:53 AM   #9
pedal_damn_it
Registered User
1997 TJ Wrangler

Join Date: Jan 2011
Location: _, nj
Posts: 104
Quote:
Originally Posted by freeskier93 View Post
I find it hard to believe that bolt is missing. If the tension bolt was missing you would have no tension in the system and nothing would work.

There should be a very long bolt at an angle behind the tensioner pulley, by turning the bolt clockwise or counterclockwise it moves the whole pulley up and down, either relieving pressure on the belt or tightening the belt.
You mean the bolt that is circled in red in the picture right? Then yes it is missing. That is why I am so confused.
pedal_damn_it is offline   Reply With Quote
Unread 03-18-2011, 07:59 AM   #10
sprad42183
Registered User
1997 TJ Wrangler

Join Date: Sep 2009
Location: , WV
Posts: 153
take a picture of your pulley.
__________________
Cry havoc and let slip the hogs of war.......what ever farm animal of war, Lana. "Sterling Archer"

Rampage!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
sprad42183 is offline   Reply With Quote
Unread 03-18-2011, 09:47 AM   #11
rudyyj
Registered User
1997 TJ Wrangler

Join Date: Feb 2005
Posts: 303

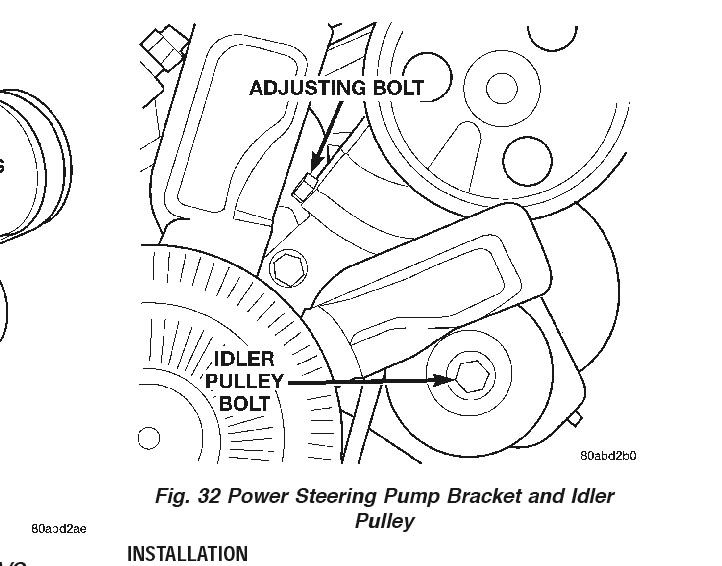

I broke the long adjusting bolt (in red square) before. My bolt had corroded where it passes thru the block that the pully bolt goes thru or someone before me didn't losen the idler pulley bolt before tryingto adjust the tension. the idler pulley bolt is what maintains tension once it is established. i was able to rig it well enough to get to the dealer by pushing down on the pulley and then tightening the idler pully bolt. So my guess is you need to replace the adjusting bolt and the block it passes thru. wasn't expensive at the dealer

do you have the hole for the red square bolt?


rudyyj is offline   Reply With Quote
Unread 03-18-2011, 09:58 AM   #12
pedal_damn_it
Registered User
1997 TJ Wrangler

Join Date: Jan 2011
Location: _, nj
Posts: 104
Here are the pictures I just took:





pedal_damn_it is offline   Reply With Quote
Unread 03-18-2011, 09:59 AM   #13
pedal_damn_it
Registered User
1997 TJ Wrangler

Join Date: Jan 2011
Location: _, nj
Posts: 104
Quote:
Originally Posted by rudyyj View Post
I broke the long adjusting bolt (in red square) before. My bolt had corroded where it passes thru the block that the pully bolt goes thru or someone before me didn't losen the idler pulley bolt before tryingto adjust the tension. the idler pulley bolt is what maintains tension once it is established. i was able to rig it well enough to get to the dealer by pushing down on the pulley and then tightening the idler pully bolt. So my guess is you need to replace the adjusting bolt and the block it passes thru. wasn't expensive at the dealer

do you have the hole for the red square bolt?
Yes, So I am guess that is my problem. Just need to get that bolt. Is that all you purchased? anything else?
pedal_damn_it is offline   Reply With Quote
Unread 03-18-2011, 10:19 AM   #14
rudyyj
Registered User
1997 TJ Wrangler

Join Date: Feb 2005
Posts: 303
yes...i can see the hole in the bracket and the remains of the adjusting bolt...i would also buy the "block"

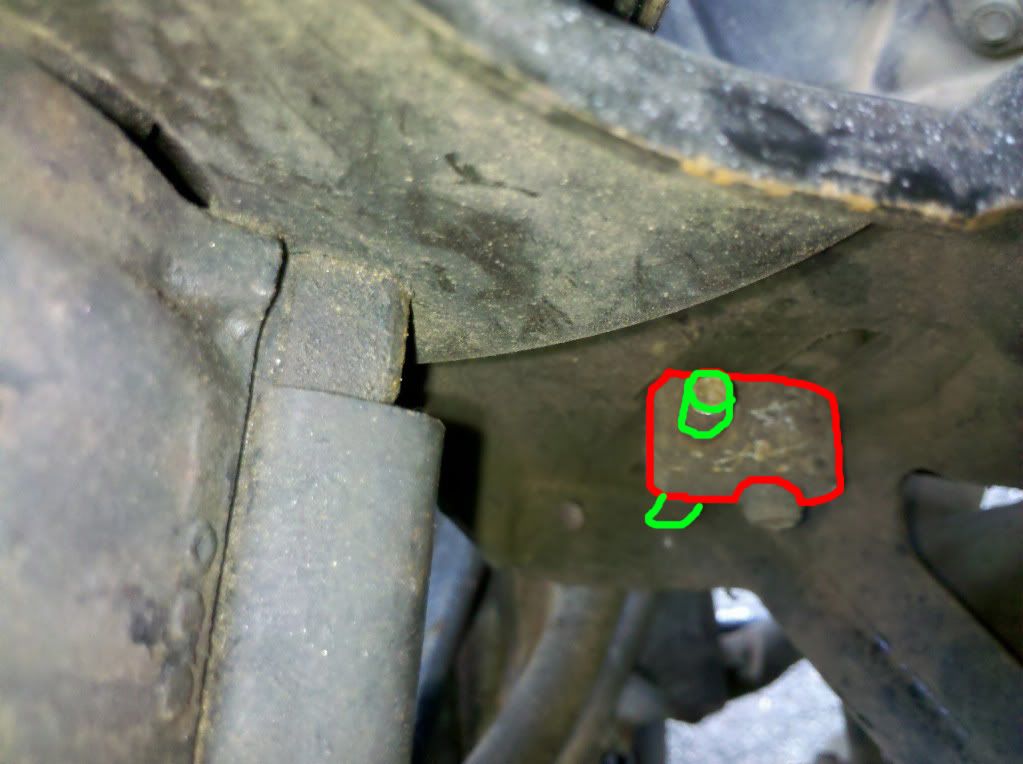

the red is the "block" i am referring to it will have two threaded hols at 90 degree to each other. one for the adjusting bolt the other for the idler pulley bolt. the green is the remains of the adjusting bolt.
rudyyj is offline   Reply With Quote
Unread 03-18-2011, 10:19 AM   #15
sprad42183
Registered User
1997 TJ Wrangler

Join Date: Sep 2009
Location: , WV
Posts: 153
yep, get a new bolt, remove the old snaped one and you should be good to go.
__________________
Cry havoc and let slip the hogs of war.......what ever farm animal of war, Lana. "Sterling Archer"

Rampage!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
sprad42183 is offline   Reply With Quote
