ROCK KRAWLER 4-Link SA kit (Pics!)

Alright! So during a camping trip to Hollister last month I managed to snap off my rear track bar/upper control arm mount on the rear axle
(since this was early in the day it called for more beer and being a passenger for once!)


I got the Jeep towed home with the help of my buddy's AAA insurance!
Then I had to work on fixing it

I decided to go with the ROCK KRAWLER Short Arm 4-Link setup. So far it has much more travel flexin.. but I still have to chop my exhuast to ensure no rubbing on the trails.
The Pics:

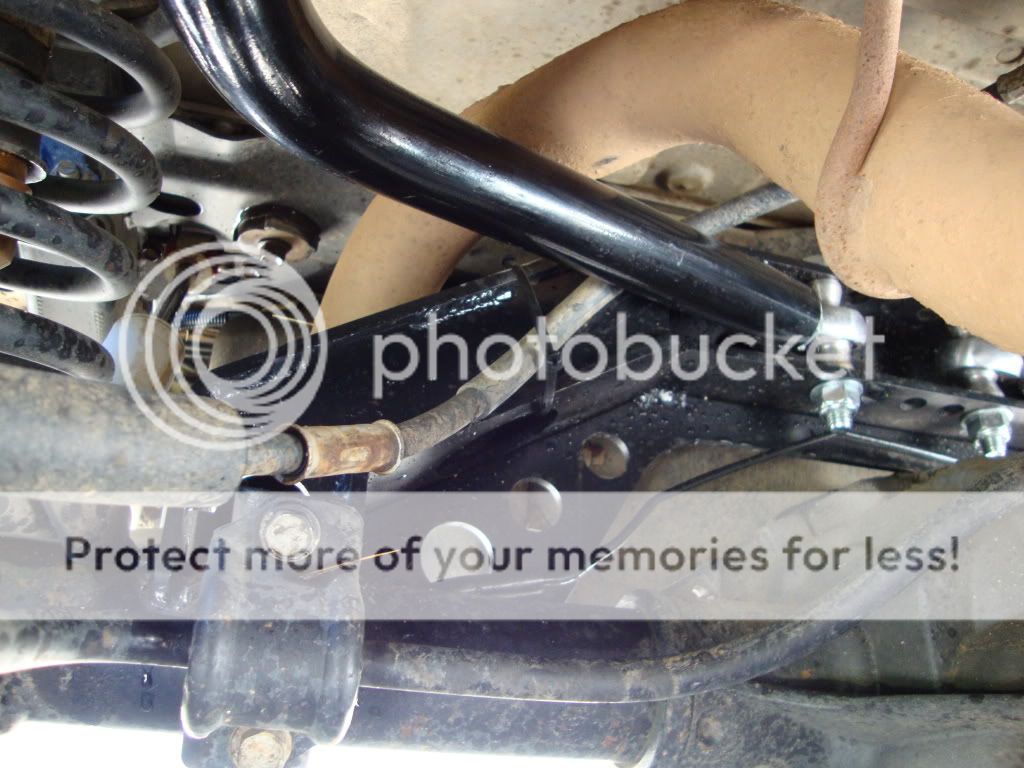

This Truss is huge!


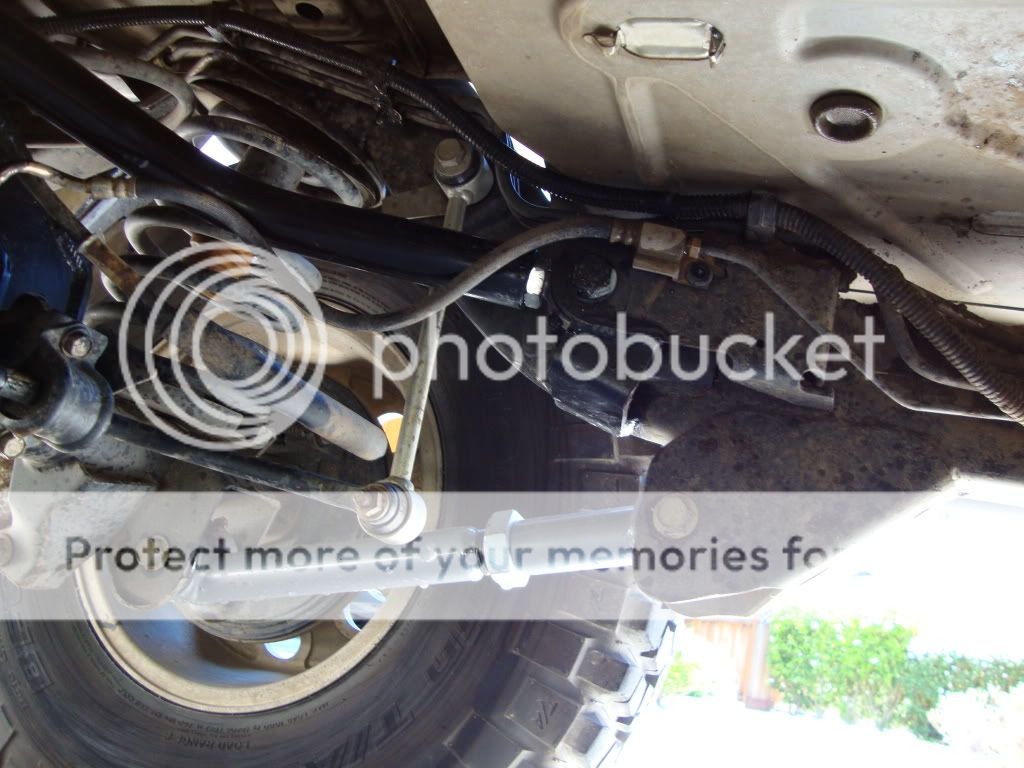

Adjustable lower Control Arms are needed for pinion angle. I went with the RE Super Flex.

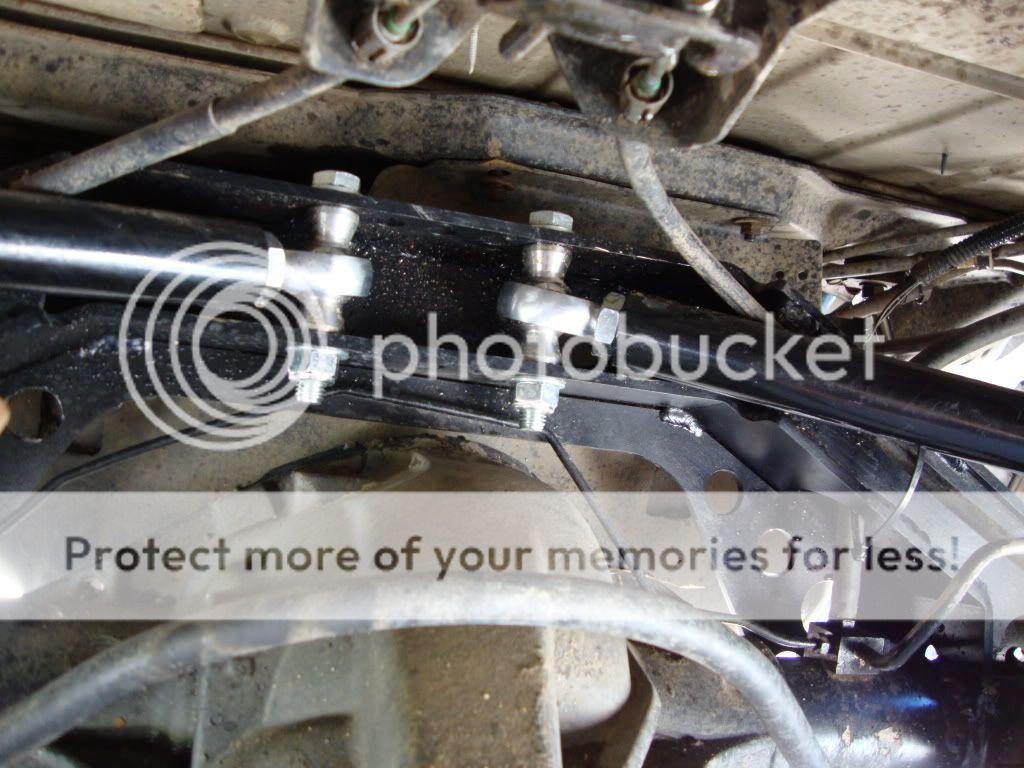

The RK kit also comes with weld-on strenghtening plates for the frame side of the upper CAs.

And some flex shots!


Anyways.. that's it. It rides awesome and I can't wait to get it on some trails! Cheers everybody!

__________________
2004 4.0L I6 TJ BUILD:
[url]http://www.jeepforum.com/forum/f22/history-thirdeye-1233347/[/url]
1997 2.4L I4 TJ BUILD:
http://www.jeepforum.com/forum/f22/thirdeyes-second-tj-1816002/

Last edited by thirdeye; 06-26-2010 at 12:05 PM..
thirdeye is offline   Reply With Quote Quick reply to this message
Unread 06-24-2010, 04:12 PM   #2
Imped
Web Wheeler

Imped's Avatar
2004 TJ Wrangler

Join Date: Feb 2008
Location: Indianapolis
Posts: 19,548
Nice man, I've really enjoyed mine. I'd recommend running the axle end joints on the two closest holes. More triangulation = stronger.
__________________
OlllllllO
Float Test Build
IndyORV
Imped is offline   Reply With Quote Quick reply to this message
Unread 06-24-2010, 04:18 PM   #3
MisfitSeven
MAIL Crawler.

MisfitSeven's Avatar
1998 TJ Wrangler

Join Date: Feb 2009
Location: Bennington, Nebraska
Posts: 3,553
i run mine just like that, on the two outer holes. in the instructions is says to mount them there for more stability.
__________________
Mail crawling.
MisfitSeven is offline   Reply With Quote Quick reply to this message
Unread 06-24-2010, 04:27 PM   #4
lumpster
Web Wheeler

lumpster's Avatar
2012 JK Wrangler

Join Date: Jul 2008
Location: kansas City MO
Posts: 4,674
Quote:
Originally Posted by Imped View Post
Nice man, I've really enjoyed mine. I'd recommend running the axle end joints on the two closest holes. More triangulation = stronger.
stronger? the angle the arms are run at i dont think it would matter at all, but if you know something i dont explain, i love learning. I am thinking that if you got to move them more than an inch or inch and a half a side then maybe, but they are already triangulated alot since they are so short.
__________________
Quote:
Originally Posted by mrblaine View Post
Don't ask me to repeat or remember those prices, I may be grumpy tomorrow and either double them or quit altogether.



Want to STOP?

Edited
lumpster is offline   Reply With Quote Quick reply to this message
Unread 06-24-2010, 04:46 PM   #5
Wheelin98TJ
JEEP FREAK

Wheelin98TJ's Avatar
1998 TJ Wrangler

Join Date: Apr 2004
Location: , Southeast MI
Posts: 24,778
The RK instructions tell you to use the inside holes on a TJ.

The outer holes are for a ZJ.

Is that a Sierra Nevada Pale Ale?
Wheelin98TJ is offline   Reply With Quote Quick reply to this message
Unread 06-24-2010, 06:37 PM   #6
NorCalCon
Registered User
2006 LJ Wrangler

Join Date: Oct 2008
Location: Sacramento
Posts: 673
Looking good...A group of guys from the South West Regional Forum are running Hell Hole Resivior this weekend near Placerville if you want to test that thing out. And some Pale Ale sounds great about now as I sit at work and Web Wheel.
NorCalCon is offline   Reply With Quote Quick reply to this message
Unread 06-24-2010, 07:23 PM   #7
thirdeye
Registered User
2004 TJ Wrangler

Join Date: May 2009
Location: Danville, California
Posts: 1,887
I think for now I'm going to keep them mounted where they are. Maybe I'll change it after I wheel it some.

Placerville is a little too far for me this weekend, and I won't get to chop my exhaust till Sunday (Gotta use my buddy's welder for the 'free-effect'). But I am definatly going to test drive it to this little spot in Martinez on Sunday after the chopping.

Sierra Nevada all the waaay!!!! Always required on camping trips
__________________
2004 4.0L I6 TJ BUILD:
[url]http://www.jeepforum.com/forum/f22/history-thirdeye-1233347/[/url]
1997 2.4L I4 TJ BUILD:
http://www.jeepforum.com/forum/f22/thirdeyes-second-tj-1816002/
thirdeye is offline   Reply With Quote Quick reply to this message
Unread 06-30-2010, 08:55 PM   #8
thirdeye
Registered User
2004 TJ Wrangler

Join Date: May 2009
Location: Danville, California
Posts: 1,887
So I finally got the work done on my exhaust. Out of the way, and no more rubbing! Its got a much deeper sound to it now also.
I'm finally going to get some real wheelin in this weekend too
I will be running Deer Valley Trail (South to North) on saturday morning, then taking my first trip on the Rubicon! Pretty excited.... If anybody else is going to be out there, be sure to look for my TJ!

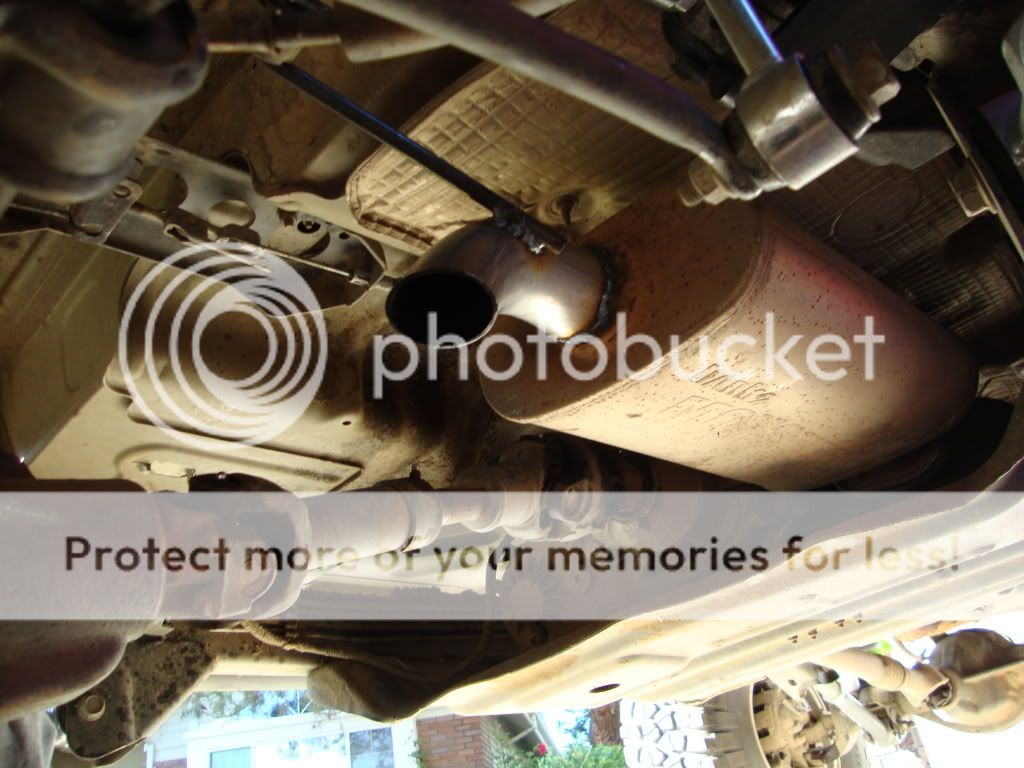

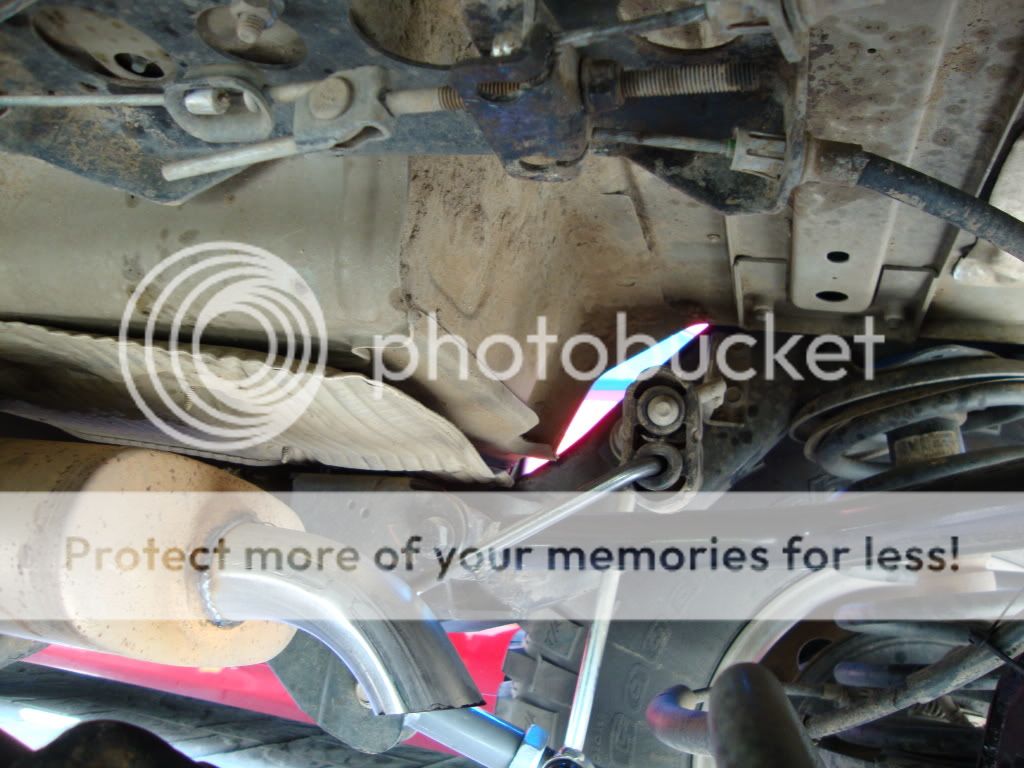

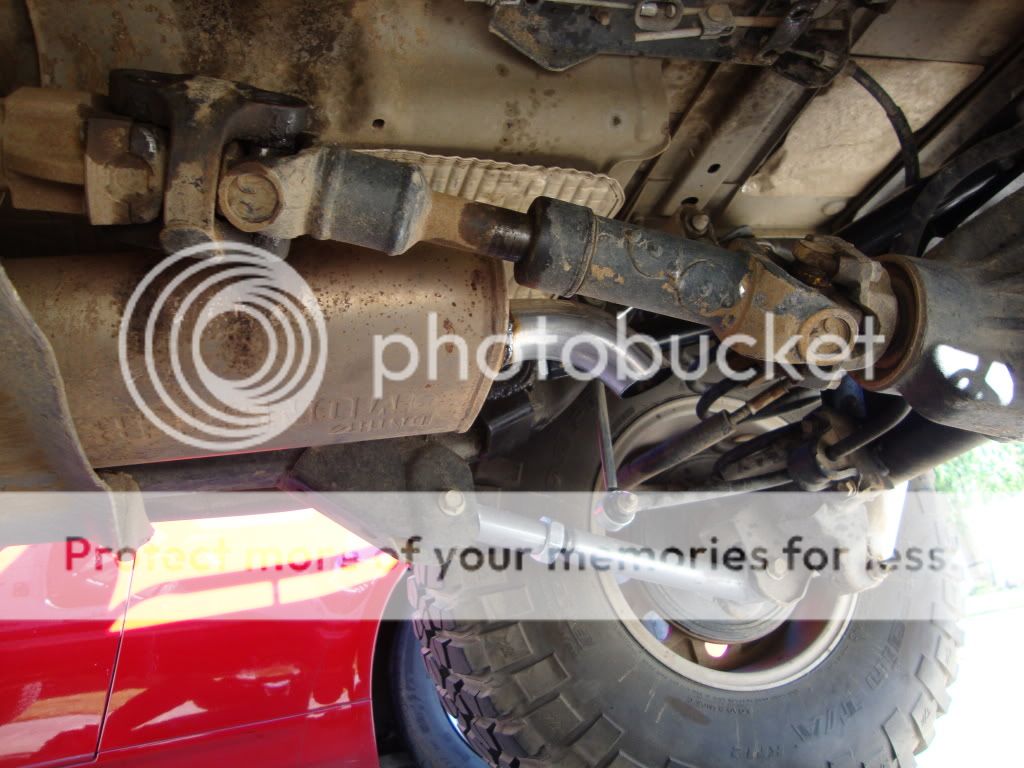

Some pics of the exhaust:




__________________
2004 4.0L I6 TJ BUILD:
[url]http://www.jeepforum.com/forum/f22/history-thirdeye-1233347/[/url]
1997 2.4L I4 TJ BUILD:
http://www.jeepforum.com/forum/f22/thirdeyes-second-tj-1816002/
thirdeye is offline   Reply With Quote Quick reply to this message
Unread 07-30-2010, 12:44 AM   #9
925_miller
Registered User
1994 XJ Cherokee

Join Date: Jul 2009
Location: Walnut Creek
Posts: 2
haha sierra nevada on the rubicon made hell of the cooler! next time we can strap a keg to the rack.
925_miller is offline   Reply With Quote Quick reply to this message
Unread 08-12-2010, 08:52 PM   #10
breckboarder55
Web Wheeler

breckboarder55's Avatar
1999 TJ Wrangler

Join Date: Sep 2007
Location: Houston/ College Station, TX
Posts: 1,069
I am looking for more feedback on this setup. The only other thread I can find on them is Imped's. But I would like to hear more feedback about the set up.
  • Specifically thoughts/opinions on running these vs. Currie uppers?
  • I have seen a few people get a small stretch (1") out of Currie and Rokmen arms. I assume the RK does not allow for this?
  • How is maintenance with the those joints?


Thanks guys.


*Found more threads listed in the similar threads box*
__________________
To Veterans past and present, thank you for your service!
99 Jeep Wrangler-Just another TJ on 33"s
55 Dodge Royal Lancer- Resto Project
87 Mazda RX-7 Turbo II-Built.
87 Mazda RX-7 SE-Burn Victim
01 Honda S2000DD
breckboarder55 is offline   Reply With Quote Quick reply to this message
Unread 08-12-2010, 09:16 PM   #11
crateampscal
Registered User
2005 TJ Wrangler

Join Date: Feb 2008
Location: Petaluma, California
Posts: 741
Quote:
Originally Posted by thirdeye;

This Truss is huge!
[IMG
http://i861.photobucket.com/albums/ab172/TJlife/jeeplife/FreshIII.jpg[/IMG]
:
You dont hit the tub when you hit a bump? looks pretty close?
crateampscal is offline   Reply With Quote Quick reply to this message
Unread 08-12-2010, 09:28 PM   #12
thirdeye
Registered User
2004 TJ Wrangler

Join Date: May 2009
Location: Danville, California
Posts: 1,887
Quote:
Originally Posted by crateampscal View Post
You dont hit the tub when you hit a bump? looks pretty close?
no, theres a pretty good amount of room in there. maybe when flexin, but I haven't noticed any contact spots yet
__________________
2004 4.0L I6 TJ BUILD:
[url]http://www.jeepforum.com/forum/f22/history-thirdeye-1233347/[/url]
1997 2.4L I4 TJ BUILD:
http://www.jeepforum.com/forum/f22/thirdeyes-second-tj-1816002/
thirdeye is offline   Reply With Quote Quick reply to this message
Unread 08-12-2010, 10:19 PM   #13
Jeepzcb09
Registered User
1998 TJ Wrangler

Join Date: Dec 2009
Location: Springfield,OH
Posts: 874
OP:what rocker guards are those
__________________
1998 TJ Sport : Rough Country, MetalCloak,KC, Goodyear, Crager, Alpine, AtoZ, Currie, Aussie

Believe.
Jeepzcb09 is offline   Reply With Quote Quick reply to this message
Unread 08-12-2010, 11:40 PM   #14
Imped
Web Wheeler

Imped's Avatar
2004 TJ Wrangler

Join Date: Feb 2008
Location: Indianapolis
Posts: 19,548
Quote:
Originally Posted by breckboarder55 View Post
I am looking for more feedback on this setup. The only other thread I can find on them is Imped's. But I would like to hear more feedback about the set up.
  • Specifically thoughts/opinions on running these vs. Currie uppers?
  • I have seen a few people get a small stretch (1") out of Currie and Rokmen arms. I assume the RK does not allow for this?
  • How is maintenance with the those joints?


Thanks guys.


*Found more threads listed in the similar threads box*
With standard uppers, you still have to run a track bar. The whole point of triangulated uppers is to ditch the track bar and the associated bind and lateral movement of the axle throughout the suspension cycle. I run Currie lowers and the RK upper setup. With the gas tank back there, you cannot "stretch".....with that said, my wheelbase is slightly longer than stock but I still wouldn't consider it stretched. With 4" of up travel, I've adjusted the arms to give me 1/8" between the Rokmen gas tank skid and diff cover at full bump....it takes trial and error with lower/upper length to get things that maxed out. Unless you're going to run a fuel cell, that will be of no concern with the RK setup. There's PLENTY of adjustment room on the arms. Where the axle is located now and given my pinion angle, the arms are almost as short as they can go. I could safely get another 3" out of them. The maintenance on the joints is virtually nilch. Keep them free of grease. Just wipe them down and lube with some 3 way oil every once in a while. They have remained silent. The rubber bushing on the other side is maintenance free and also silent.

Regarding the truss hitting the tub--I've got a pretty low rig and at full bump, there is still at least 2" between the truss and tub. Your gas tank and diff cover will be hitting completely before the tub and truss ever meet.
__________________
OlllllllO
Float Test Build
IndyORV
Imped is offline   Reply With Quote Quick reply to this message
Unread 08-12-2010, 11:54 PM   #15
Terrain Twister
Registered User
2004 LJ Wrangler

Join Date: Aug 2005
Location: Orange County, CA
Posts: 573
Quote:
Originally Posted by breckboarder55 View Post
I am looking for more feedback on this setup. The only other thread I can find on them is Imped's. But I would like to hear more feedback about the set up.
  • Specifically thoughts/opinions on running these vs. Currie uppers?
  • I have seen a few people get a small stretch (1") out of Currie and Rokmen arms. I assume the RK does not allow for this?
  • How is maintenance with the those joints?


Thanks guys.


*Found more threads listed in the similar threads box*
I've been running it for 3 years now and can't say I've had any real issues with it. I did have one bad joint that RK switched out but nothing since. Maintenance wise I could have been better also but as I said, no issues.

Knowing what I know now, I'd spend the Money and get the Currie. Although I haven't had any issues with the RK joints, I think the Currie setup uses an easier to replace joint (Johny) should it be needed.
__________________
At that point where it's too much to list!
Terrain Twister is offline   Reply With Quote Quick reply to this message
