post #46 of 607 Old 12-20-2009, 09:12 PM Thread Starter
Humboldt
Registered User

Humboldt's Avatar
2003 TJ Wrangler

Join Date: Apr 2007
Location: San Diego
Posts: 1,119
Quote:
Originally Posted by provelogear View Post
Joe,

You going to have that done so you can come out at the end of the year?

Hope you can make it.

Gerald
Definately.

Humboldt is offline
Sponsored Links
Advertisement

post #47 of 607 Old 12-20-2009, 11:06 PM
Apex
Recon death squad

Apex's Avatar
2002 TJ Wrangler

Join Date: Aug 2008
Location: Berea, OH
Posts: 5,530
So the ford shock towers are perfectly fine if you are outboarding with standard shocks?

Silver 02 TJ Apex Edition. SOLD

Current vehicles: 06 F250 Superduty - 6.0L PSD Straight piped and tuned
03 CBR600RR -1 +2, Yoshi'd & Battlaxed

Quote:
Originally Posted by bddisi View Post
Finesse in crawling looks way cooler than momentum.
Apex is offline
post #48 of 607 Old 12-21-2009, 07:34 AM
Wheelin98TJ
JEEP FREAK

Wheelin98TJ's Avatar
1998 TJ Wrangler

Join Date: Apr 2004
Posts: 26,129
Nice work.

I'm doing this mod hopefully real soon. I have a set of Bilsteins that I'd really like to get installed, but I need to move the mounts first.
Wheelin98TJ is offline
post #49 of 607 Old 12-21-2009, 07:40 AM
mrblaine
Wizard of Brakes

mrblaine's Avatar
1999 TJ Wrangler

Join Date: Dec 2004
Location: Quail Valley
Posts: 29,894
Quote:
Originally Posted by Jeep02Apex View Post
So the ford shock towers are perfectly fine if you are outboarding with standard shocks?
Let me guess, you just like to look at the pictures? From post #12

Quote:
Originally Posted by mrblaine View Post
He's not going to be running anything but the normal style shock bushings. If you run the Fox or similar style, then it's not worth the effort that it takes to modify the top of the Ford tower to get them to fit. With his normal shocks, he just has to drill out the holes to 1/2" and he's good to go.

I am Savvy
blackmagicbrakes.com
Knowledge does not equal understanding.
mrblaine is offline
post #50 of 607 Old 12-21-2009, 08:10 AM
mattamd_xp
Registered User
2001 TJ Wrangler

Join Date: Jun 2008
Location: Springfield, MA
Posts: 582
I'm in the process of doing this to my TJ right now. I'm notching my stock skid and reforming the tank to get about 3-4" of stretch. I'm doing a dual-triangulated longarm at the same time and this is perfect for keeping the stock upper mounts I actually started cutting the welds off on Saturday Morning so it looks like that was the day to start this I'm going to finish cutting the welds later this week once I get back out to my garage

99 Wrangler Project Detroit Mongrel 5.3/4l60e/Atlas HPD60/14B coilovers etc...
mattamd_xp is offline
post #51 of 607 Old 12-21-2009, 08:10 AM
Ej132
Registered User
2000 TJ Wrangler

Join Date: May 2009
Location: Michigan
Posts: 489
whats the advantage? Is it the ability to run longer shocks?
Ej132 is offline
post #52 of 607 Old 12-21-2009, 08:16 AM
mrblaine
Wizard of Brakes

mrblaine's Avatar
1999 TJ Wrangler

Join Date: Dec 2004
Location: Quail Valley
Posts: 29,894
Quote:
Originally Posted by Ej132 View Post
whats the advantage? Is it the ability to run longer shocks?
When I invented this modification, I did it first to move the very vulnerable lower shock mounts up out of the rocks. If you move the bottom of a shock up and keep the same OA length and travel, the top has to move up as well.

In the OEM location, there's no room to move up and with most normal backspacing on the rims, there's no room to fit a shock between the frame and tire. That means clearance has to be made somewhere.

The other two benefits are the ability to fit a longer shock in there for more travel and surprisingly, it improves the ride and handling a fair bit as well as well as practically eliminating that annoying back and forth TJ jiggle you get crossing driveways at angles when you pull into parking lots.

I am Savvy
blackmagicbrakes.com
Knowledge does not equal understanding.
mrblaine is offline
post #53 of 607 Old 12-21-2009, 08:21 AM
Ej132
Registered User
2000 TJ Wrangler

Join Date: May 2009
Location: Michigan
Posts: 489
ok, very interesting, thanks mrblaine
Ej132 is offline
post #54 of 607 Old 12-21-2009, 08:22 AM
Apex
Recon death squad

Apex's Avatar
2002 TJ Wrangler

Join Date: Aug 2008
Location: Berea, OH
Posts: 5,530
Quote:
Originally Posted by mrblaine View Post
Let me guess, you just like to look at the pictures? From post #12
Nope, I read that...I just wanted to make sure. Nothing wrong with double and triple checking. But I do like the pictures

Silver 02 TJ Apex Edition. SOLD

Current vehicles: 06 F250 Superduty - 6.0L PSD Straight piped and tuned
03 CBR600RR -1 +2, Yoshi'd & Battlaxed

Quote:
Originally Posted by bddisi View Post
Finesse in crawling looks way cooler than momentum.
Apex is offline
post #55 of 607 Old 12-21-2009, 08:29 AM
Dogman
Registered User

Dogman's Avatar
1997 TJ Wrangler

Join Date: Jun 2004
Location: Boise
Posts: 5,223
How do you decide where the the mount is placed? I've seen this method:



Just wondering if it's the same for the Ford towers and what difference your lower mounts make as well.

Where did you buy the Ford towers and how much are they?

John 3:17
Dogman is offline
post #56 of 607 Old 12-21-2009, 08:38 AM
rondak46
Registered User
2000 TJ Wrangler

Join Date: Feb 2009
Location: Albany, NY
Posts: 1,798
Quote:
Originally Posted by Dogman View Post
How do you decide where the the mount is placed? I've seen this method:


Just wondering if it's the same for the Ford towers and what difference your lower mounts make as well.

Where did you buy the Ford towers and how much are they?

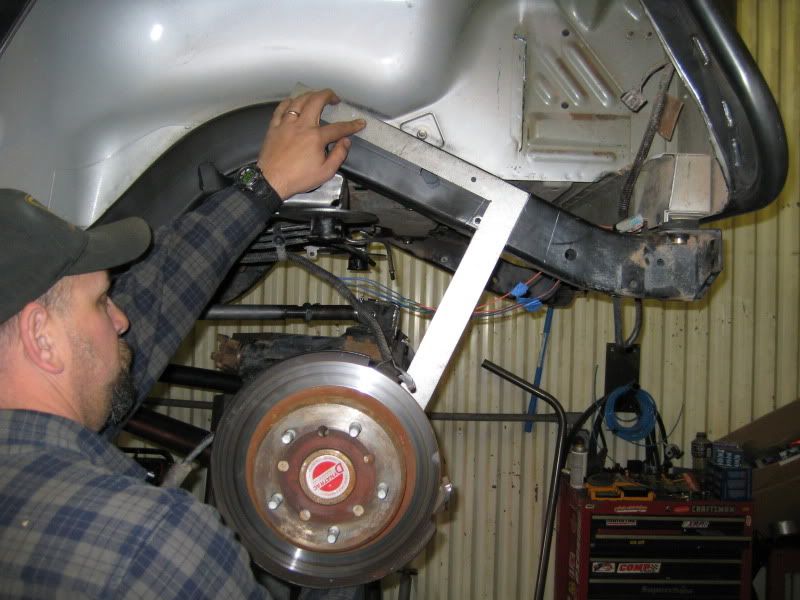

At ride height, you use a square to make a line, 90 degrees to the line created by the two lower control arm mounting bolts.

The towers can be bought at the Ford dealer. The part number is on Stu's write-up. I have a pair that I need to get rid of if you are interested. I think I paid $17 a piece.

Cheers, Mike
rondak46 is offline
post #57 of 607 Old 12-21-2009, 08:41 AM
mrblaine
Wizard of Brakes

mrblaine's Avatar
1999 TJ Wrangler

Join Date: Dec 2004
Location: Quail Valley
Posts: 29,894
Quote:
Originally Posted by Dogman View Post
How do you decide where the the mount is placed? I've seen this method:



Just wondering if it's the same for the Ford towers and what difference your lower mounts make as well.
Roughly, you'd like them at about 90° to the lower control arms at right height. Assuming you're normal and have approximately the same up and down travel, you will push the bottom of the shock back at stuff and pull it forward at droop.



Quote:
Where did you buy the Ford towers and how much are they?
He got the ones in this thread from me and we sorta swap stuff back and forth. He takes care of me and I take care of him.

I am Savvy
blackmagicbrakes.com
Knowledge does not equal understanding.
mrblaine is offline
post #58 of 607 Old 12-21-2009, 08:44 AM
RubiconRazorbac
Web Wheeler

RubiconRazorbac's Avatar
2003 TJ Wrangler

Join Date: Mar 2009
Location: Lee's Summit, MO
Posts: 3,471
Quote:
Originally Posted by mrblaine View Post
When I invented this modification, I did it first to move the very vulnerable lower shock mounts up out of the rocks. If you move the bottom of a shock up and keep the same OA length and travel, the top has to move up as well.

In the OEM location, there's no room to move up and with most normal backspacing on the rims, there's no room to fit a shock between the frame and tire. That means clearance has to be made somewhere.

The other two benefits are the ability to fit a longer shock in there for more travel and surprisingly, it improves the ride and handling a fair bit as well as well as practically eliminating that annoying back and forth TJ jiggle you get crossing driveways at angles when you pull into parking lots.
There's another HUGE benefit for those of us in the rust-belt. Look at the upper mount in post #45. Even if the mount contracted road-salt-cancer, you can still access the mounting bolt & change your shocks easily.

Compare that to how much trouble it is when the upper mount bolts snap on the OEM set-up.

Thanks again guys!

Quote:
Originally Posted by Imped View Post
Your shaft isn't long enough to handle that kind of droop...
My build thread: http://www.jeepforum.com/forum/f9/ru...thread-792423/
RubiconRazorbac is offline
post #59 of 607 Old 12-21-2009, 09:09 AM
Redarcher89
Registered User
2006 TJ Wrangler

Join Date: Jun 2009
Location: Missouri
Posts: 506
Great right up. This has made outboarding a little easyer to understand for me. I am a little slow though.
Redarcher89 is offline
post #60 of 607 Old 12-21-2009, 10:00 AM
mountaineerjp
Registered User
1997 TJ Wrangler

Join Date: Oct 2006
Location: Erie, PA
Posts: 505
Do you have any pics of the lower mounts? I am collecting parts and about ready to dive into this project, but I am still a little uncertain as to how to approach the lower mounts/shock stud. Maybe put together a parts list for people?

1997 Sahara - 2.5"OME HD Springs and 2" BB - Bilstein 5100s - 35" BFG KM2s - Doug Thorley Header - Warn M8000 - Nates 4x4 Front & Rear Bumpers - JeepMedic Engine Skid - Shrockwork Rockers - OR-Fab Sport Cage - Ford 8.8 - 4.10s - TNT Customs 4.5" Tube Fenders in Front and Rear - Viking Soft Top - many other mods
