Unread 12-19-2009, 02:56 PM   #16
Humboldt
Registered User
2003 TJ Wrangler

Join Date: Apr 2007
Location: San Diego
Posts: 1,119
Quote:
Originally Posted by Alexia View Post
Cutting the frame to weld in the new towers, how does that affect the structural integrity? I doubt it would cause issues for the main suspension since it is behind that area. Would it cause issues for towing? What about getting hit from the rear?
I'm sure Blaine will come along and answer this better.

I dont tow but seeing that you're basically boxing the frame with the shock tower I'm pretty sure you'd be ok with the low tow limit of a wrangler.

As far as getting hit from the rear goes, if you look at the front of your frame, there are a series of holes that form a crumple zone. I figure if I get hit hard enough to crumple my frame and push my axle forward, I'm done for anyway. For what it's worth, most the guys I know that have done this play in some pretty crazy terrain without it failing.

This project is hardly revolutionary. Guys have been doing it for years with no bad side effects. I would add that this falls into the catagory of "If it concerns you, don't do it."

Humboldt is offline   Reply With Quote
Unread 12-19-2009, 06:07 PM   #17
Humboldt
Registered User
2003 TJ Wrangler

Join Date: Apr 2007
Location: San Diego
Posts: 1,119
I did a quick chop on the long end to give myself more room to rotate the buckets back. On my 2003 I ran into the frame side track bar bracket on the pass side and the cross member on the drivers rear.



Bumpstops back in. Still need to do a bit of fine tuning to get them where I want, but needless to say, theres some improvement there. Tomorrow, I'll clean them up and weld them in. I'm almost back to square 1 and can do what I set out to in outboarding my shocks.



This could be done much faster. I'm working slow on purpose and having fun.
Humboldt is offline   Reply With Quote
Unread 12-19-2009, 06:10 PM   #18
JeepRocks86
Some Call me RockDog

JeepRocks86's Avatar
2003 TJ Wrangler

Join Date: Feb 2006
Location: Louisville, KY/ Columbus, IN
Posts: 6,351
interesting to see. I will be relocating my upper spring mount soon.
__________________
Stretched TJ , Coil overs, 42" IROKS, 60/14 bolt...
'95 YJ fuel injected 302, 8.8, cage, ARBs.
'04 QC LB Cummins 4x4
My TJ Build Thread.
www.kifourwheelers.com
For Sale:
TJ Rear Dana 44 shaftsfor sale
3 11"& 2 13" BBCS shocks



JeepRocks86 is offline   Reply With Quote
Unread 12-19-2009, 06:19 PM   #19
RubiconRazorbac
Registered User
2003 TJ Wrangler

Join Date: Mar 2009
Location: Lee's Summit, MO
Posts: 3,463
Quote:
Originally Posted by Humboldt View Post
From the looks of it, I will be able to get the coil mount raised up 1 1/2" while its rotated back. Hope so, otherwise I'll be in the market for some shorter springs. This is a prime example of the Jeep Cascade Effect. Set out to change 2 things, and you end up changing 100 little things. Good thing I like my garage
I'm really interested in seeing what the net difference in spring height under load will be after this. Again, great write-up so far
__________________
Quote:
Originally Posted by Imped View Post
Your shaft isn't long enough to handle that kind of droop...
My build thread: http://www.jeepforum.com/forum/f9/ru...thread-792423/
RubiconRazorbac is offline   Reply With Quote
Unread 12-19-2009, 06:35 PM   #20
Humboldt
Registered User
2003 TJ Wrangler

Join Date: Apr 2007
Location: San Diego
Posts: 1,119
Quote:
Originally Posted by RubiconRazorbac View Post
I'm really interested in seeing what the net difference in spring height under load will be after this.
Yeah me too. It crossed my mind before I started. Rough country wont sell just the rear 2.5" coils, actually told me I had to buy the whole lift
Ill go AEV 3" progressives if I need. I couldnt imagine it being more than 1 1/2" taller than what it was and Im not against an extra 1/2" in the rear if it is and I go the AEV route. Well see tomorrow
Humboldt is offline   Reply With Quote
Unread 12-19-2009, 06:47 PM   #21
UTWeezul
Registered User
1998 TJ Wrangler

Join Date: Jan 2006
Location: Memphis, TN
Posts: 2,023


Looks good, I've thought about the outboarding as well. Can't wait for more updates!
__________________
35" MTR Kevlars
TNT Phantom Fenders
PSC full corners w/ 3" flares
HP30 and 8.8 w/ lockers
UTWeezul is offline   Reply With Quote
Unread 12-19-2009, 07:11 PM   #22
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 23,241
nice work!
Unlimited04 is offline   Reply With Quote
Unread 12-19-2009, 08:17 PM   #23
rmb2485
Registered User
2004 TJ Wrangler

Join Date: Dec 2006
Location: Lehigh Valley, PA
Posts: 1,288
AEV sells a bolt-on kit to do what you're doing and they say it raises the ride height about 1-5/8". Looking at the pictures in their installation guide, it looks like you could save at least an inch by doing it your way, which would put you somewhere in the 1/2" higher than it was before you messed with it neighborhood.

AEV TJ Rear Spring Relocator Kit
rmb2485 is offline   Reply With Quote
Unread 12-19-2009, 08:26 PM   #24
mudb8
want it rite or rite now?

mudb8's Avatar
1999 TJ Wrangler

Join Date: Sep 2008
Location: Estacada, oregon
Posts: 5,629
Quote:
Originally Posted by Alexia View Post
Cutting the frame to weld in the new towers, how does that affect the structural integrity? I doubt it would cause issues for the main suspension since it is behind that area. Would it cause issues for towing? What about getting hit from the rear?
I tow and yank on burried superdutys with mine, I guess some could argue about it all day but it's as strong as it was, a dead stop with 4700#s from 30 mph at the end of the strap would bust something if it were gonna break.
__________________
I want your factory 07-up take-off/thrown out JK front/rear Lower Control Arms! Bent ones are perfect also as long as the bushings and cold cut rings are in good shape/useable


HighLine Hood Jeepers
TJ Adjustable Track bars
DIY highline fenders.... 34-37's under 0"-2.5" lifts
shock length, bumpstop extension, tire size chart click here
DIY shock shifters, more uptravel/better ride




2011 E-350 4x4 Van conversion

2006 Rubicon Unlimited

ASE Certified Master Tech/Fabricator @ jeepwest.com
mudb8 is offline   Reply With Quote
Unread 12-19-2009, 08:32 PM   #25
mudb8
want it rite or rite now?

mudb8's Avatar
1999 TJ Wrangler

Join Date: Sep 2008
Location: Estacada, oregon
Posts: 5,629
Quote:
Originally Posted by TJdualsport View Post
did you have to get longer shocks to do the outboarding
I started with 13" and went to 14" travel rear shocks, i've also got a hair over 6" of uptravel tho, which uses up some of the droop.

I think it's a benificial mod even if you have 10" travel shocks, especially with a small lift.
__________________
I want your factory 07-up take-off/thrown out JK front/rear Lower Control Arms! Bent ones are perfect also as long as the bushings and cold cut rings are in good shape/useable


HighLine Hood Jeepers
TJ Adjustable Track bars
DIY highline fenders.... 34-37's under 0"-2.5" lifts
shock length, bumpstop extension, tire size chart click here
DIY shock shifters, more uptravel/better ride




2011 E-350 4x4 Van conversion

2006 Rubicon Unlimited

ASE Certified Master Tech/Fabricator @ jeepwest.com
mudb8 is offline   Reply With Quote
Unread 12-19-2009, 08:45 PM   #26
Stu Olson
Web Wheeler

Stu Olson's Avatar
1998 TJ Wrangler

Join Date: Oct 2004
Location: Arizona
Posts: 5,184
Quote:
Originally Posted by rondak46 View Post
That said, I have not heard of anyone having problems on the forums. I wonder how Stu's set-up is holding up...
As to how mine is holding up.....it holds up just fine. I don't tow with mine any more since someone decided they needed my off-road trailer more than I did. I check it every now and again when I have my head under there.....looking for cracks and such. None found. I did notice the other day that my shock bushings are starting to get a little long in the tooth.....time for new ones. So I can say that I've bounced it around enough to wear out the shock bushings.
__________________
Stu Olson
ARB Locked & Loaded
www.stu-offroad.com
Stu Olson is offline   Reply With Quote
Unread 12-19-2009, 08:59 PM   #27
ET48
Registered User
1986 CJ7

Join Date: Jun 2008
Location: Wooster, Ohio
Posts: 2,566
Just wanted to show you guys a different way you could relocate your spring buckets also to give them more beef.



I had to relocate mine due to moving the axle back during my long arm build but plan to outboard my shocks. I cut the formed "C" off and welded on a piece of angle iron. Just an idea. (Sorry for the hijack)
__________________
ET48
1986 CJ-7 LAREDO, 4.2L, 5 speed, 3.31 Gears, D30, D44, 2.5" ProComp lift, 3" BL, 33" TSLs.
1998 TJ SAHARA, 4.0L, 5 speed, 4.11 Gears, D30 (Aussie Locked), Ford 8.8, 4.5" Custom LA, XRC8, AA SYE, TW DS, ZJ tie-rod, Full-Traction front adj. track bar, 35" KM1s.
ET48 is offline   Reply With Quote
Unread 12-20-2009, 10:42 AM   #28
emev0l
Registered User
2001 TJ Wrangler

Join Date: Nov 2008
Location: SE Michigan
Posts: 1,792
Quote:
Originally Posted by Humboldt View Post
Yeah me too. It crossed my mind before I started. Rough country wont sell just the rear 2.5" coils, actually told me I had to buy the whole lift
Ill go AEV 3" progressives if I need. I couldnt imagine it being more than 1 1/2" taller than what it was and Im not against an extra 1/2" in the rear if it is and I go the AEV route. Well see tomorrow
I don't think RC is very good about substitutions in there lift kits either like RE or AEV, I had asked RC before about a 4" YJ lift and I wanted 2.5" springs instead of the 4 and they wouldn't do it.

You can buy AEV's springs in pairs, I purchase all of my AEV products threw Northridge4x4 Northridge4x4 Jeep Parts Online Store

RC will sell you their set of 4 - 2.5" springs for $199 and that's probably our price after shipping.

You could run there rear springs and sell the fronts to someone who wants to run a 2" spacers in back to level it out.
__________________
2001 TJ 4.6 Auto 4.5" AEV suspension 35's
2002 TJ 4.0 Manual 3" BDS suspension 33's
1987 Chevy 1 Ton 12" suspension 44's
1970 Cutlass 442 468CID TH400
1999 7.3 Powerstroke
emev0l is offline   Reply With Quote
Unread 12-20-2009, 12:44 PM   #29
Humboldt
Registered User
2003 TJ Wrangler

Join Date: Apr 2007
Location: San Diego
Posts: 1,119
Lots of honey-dos today, but I did get a little accomplished.

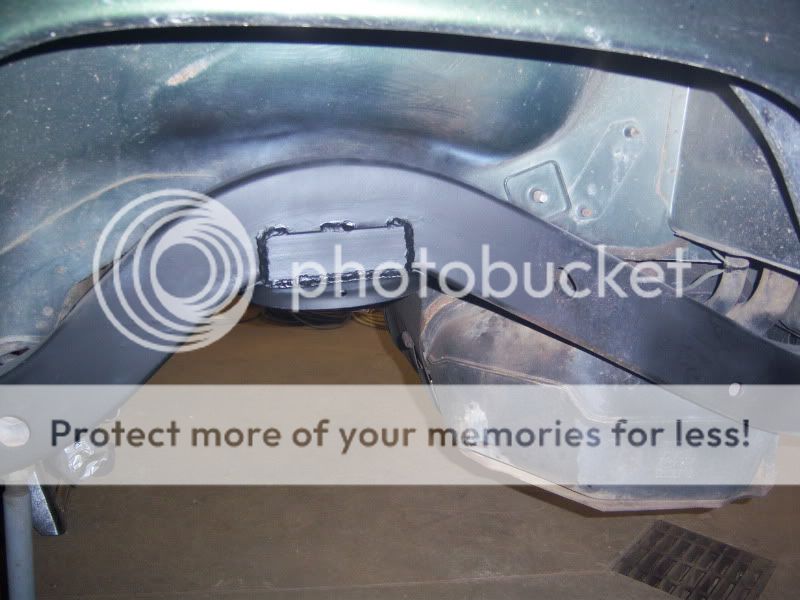

Welded in both sides. I'm a pretty novice welder, but they'll stick

I set them at 0* and as far back as I could without getting into the track bar bracket.



This is as full bump with the drivers side drooped out (Max articulation). It's about as good as its going to get without removing the rear track bar. The contact is good now at least.



Before for comparison
Humboldt is offline   Reply With Quote
Unread 12-20-2009, 01:14 PM   #30
Dogman
Registered User
1997 TJ Wrangler

Join Date: Jun 2004
Location: Boise, Idaho
Posts: 5,225
Quote:
Originally Posted by Humboldt View Post
I made this thread because these are pretty common mods people do and they kinda go hand in hand. Figured Id throw some pictures and notes since I didnt find a whole lot searching.
Thank you sir. This is a very useful thread for those of us that will be doing these mods in the future.
__________________
Dogman is offline   Reply With Quote
