NP231 upgrades - JeepForum.com
Search
Sign Up   Today's Posts
User: Pass: Remember?
Advertise Here
Jeep Home Jeep Forum Jeep Classifieds Jeep Registry JeepSpace Jeep Reviews Jeep Gallery Jeep Clubs Jeep Groups Jeep Videos Jeep Events Jeep Articles
Go Back JeepForum.com > Models > Jeep Wrangler Forums > TJ Wrangler Technical Forum > NP231 upgrades

FS: Wranger BRIGHT License Plate LED! Just $3! Great valueEngo winches available at www.rockridge4wd.com! Free shippROCKRIDGE4WD Introduces a NEW Jeep Wrangler JK *led* tail

Reply
Unread 09-24-2010, 08:53 AM   #1
RockRodHooligan
Web Wheeler

RockRodHooligan's Avatar
1996 XJ Cherokee

Join Date: Mar 2007
Location: Noblesville, Indiana
Posts: 5,254
NP231 upgrades

Yes I've researched the topic:
Transfer Case Upgrade to 6-Planetary Gear
NP231 Tech Thread
np 231j upgrades - Pirate4x4.Com Bulletin Board
I got the 231 out of my old XJ after I scraped it and am looking at doing a few cheep upgrades. Top of the list is a JB conversions SYE, since the t-case had a hack n tap. Next on the list is a wide chain and 6 planetary gear conversion. The t-case is in need of a new chain anyway, after being run in FWD for the last 6 months, after the rear end bit it and never had the time to put it down long enough to fix it.
Since I'm looking to do this cheepish, I'll be getting the needed parts out of the JY. Since I'm cheep, I'd like to eliminate buying as many transfer cases as possible. Don't worry, the money saved on buying only one case, is being spent on a full rebuild. So by process of elimination, this leaves me with trying to find the NP231C with the 1.25 wide chain and 6 pinion planetary set. - EDIT: The NP231C only came with a 4 pinion planetary.

Here comes the questions: The most specific info I've been able to find on the 231c is "from an S-10, forget the year, early-mid 90's I think." anyone be able to give me anything more specific?

Also, it seems that all the write ups I've found involve using a pre 96 231J case with a 241 planetary set because "Somewhere between '93 and '98, the gear cut changed, so the six pinion planetary I had procured would not mesh correctly with the gear in the '98 case." Does anyone know if the 231C from the "early-mid 90's S-10" planetary's will work in the 96+ 231J?

__________________
96 XJ:Parking lot Pre-Runner

89 MJ: Project: Ground up - Sold
Project: Silverback - Totaled

Quote:
Originally Posted by Apex View Post
Penis inches...
Good god man. Indyorv :rofl: d**k and fart jokes. :rofl:
RockRodHooligan is offline   Reply With Quote
Unread 09-29-2010, 10:42 PM   #2
RockRodHooligan
Web Wheeler

RockRodHooligan's Avatar
1996 XJ Cherokee

Join Date: Mar 2007
Location: Noblesville, Indiana
Posts: 5,254
Bump, back from vacation.
__________________
96 XJ:Parking lot Pre-Runner

89 MJ: Project: Ground up - Sold
Project: Silverback - Totaled

Quote:
Originally Posted by Apex View Post
Penis inches...
Good god man. Indyorv :rofl: d**k and fart jokes. :rofl:
RockRodHooligan is offline   Reply With Quote
Unread 10-19-2010, 12:16 AM   #3
RockRodHooligan
Web Wheeler

RockRodHooligan's Avatar
1996 XJ Cherokee

Join Date: Mar 2007
Location: Noblesville, Indiana
Posts: 5,254
Well since no one has been able to help, I'll help you with what I've found:

From what I have been able to gather, the most strait forward way to do this is with a NP231D HD out of late 80s- early/mid 90's V8 Dakotas and 1/2 ton Rams, with 4WD obviously. The NP231D HD came from the factory with the 6 pinion planetary set and wide chain, and is the closest to the NP231J, but with provisions for the vacuum disconnect. Since I'm still not sure if the planetary gears from the 231D will work with the 231J ring gear, I may have to get a early 90s 231 out of an XJ at the JY for the front half.

I can't give an absolute on what to find it in because I found my transfer case laying in one of the isles at the JY, already pulled. Although there was a early 90's Dodge Power Ram missing it's transfer case near by. I didn't bother to look to see what year it was though. I have been told that the 97 V8 Dakota is known to have it, if that helps.

I've been able to get a few deals on some lightly used parts that I thought I was going to have to buy new. Like a great deal on a JB conversions SYE and a Tera 2Lo.

NP231J- Free
Junk yard NP231D HD- $120
JB Conversions SYE- $100
New NP231D HD replacement chain- $55(Cloyes P/N 10-022)
Tera 2Lo -$100
NP231 Rebuild kit- looks like my cost will be around $65

All For a little more than the cost of a wide chain conversion from JB Conversions, by itself.

I'll have more info as soon as I get both transfer cases together for back to back comparison.
__________________
96 XJ:Parking lot Pre-Runner

89 MJ: Project: Ground up - Sold
Project: Silverback - Totaled

Quote:
Originally Posted by Apex View Post
Penis inches...
Good god man. Indyorv :rofl: d**k and fart jokes. :rofl:
RockRodHooligan is offline   Reply With Quote
Unread 02-02-2011, 09:55 PM   #4
RockRodHooligan
Web Wheeler

RockRodHooligan's Avatar
1996 XJ Cherokee

Join Date: Mar 2007
Location: Noblesville, Indiana
Posts: 5,254
I've got both t-cases now, but had to make a change to the parts list. The guy that was going to sell me a JB Conversions S/S SYE had to back out. I did end up talking to Imped and we've worked out a deal that I'll buy his JB SYE, so he can get a JB S/S SYE.

Since the Wrangler this is going into will have about a 10" rear stretch, I don't need the S/S SYE.

I should start pulling them apart soon, so I can check the fitment for the planetary gears, and throw the cases in the hot tank at school and clean them up. I'll be taking plenty of pictures for the right up, and to remember how it all goes back together.
RockRodHooligan is offline   Reply With Quote
Unread 02-03-2011, 09:22 PM   #5
RockRodHooligan
Web Wheeler

RockRodHooligan's Avatar
1996 XJ Cherokee

Join Date: Mar 2007
Location: Noblesville, Indiana
Posts: 5,254

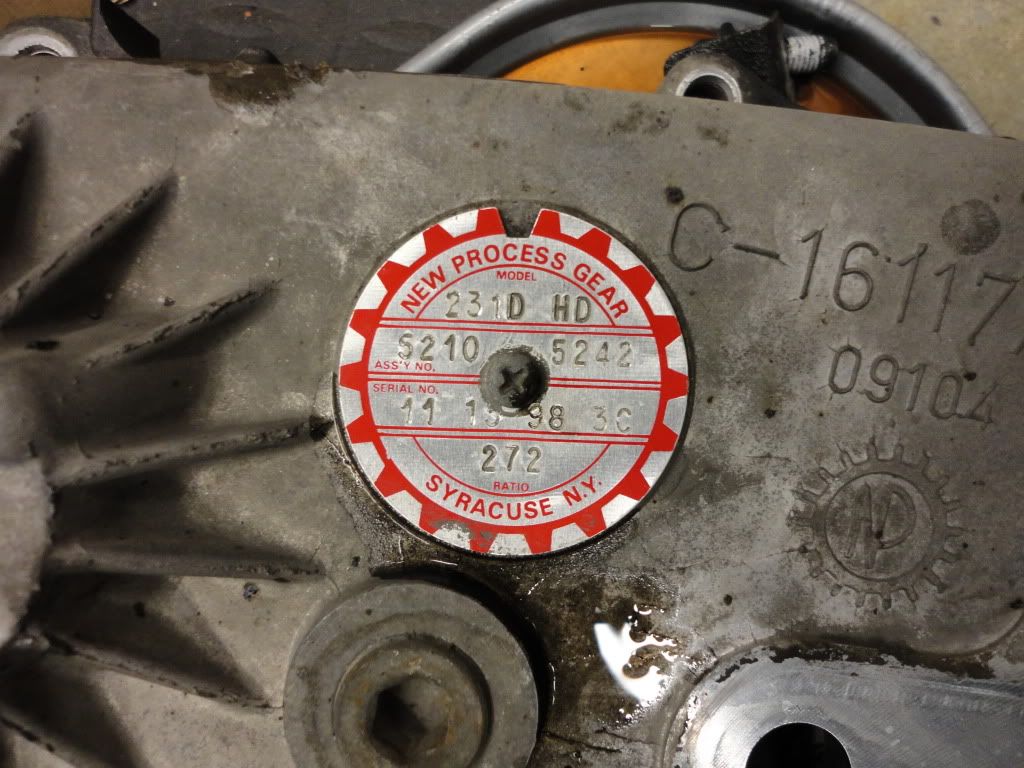

Started screwing around with the 231 HD today and found that I should be fine with the planetary ring gear, I saw on the tag it was built 11/13/98, what ever it came off of was probably a 99 or 00. No pics, I really need to suck it up and buy another digital camera. I'm far from done so there is plenty of time to get more pics. Going to finish pulling the guts out of the HD case, and take all the case parts with me to school to see what good the hot tank will do for them.
RockRodHooligan is offline   Reply With Quote
Unread 02-03-2011, 09:43 PM   #6
freeskier93
Web Wheeler

freeskier93's Avatar
1997 TJ Wrangler

Join Date: Oct 2009
Location: Longmont, Colorado
Posts: 6,518
Hmm, sorry to see no one is responding to this.

But looks like some good information here! Any plans for lower gearing?
freeskier93 is offline   Reply With Quote
Unread 02-03-2011, 09:46 PM   #7
Imped
Web Wheeler

Imped's Avatar
2004 TJ Wrangler

Join Date: Feb 2008
Location: Indianapolis
Posts: 19,217
This thread is ON FIRE.
__________________
OlllllllO
Float Test Build
IndyORV
Imped is online now   Reply With Quote
Unread 02-03-2011, 09:52 PM   #8
ytowntj
Registered User
1999 TJ Wrangler

Join Date: May 2008
Location: Norfolk - Old Dominion, Va
Posts: 2,745
But your doing so good on your own

For real keep us updated, Ive been looking at doing this eventually.
ytowntj is offline   Reply With Quote
Unread 02-03-2011, 10:33 PM   #9
RockRodHooligan
Web Wheeler

RockRodHooligan's Avatar
1996 XJ Cherokee

Join Date: Mar 2007
Location: Noblesville, Indiana
Posts: 5,254
Quote:
Originally Posted by freeskier93 View Post
Hmm, sorry to see no one is responding to this.

But looks like some good information here! Any plans for lower gearing?
I've been given a couple of trashed Tera 4:1s, and one of them I can get Teraflex to rebuild for a great price. But no, Not looking for any lower gearing right now. I'll save that for when I can get an Atlas 4, I like my 2.72:1 about 90% of the time, it's rare that I wish I had more gearing. Besides, the 4.7L stroker thats going in front of this should give me plenty of torque when I want it.

Quote:
Originally Posted by ytowntj View Post
But your doing so good on your own

For real keep us updated, Ive been looking at doing this eventually.
Absolutely, I've yet to find a write up on it being done using a 231D HD, so I wanted to make sure I did one to get the info out there.
RockRodHooligan is offline   Reply With Quote
Unread 02-04-2011, 05:44 AM   #10
timmytimm3
Registered User
2000 TJ Wrangler

Join Date: Mar 2007
Location: By the firepit, CT
Posts: 384
awesome deals on the parts! Good luck with everything
__________________
TJ Build Thread
timmytimm3 is offline   Reply With Quote
Unread 02-04-2011, 09:27 PM   #11
RockRodHooligan
Web Wheeler

RockRodHooligan's Avatar
1996 XJ Cherokee

Join Date: Mar 2007
Location: Noblesville, Indiana
Posts: 5,254

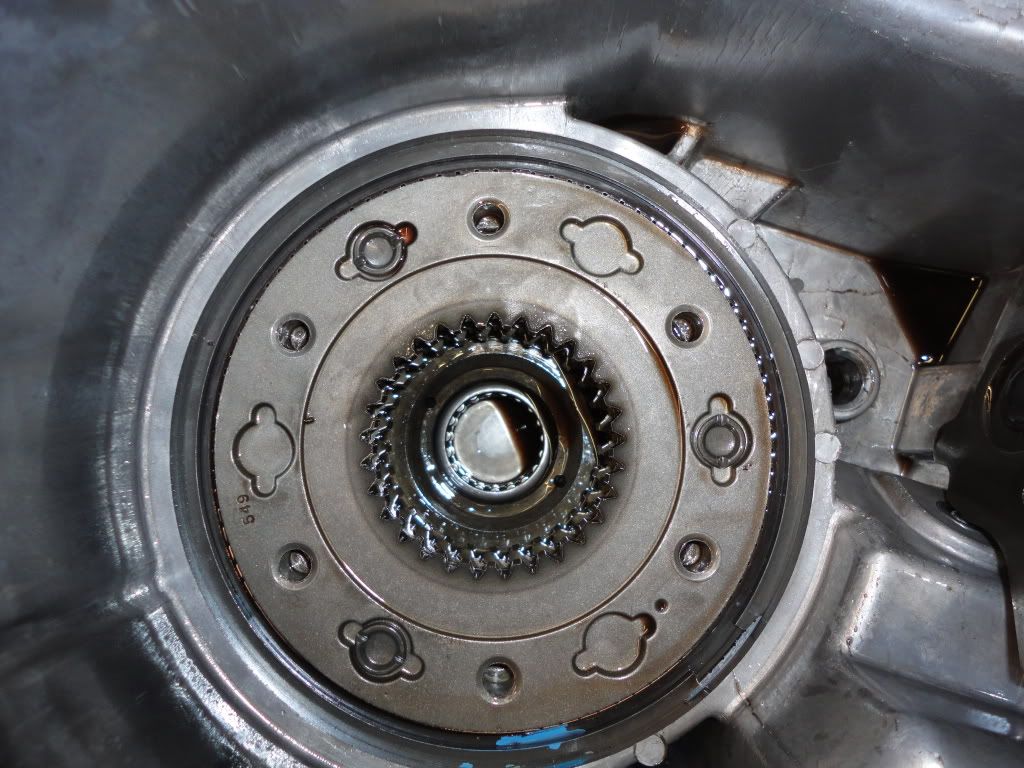

Damnit. I pulled the rest of the 231D HD apart tonight and found an unpleasant surprise. The planetary set wasn't 6 pinion like I had been told, but 3 pinion like the 231J.


RockRodHooligan is offline   Reply With Quote
Unread 02-04-2011, 10:50 PM   #12
RockRodHooligan
Web Wheeler

RockRodHooligan's Avatar
1996 XJ Cherokee

Join Date: Mar 2007
Location: Noblesville, Indiana
Posts: 5,254

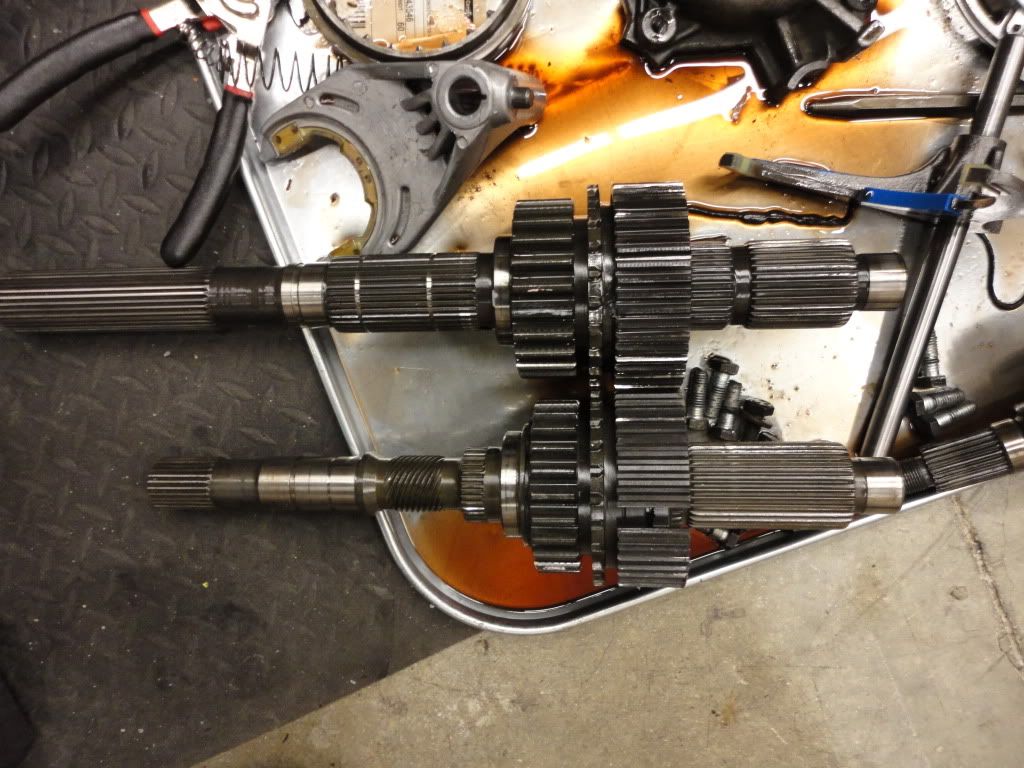

On a side note, here are some of the differences between the 231J(Jeep) and 231D HD(Dodge V8):
The Jeep(bottom) was a attempt at a hack n tap SYE, until the drill bit broke off in it(why it was free). Dodge also uses the old XJ and YJ style tail shaft that requires the drive shaft it be in place to seal the case. You can also see the wider sprocket on the dodge for the wide chain.

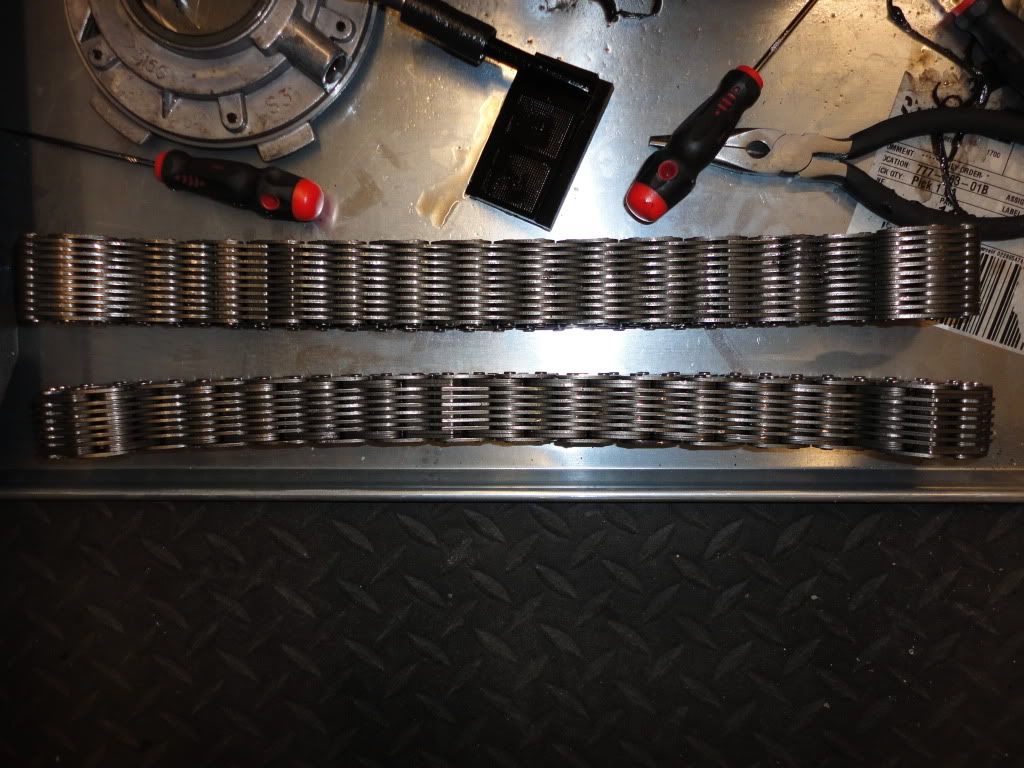

The chains, Jeep(bottom), and the Dodge chain. The Cloyes P/N for the wide chain is 10-022.


Edit: Just noticed I didn't put up the pic of the Dodge and Jeep chain, fixed it.
RockRodHooligan is offline   Reply With Quote
Unread 02-04-2011, 11:24 PM   #13
lclark2074
Registered User
1990 YJ Wrangler

Join Date: Nov 2008
Location: RI
Posts: 681
is the jcase wider or just the chane?
__________________
night crew 226
http://www.jeepforum.com/forum/f12/f...l-box-1471348/
lclark2074 is offline   Reply With Quote
Unread 02-05-2011, 09:22 AM   #14
RockRodHooligan
Web Wheeler

RockRodHooligan's Avatar
1996 XJ Cherokee

Join Date: Mar 2007
Location: Noblesville, Indiana
Posts: 5,254
Quote:
Originally Posted by lclark2074 View Post
is the jcase wider or just the chane?
The D case has the wider chain, not the J. I haven't had the chance to compare the front half of the D case to the front half of the J yet, only a Tera 4:1, but so far, none of the cases look to be larger than the next, only the internals are differing. I'll have a few more pics tonight.

Wednesday I'm taking a bunch of aluminum to the scrap yard.
RockRodHooligan is offline   Reply With Quote
Unread 02-05-2011, 09:19 PM   #15
RockRodHooligan
Web Wheeler

RockRodHooligan's Avatar
1996 XJ Cherokee

Join Date: Mar 2007
Location: Noblesville, Indiana
Posts: 5,254
So in light of the planetary set being 3 pinion instead of 6 like I had hoped, I'm going to forgo that mod unless a 6 pinion falls into my lap. Also, pending a back to back comparison of the Dodge and Jeep cases, I think I may just use the entire 231D HD, save for the addition of the JB Conversions SYE and Tera 2 low. That allows me to cleanup the XJ t-case and sell it, to fund other parts of the build.
RockRodHooligan is offline   Reply With Quote
Reply
Thread Tools


Suggested Threads





Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
