post #1 of 44 Old 12-11-2008, 04:10 PM Thread Starter
RnEmOvr
Have Cummins, Will tow.

RnEmOvr's Avatar
1999 TJ Wrangler

Join Date: Mar 2005
Location: El Paso
Posts: 11,880
OK, so we all know the TJ TC (transfer case) skid hangs to low, and aftermarket skids cost a lot. Building your own is nice and cheap, but what to do about those bolts? Get rid of em? We need to remove it still so cant weld it. Here is the fix,

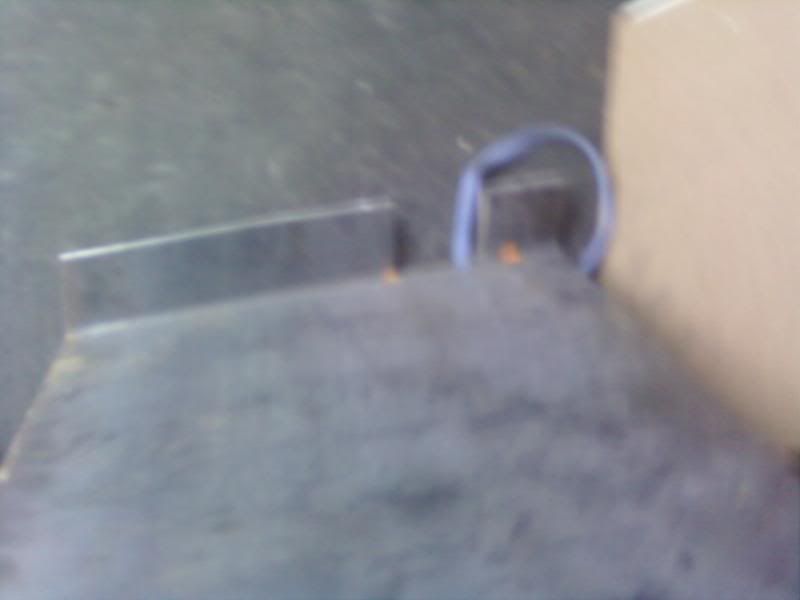

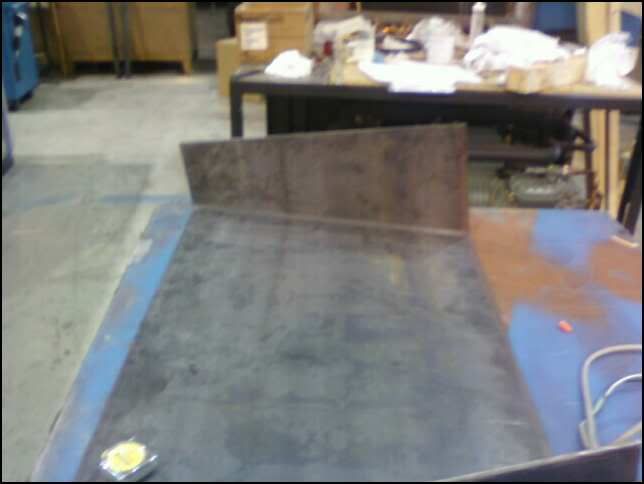

I went to the local metal shop and ordered a piece of steel was 54" by 24" of 1/4" plate (its a little wide cause i wanted the extra for gussets for new cage). I then took measurement in rear of frame (bout 2" behind rear bolt hole) then went 24" toward the front and took that measurement (since frame narrows). Then I took these measurements and marked them on the plate and since I have access to a 112 ton press at work I had guy I work with bend it on my marks to 90 degrees, ending up with this.




I then measured height of frame and location of the body mount and cut them out and trimmed skid down.

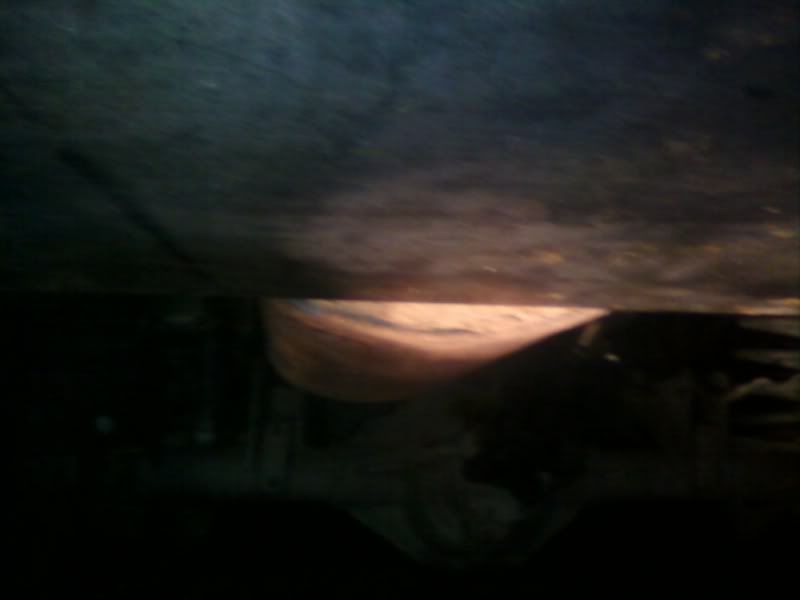

Then with skid in place I drilled 3 holes on each side, and added some grade 8 bolts and ended up with this.





Now I don't have this finished but I will added some steel tube in the holes of the frame to keep it from crushing (I will weld it but not needed, just easier to install) and for now I drilled holes in bottom of skid and trans bolts just hang below. I will end up building a cross member like this one, and I will weld some 1" angle on top edge of skid in a "^" pattern to help with bracing, hope this helps As of now I have $110 in steel, $30 in drill bits (broke one so really only $20, and burnt one up due to no cutting oil so could be $10) and $15 in bolts/washers/nuts.

New muffler is needed since OEM hangs below skid


A SYE (Maybe even a super short) will be needed if you have ANY lift since this accounts for a 3" lift in your drive line, you will need BL as well, a tub massage. I have 2" BL and it clears fine.

Edit; I checked upon request a 1.25" BL MAY clear with stock mount, but a 1" BL plus a 3-5 lbs hammer will work as well.

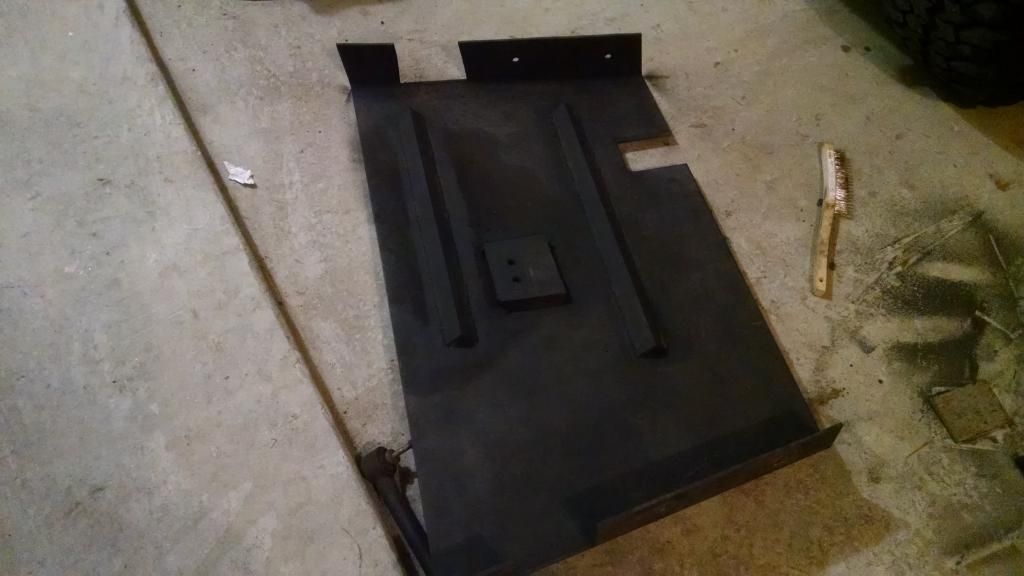

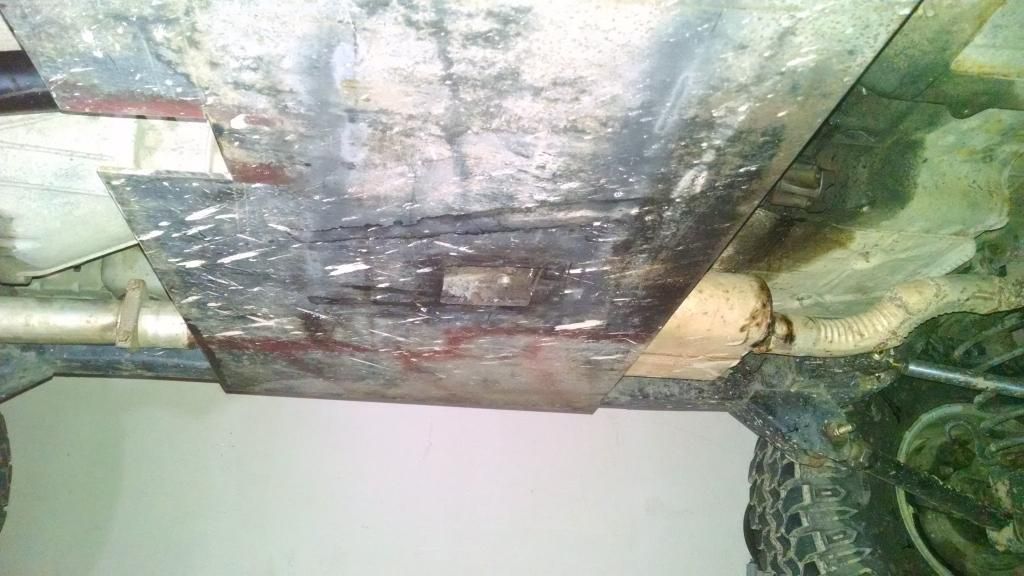

Edit 2015; I added the bracing and built a bridge to hold the stock mount. A Lo-pro and a SS-SYE is needed with my 4" lift.



You can also see where I had to notch out for the front shaft.




Last edited by RnEmOvr; 12-11-2008 at 05:25 PM.
RnEmOvr is offline
Sponsored Links
Advertisement

post #2 of 44 Old 12-11-2008, 04:18 PM
wrangler2007
Web Wheeler
2002 TJ Wrangler

Join Date: Jul 2006
Location: dalton, georgia
Posts: 1,701
Think I might have one of those done! Did you need to do any exhaust mods or TC modding?

Other Vehicles:
07 Mustang, Whipple, 465 rwhp, Magnaflow, Hurst , AVIC D3, Spec 3+, BMR CA's, Autometer, FRPP Springs

08 F150 5.4L, Super 40 SIDO, Roush Grille, Edge Evolution, Truxport, 2.5" AS Level, 1.5" AAL, 35x12.5x20 Nitto Trail Grapplers
wrangler2007 is offline
post #3 of 44 Old 12-11-2008, 04:25 PM Thread Starter
RnEmOvr
Have Cummins, Will tow.

RnEmOvr's Avatar
1999 TJ Wrangler

Join Date: Mar 2005
Location: El Paso
Posts: 11,880
RnEmOvr is offline
post #4 of 44 Old 12-11-2008, 04:39 PM
cgmrdc
Registered User
1988 MJ Comanche

Join Date: Sep 2007
Location: Denton
Posts: 906
how much BL/Tub modification did you need to make it flat?

looks like two by the pic correct?

just kidding I cant read... wow its been a long day...

Last edited by cgmrdc; 12-11-2008 at 04:43 PM. Reason: 1 added and 2 i cant read
cgmrdc is offline
post #5 of 44 Old 12-11-2008, 04:41 PM
dz1087
Registered User

dz1087's Avatar
1999 XJ Cherokee

Join Date: Jul 2006
Location: Florida
Posts: 1,749
Nice work - subscribed for when I start modding.


Air Force Jeep Club - Tail# JF037AD
'03 TJ Sport, Black on White, Stock. [[Gone]]
'99 XJ, Purple, Stock but with new wheels.

Running Doorless? Check your state's Mirror Laws!!
http://www.jeepforum.com/forum/f176/list-state-mirror-laws-565361/

There can be no fifty-fifty Americanism in this country. There is room here for only 100% Americanism, only for those who are Americans and nothing else.
Theodore Roosevelt
dz1087 is offline
post #6 of 44 Old 12-11-2008, 04:42 PM
snowcrash
Member

snowcrash's Avatar
2014 JK Wrangler

Join Date: Aug 2006
Location: South of Boston
Posts: 406
Thats AWESOME!! I've seen some pretty flat skids but thats one is amazing. Awesome!!

-Aaron
2014 Billet Silver Rubicon
4.56, 35" MTZ on 17" ATX Slabs, Mopar Stage 3 lift kit, Evo front and rear bumpers, Evo stinger, AEV snorkel, Smittybilt GEN2 winch, aFe Hi-Tuck exhaust, Teraflex tire carrier, Bestop Twill Trektop NX, a bunch of lights and more stuff coming every day!

I still miss my 2006 TJ!
snowcrash is offline
post #7 of 44 Old 12-11-2008, 04:42 PM Thread Starter
RnEmOvr
Have Cummins, Will tow.

RnEmOvr's Avatar
1999 TJ Wrangler

Join Date: Mar 2005
Location: El Paso
Posts: 11,880
Quote:
Originally Posted by cgmrdc View Post
how much BL/Tub modification did you need to make it flat?

looks like two by the pic correct?
i have 2" but ive had it for years so i dunno how much is realy needed
RnEmOvr is offline
post #8 of 44 Old 12-11-2008, 04:44 PM
wrangler2007
Web Wheeler
2002 TJ Wrangler

Join Date: Jul 2006
Location: dalton, georgia
Posts: 1,701
I've never found this answer...why is the BL needed for the TT you made?

Other Vehicles:
07 Mustang, Whipple, 465 rwhp, Magnaflow, Hurst , AVIC D3, Spec 3+, BMR CA's, Autometer, FRPP Springs

08 F150 5.4L, Super 40 SIDO, Roush Grille, Edge Evolution, Truxport, 2.5" AS Level, 1.5" AAL, 35x12.5x20 Nitto Trail Grapplers
wrangler2007 is offline
post #9 of 44 Old 12-11-2008, 04:47 PM
cgmrdc
Registered User
1988 MJ Comanche

Join Date: Sep 2007
Location: Denton
Posts: 906
thats what i thought. my cousin and I build belly ups for guys in our club but we usually only do 1" BL but our skid hangs down 1" from the frame... go figure

looks good post up when youve got the bracing done
cgmrdc is offline
post #10 of 44 Old 12-11-2008, 04:48 PM
02tjsport
Registered User
2014 KL Cherokee

Join Date: Dec 2005
Location: Clarksburg, WV
Posts: 1,635
I wonder if a 3/8" steel would even need bracing?

'02 TJ Sport - 3.5" RE Springs/Mono-tubes; BFG A/T 33x12.50x15 on ProComp Black Steelies; JKS: BPE's, 1.25" BL, shock conversion, front Adj. TB's, quick discos, Extended Brake lines; FT 3-link rear; JCR 1-ton Steering; Warn 6" Flares; Olympic Slider Bumpers; OME SS; Taurus Electric Fan; 4.88 Gears; D30/D44 Detroit True-Trac Front/Rear;
02tjsport is offline
post #11 of 44 Old 12-11-2008, 04:49 PM
cgmrdc
Registered User
1988 MJ Comanche

Join Date: Sep 2007
Location: Denton
Posts: 906
Quote:
Originally Posted by wrangler2007 View Post
I've never found this answer...why is the BL needed for the TT you made?
not enough room to move the tcase up much further... simple solution... make more room with a BL
cgmrdc is offline
post #12 of 44 Old 12-11-2008, 04:50 PM
Wheelin98TJ
JEEP FREAK

Wheelin98TJ's Avatar
1998 TJ Wrangler

Join Date: Apr 2004
Posts: 25,876
Nice work.

I added a link to this thread in the FAQ.
Wheelin98TJ is offline
post #13 of 44 Old 12-11-2008, 04:52 PM
wrangler2007
Web Wheeler
2002 TJ Wrangler

Join Date: Jul 2006
Location: dalton, georgia
Posts: 1,701
Quote:
Originally Posted by cgmrdc View Post
not enough room to move the tcase up much further... simple solution... make more room with a BL
THANKS MAN!

Other Vehicles:
07 Mustang, Whipple, 465 rwhp, Magnaflow, Hurst , AVIC D3, Spec 3+, BMR CA's, Autometer, FRPP Springs

08 F150 5.4L, Super 40 SIDO, Roush Grille, Edge Evolution, Truxport, 2.5" AS Level, 1.5" AAL, 35x12.5x20 Nitto Trail Grapplers
wrangler2007 is offline
post #14 of 44 Old 12-11-2008, 05:02 PM Thread Starter
RnEmOvr
Have Cummins, Will tow.

RnEmOvr's Avatar
1999 TJ Wrangler

Join Date: Mar 2005
Location: El Paso
Posts: 11,880
Quote:
Originally Posted by 02tjsport View Post
I wonder if a 3/8" steel would even need bracing?
i would say most likely, cause the 1/4 bends a lill just from jacking it up and even weight of driveline makes it sag

Quote:
Originally Posted by Wheelin98TJ View Post
Nice work.

I added a link to this thread in the FAQ.
sweet my life goal has been met, being usefull to JF!!!!
RnEmOvr is offline
post #15 of 44 Old 12-11-2008, 05:05 PM
wrangler2007
Web Wheeler
2002 TJ Wrangler

Join Date: Jul 2006
Location: dalton, georgia
Posts: 1,701
What do you think is the minimun necessary clearance with the body? I'm thinking about either just going ahead and pounding or either getting a BL and cutting it into a smaller piece and using shorter bolts or something like that?

Other Vehicles:
07 Mustang, Whipple, 465 rwhp, Magnaflow, Hurst , AVIC D3, Spec 3+, BMR CA's, Autometer, FRPP Springs

08 F150 5.4L, Super 40 SIDO, Roush Grille, Edge Evolution, Truxport, 2.5" AS Level, 1.5" AAL, 35x12.5x20 Nitto Trail Grapplers
wrangler2007 is offline
