My cheap rocker panels

I was thinking I would order the Bushwacker stick-on rocker panels ( Bushwacker 14002 - Bushwacker TrailArmor Rocker Panels for 97-06 Jeep® Wrangler TJ - Quadratec

Although, I guess, if someone really wanted to use this as a write up to do something similar, feel free, but there are much better ways of doing this. I just wanted to do something, and make it my own

I did not want to waste almost $110 bucks (including shipping and duty), for stickers. So, since I had a few hundred tons of steel in the shop, I knew I had to have some checker plate.

I found some 14 ga diamond steel plate, which was light enough to work for this application, I didn't want something too heavy; that would mean larger bolts, and I wanted to use 1/4" HDG (Hot Dipped Galvanized), carriage bolts. Anyhow, I cut two pieces to 4" by 55". I decided the width because I didn't want to cover the TJ logo on the Jeep. I know, it's a sticker, but I like that one, and I paid $15,000 CDN for it
I cut them to 55" long BECAUSE, I wanted the rockers to slide under the stock fender flares.

Okay, so took my two cut pieces of checker plate, and painted 'em using Tremclad flat black, painting them on both sides with several coats.



What I did next, is probably a little unorthodox, but I didn't want the steel plates in direct contact with the Jeep body, didn't like the thought of it.

Went to Home Depot and picked up a piece of rubber liner, used in small garden ponds. This stuff is about 1/16" thick, and since it's rubber liner, I thought it would be a perfect buffer between the new plates and Jeep, and as a bonus, the rubber would... SHOULD help seal the bolt holes. I didn't take any picks of the rubber, I think this should be pretty easy for anyone to grasp, and there's probably a hundred good reason someone will say it's not a good idea.

To keep the rubber on the back of the plates, so as to make installation a heck of a lot easier, I put a few dabs of Super Glue on the back of the rubber.

My next task, which took A LOT longer then I think it should have was to cut slots in the stock fender flares. Tomorrow I'll take better pics, time permitting. To do this, I removed the bottom screw on each of the fender flares (5/16" screw),so I could slide the new rockers underneath.

[/i]
Clamps are a huge time saver for the rest of this.


[i][You MAY have a problem of the screw and backing nut being fused together, especially if you live in an area that describes weather in terms of wind chill. Make sure you have a nice size pair of pliers to hold the backing nut].

Then, using a utility knife, I cut the slots to match, as close as I could, to the thickness of the new rockers. To make this fit correctly, you will also have to trim off the fender flares on both faces, otherwise the flares will not fit snug against the body. Do this part SLOWLY, one wrong move with the knife, and you might be running for the touch up paint. (no pics of that part yet, but I'll post tomorrow and update).

Next task, was to drill the holes for the bolts. To make this easy, for me, once I had the rockers set to where I wanted them on the body, using clamps to hold them, I drilled and installed a bolt under the flare on each end of the plate. Once that's done, it was just a matter of drilling the holes for the bolts that would be visible.

Tomorrow I'll post the distance between bolts. All I did was set the bolt holes to 3/4" from the edge of the rocker. I placed the bolts according to the available access for the nuts.




Here is another shot, sans dimensional lines




Finally, this is the finished product.



If anyone wants to do this, here's your shopping list:
parts:
2 - 14ga. Steel Diamond Plate, cut length 4" x 55" (or to suit personal preference)
18 - 1/4"-20 Galvanized Carriage Bolts, minimum 3/4" long to 1-1/2" long (I used 1-1/2", my Home Depot didn't have anything shorter)
18 - 1/4" Galvanized flat washer
18 - 1/4" Galvanized lock washer
18 - 1/4"-20 Galvanized nuts
1 - garden rubber pond liner, 1/16" thick, or something close to it Cut size is minimum 55" x 8", or whatever dimensions you decide on
1 - tube glue (for sticking pond liner to back of rockers
2 - cans of rust resistant paint, colour is your call. I went with flat black

Tools:
1 - electric/pneumatic drill
1 - minimum drill bit size is 1/4" Don't go smaller otherwise you will have a hard time getting the carriage bolt to sit flush to the checker plate
1 - utility knife, with spare blades
1 - 5/16" box wrench, ratcheting wrenches work great for this
2 - clamps (to hold the rockers to the Jeep body)
1 - 7/16" box wrench, and ratchet with 7/16 socket. (A deep socket would be a good idea for some of the bolts)
1 - measuring tape

__________________
VA3IPB

The only True Professional Mechanic in the Greater Toronto Area for Modified Jeeps, and trucks. If Rock Spyder hasn't seen it before, or done it before, you don't need it.

http://rockspyder4x4.com

http://koolkat4x4.org

Last edited by TheHeretic; 12-22-2009 at 09:46 PM..
TheHeretic is offline   Reply With Quote
Unread 12-22-2009, 11:54 PM   #2
RogueSpear2023
Registered User
2003 TJ Wrangler

Join Date: Jun 2008
Location: Fargo, ND
Posts: 6,949
Does this give you any bottom protection where you need it or is this purely for looks?
__________________
Max

2003 Jeep Wrangler Rubicon
4.0L, 42RLE, Dual Tops, Full Doors, JKS Front Disconnects, Cragar Soft 8 Black Wheels, 33x12.5x15 Goodyear Duratracs, .75" Front Coil Spacers, Bushwacker 6" Flat Fender Flares, Skid Row Steering Box Skid, LubeLockers, Rubicon Locker Mod, OBA, Cobra 19 Ultra III CB, 3' Firestik, Rough Country 2.2 Steering Stabilizer, RC 1.25" BL, RC 1" MML, RC Grab Handles, Fog Lamp Bent Pin Mod, 4" Apline S Series Speakers, Kenwood Excelon 6.5" Speakers, 6.5" JL Audio 6W3V3 Subwoofer (in center console) w/MTX Thunder 202 amp, IPF H4 Headlight Housing, Sliverstar H4 bulbs.



TJ Tech Boot Camp
TJ Specs

"Buying a jeep and not taking it off road, is like buying a dragster and never taking it to the track"
RogueSpear2023 is offline   Reply With Quote
Unread 12-23-2009, 12:01 AM   #3
MisterO
Registered User

Join Date: Nov 2008
Location: , Bergen County - NJ
Posts: 1,436
Quote:
Originally Posted by RogueSpear2023 View Post
Does this give you any bottom protection where you need it or is this purely for looks?
i was just wondering the same thing, does it fold under??
MisterO is offline   Reply With Quote
Unread 12-23-2009, 12:06 AM   #4
CalebXJ123
Registered User
1980 CJ5

Join Date: Sep 2009
Location: Greenville,SC
Posts: 166
it doesnt look like it.it seems to be just for looks.though it does look good.
__________________
1980 CJ5
CalebXJ123 is offline   Reply With Quote
Unread 12-23-2009, 06:10 AM   #5
jeepinmichguy_
I haz ah Geep

jeepinmichguy_'s Avatar
2003 TJ Wrangler

Join Date: Jul 2009
Location: The Sticks, Alabama
Posts: 7,380
That Turned Out Nice!
__________________
ΜΟΛΩΝ ΛΑΒΕ

Quote:
Originally Posted by TheBoogieman View Post
Jeepinmichguy is a jerk.
Quote:
Originally Posted by mrblaine View Post
How about this, if you had the Jeep Spirit, you wouldn't abuse the rest of us trying to enjoy a nice day out wheeling by bringing your brokeass broken down junkyard crap out to play where it can't handle it?
Quote:
Originally Posted by JeepForum123 View Post
you all have nice rigs, stop being f****** a**holes.
jeepinmichguy_ is offline   Reply With Quote
Unread 12-23-2009, 10:07 AM   #6
Hesher420
Registered User
2006 LJ Wrangler

Join Date: Oct 2005
Location: Milwaukee WI
Posts: 1,772
I like the look

btw...
The liner is a very good idea and is used quite often. I used a stick on liner under my AtoZ Fab rocker guards.
__________________

**'06 Blacked Out LJ**

> > > LJ Owners Group < < <

Black Jeep Society
"We are one. One society. Digitless."
"I am not a number, I am a free man!"

Hesher420 is offline   Reply With Quote
Unread 12-23-2009, 10:30 AM   #7
BlazinJack
Registered User
2006 TJ Wrangler

Join Date: Oct 2008
Location: Denver
Posts: 592
uhmmm.... not to diss your work, but why didnt you just grab some rubicon rockers from someone that upgraded?
__________________
"No beer and no t.v. make Jack something something..."
Colorado Jeep Club #145!!
Black Jeep Society
BlazinJack is offline   Reply With Quote
Unread 12-23-2009, 10:36 AM   #8
TheHeretic
Kool Kat 4x4

TheHeretic's Avatar
2005 TJ Wrangler

Join Date: Sep 2009
Location: Innisfil, Ontario
Posts: 677
Quote:
Originally Posted by BlazinJack View Post
uhmmm.... not to diss your work, but why didnt you just grab some rubicon rockers from someone that upgraded?
That is a good idea, but most people doing that would be South of the 49th. Which means duty and shipping.
__________________
VA3IPB

The only True Professional Mechanic in the Greater Toronto Area for Modified Jeeps, and trucks. If Rock Spyder hasn't seen it before, or done it before, you don't need it.

http://rockspyder4x4.com

http://koolkat4x4.org
TheHeretic is offline   Reply With Quote
Unread 12-23-2009, 10:38 AM   #9
TheHeretic
Kool Kat 4x4

TheHeretic's Avatar
2005 TJ Wrangler

Join Date: Sep 2009
Location: Innisfil, Ontario
Posts: 677
Quote:
Originally Posted by RogueSpear2023 View Post
Does this give you any bottom protection where you need it or is this purely for looks?
Only for esthetics. If you want the same sort of thing just cut the plate 5" wide, and brake form the bend. With this thin material, a 50ton brake form should easily do it.
__________________
VA3IPB

The only True Professional Mechanic in the Greater Toronto Area for Modified Jeeps, and trucks. If Rock Spyder hasn't seen it before, or done it before, you don't need it.

http://rockspyder4x4.com

http://koolkat4x4.org
TheHeretic is offline   Reply With Quote
Unread 12-23-2009, 10:44 AM   #10
BlazinJack
Registered User
2006 TJ Wrangler

Join Date: Oct 2008
Location: Denver
Posts: 592
oh crap, forgot about the Canada thing. yeah prolly did the best on the cheap then!! good work!!
__________________
"No beer and no t.v. make Jack something something..."
Colorado Jeep Club #145!!
Black Jeep Society
BlazinJack is offline   Reply With Quote
Unread 12-23-2009, 11:26 AM   #11
Sgt.Fuzz
Registered User
2001 TJ Wrangler

Join Date: Oct 2009
Location: North Texas
Posts: 4,434
That's a lot of work for "aesthetics". It looks fine but I think in the long run, function trumps form. There's a lot of crap in a lot of catalogs that people buy to make their Jeeps "look" good, but if it doesn't protect or make your rig perform better, what's the point?
Sgt.Fuzz is offline   Reply With Quote
Unread 12-23-2009, 11:32 AM   #12
TheBoogieman
Demonic Jeep Freak!

TheBoogieman's Avatar
1998 TJ Wrangler

Join Date: Aug 2006
Location: Charlottesville, Va
Posts: 27,722
I bought some 1/8" steel ones that wrapped underneath and bolted on for $50 on ebay.They came powder coated too.Worked well for a jacking point and were cheap(like me).
__________________
Quote:
When I had 3.07s I would draft behind birds as an attempt to do the speed limit.
TheBoogieman is offline   Reply With Quote
Unread 12-23-2009, 11:54 AM   #13
OutermostJeep
Registered User
2009 JK Wrangler

Join Date: Aug 2009
Location: Brewster, MA
Posts: 149
Quote:
I bought some 1/8" steel ones that wrapped underneath and bolted on for $50 on ebay.They came powder coated too.Worked well for a jacking point and were cheap(like me).
Any chance you might have a link to those? They look good and $50 bucks works for me!

I did a search for "rocker plates steel Jeep Wrangler" on Ebay and came up with some shiny stainless ones - but I prefer the black look.

Thanks!
OutermostJeep is offline   Reply With Quote
Unread 12-23-2009, 12:12 PM   #14
mikesbeachhut
Registered User
2003 TJ Wrangler

Join Date: Jul 2009
Location: highlands nj
Posts: 592
Dont listen to the critics... Be proud you made them yourself, anyone can buy them if you have the money. They look good & they still will give you protection (better then nothing).I make a lot of my own stuff because I make it better then alot of the aftermarket products & I enjoy doing it. By the way the rubber backing is the right way of doing it.I made aluminum rockers & used 4''wide rubber gasket materal.

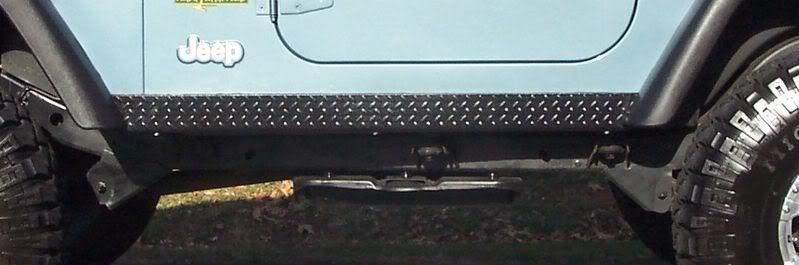

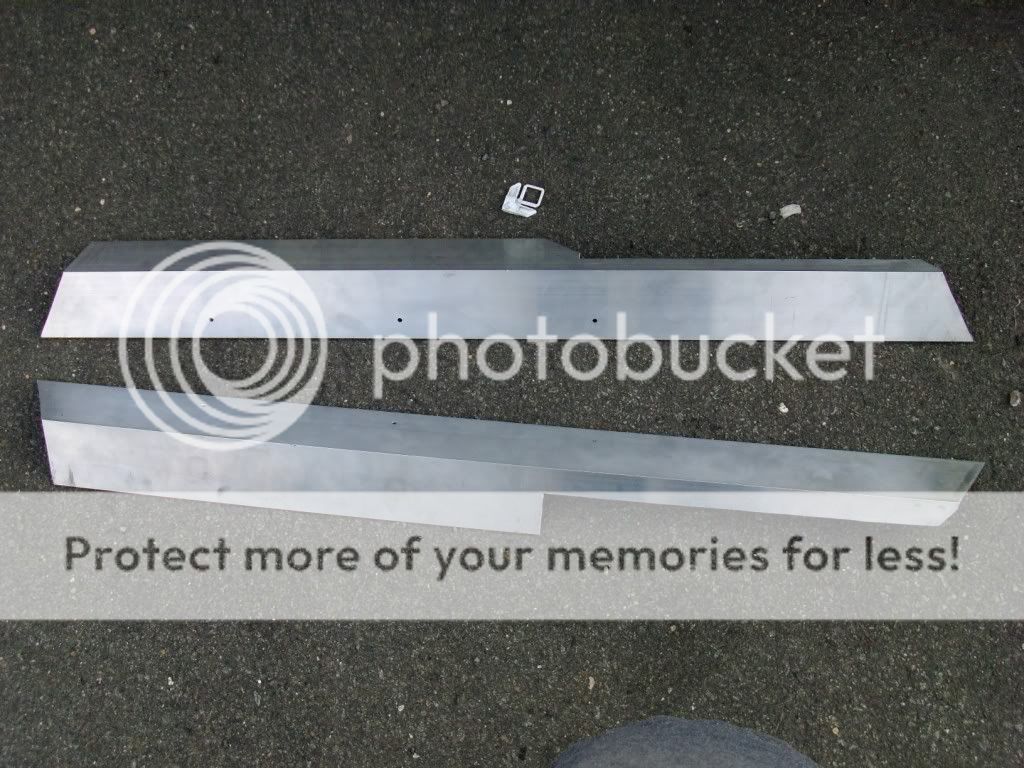

These are my rockers..
mikesbeachhut is offline   Reply With Quote
Unread 12-23-2009, 12:13 PM   #15
TheHeretic
Kool Kat 4x4

TheHeretic's Avatar
2005 TJ Wrangler

Join Date: Sep 2009
Location: Innisfil, Ontario
Posts: 677
Quote:
Originally Posted by OutermostJeep View Post
Any chance you might have a link to those? They look good and $50 bucks works for me!

I did a search for "rocker plates steel Jeep Wrangler" on Ebay and came up with some shiny stainless ones - but I prefer the black look.

Thanks!
Was it a large price difference with the Stainless? (I assume it was). If it's not much more, I would buy the ST.ST. and paint them. They will be free from rust for years.
__________________
VA3IPB

The only True Professional Mechanic in the Greater Toronto Area for Modified Jeeps, and trucks. If Rock Spyder hasn't seen it before, or done it before, you don't need it.

http://rockspyder4x4.com

http://koolkat4x4.org
TheHeretic is offline   Reply With Quote
