Jeeptubes DIY Tube Fender Install

I have been looking at tube fenders for awhile now, and saw jeeptubes.com was selling a DIY tube fender kit for $80, so I figured I'd give it a try.

For $80, you get some pre-bent tubes and it's up to you to fabricate the rest..



I did some research on the internet and got a basic idea of what I needed to cut off the existing fenders. I started by removing the OEM plastic fender flares and then removed the bolts attaching the fender.




I set the top tube on the fender and traced an approx outline, so I knew about where to cut off the top of the fender.

I started trimming the sheet metal from the fender.



With the sheet metal out of the way, I had to start thinking about how to attach the top tube to the jeep. For the rear I decided on some angle iron I had laying around.

I measured the mounting holes and drilled out 4 on each.



On the jeep


A test fitting of the upper tube, looks like I will have to do a little grinding on the tube to keep things flush..



With that in place, I started creating the fron upper mount. I had some thin metal laying around the garage, but wanted something stronger.. I decided to cut 2 rectangle pieces out of some square tube I had laying around.



I am leaving a little bit of the 90 degree edge on the metal for strength. To create the curve I added some cuts to the side of the metal so i could bend it easier. I plan to weld this up later.



pwcracer is offline   Reply With Quote
Unread 07-19-2010, 07:21 PM   #2
RubiOR
Registered User
2006 LJ Wrangler

Join Date: Jul 2008
Location: Atlanta
Posts: 190
I'm looking forward to seeing this come together. Some kind of flat fender is in my future to open things up for 35's without adding any more lift than what I currently have. Are you going to open the back side of the fender well to avoid rubbing at full turn-n-stuff?
__________________
'06 Solar Yellow Rubicon Unlimited -- The Big Yellow Brick
Their huge yellow spaceships hung in the air in exactly the same way that bricks don't. -- Douglas Adams, Hitch Hiker's Guide to the Galaxy
RubiOR is offline   Reply With Quote
Unread 07-19-2010, 09:43 PM   #3
bbradUSMC
Registered User
2004 TJ Wrangler

Join Date: May 2010
Location: Corpus Christi, Texas
Posts: 1,365
Crawled
bbradUSMC is offline   Reply With Quote
Unread 07-19-2010, 09:46 PM   #4
Sgt.Fuzz
Registered User
2001 TJ Wrangler

Join Date: Oct 2009
Location: North Texas
Posts: 4,434
And now, tonight's feature presentation......
__________________
[COLOR="Blue"]My build: [url]http://www.jeepforum.com/forum/f22/fuzzbucket-build-1126577/[/url][/COLOR]
Sgt.Fuzz is offline   Reply With Quote
Unread 07-20-2010, 06:46 AM   #5
leaf777
Registered User
2001 TJ Wrangler

Join Date: Mar 2010
Location: nj
Posts: 171
Quote:
Originally Posted by bbradusmc View Post
crawled
x2
leaf777 is offline   Reply With Quote
Unread 07-20-2010, 06:57 AM   #6
Sundowner
Part-Time Swami

Sundowner's Avatar
2003 TJ Wrangler

Join Date: May 2009
Location: The Republic of Dave
Posts: 6,197
Sweet! Make with more pics!
__________________
If it's worth doing, then it's worth overdoing.

The Republic of Dave: Bringing you the finest in simian testing supplies.

The build, the gear, and the mileage: The Wasteland Survival Guide
Sundowner is offline   Reply With Quote
Unread 07-20-2010, 08:47 AM   #7
pwcracer
Registered User
2001 TJ Wrangler

Join Date: Feb 2006
Location: Hastings, Mn.
Posts: 284
Quote:
Originally Posted by RubiOR View Post
I'm looking forward to seeing this come together. Some kind of flat fender is in my future to open things up for 35's without adding any more lift than what I currently have. Are you going to open the back side of the fender well to avoid rubbing at full turn-n-stuff?
I was looking at doing that, I would have to cut away part of the battery tray to gain more room.

I didn't get much done last night due to son's baseball game.. i decided to remove the lip I left earlier on the front mount (It just didn't look right) I then measured and drilled the 3 holes and attached it to the Jeep.




With the 2 mounts in place, tonight I should be able to tack the upper tube in place.

Looks like I will have to shorten the top tube just a bit.

pwcracer is offline   Reply With Quote
Unread 07-21-2010, 11:56 AM   #8
pwcracer
Registered User
2001 TJ Wrangler

Join Date: Feb 2006
Location: Hastings, Mn.
Posts: 284
I was able to make the drivers side upper mount last night..



Then I leveled and tacked in the back.



and the front



Did the same for the drivers side.

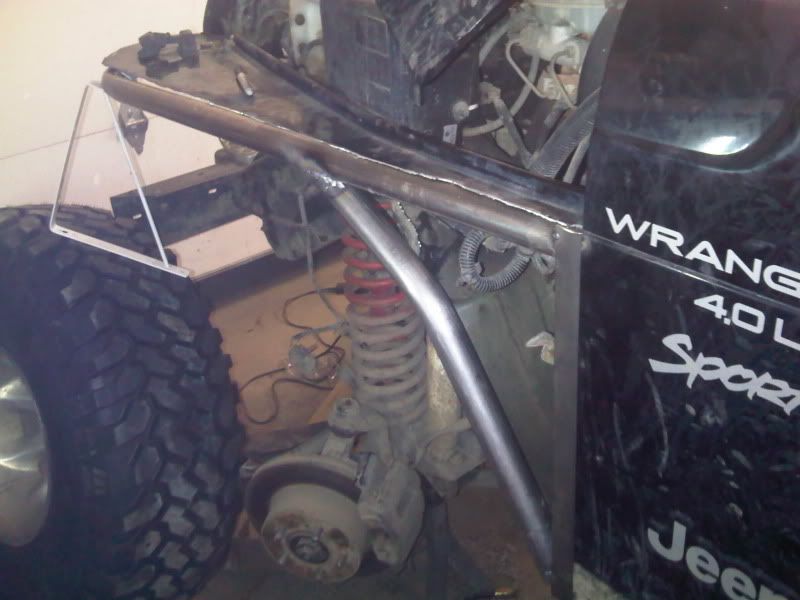

Now I am ready trim part of the battery tray to try and gain some extra clearance for the new wheel opening. I plan on attacking that tonight.
