Impact Fabworks front winch bumper, Rear bumper with swing away installed!!

So I was able to finally get time to go swap out my stubby for a not so stubby winch bumper from Impact Fab, as always a joy to deal with and the smoking deals I got cannot be beat!! I still need to finish them and will post more pics once they are primed and painted but I couldnt wait to show off my new goodies. As before 1/4 inch plate for the winch plate, fully welded front and back on the shackle mounts which are 1 inch thick, standard 2x4 box for the center section. Finally the ends are also made from 1/4 inch plate.
Pics!!





Now for the rear bumper carrier, I will let Brian chime in on the materials and thickness details but this thing is beef!! Solid fit not a rattle to be found, reciever included along with 2 more shackle mounts. The point where the hinge turns is two pieces the bottom piece attached to the bumper is a solid piece of steel 1.5 inch I believe and then the swingaway rests down on it with a cap to hold it snug. Not that it needs it as I couldnt get off of there by hand had to use a hi-lift to ease it up but with a little grease it spins easy and quiet. The T-handle treads into the bumper at the bottom and there is even a little holder for the T so you don't lose it when getting your gear in and out. Stout!!!
Pics!!









Any questions ask away!! Love my stuff!!

__________________
An ugly Jeep with some stuff.
DevilDogDoc is offline   Reply With Quote Quick reply to this message
Unread 07-19-2010, 10:47 PM   #2
DevilDogDoc
Registered User
1997 TJ Wrangler

Join Date: Apr 2009
Location: Yucca Valley 20 miles from Johnson Valley, CA
Posts: 1,835
Front painted, crappy nite pics


__________________
An ugly Jeep with some stuff.
DevilDogDoc is offline   Reply With Quote Quick reply to this message
Unread 07-21-2010, 04:01 PM   #3
DevilDogDoc
Registered User
1997 TJ Wrangler

Join Date: Apr 2009
Location: Yucca Valley 20 miles from Johnson Valley, CA
Posts: 1,835

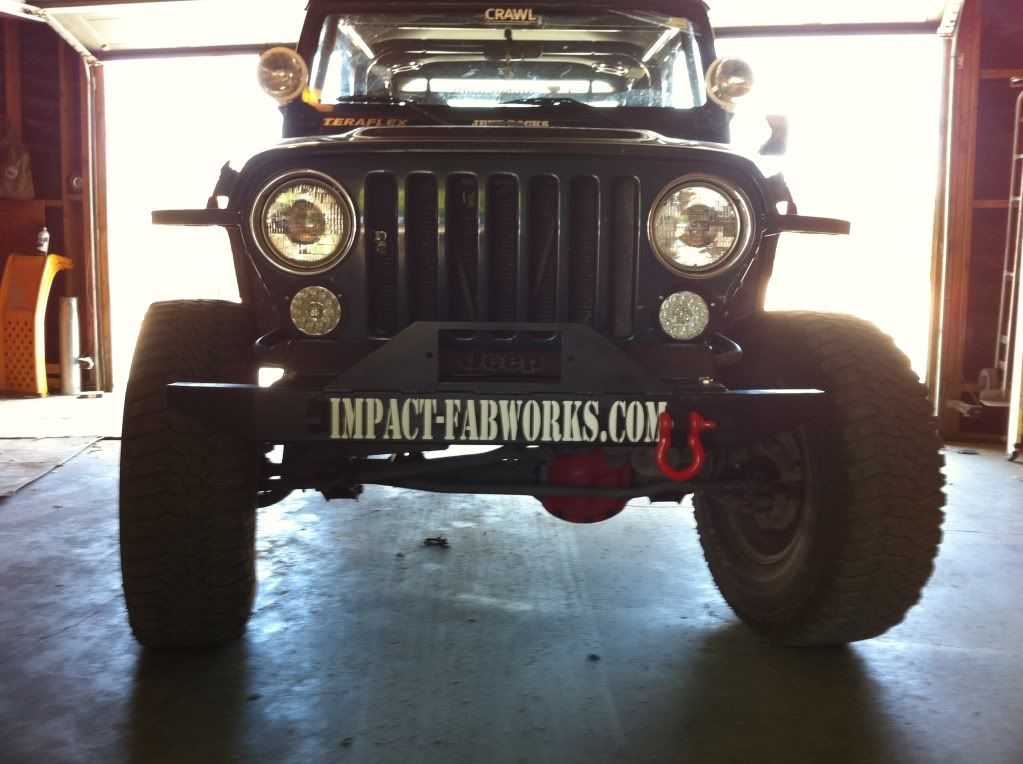

Finished product!!





__________________
An ugly Jeep with some stuff.
DevilDogDoc is offline   Reply With Quote Quick reply to this message
Unread 07-21-2010, 04:07 PM   #4
-dirt-
Registered User
2005 TJ Wrangler

Join Date: Oct 2004
Location: Montgomery, AL
Posts: 1,009
Looks good!

Any rattles?
-dirt- is offline   Reply With Quote Quick reply to this message
Unread 07-21-2010, 04:07 PM   #5
zachbh
Registered User
2003 TJ Wrangler

Join Date: Jun 2007
Location: Fort Collins, CO
Posts: 1,079
Can you take a few close up picks of the rear bumper latch? I like the threaded handle idea.
zachbh is offline   Reply With Quote Quick reply to this message
Unread 07-21-2010, 04:22 PM   #6
DevilDogDoc
Registered User
1997 TJ Wrangler

Join Date: Apr 2009
Location: Yucca Valley 20 miles from Johnson Valley, CA
Posts: 1,835
No rattles at all!! Here are a couple of close ups, the handle is a grade 8 bolt welded to a steel rod and the part that goes through the swingout is a steel sleeve inserted into the hole drilled through it.


__________________
An ugly Jeep with some stuff.
DevilDogDoc is offline   Reply With Quote Quick reply to this message
Unread 07-21-2010, 04:39 PM   #7
ALRubicon
Registered User
2004 TJ Wrangler

Join Date: Feb 2010
Location: Alabama
Posts: 73
Is there room for the front two bolts that go into the feet of the winch? I want to do mine like that but I thought having the fairlead mount on the front edge of the bumper wouldn't give room for the front two winch bolts. I would love to see how you will mount a winch.
ALRubicon is offline   Reply With Quote Quick reply to this message
Unread 07-21-2010, 04:43 PM   #8
-dirt-
Registered User
2005 TJ Wrangler

Join Date: Oct 2004
Location: Montgomery, AL
Posts: 1,009
Does it have a swing-stop?
-dirt- is offline   Reply With Quote Quick reply to this message
Unread 07-21-2010, 04:47 PM   #9
DevilDogDoc
Registered User
1997 TJ Wrangler

Join Date: Apr 2009
Location: Yucca Valley 20 miles from Johnson Valley, CA
Posts: 1,835
Well the winch plate goes all the way back under the sway bar mounts so there is room to move the winch back. Brian who made all this has the same setup as mine and his winch sits in there just fine.
__________________
An ugly Jeep with some stuff.
DevilDogDoc is offline   Reply With Quote Quick reply to this message
Unread 07-21-2010, 04:49 PM   #10
DevilDogDoc
Registered User
1997 TJ Wrangler

Join Date: Apr 2009
Location: Yucca Valley 20 miles from Johnson Valley, CA
Posts: 1,835
Quote:
Originally Posted by dirt_j00 View Post
Does it have a swing-stop?
It does not but it won't swing with the touch of a finger either. Has a nice smooth engagement but t will stop where you want it too. Unless your all kinds of off camber it'll stay where I put it.
__________________
An ugly Jeep with some stuff.
DevilDogDoc is offline   Reply With Quote Quick reply to this message
Unread 07-21-2010, 04:56 PM   #11
DevilDogDoc
Registered User
1997 TJ Wrangler

Join Date: Apr 2009
Location: Yucca Valley 20 miles from Johnson Valley, CA
Posts: 1,835
Well I just went out and swung it a few times and swinging it open pretty hard it stops with lots of room to to the body. If I push it as far as it will go, the edge of the tire bumps up on the top of the tub where the top attaches.
__________________
An ugly Jeep with some stuff.
DevilDogDoc is offline   Reply With Quote Quick reply to this message
Unread 07-21-2010, 04:57 PM   #12
-dirt-
Registered User
2005 TJ Wrangler

Join Date: Oct 2004
Location: Montgomery, AL
Posts: 1,009
10-4 Thanks!
-dirt- is offline   Reply With Quote Quick reply to this message
Unread 07-23-2010, 02:35 PM   #13
ImpactFabWorks
Registered User
1990 YJ Wrangler

Join Date: Jan 2009
Location: victorville,ca
Posts: 1,864
Quote:
Originally Posted by DevilDogDoc View Post
Finished product!!

That sticker looks sexy on there! I used some of your pictures on the website also!
__________________
1990 YJ = The Toy/ My Daily Driver
1996 XJ= Wifes Daily Driver


www.Impact-FabWorks.com

Impact-FabWorks Facebook


Please fill out your profile, It helps us help you!!!
ImpactFabWorks is offline   Reply With Quote Quick reply to this message
Unread 07-23-2010, 02:53 PM   #14
DevilDogDoc
Registered User
1997 TJ Wrangler

Join Date: Apr 2009
Location: Yucca Valley 20 miles from Johnson Valley, CA
Posts: 1,835
I saw that! Eugene gets more famous by the day!!
__________________
An ugly Jeep with some stuff.
DevilDogDoc is offline   Reply With Quote Quick reply to this message
Unread 07-23-2010, 02:56 PM   #15
GOLENJEEPTJ
Running Secretly Amok!

GOLENJEEPTJ's Avatar
2002 TJ Wrangler

Join Date: May 2007
Location: Ventura ,CA., California
Posts: 9,680
How do you grease the swing out?I didn't see a zerk so....
GOLENJEEPTJ is offline   Reply With Quote Quick reply to this message
