Unread 04-17-2007, 10:41 PM   #136
pcguy
Registered User

Join Date: May 2006
Posts: 16
new homemade bumper, just finished installing it today.

I have an 06 rubicon unlimited, so I had longer rear corners than normal to protect from rocks etc... so I did this wraparound rear bumper to keep the tub safe




pcguy is offline   Reply With Quote Quick reply to this message
Unread 04-17-2007, 10:45 PM   #137
Bulldog Jeeper
Registered User
2003 TJ Wrangler

Join Date: Jul 2006
Location: Austin, TX
Posts: 169
Quote:
Originally Posted by pcguy
new homemade bumper, just finished installing it today.

I have an 06 rubicon unlimited, so I had longer rear corners than normal to protect from rocks etc... so I did this wraparound rear bumper to keep the tub safe


click free
looks good
Bulldog Jeeper is offline   Reply With Quote Quick reply to this message
Unread 04-17-2007, 10:50 PM   #138
ScottD06X
Registered User
2011 JK Wrangler

Join Date: Aug 2006
Location: Columbus, Ga
Posts: 401
Man some of you guys could make a fortune selling your "home made" bumpers. Some look better than some of the mass marketed ones.
ScottD06X is offline   Reply With Quote Quick reply to this message
Unread 04-17-2007, 11:02 PM   #139
XabuJr
Registered User
1988 YJ Wrangler

Join Date: Apr 2006
Location: Issaquah, WA
Posts: 1,505
Quote:
Originally Posted by pcguy
new homemade bumper, just finished installing it today.

I have an 06 rubicon unlimited, so I had longer rear corners than normal to protect from rocks etc... so I did this wraparound rear bumper to keep the tub safe



So where can I get one?!?!
__________________
Lack of planning on your part does not constitute an emergency on my part.

'88 YJ, 33's, auto, 4.2L. Many pieces waiting to be put in!
XabuJr is offline   Reply With Quote Quick reply to this message
Unread 04-18-2007, 12:02 AM   #140
fast64
Registered User
1999 XJ Cherokee

Join Date: Jan 2007
Location: Macon, GA
Posts: 332
That thing is nice!
__________________
- Jimmy My take on going doorless in a 97+ Georgia Trail Riders
'99 XJ
fast64 is offline   Reply With Quote Quick reply to this message
Unread 04-18-2007, 12:03 AM   #141
GDog984
Registered User
1999 TJ Wrangler

Join Date: Jan 2007
Location: , GA
Posts: 182
Serioulsy that thing is sweet! I want one!
__________________
"You could get some custom ones made- RUBICLONE " -Xlr8n
GDog984 is offline   Reply With Quote Quick reply to this message
Unread 04-18-2007, 03:35 AM   #142
pcguy
Registered User

Join Date: May 2006
Posts: 16
It really wasn't that hard to do.

I used 4x4 3/16 inch thick square tube steel, 2 pieces of 6 inch wide flat stock, some 2 inch wide flat stock and a class 3 receiver tube from tractor supply company for the hitch. I am also brand new to welding, this was the first project I have done. Finished only with an angle grinder with cutoff wheels and some grinding discs and a few sandpaper discs. Paint is rattle can self etching primer and duplicolor low gloss black engine paint.

The angle and bevels were cut with the angle grinder & cutoff discs. the 4x4 tubing was cut in such a way as to slip together with the seams beveled to lay weld beads in, and welded beads around all the connections, then grind them down smooth.

Lot's of grinding was done

To cut the receiver tube hole I drilled holes in the 4 corners and used a sawzall to cut the square opening to size, slip the receiver tube in place, tack weld to keep it from moving. Then drill 4 holes from the backside, and plug weld the back of the receiver tube from inside until the 4 drilled holes were full. the rest was plain bead laying, with grinder and sandpaper discs to finish.

The d-ring tabs were done the exact same way. One funny note about the d-ring tabs, they are actually from my front bumper, they hung down, the maker of the bumper sells an approach roller option to put on that is supposed to make the bumper "roll" over obstacles that make contact with the bumper. I cut these off with a portaband,ground then down to a uniform shape since the cuts weren't perfect, then welded them onto my new rear bumper. This solved 2 problems, gave me the recovery tabs I wanted for the back, and got rid of these hideous things hangin from the front bumper for no good reason.
pcguy is offline   Reply With Quote Quick reply to this message
Unread 04-18-2007, 06:01 AM   #143
DogHouse
Registered User
1997 TJ Wrangler

Join Date: Jun 2003
Location: Hot Springs, Arkansas
Posts: 1,756
well where do i begin:

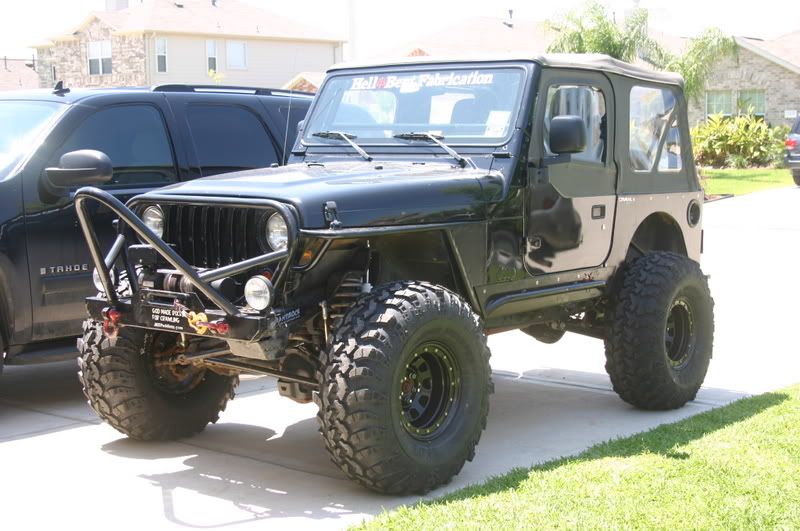

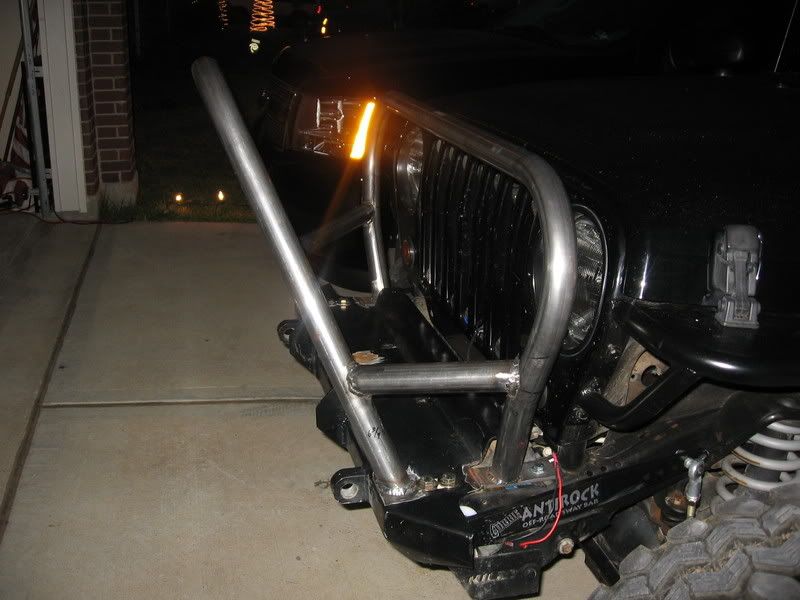

my front bumper:

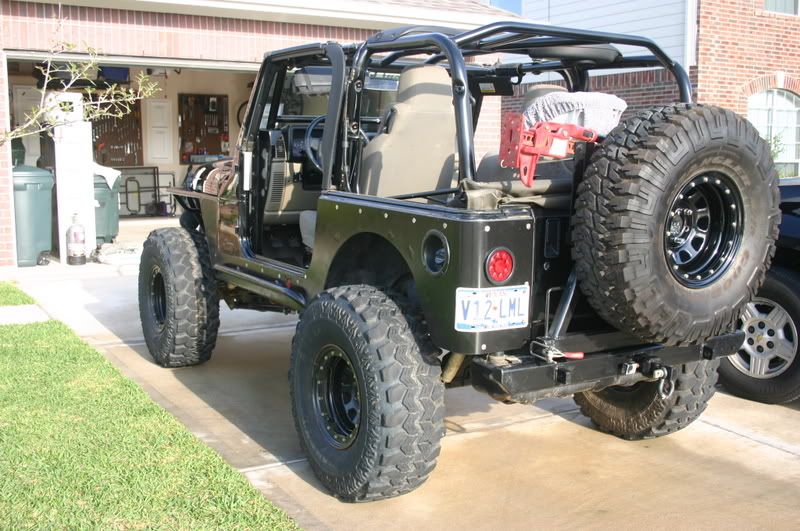

my rear carrier and bumper:

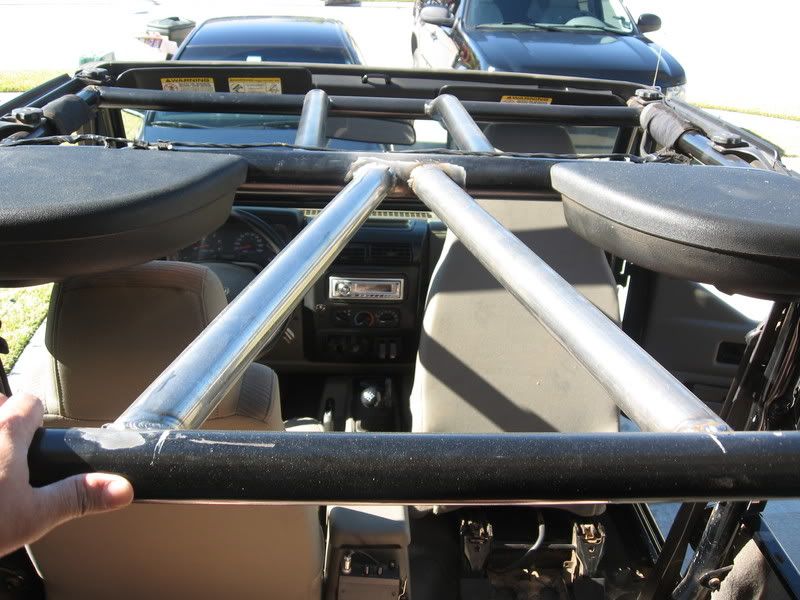

add supports to my cage:

built this for another guy:

my cargo rack:
DogHouse is offline   Reply With Quote Quick reply to this message
Unread 04-18-2007, 06:06 AM   #144
Dr. Marneaus
Station Wagoneer

Dr. Marneaus's Avatar
1973 FSJ Wagoneer

Join Date: May 2006
Location: Las Vegas, NV
Posts: 10,713
mine is lame.....but...

CB Antenna mount:

__________________
-Andrew

Illegitimi Non Carborundum


The Beast Build Thread: Marns '73 Wagoneer Thread ----- The Camper Build Thread: Marns 1980 Jayco JayFinch6 Build Thread

Dr. Marneaus is offline   Reply With Quote Quick reply to this message
Unread 04-18-2007, 04:22 PM   #145
GDog984
Registered User
1999 TJ Wrangler

Join Date: Jan 2007
Location: , GA
Posts: 182
Quote:
Originally Posted by pcguy
It really wasn't that hard to do.

I used 4x4 3/16 inch thick square tube steel, 2 pieces of 6 inch wide flat stock, some 2 inch wide flat stock and a class 3 receiver tube from tractor supply company for the hitch. I am also brand new to welding, this was the first project I have done. Finished only with an angle grinder with cutoff wheels and some grinding discs and a few sandpaper discs. Paint is rattle can self etching primer and duplicolor low gloss black engine paint.

The angle and bevels were cut with the angle grinder & cutoff discs. the 4x4 tubing was cut in such a way as to slip together with the seams beveled to lay weld beads in, and welded beads around all the connections, then grind them down smooth.

Lot's of grinding was done

To cut the receiver tube hole I drilled holes in the 4 corners and used a sawzall to cut the square opening to size, slip the receiver tube in place, tack weld to keep it from moving. Then drill 4 holes from the backside, and plug weld the back of the receiver tube from inside until the 4 drilled holes were full. the rest was plain bead laying, with grinder and sandpaper discs to finish.

The d-ring tabs were done the exact same way. One funny note about the d-ring tabs, they are actually from my front bumper, they hung down, the maker of the bumper sells an approach roller option to put on that is supposed to make the bumper "roll" over obstacles that make contact with the bumper. I cut these off with a portaband,ground then down to a uniform shape since the cuts weren't perfect, then welded them onto my new rear bumper. This solved 2 problems, gave me the recovery tabs I wanted for the back, and got rid of these hideous things hangin from the front bumper for no good reason.

So how did you mount it to the frame... I really want to make one like yours.. It looks sweet...
__________________
"You could get some custom ones made- RUBICLONE " -Xlr8n
GDog984 is offline   Reply With Quote Quick reply to this message
Unread 04-18-2007, 09:06 PM   #146
JeepRocks86
Some Call me RockDog

JeepRocks86's Avatar
2003 TJ Wrangler

Join Date: Feb 2006
Location: Louisville, KY/ Columbus, IN
Posts: 6,361
I got the first coat of paint on the top side tonight.





so far it's cost me around $60-65 including the longer bolts and cut off wheels


Another coat or two of paint on the top and then some on the bottom and mount it and it's complete...
__________________
Stretched TJ , Coil overs, 42" IROKS, 60/14 bolt...
'95 YJ fuel injected 302, 8.8, cage, ARBs.
'04 QC LB Cummins 4x4
My TJ Build Thread.
www.kifourwheelers.com
For Sale:
TJ Rear Dana 44 shaftsfor sale
3 11"& 2 13" BBCS shocks



JeepRocks86 is offline   Reply With Quote Quick reply to this message
Unread 04-18-2007, 09:14 PM   #147
GDog984
Registered User
1999 TJ Wrangler

Join Date: Jan 2007
Location: , GA
Posts: 182
Quote:
Originally Posted by JeepRocks86
I got the first coat of paint on the top side tonight.





so far it's cost me around $60-65 including the longer bolts and cut off wheels


Another coat or two of paint on the top and then some on the bottom and mount it and it's complete...

Can't wait to see the install pics!
__________________
"You could get some custom ones made- RUBICLONE " -Xlr8n
GDog984 is offline   Reply With Quote Quick reply to this message
Unread 04-18-2007, 09:44 PM   #148
sicknasty
Registered User

Join Date: Mar 2007
Location: Boone, NC
Posts: 44

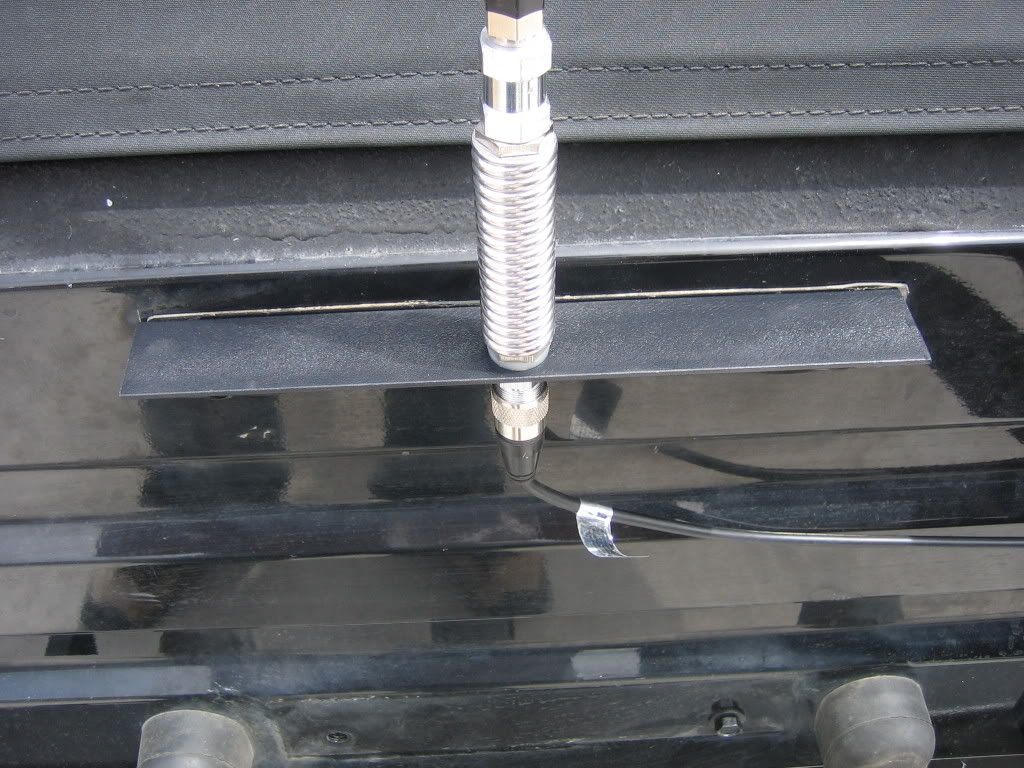

cb mount on the tire carrier... now i need to buy the antenna... weird that the hole was already there, nice and centered
sicknasty is offline   Reply With Quote Quick reply to this message
Unread 04-18-2007, 10:56 PM   #149
pcguy
Registered User

Join Date: May 2006
Posts: 16
Quote:
Originally Posted by GDog984
So how did you mount it to the frame... I really want to make one like yours.. It looks sweet...
It's stitch welded to the back frame cap across the back, top bottom and side. I suppose you could make a bolt on mount for it with some threaded studs, or nutserts or something. I was shooting for maximum strength. It's going to be a real pain to cut it off if it needs to be removed, but felt it was worth it for the extra strength provided. not to mention, it will never be stolen LOL...


I also welded the rock rails on both sides with gussets to the frame.
pcguy is offline   Reply With Quote Quick reply to this message
Unread 04-18-2007, 10:58 PM   #150
frankiejr
Junior Member

frankiejr's Avatar

Join Date: Mar 2007
Location: South Boston, MA
Posts: 98
Quote:
Originally Posted by sicknasty


cb mount on the tire carrier... now i need to buy the antenna... weird that the hole was already there, nice and centered
End clicky.

What did you use for the bolt? (Please excuse me if that sounds stupid, I just don't have a CB yet and have been looking at mounts lately thinking about what to do when I get one soon...)
frankiejr is offline   Reply With Quote Quick reply to this message
