How to remove the door lock cylinders on a TJ?

I just got myself some full hard doors and now all I need to do is get them keyed. I spoke with the dealer and they said they'd re-key the old cylinder to match my ignition key for free but I'd have to bring them just the cylinders and not the whole door. I pulled off my panel to try to remove the lock cylinders but couldn't even tough them... How in the world do I remove those? Please reply as descriptive as possible as I have never tackled this particular area on my Jeep yet. Thanks for the help!


If you are not buying local, at least buy American.
TJandMe is offline
Sponsored Links
Advertisement

post #2 of 18 Old 01-09-2009, 12:46 PM
BlackBellamy
Registered User

BlackBellamy's Avatar
1999 TJ Wrangler

Join Date: Oct 2007
Location: The Empire State
Posts: 2,207
yeah i feel your pain



FULL DOOR LOCK CYLINDER
REMOVAL
(1) Remove trim panel.
(2) Peel back waterdam.
(3) Disconnect lock cylinder to latch rod.
(4) Remove lock cylinder retaining clip.
(5) Remove the lock cylinder from the door.

INSTALLATION
(1) Install the lock cylinder in the door.
(2) Install lock cylinder retaining clip.
(3) Connect lock cylinder to latch rod.
(4) Secure the waterdam to the door.
(5) Install trim panel.


It's a total pain to get out and install the retaining clip. Good pair of needlenose, lots of light, and a triple jointed mutant arm will get you by as you try to navigate through the insanely positioned small access holes on the inside of the door.

The top and doors on this vehicle are designed only for protection against the elements. Do not rely on the top and doors to contain occupants within the vehicle or to protect against injury during an accident. Wear seatbelts at all times.
BlackBellamy is offline
post #3 of 18 Old 01-09-2009, 12:52 PM Thread Starter
TJandMe
Registered User
1985 CJ7

Join Date: Jan 2009
Location: Portland
Posts: 208
Ouch... Thank you!

If you are not buying local, at least buy American.
TJandMe is offline
post #4 of 18 Old 01-10-2009, 12:47 AM Thread Starter
TJandMe
Registered User
1985 CJ7

Join Date: Jan 2009
Location: Portland
Posts: 208
Quote:
Originally Posted by BlackBellamy View Post
and a triple jointed mutant arm will get you by as you try to navigate through the insanely positioned small access holes on the inside of the door.
No kidding on the triple jointed mutant arm... did they really expect a human to get that cylinder out easily? Thanks for the help though! Without it, I'd be prying it out with a screw driver for sure!

If you are not buying local, at least buy American.
TJandMe is offline
post #5 of 18 Old 01-30-2009, 07:50 AM
freshlikefruit
Registered User
1997 TJ Wrangler

Join Date: Sep 2008
Location: Greenback, TN
Posts: 276
anyone know where i could get another retaining clip for the lock cylinder? possible part #?

97 tj, dirt on it
freshlikefruit is offline
post #6 of 18 Old 01-30-2009, 09:33 AM
BlackBellamy
Registered User

BlackBellamy's Avatar
1999 TJ Wrangler

Join Date: Oct 2007
Location: The Empire State
Posts: 2,207
Quote:
Originally Posted by freshlikefruit View Post
anyone know where i could get another retaining clip for the lock cylinder? possible part #?
if it's anywhere it would be in there

http://www.scribd.com/doc/2662774/Je...-Parts-Catalog

The top and doors on this vehicle are designed only for protection against the elements. Do not rely on the top and doors to contain occupants within the vehicle or to protect against injury during an accident. Wear seatbelts at all times.
BlackBellamy is offline
post #7 of 18 Old 01-30-2009, 12:00 PM
BlueFlame
Registered User

BlueFlame's Avatar
2003 TJ Wrangler

Join Date: Mar 2006
Location: Oregon USA
Posts: 8,396
Quote:
Originally Posted by freshlikefruit View Post
anyone know where i could get another retaining clip for the lock cylinder? possible part #?
Any auto parts store should have them. They're rather generic.
BlueFlame is offline
post #8 of 18 Old 03-19-2009, 11:31 AM Thread Starter
TJandMe
Registered User
1985 CJ7

Join Date: Jan 2009
Location: Portland
Posts: 208
Has anybody been able to find a write-up with pictures for removing the full door lock cylinder? I can't find one for the life of me..

If you are not buying local, at least buy American.
TJandMe is offline
post #9 of 18 Old 03-19-2009, 04:11 PM
Rubicon_Rob04
Registered User
2004 TJ Wrangler

Join Date: Feb 2009
Location: indiana
Posts: 718
I ended up removing the glass and the regulator assembly in mine before I could get my fat hand in there with a loooong needle nose plier. It is no fun but you can do it if you remain calm.
Rubicon_Rob04 is offline
post #10 of 18 Old 11-03-2009, 06:38 PM
Mttrek360
Registered User
1999 TJ Wrangler

Join Date: Aug 2009
Location: Ellicott City, MD
Posts: 477
Bump for help

Pics or it didn't happen.
Mttrek360 is offline
post #11 of 18 Old 11-03-2009, 06:49 PM
Mttrek360
Registered User
1999 TJ Wrangler

Join Date: Aug 2009
Location: Ellicott City, MD
Posts: 477

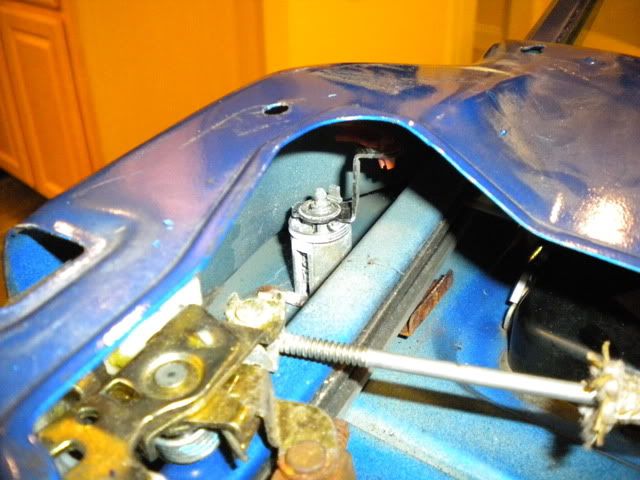

Heres the inside of the door, now how do I get the cylinder out? Thanks!


Pics or it didn't happen.
Mttrek360 is offline
post #12 of 18 Old 11-03-2009, 07:02 PM
sandfox4
Registered User
2005 TJ Wrangler

Join Date: Jan 2008
Location: northern indiana
Posts: 155

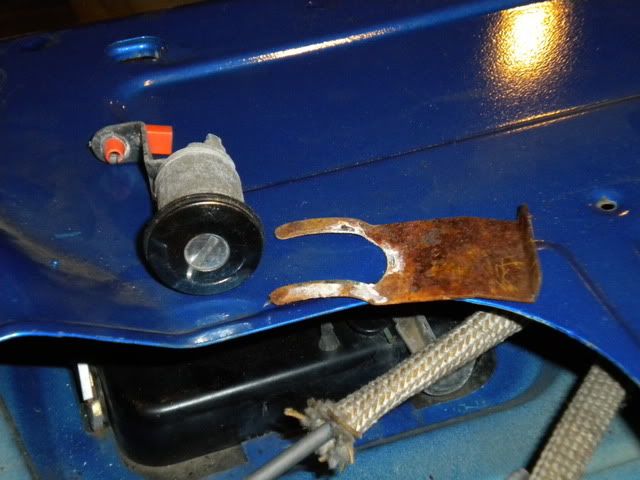

grab that rusty piece of metal under the glass guide rail ,and pull toward the front of the door, that will free the cyl ,now push it out the front side, it looks like u already have the little rod end loose,
sandfox4 is offline
post #13 of 18 Old 11-03-2009, 07:08 PM
Mttrek360
Registered User
1999 TJ Wrangler

Join Date: Aug 2009
Location: Ellicott City, MD
Posts: 477
You are awesome!!!!! THANK YOU!!!!


Pics or it didn't happen.
Mttrek360 is offline
post #14 of 18 Old 11-03-2009, 08:12 PM
sandfox4
Registered User
2005 TJ Wrangler

Join Date: Jan 2008
Location: northern indiana
Posts: 155
hey just glad i could help
sandfox4 is offline
post #15 of 18 Old 08-07-2011, 09:54 PM
subtlez28
Registered User
2001 XJ Cherokee

Join Date: Sep 2010
Location: Janesville, WI
Posts: 48
This is a bit of an old thread.

However, I just found it on a search and it answered my question. Gotta love this forum!!

The picture was especially helpful, as I did not know what I was looking for.

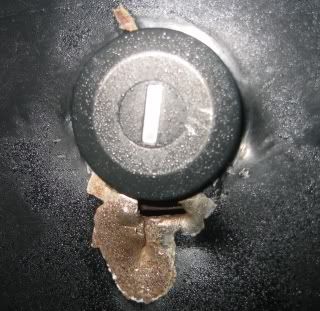

FWIW, I was able to use a pry bar against the window channel (window up) to pop it out. It went in by hand.

01 XJ Cherokee 4.0/M5
03 TJ Rubicon-4.0/M5 33s,Savvy TT SOLD
