Heated seats in a TJ 30+ pics

Our winters in PA get pretty cold so I decided to install heated seats in my 03 TJ Sahara. I'll try and be discriptive where I can. Hope you like and don't flame me for heated seats in a jeep!

I've been looking for heated seats since October and finally found a great deal on a pair 3 months later. I found these on ebay, I got the pair for $130. New they're $160 a piece!! Here's the link to them.Seat Heaters for Cars and Trucks from HeatedSeatKits.com

Time for install: 4-5 hours
I started with the switches for both driver and passenger. I'm installing them in the console where the air bag switch would be. I traced out the pattern and cut them out with a rotozip and used an exact-o-knife to clean up the holes.
Tools you'll need:
rotozip or dremel
knife
tape measure
pensil
glue

[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
I used some glue to keep the switches from moving around and to keep them nice and straight.
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]

Next I took the driver and passenger seat out of the Jeep to remove the upholstery. Some say you can leave them in the Jeep but really it's much easier just to take them out. Now I've never done anything involving upholstery so I was a little wary but it went smoothly
Tools you'll need:
Side cutting pliers~dikes
zip ties 6" long
flat blade screw driver

Start with the bottom front and unhook the center tab and pull up the front corners.
[IMG][/IMG]

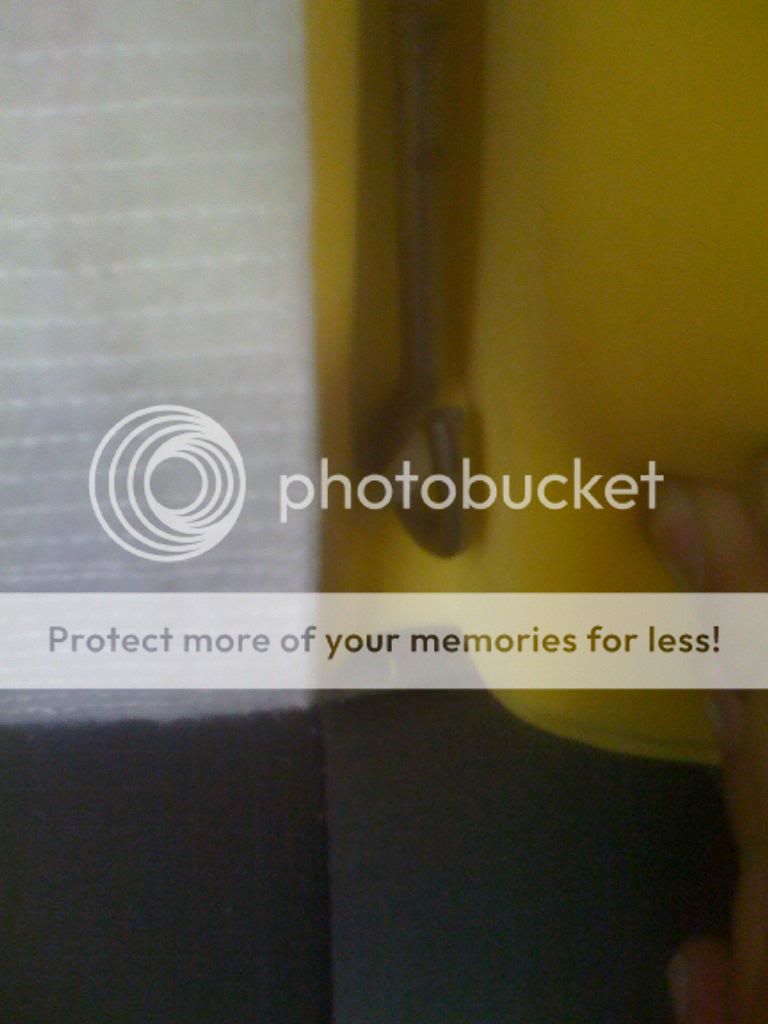

On the underside there's two long plastic hooks that you'll have to unsnap to pull the fabric back all the way.
[IMG][/IMG]
[IMG][/IMG]

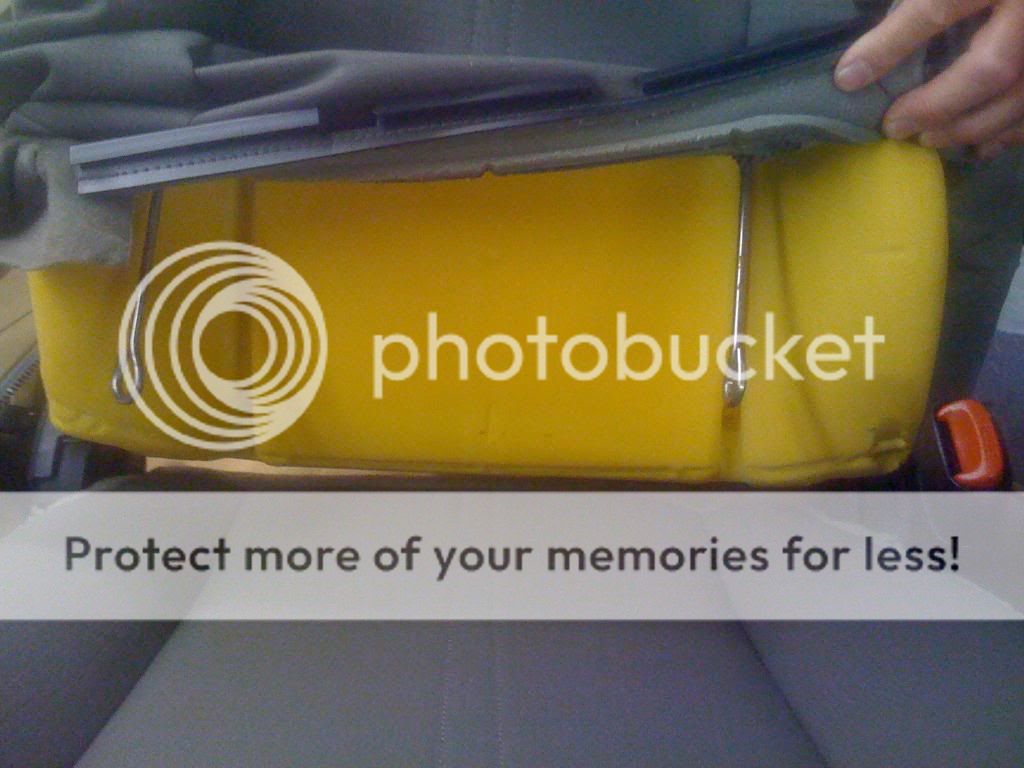

Then pull up the front and on each side you'll have 4 sets of ?hog hooks? running the lenght of the seat for a total of 8. Use the side pliers and cut these round hooks and pull up the seat cover as you go.
Now take the zip ties and install them where the round hooks where. They're going to be holding the fabric down once you're done.
Install the heating pads as per instructions. Install the sticky side down and pull the wire out the back towards the center console.
[IMG][/IMG]
[IMG][/IMG]
zip ties installed thru the metal rods that run the length of the seat.
[IMG][/IMG]
[IMG][/IMG]
cut the zip ties and then rotate the zip tie end so the pointy side is down into the seat.
[IMG][/IMG]
Reinstall the fabric over the seat in the order you took it off. It's not hard at all the pull it back over everything.
Then zip tie the wires to the seat so they don't get caught when moving the seat
[IMG][/IMG]

__________________
FOR SALE
14,960 miles perfect condition
2003 Jeep Wrangler Sahara edition fully loaded 5 speed manual. Brown dog 1" motor mounts, Currie 1" body lift, jks front disconnects, 31" Goodyear Wrangler duratracs, 8 adjustable control arms, Advance Adapters HD SYE, Tom woods premium driveshaft, driver & passenger heated seats
Kip03TJ is offline   Reply With Quote Quick reply to this message
Unread 05-07-2010, 08:28 PM   #2
Kip03TJ
Registered User
2003 TJ Wrangler

Join Date: Mar 2009
Location: Harrisburg PA
Posts: 716
Next is the top.

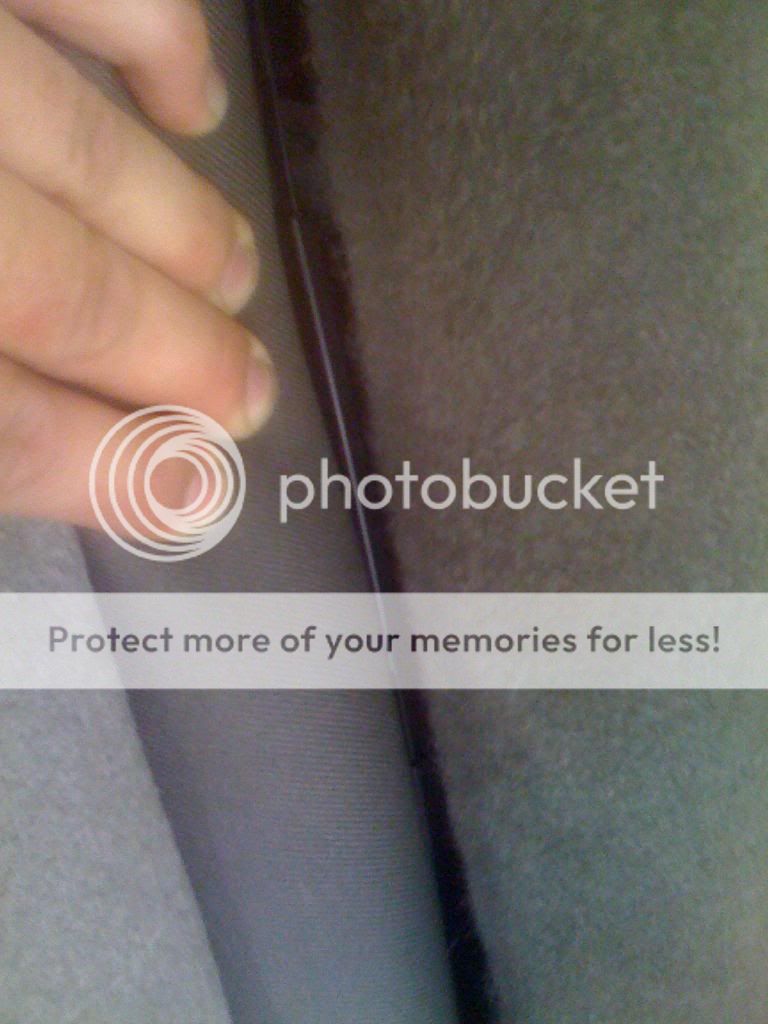

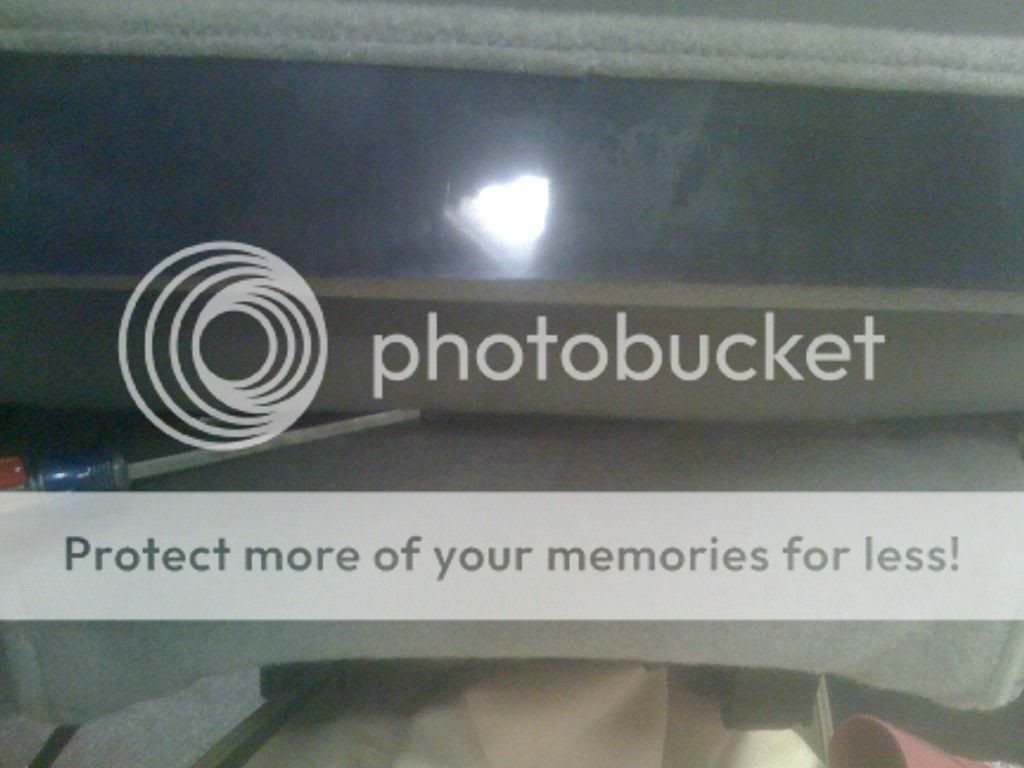

Start with the bottom, there's 3 plastic snaps that hold my fabric together Under this flap. I used a small flat blade to get it started.
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]
[IMG][/IMG]

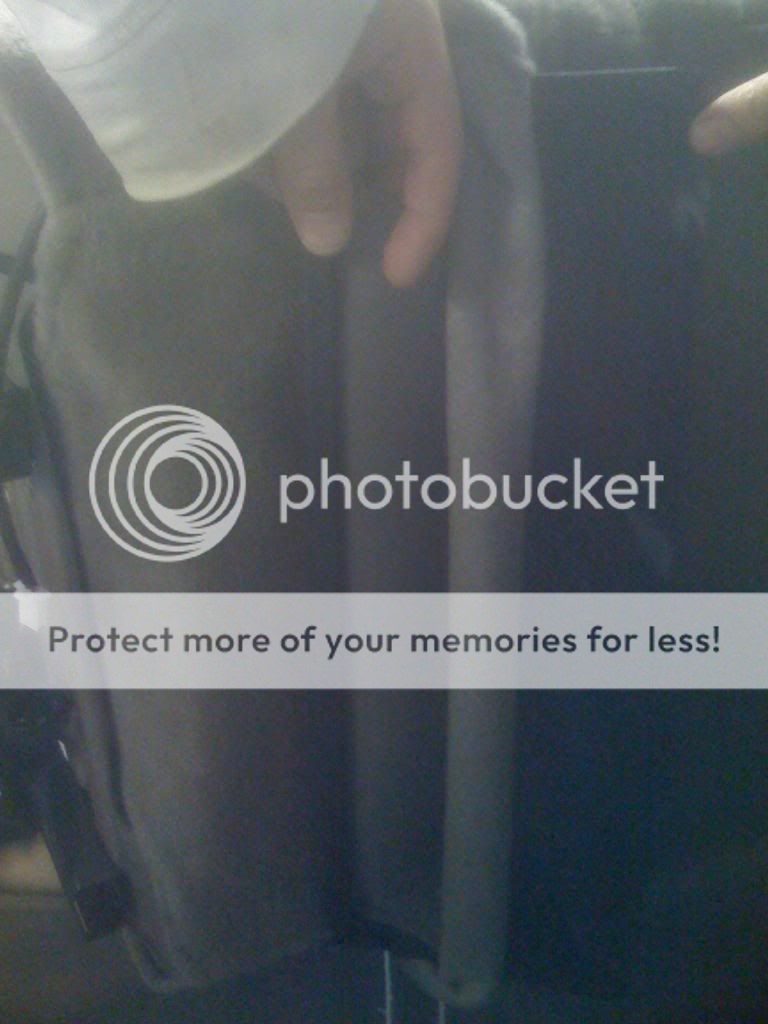

Once you get those unsnapped begin to pull up the fabric along the front and back. You don't need to pull the fabric all the way off only about a foot up. There's 2 metal rods that are held on by clips that need to be cut. Cut these.
[IMG][/IMG]

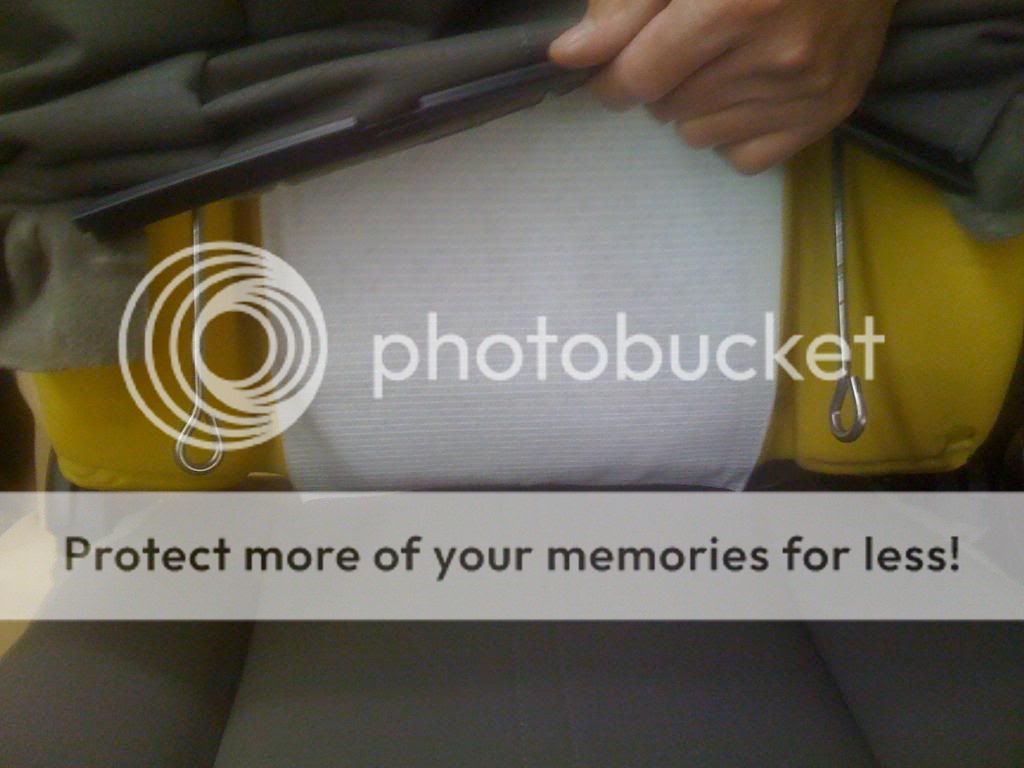

Install the heated pad sticky side down. I did my best to get the top of the heating pad lined up with the top seam of the seat. Once you have the pad stuck down on the seat route the power cord where the bottom power cord is. Use zip ties and reinstall the metal rods.
*Make sure the metal rods are properly inserted into their holes at the top of the seat. When you have the fabric loose you can feel the holes.
[IMG][/IMG]
Tighten the zip ties, cut the excess off and point the sharp part down into the seat.
[IMG][/IMG]
[IMG][/IMG]


Pull the seat cover back down and snap those 3 plastic pieces back together and you're done! Reinstall the seats and make sure noting catches. Next is running the power lines from the switches to the seats.

...I'll have to do that another time I'll keep this thread updated. Hope this helps anyone that needs it!
