post #1 of 11 Old 06-30-2012, 11:16 AM Thread Starter
TJ-Tim
Registered User
2001 TJ Wrangler

Join Date: Dec 2009
Location: Dupont
Posts: 401
cylinder head replacement after infamous (0331) crack w/pics

So I had the infamous crack between cylinder 3 and 4. Wanted to share a few picks of my first head replacement. If I did it anyone can!

First two pics are of the cracked intake manifold, that would explain the sound of air flowing from the front end at WOT. got a used one from ebay, came with fuel rail and injectors


That peice was being held on by one of the bolts so this was a fun surprise when I heard that hit the ground.


When I removed the valve cover it was a milk shake mess in there, cleaned the cover up, my gasket has been leaking since I got the Jeep.


Next two pics are of the old head you can see the crack.. that was causing all my coolant loss, which caused the over heating which cracked the intake manifold. That cylinder head weighs 80 lbs... that was fun standing on the motor mounts to dead lift this ***** off the block..



First time seeing the inside of my engine.. tops of pistons and cylinder walls were in really good shape for what its been through and 107,xxx miles on it. I assume the whitish color on piston 3 and 4 were from coolant being burned. gave the block a good cleaning and wd40'd it to prevent rust as it took me 3 weeks to afford the new head.



New cylinder head from clear water cylinder head, they were really easy to deal with and helped me upon calling them for advice when reinstalling.

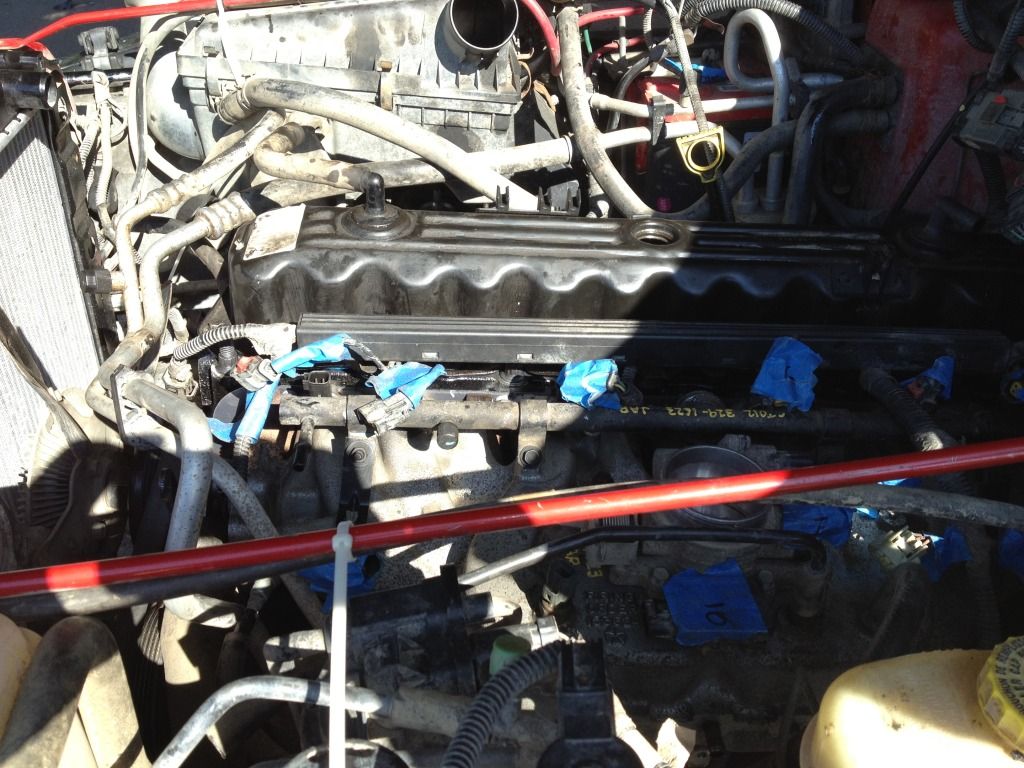

Reinstalling everything, took my time since it was the first time doing anything like this.




She's running better then ever


All in all this was very easy to do, hardest parts were reinstalling the new head as you have to lower straight down and as I said before that ***** is heavy also taking off/on the exhaust manifold lower bolts, I had to remove the driver side motor mount and pull some contortionist moves to get to the bolts.

I would say the total amount of hours I put into it was about 30 because I've never done ANYTHING like this before and I had to label all connections and bolts and I just really wanted to take my time and make sure I did it right.

Total cost around $800.

oil is still crystal clear and compression is good so I call this one a win


ɹǝʌo ǝɯ 11oɹ 'sıɥʇ pɐǝɹ uɐɔ noʎ ɟı
TJ-Tim is offline
Sponsored Links
Advertisement

post #2 of 11 Old 06-30-2012, 11:40 AM
064banger
Registered User
2006 TJ Wrangler

Join Date: Feb 2009
Location: Dallas
Posts: 42
Well done! I could never attempt anything like that I'd be way too scared of messing something up big time.
064banger is offline
post #3 of 11 Old 06-30-2012, 11:51 AM
ninjakid
Registered User
1987 YJ Wrangler

Join Date: Mar 2011
Location: Chalfont
Posts: 1,018
Good job!
How was the cylinder cross hatch?

Incompetence in motion
96 XJ 4dr, 4.0, AW4, NP231,
87 Wrangler, 4.2, TF999, NP231
ninjakid is offline
post #4 of 11 Old 06-30-2012, 11:58 AM
BioTex
Registered User
2006 TJ Wrangler

Join Date: May 2008
Location: Alpine, Tx.
Posts: 3,173
Quote:
Originally Posted by ninjakid View Post
Good job!
How was the cylinder cross hatch?
Crosshatch! with 107k miles?

'85 CJ7, BDS 4" lift, 1" Body lift, 33x12.5, Shrockworks Sliders, 304 V8 with RV cam., T-176, D300, Dana 30, AMC 20.
1986 CJ10-A SD-33 Diesel/727/np208
1971 800B with 345/T-19
06' TJ Rubicon, 4" R.C. springs, BFG/AT 35s M.C. 6" fenders, rockers and surrounds, Currie front & rear adj. tracbars, tattons DC rear shaft, adj. upper - lower CA's. Bilstein 5100's
YJ Buggy Build Current project. Stroker/FI ?
1990 MJ Comanche 4.0L AX15/np231
BioTex is offline
post #5 of 11 Old 06-30-2012, 12:32 PM Thread Starter
TJ-Tim
Registered User
2001 TJ Wrangler

Join Date: Dec 2009
Location: Dupont
Posts: 401
Quote:
Originally Posted by 064banger View Post
Well done! I could never attempt anything like that I'd be way too scared of messing something up big time.
Thanks! believe me I am a total novice mechanic, It was super intimidating but I force myself to do this stuff since I got the jeep and I still check the oil every day since doing this to make sure its not milky, amazed I actually fixed it. XD

ɹǝʌo ǝɯ 11oɹ 'sıɥʇ pɐǝɹ uɐɔ noʎ ɟı
TJ-Tim is offline
post #6 of 11 Old 06-30-2012, 12:33 PM Thread Starter
TJ-Tim
Registered User
2001 TJ Wrangler

Join Date: Dec 2009
Location: Dupont
Posts: 401
Quote:
Originally Posted by ninjakid View Post
Good job!
How was the cylinder cross hatch?
I just had to google what that even was XD

I'm a noob and just made sure the cylinder walls wern't all gnarly, I'll go check brb! :P

ɹǝʌo ǝɯ 11oɹ 'sıɥʇ pɐǝɹ uɐɔ noʎ ɟı
TJ-Tim is offline
post #7 of 11 Old 06-30-2012, 01:16 PM
ninjakid
Registered User
1987 YJ Wrangler

Join Date: Mar 2011
Location: Chalfont
Posts: 1,018
Quote:
Originally Posted by BioTex

Crosshatch! with 107k miles?
Did a valve job on a 96 xj with a 4.0 that had 103k miles on it a year ago and it still had a fairly decent cross hatch.

Incompetence in motion
96 XJ 4dr, 4.0, AW4, NP231,
87 Wrangler, 4.2, TF999, NP231
ninjakid is offline
post #8 of 11 Old 12-18-2012, 06:34 AM
j0e
Registered User
2000 TJ Wrangler

Join Date: May 2011
Location: Fairfax
Posts: 167
might be doing this as well.

how much did the head run you?
j0e is offline
post #9 of 11 Old 12-18-2012, 07:44 AM
obiefox
Registered User
2006 TJ Wrangler

Join Date: Dec 2012
Location: oregonia
Posts: 121
Nice job. The only way to learn is to have the balls to try something new. Take your time, label everything and take pictures...
obiefox is offline
post #10 of 11 Old 12-18-2012, 01:11 PM
LJameson
Registered User
1990 YJ Wrangler

Join Date: Jun 2008
Location: Central Oregon!
Posts: 3,830
Quote:
Originally Posted by BioTex View Post
Crosshatch! with 107k miles?
Your point?




That's a pic of a PT cruiser 2.4 (same 2.4 used in TJs) that's never been opene up before. It had 297,000 miles on it.

1990 YJ-The wheeler
2015 JK- The DD
LJameson is offline
post #11 of 11 Old 12-18-2012, 04:36 PM
goldswim5
Registered User
2005 LJ Wrangler

Join Date: Apr 2008
Location: Springfield, MO
Posts: 1,379
Quote:
Originally Posted by BioTex View Post
Crosshatch! with 107k miles?
If you don't have crosshatch at only 107k, you might have some issues.

2005 Wrangler Unlimited
6 speed, hard top, bone stock
goldswim5 is offline
