burnt fan speed switch?

Going beyond the usual resistor replacement, this rig seems to enjoy melting down connectors and wiring.

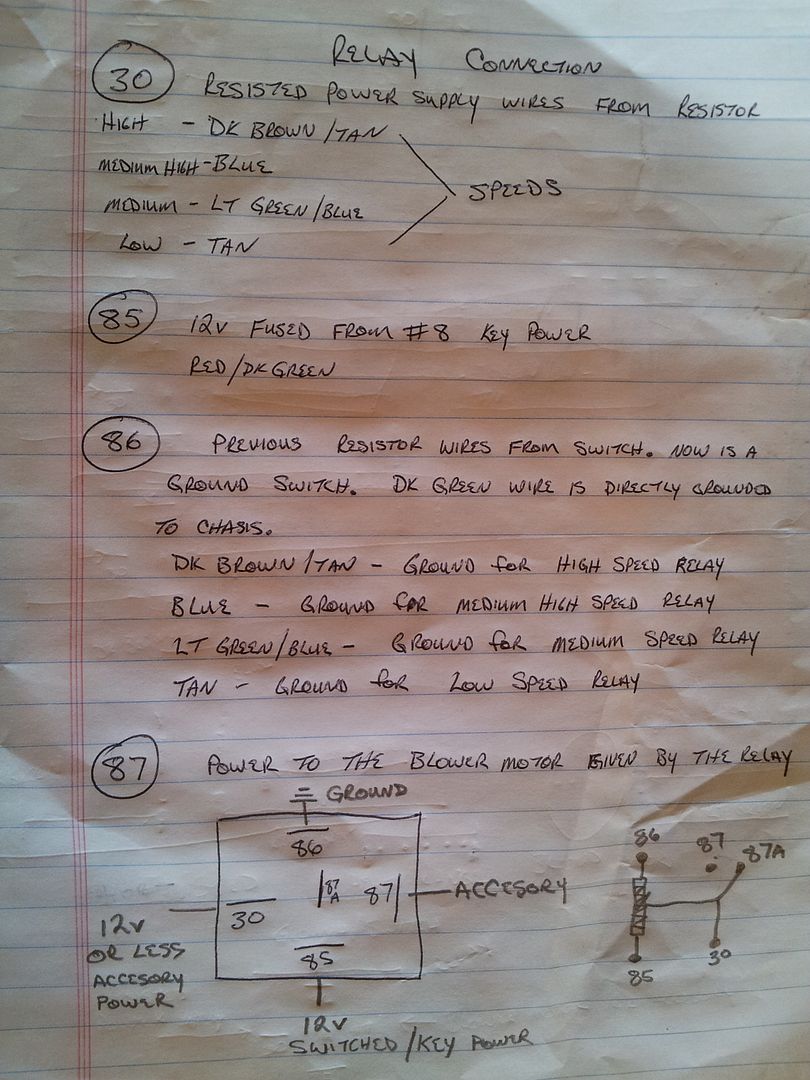

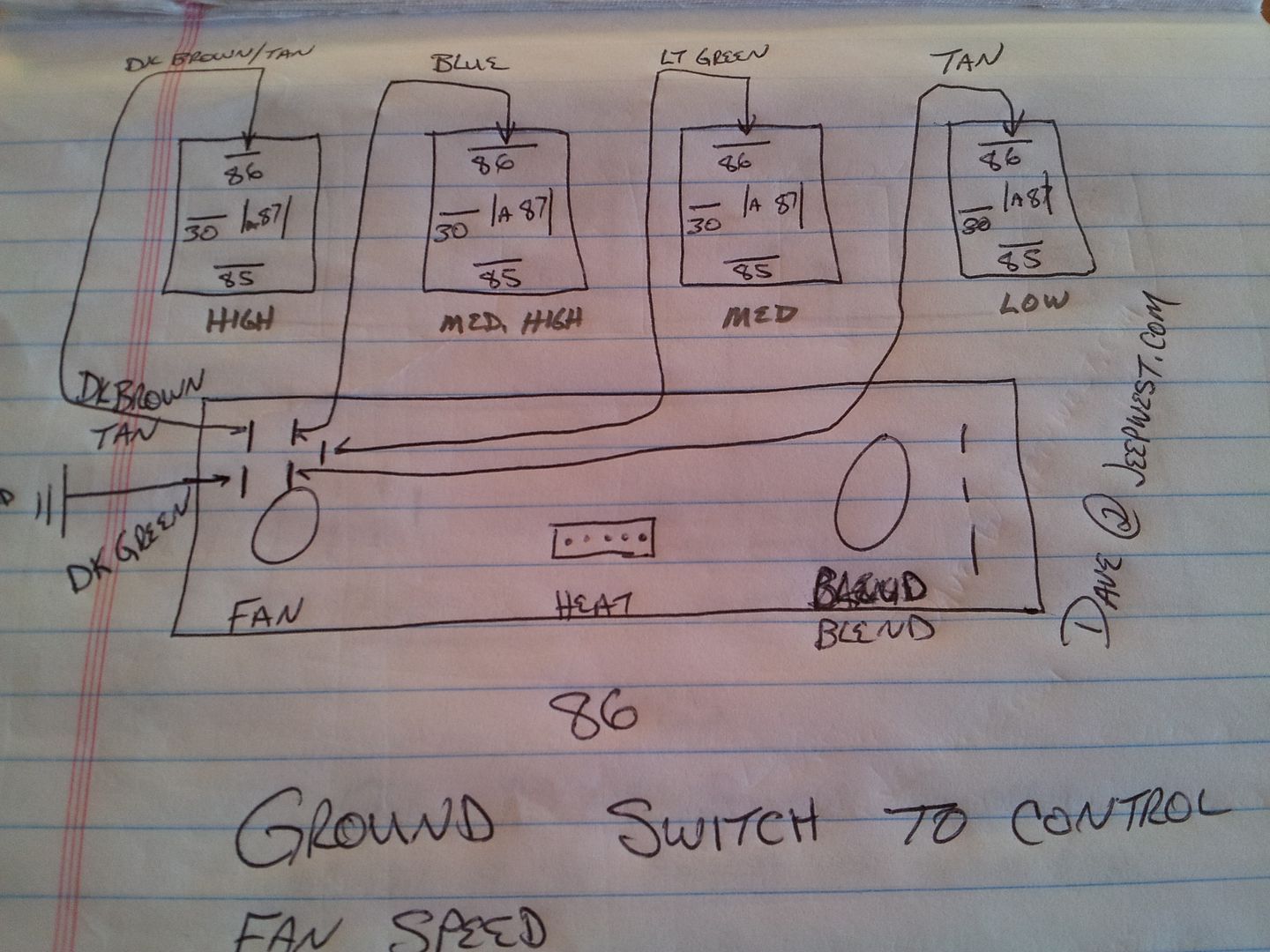

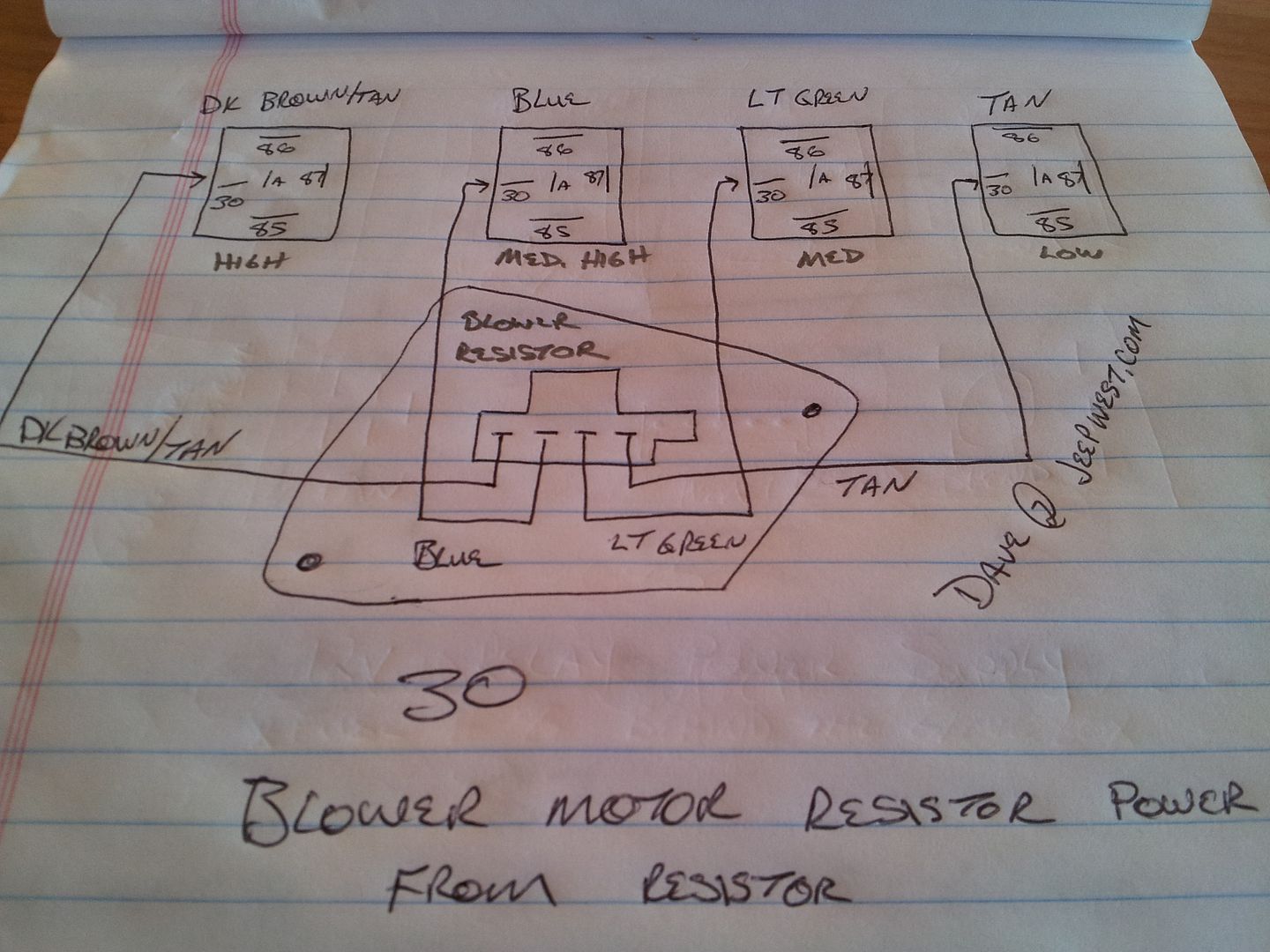

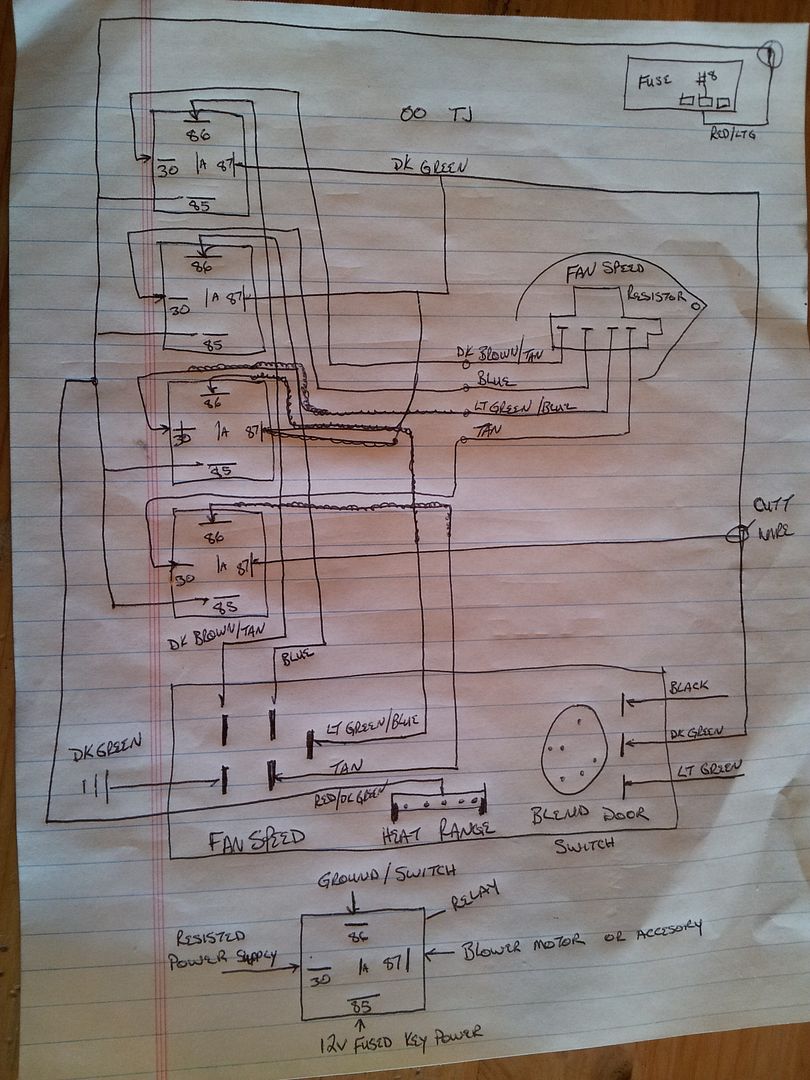

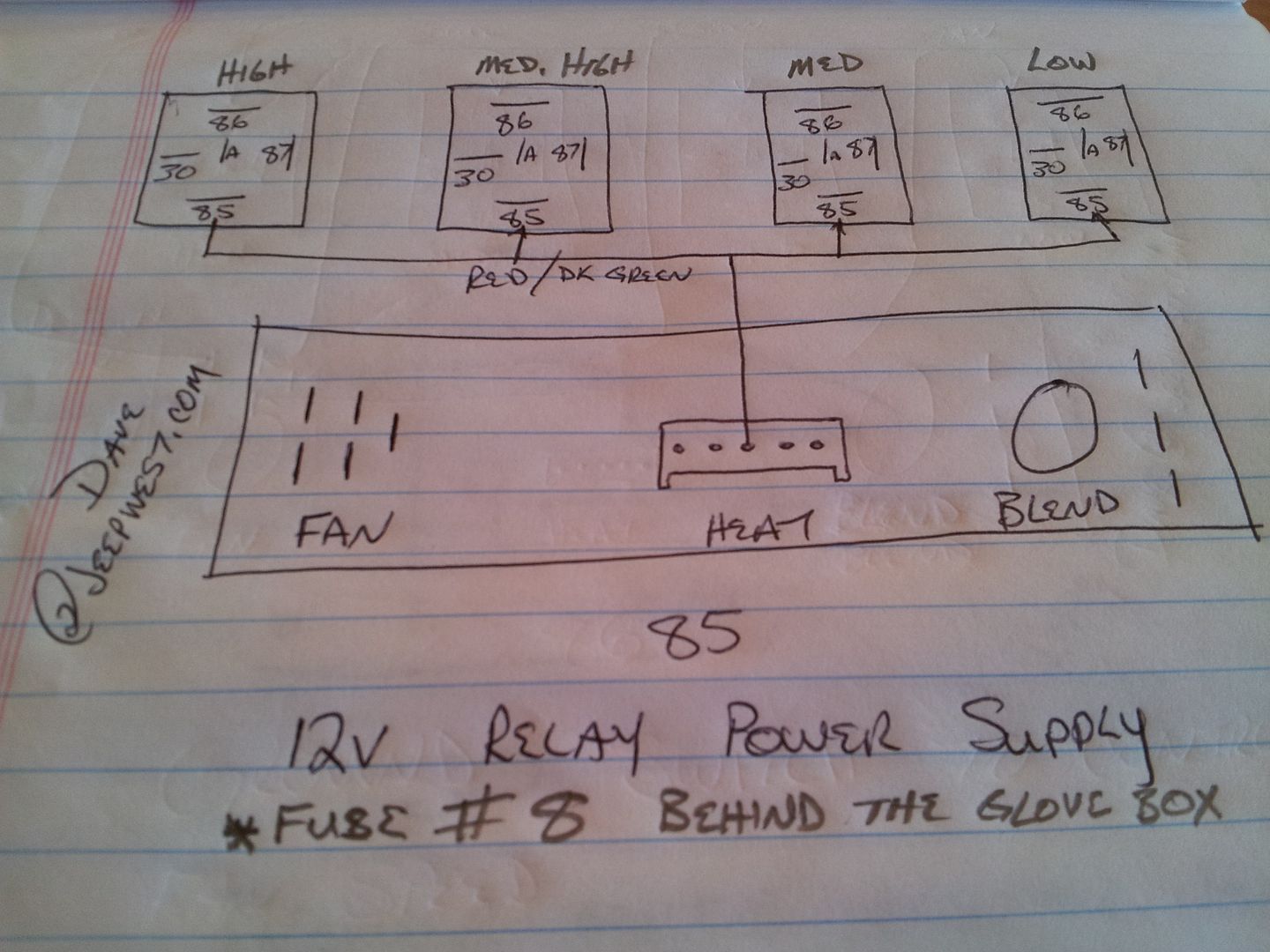

I remembered reading a jp magazine article titled fire prevention, fire retardant which got the ball rolling here... To make it easier for some of us, i scetched some diagrams of how i did it using the speed selector switch as the relay grounds. Relacement parts were purchaced from TJK salvage in Ariel, Wa. New speed switches can be purchaced from the local auto parts as well as a whole assembly.
Other pics of the actual wiring i did confuse me to look at and im the one that did it....



















__________________
I want your factory 07-up take-off/thrown out JK front/rear Lower Control Arms! Bent ones are perfect also as long as the bushings and cold cut rings are in good shape/useable


HighLine Hood Jeepers
TJ Adjustable Track bars
DIY highline fenders.... 34-37's under 0"-2.5" lifts
shock length, bumpstop extension, tire size chart click here
DIY shock shifters, more uptravel/better ride




2011 E-350 4x4 Van conversion

2006 Rubicon Unlimited

ASE Certified Master Tech/Fabricator @ jeepwest.com
mudb8 is offline   Reply With Quote
Unread 11-01-2013, 10:40 AM   #2
Jonny Jeep
Web Wheeler

Jonny Jeep's Avatar
1997 TJ Wrangler

Join Date: Feb 2007
Location: Manchester, UK
Posts: 4,460
Nice write up.
__________________
"Giving English to an American is like giving sex to a child. He knows it's important but he doesn't know what to do with it."
Adam Cooper (19th century)

Rockauto 5% discount code can be found here... http://www.markviii.org/LOD2/products_services.htm

Online factory service manuals (FSMs) and parts lists can be viewed at http://www.jeep4x4center.com/knowledge-base/index.htm
If the link doesn't work properly, look for the service manual link under Jeep Resources at the bottom of the page.
Jonny Jeep is offline   Reply With Quote
Unread 11-01-2013, 11:09 AM   #3
JBTJ
Web Wheeler
2001 TJ Wrangler

Join Date: Mar 2006
Location: Dallas, TX
Posts: 8,979

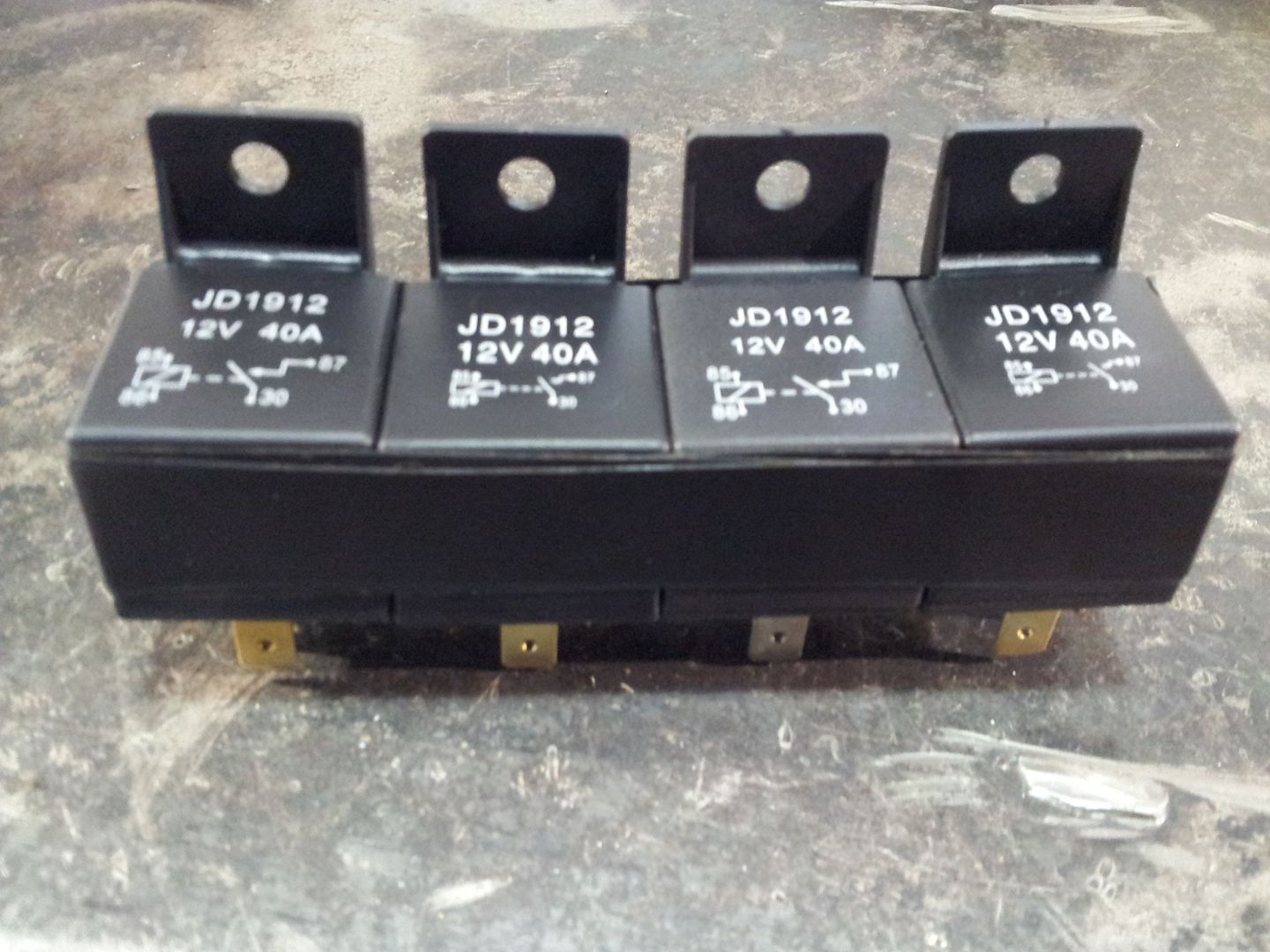

Yep, for the first 5 years of my JEEPS life I had to replace the mode, fan speed switches and the resistor pack a few times. I added a relay for each speed for the blower motor and what do you know? No more melting of anything. And that was 7 years ago and still using the original blower motor that some people say must be replaced.

Good Job
JBTJ is offline   Reply With Quote
Unread 11-01-2013, 02:22 PM   #4
mudb8
want it rite or rite now?

mudb8's Avatar
1999 TJ Wrangler

Join Date: Sep 2008
Location: Estacada, oregon
Posts: 5,516

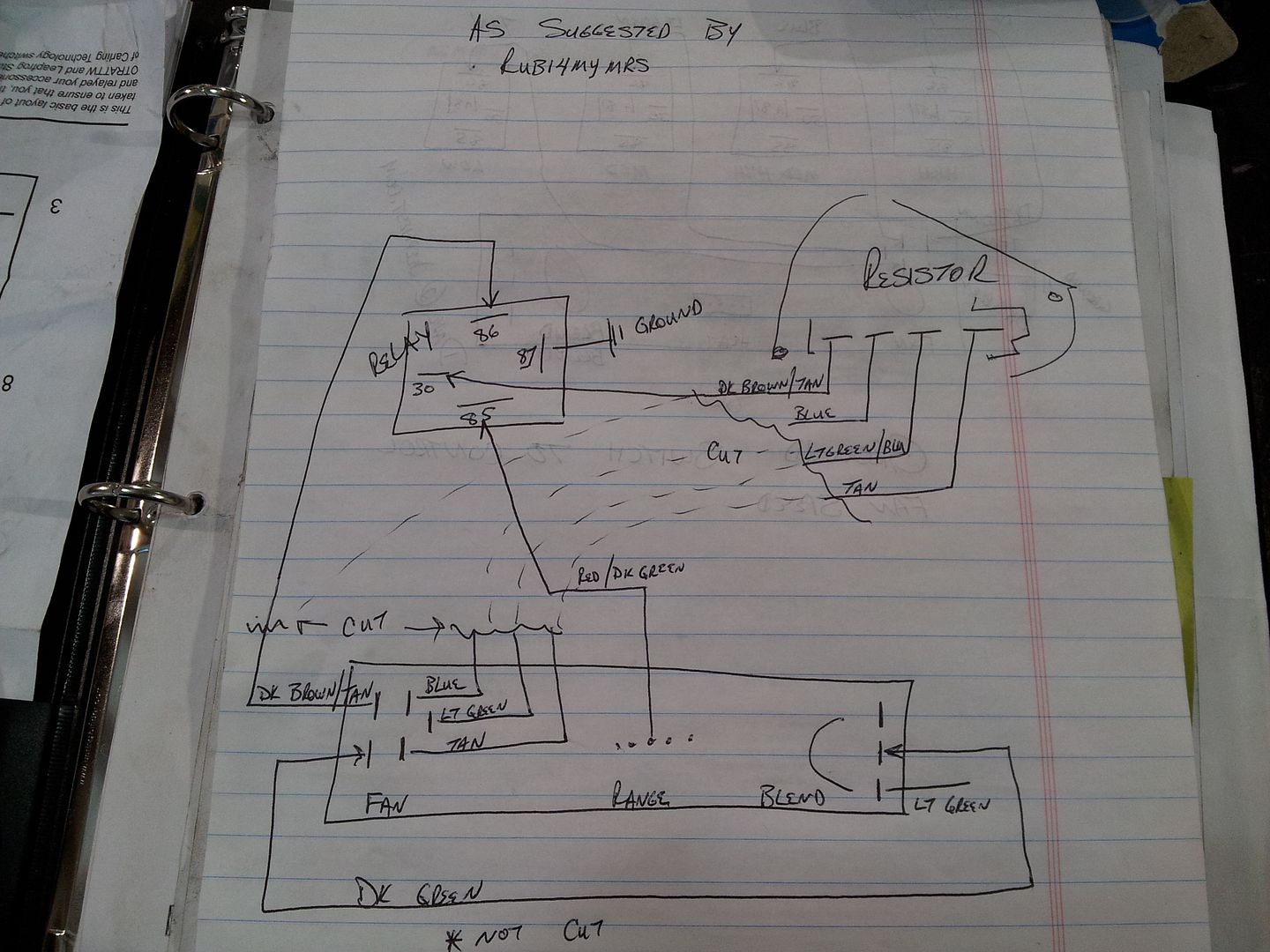

New diagram suggested by rubi4mymrs.thank you. That was a missing link i hadn't wrapped my head around until i read your pm.


__________________
I want your factory 07-up take-off/thrown out JK front/rear Lower Control Arms! Bent ones are perfect also as long as the bushings and cold cut rings are in good shape/useable


HighLine Hood Jeepers
TJ Adjustable Track bars
DIY highline fenders.... 34-37's under 0"-2.5" lifts
shock length, bumpstop extension, tire size chart click here
DIY shock shifters, more uptravel/better ride




2011 E-350 4x4 Van conversion

2006 Rubicon Unlimited

ASE Certified Master Tech/Fabricator @ jeepwest.com
mudb8 is offline   Reply With Quote
Unread 11-01-2013, 03:02 PM   #5
Rubi4MyMrs
Tks 4 the upgrade MoodyJP

Rubi4MyMrs's Avatar
2005 LJ Wrangler

Join Date: Mar 2011
Location: Trails of, Nevada
Posts: 2,290
Glad to help. Now you have both switches protected. Much better!
Rubi4MyMrs is offline   Reply With Quote
Unread 11-01-2013, 04:15 PM   #6
JBTJ
Web Wheeler
2001 TJ Wrangler

Join Date: Mar 2006
Location: Dallas, TX
Posts: 8,979
Quote:
Originally Posted by mudb8 View Post
New diagram suggested by rubi4mymrs.thank you. That was a missing link i hadn't wrapped my head around until i read your pm.


How mine is wired as well.
