Broken teeth on ring gears any gear setup gurus out there?

Well, after 2 seasons of beating on it I opened up my diff's to change the lube and found this. Two teeth broken off of the ring gear in front and one in back.

I know I've been merciless on this thing but I just wanted to know if it looks like the pinion may have been not deep enough since all 3 teeth are only broken on the outer part. The pics are only of the front, the rear one is similar but a smaller chunk taken off.

Reason for asking is I'm taking it back in for new gears and if the setup was bad on it I want to go elsewhere.

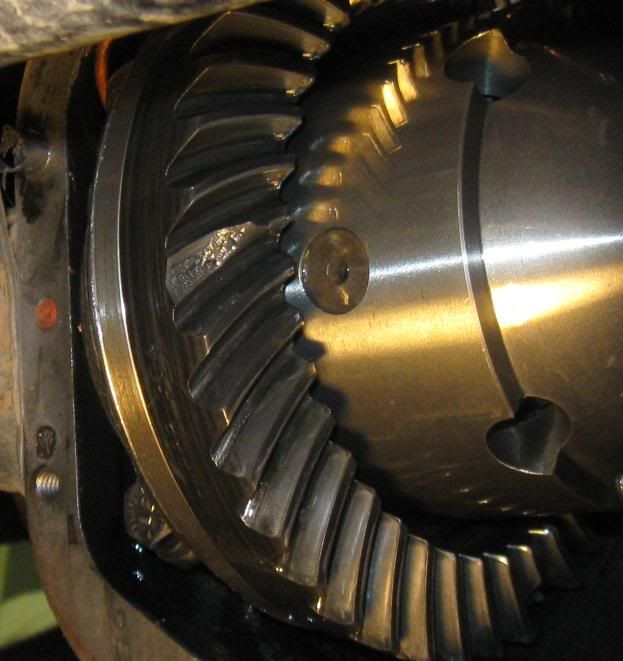

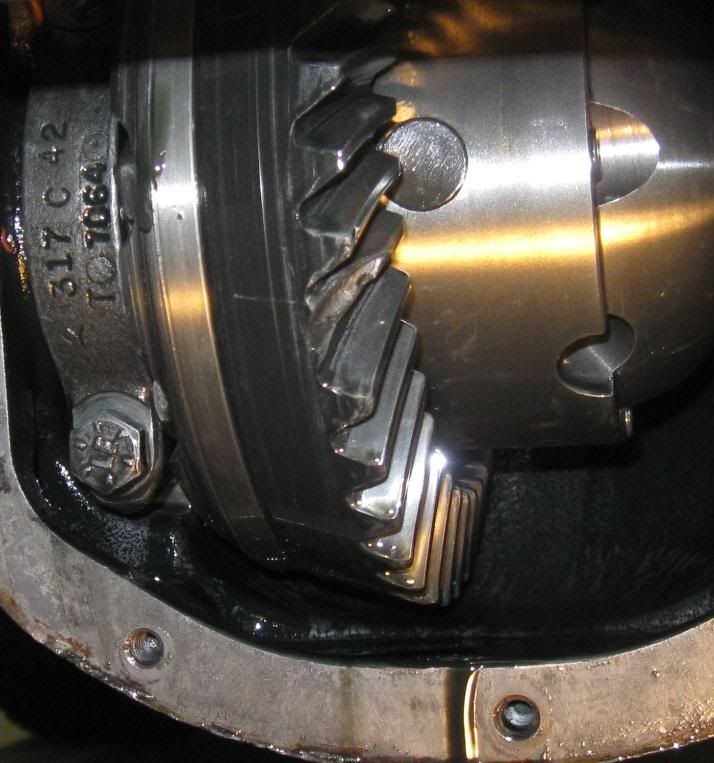

The teeth are not next to each other so there is one pic of each.





Thanks for any input.
Dave


Dave Shannon
Durango, CO

'01 TJ Sahara
'98 XJ Sport
'00 XJ Wife's ride
Gone but not forgotten
'56CJ, '61 Wagon, '51 Pickup, '07 JK 4dr

daveshan is offline
Sponsored Links
Advertisement

post #2 of 14 Old 01-20-2010, 04:07 PM
06WranglerX
Registered User
2006 TJ Wrangler

Join Date: Apr 2006
Location: Frelinghuysen
Posts: 1,931
Wow doesnt look like enough depth was put in since it broke the gears off on the outer area. Hope everything resolves for you!

Quote:
Originally Posted by lumpster View Post
he made it clear when he said he was. He didnt ask for a photo ID of you did he.

People need to be a little more trusting, Its not like we are on a convict and rapist forum.
Quote:
Originally Posted by mrblaine View Post
Upon further reflection I've decided I've had enough of this BS and you are now on my ignore list.

06 Red Wrangler X 6 speed hard top
Ford 8.8 Detroit locked, 4 inches of lift, 33 inch BFG KM2's and some other stuff.
06WranglerX is offline
post #3 of 14 Old 01-20-2010, 06:17 PM Thread Starter
daveshan
Feeding the money pits

daveshan's Avatar
2001 TJ Wrangler

Join Date: Jan 2007
Location: Durango CO
Posts: 1,367
Yea that's what I figured also, anyone else got gear experience?
Thanks
Dave

Dave Shannon
Durango, CO

'01 TJ Sahara
'98 XJ Sport
'00 XJ Wife's ride
Gone but not forgotten
'56CJ, '61 Wagon, '51 Pickup, '07 JK 4dr

daveshan is offline
post #4 of 14 Old 01-20-2010, 06:26 PM
cj847
Registered User
1997 TJ Wrangler

Join Date: Oct 2006
Location: AR
Posts: 1,229
I don't know how to diagnose patterns but.....I have run gears for a LONG time that have one or two broken teeth. Just clean it up real good and file off any sharp edges (if there are any left). If it is the ratio you want, you might as well "runnum till they break".

97 TJ Sport OPJ project (other peoples junk) I can't remember the last time I bought a new part.
cj847 is offline
post #5 of 14 Old 01-20-2010, 07:31 PM
Rolyak
Registered User
1997 TJ Wrangler

Join Date: Jan 2009
Location: Butler Ohio
Posts: 2
I love failure analysis!

Dug out my old Rockwell Drivetrain failure analysis manual! Still hypoid gears like Spicer.

It confirms my first thought that it was a "shock load", they typically fail in groups of three or however many teeth are engaged with the pinion at the time of the shock load. Adjacent teeth may actually be cracked and ready to fail.

Look closely at the fracture, it will most likely have a rough crystalline appearance to confirm a shock load.

The most likely causes would be popping the clutch* or hitting dry pavement with a spinning wheel under a load. Doing this in reverse would be suspect since the designed strength of the gears is for forward motion. That may be the cause of the partial fracture.

I don't see improper setup causing a single tooth failure, is any spalling (pitting) visible on the tooth contact face?

*Assuming it was a manual but could still be abused with an automatic.
Rolyak is offline
post #6 of 14 Old 01-20-2010, 07:40 PM
never monday
Registered User
1997 TJ Wrangler

Join Date: Mar 2005
Location: In my own world
Posts: 6,792


i'm talking out of my *** here, but. I think the smooth area in blue was the original crack/failure. When that happened the force ripped the tooth the rest of the way off. looking at the rough area in pink.
never monday is offline
post #7 of 14 Old 01-21-2010, 08:50 AM Thread Starter
daveshan
Feeding the money pits

daveshan's Avatar
2001 TJ Wrangler

Join Date: Jan 2007
Location: Durango CO
Posts: 1,367
Thanks guys, I pretty much assumed it was due to shock load, I got it to bouncing quite a few times and those Creepy Crawlers hook up very well leading to what you see above. I was probably lucky to get 2 seasons out of it keeping up with the guys I play with

My main question was about possible setup issues with only the outer parts of the teeth broken off. Looks like that may not have been an issue, good thing as gear setup guys are rare around here.

Dave Shannon
Durango, CO

'01 TJ Sahara
'98 XJ Sport
'00 XJ Wife's ride
Gone but not forgotten
'56CJ, '61 Wagon, '51 Pickup, '07 JK 4dr

daveshan is offline
post #8 of 14 Old 01-21-2010, 10:54 AM
Rolyak
Registered User
1997 TJ Wrangler

Join Date: Jan 2009
Location: Butler Ohio
Posts: 2
Quote:
Originally Posted by never monday View Post


i'm talking out of my *** here, but. I think the smooth area in blue was the original crack/failure. When that happened the force ripped the tooth the rest of the way off. looking at the rough area in pink.
Most likely you're correct! Hypoid teeth subjected to shock loads may not fail instantly, but instead are damaged then may fail later in a fatigue mode. Fatigue failures will exhibit "beach marks" which are concentric striations exhibited in the fracture.

No visible beach marks supports the shock load failure. It may take microscopic examination of the fracture to observe any beach marks.

Be aware that the pinion teeth were subjected to the same forces and may be weakened and also fail later.

In any event the parts are broken and need to be replaced. No doubt that off roading our Jeeps may break something.

I suggest you speak to your installer as they may have seen this failure mode in the past. There may differences between automotive and heavy duty failures.
Rolyak is offline
post #9 of 14 Old 01-21-2010, 05:57 PM
pyrotyro
Registered User
1998 XJ Cherokee

Join Date: Jan 2009
Location: Crawlorado
Posts: 1,085
Quote:
Originally Posted by daveshan View Post
Thanks guys, I pretty much assumed it was due to shock load, I got it to bouncing quite a few times and those Creepy Crawlers hook up very well leading to what you see above. I was probably lucky to get 2 seasons out of it keeping up with the guys I play with

My main question was about possible setup issues with only the outer parts of the teeth broken off. Looks like that may not have been an issue, good thing as gear setup guys are rare around here.
Although its not a good situation, I am glad to hear it had nothing to do with the shop that installed the gears. Hope the damage isn't too bad to the ole pocket book.

Good luck bud!

My Jeep story:Vanessa

My youtube channel:http://www.youtube.com/user/MRpyrotyro
pyrotyro is offline
post #10 of 14 Old 01-21-2010, 06:05 PM
TiredOldMan
Member

TiredOldMan's Avatar
1998 TJ Wrangler

Join Date: Jul 2008
Location: Texas
Posts: 215
So, what brand of gears were they?

Looking for MB Shock wheel 15x8 5on4.5 3.75bs


" The problem with socialism is that eventually you run out of other peoples money"
Margaret Thatcher
TiredOldMan is offline
post #11 of 14 Old 01-21-2010, 07:09 PM Thread Starter
daveshan
Feeding the money pits

daveshan's Avatar
2001 TJ Wrangler

Join Date: Jan 2007
Location: Durango CO
Posts: 1,367
Quote:
Originally Posted by pyrotyro View Post
Although its not a good situation, I am glad to hear it had nothing to do with the shop that installed the gears. Hope the damage isn't too bad to the ole pocket book.

Good luck bud!
Well if anyone knows what trails it probably happened on it would be you Things like this will happen, I guess we could stay away from Farmington . . . . . . . . . NAHH Looks like Lance is off the hot seat.

Lets just say the new tires for the tow rig will have to wait for a few months And that's assuming the ARBs didn't get damaged by the chunks.

Quote:
Originally Posted by TiredOldMan View Post
So, what brand of gears were they?
Yukon, I told the shop this time I want Superior.

Dave Shannon
Durango, CO

'01 TJ Sahara
'98 XJ Sport
'00 XJ Wife's ride
Gone but not forgotten
'56CJ, '61 Wagon, '51 Pickup, '07 JK 4dr

daveshan is offline
post #12 of 14 Old 01-21-2010, 08:25 PM
ECGS
Registered User

Join Date: Nov 2008
Location: Raleigh, NC
Posts: 587
Shock load yes but that looks like deflection it broke on the heal, the preloads were probably not set up tight enough. allowing deflection. If your looking for the best ring and pinion put a nitro in it. Call us if you need a ring gear. Failure was probably not the gear. What size tires are you running? Motor? Is that a dana 44.

[SIGPIC][/SIGPIC]
Differential Sales & Service

Quality Gears, Lockers, Axle Shafts, and other drivetrain products at a fair Price
http://www.eastcoastgearsupply.com

919-672-2705
ECGS is offline
post #13 of 14 Old 01-21-2010, 09:43 PM Thread Starter
daveshan
Feeding the money pits

daveshan's Avatar
2001 TJ Wrangler

Join Date: Jan 2007
Location: Durango CO
Posts: 1,367
Thanks for the input, it's a 4.0/5speed, 4.88 gears. The pics are of the front HP30, rear 44 had one tooth with a small chip in the same area. Tires are 35" Maxxis Creepy Crawlers.

I'll tell the installer about Nitro and give him your info'.

Dave Shannon
Durango, CO

'01 TJ Sahara
'98 XJ Sport
'00 XJ Wife's ride
Gone but not forgotten
'56CJ, '61 Wagon, '51 Pickup, '07 JK 4dr

daveshan is offline
post #14 of 14 Old 01-22-2010, 10:27 AM
Divinitous
Disgruntled Jeepforum'er

Divinitous's Avatar
2000 TJ Wrangler

Join Date: Oct 2005
Location: NY/NJ/PA Tri-State Middletown NY 10941
Posts: 3,185
It also looks like the tooth above the broken one is slightly deformed. As if it already cracked and was on its way to being town off. It might just be the angle of the camera but it doesn't follow the sweep of the other teeth. If that makes any sense.

-Ryan
Google Voice (or the number Grape calls when drunk): 845-476-8182

Quote:
Originally Posted by Enzo Ferrari
"The Jeep is Americas only real sports car!"
Quote:
Originally Posted by MrBlaine
"Jeeps do not make jeepers, jeepers make Jeeps."
Divinitous is offline
