Blower Resistor Replacement 05 LJ

Symptom of a faulty blower resistor is, blower only works on speed "4". I got my replacement resistor for $24.99 from Autozone part # JA1476 AutoZone.com | | Blower Motor Resistor | BLOWER MTR RESISTOR

below is just a guide on how to replace the blower resistor, although maybe not the best way, it's the way I did it.

first to remove glove box, slide out the retaining strap on the right side then lower door till you can pull it off the hinge



Next I removed the interior light just under the glove box (1/4"). This made it easier to remove the resistor. You can use this as a work light or just remove the bulb so you don't get burnt.


Then from above though the glove box opening, I used a 1/4" drive 8MM (5/16) swivel socket with extension and ratchet to remove the top screw (one of two screws holding the resistor), seen just under the brightly colored connector.

Then from below I removed the bottom screw using the same 8MM swivel socket set up.

With both screws removed I just slid the resistor out of its location then pulled the harness downward (why I removed the light) you can now see why it's faulty (burnt)

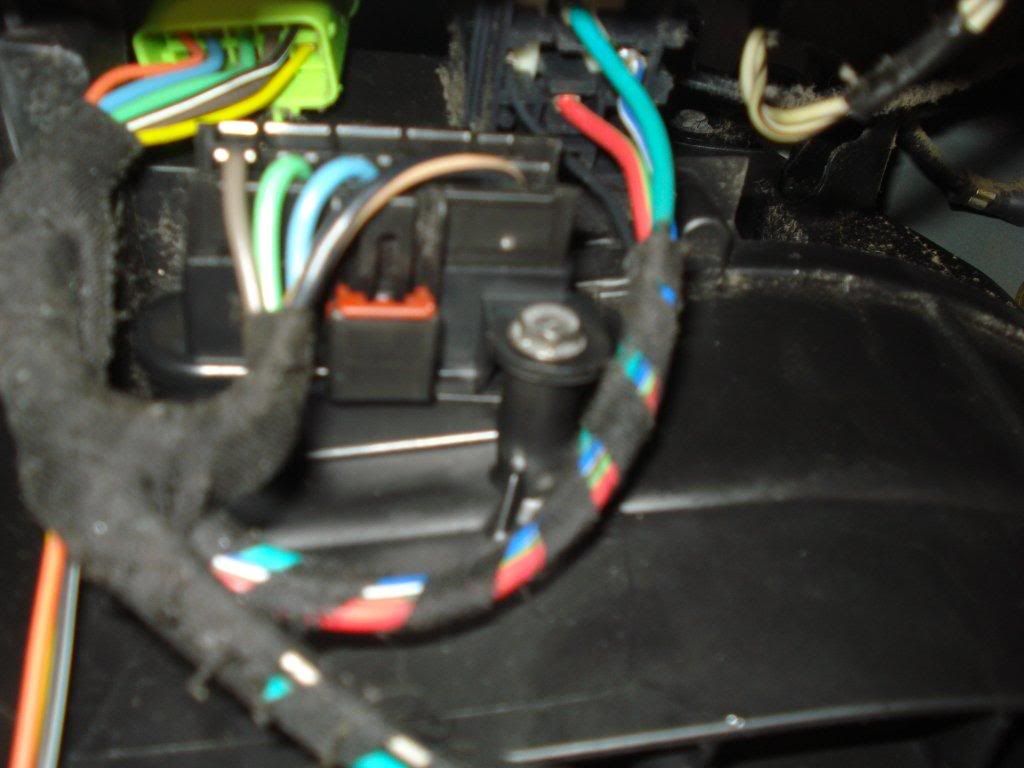

Now disconnect the resistor plug by first releasing the plug retaining clip, pull the red clip out slightly. (sorry for the blurry pic, camera got fogged up. it was very humid out) first pic shows the red retaining clip in the lock position, the second in the released position

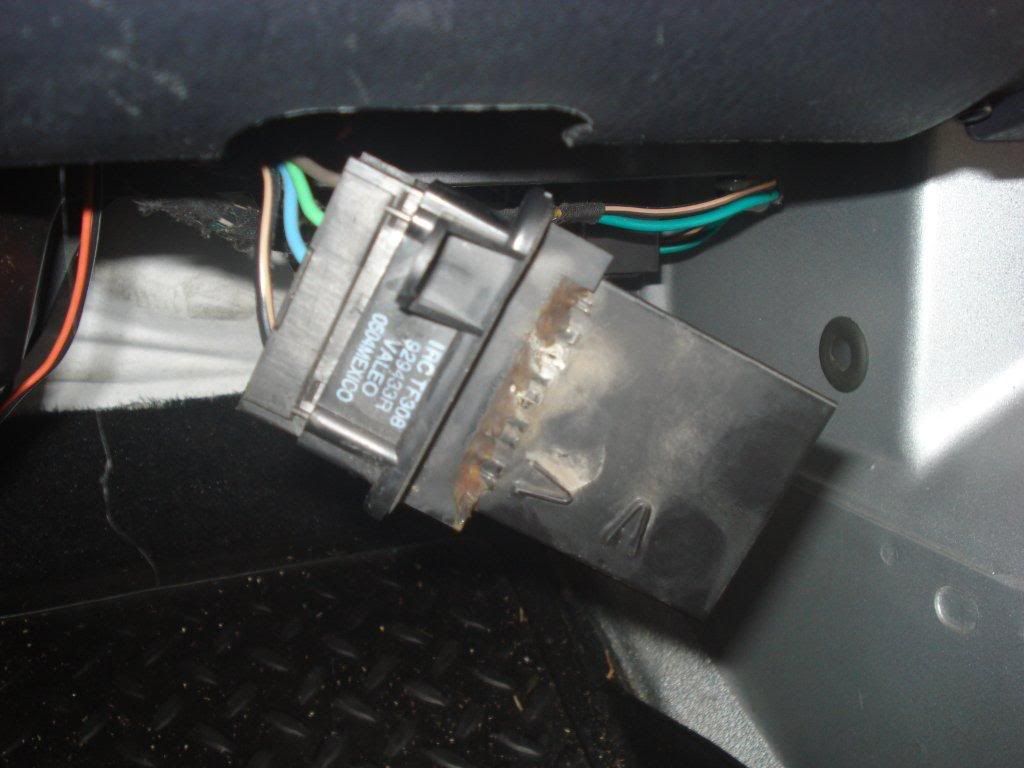

in the below pic you can see the difference between the new (now plugged in) and the old burnt resistor (in my hand).

Here's a pic of the old resistor and the box the new one came in.


Well just reverse the above to install and enjoy your lower blower speeds again.

Note: do not use the blower with the resistor removed (not in it's proper place in the blower's air stream) or you can burn it out.

Disclaimer: some of the pictures were taken during reassembly because of the fogged up camera.

__________________
__________________________________________
Rusty
Satellite Bch, FL
2005 Jeep Wrangler Unlimited (LJ) 6cyl, 4spd auto, dana 30/44 3.73, rear trac-loc, hard top, BFG KM2 35/12.5 x 15 on rattle can black stock Ravine wheels & 1.5" spacers, trimmed flares, budget PA 1" BL & RC 1" MML, Ford Explorer roof rack, Hella e-code headlight housings, 55 watt DDM HID Hi/Lo 6000k, EBC Yellow Stuff front brake pads, Platinum P4 battery, Rusty's 3" 305s front and 303s rear springs, RC rear track bar bracket and Hella 500FFs with DDM's 55watt 6000k H3 HIDs on windshield hinge brackets. Currie's front upper and lower control arms. Hummm whats next? Building a Dana HP30 with 4.88 and ? locker
http://www.canddautocenter.com/
Boundless is offline   Reply With Quote Quick reply to this message
Unread 06-10-2010, 08:48 AM   #2
timberwolf0122
Web Wheeler

timberwolf0122's Avatar
2005 LJ Wrangler

Join Date: Mar 2009
Location: Charlotte, NC
Posts: 15,276
I have got to sit down an build a better PWM fan controller, why do they even use resistors to control the motor?
__________________
Atheist Jeep Club Member #2
MacGyver Club Member #1
Doctor Who has died 10 times, is on his 11th regeneration and has a time machine, beat that Jesus.
I think he's calling his Jeep "Tardis," which is British slang for pimp mobile. - Dangfoo
timberwolf0122 is offline   Reply With Quote Quick reply to this message
Unread 06-10-2010, 06:29 PM   #3
Knuckelhead
AFSOC Retired

Knuckelhead's Avatar
2000 TJ Wrangler

Join Date: Aug 2005
Location: Colorado
Posts: 15,570
Quote:
Originally Posted by timberwolf0122 View Post
I have got to sit down an build a better PWM fan controller, why do they even use resistors to control the motor?
So you can have differnt speeds...
__________________
TSB Information: http://www.automd.com/tsb/jeep_m/wrangler_mm/2000_y/
Knuckelhead is offline   Reply With Quote Quick reply to this message
Unread 06-18-2010, 12:29 AM   #4
explorerlyon
Senior Member

explorerlyon's Avatar
2005 LJ Wrangler

Join Date: Jun 2009
Location: Valencia, CA
Posts: 613
I am trying the same repair. I cannot get the wiring harness disconnected from the resistor. I have pulled the red lock out. What nest? Is there a catch somewhere? I have pulled and tugged and connot get the harness disconnected. Help!

EDIT: Got if off finally
__________________
05 Rubicon Unlimited, Automatic

Last edited by explorerlyon; 06-18-2010 at 12:44 AM..
explorerlyon is offline   Reply With Quote Quick reply to this message
Unread 06-18-2010, 08:58 AM   #5
Boundless
Registered User
2005 LJ Wrangler

Join Date: Feb 2008
Location: Satellite Beach, Florida
Posts: 1,063
Quote:
Originally Posted by explorerlyon View Post
I am trying the same repair. I cannot get the wiring harness disconnected from the resistor. I have pulled the red lock out. What nest? Is there a catch somewhere? I have pulled and tugged and connot get the harness disconnected. Help!

EDIT: Got if off finally
Glad to hear you got it off... mine was a little hard to disconnect also . I think the connectors get stuck due to the heat and or condensation.

that's why I found it easiest to pull the resistor out and down with the plug, so I would have more room to hold each part as I separated them.
__________________
__________________________________________
Rusty
Satellite Bch, FL
2005 Jeep Wrangler Unlimited (LJ) 6cyl, 4spd auto, dana 30/44 3.73, rear trac-loc, hard top, BFG KM2 35/12.5 x 15 on rattle can black stock Ravine wheels & 1.5" spacers, trimmed flares, budget PA 1" BL & RC 1" MML, Ford Explorer roof rack, Hella e-code headlight housings, 55 watt DDM HID Hi/Lo 6000k, EBC Yellow Stuff front brake pads, Platinum P4 battery, Rusty's 3" 305s front and 303s rear springs, RC rear track bar bracket and Hella 500FFs with DDM's 55watt 6000k H3 HIDs on windshield hinge brackets. Currie's front upper and lower control arms. Hummm whats next? Building a Dana HP30 with 4.88 and ? locker
http://www.canddautocenter.com/
Boundless is offline   Reply With Quote Quick reply to this message
Unread 06-18-2010, 09:20 AM   #6
2004sahara
Registered User
2004 TJ Wrangler

Join Date: Aug 2009
Location: canada, Nova Scotia
Posts: 534
not as easy as some would have you belive......but it is a do it your self job.
__________________
2004 sahara, 2 inch BDS spring lift, BDS discos, 31bfg at, on ravines.
2004sahara is offline   Reply With Quote Quick reply to this message
Unread 06-18-2010, 03:33 PM   #7
explorerlyon
Senior Member

explorerlyon's Avatar
2005 LJ Wrangler

Join Date: Jun 2009
Location: Valencia, CA
Posts: 613
I created a thread on how to test if the resistor is bad before replacing it. Here is the link: http://www.jeepforum.com/forum/f9/bl...6/#post9648090

But, after the work of removing the resistor, I would have replaced in regardless with a new one, even if the old one was not bad.
__________________
05 Rubicon Unlimited, Automatic
explorerlyon is offline   Reply With Quote Quick reply to this message
Unread 06-18-2010, 04:34 PM   #8
Boundless
Registered User
2005 LJ Wrangler

Join Date: Feb 2008
Location: Satellite Beach, Florida
Posts: 1,063
Quote:
Originally Posted by explorerlyon View Post
I created a thread on how to test if the resistor is bad before replacing it. Here is the link: http://www.jeepforum.com/forum/f9/bl...6/#post9648090

But, after the work of removing the resistor, I would have replaced in regardless with a new one, even if the old one was not bad.
nice helpful addition, thanks
__________________
__________________________________________
Rusty
Satellite Bch, FL
2005 Jeep Wrangler Unlimited (LJ) 6cyl, 4spd auto, dana 30/44 3.73, rear trac-loc, hard top, BFG KM2 35/12.5 x 15 on rattle can black stock Ravine wheels & 1.5" spacers, trimmed flares, budget PA 1" BL & RC 1" MML, Ford Explorer roof rack, Hella e-code headlight housings, 55 watt DDM HID Hi/Lo 6000k, EBC Yellow Stuff front brake pads, Platinum P4 battery, Rusty's 3" 305s front and 303s rear springs, RC rear track bar bracket and Hella 500FFs with DDM's 55watt 6000k H3 HIDs on windshield hinge brackets. Currie's front upper and lower control arms. Hummm whats next? Building a Dana HP30 with 4.88 and ? locker
http://www.canddautocenter.com/
Boundless is offline   Reply With Quote Quick reply to this message
Unread 09-19-2010, 09:41 PM   #9
Squwearley
Newbie
2003 TJ Wrangler

Join Date: Sep 2010
Location: North Augusta
Posts: 4
thanks

Thanks for the step by step... made doing this job really easy
Squwearley is offline   Reply With Quote Quick reply to this message
Unread 09-20-2010, 05:26 AM   #10
Boundless
Registered User
2005 LJ Wrangler

Join Date: Feb 2008
Location: Satellite Beach, Florida
Posts: 1,063
Quote:
Originally Posted by Squwearley View Post
Thanks for the step by step... made doing this job really easy
you're welcome. Glad it was helpful
__________________
__________________________________________
Rusty
Satellite Bch, FL
2005 Jeep Wrangler Unlimited (LJ) 6cyl, 4spd auto, dana 30/44 3.73, rear trac-loc, hard top, BFG KM2 35/12.5 x 15 on rattle can black stock Ravine wheels & 1.5" spacers, trimmed flares, budget PA 1" BL & RC 1" MML, Ford Explorer roof rack, Hella e-code headlight housings, 55 watt DDM HID Hi/Lo 6000k, EBC Yellow Stuff front brake pads, Platinum P4 battery, Rusty's 3" 305s front and 303s rear springs, RC rear track bar bracket and Hella 500FFs with DDM's 55watt 6000k H3 HIDs on windshield hinge brackets. Currie's front upper and lower control arms. Hummm whats next? Building a Dana HP30 with 4.88 and ? locker
http://www.canddautocenter.com/
Boundless is offline   Reply With Quote Quick reply to this message
Unread 09-20-2010, 06:02 AM   #11
HKB3
Registered User
2005 TJ Wrangler

Join Date: Nov 2008
Location: Severna Park, MD
Posts: 257
Any idea if a bad resistor will throw a check engine light?
__________________
What Next?
2005 TJ 4.0L/42RE/33x10.50 BFG MT km2/2.5" RC/Mil-Spec bumper-Tire carrier
HKB3 is offline   Reply With Quote Quick reply to this message
Unread 09-20-2010, 06:59 AM   #12
Neil F.
Registered User
2003 TJ Wrangler

Join Date: Oct 2007
Location: Marlton, NJ
Posts: 2,749
The HVAC blower has nothing to do with OBDII emission system monitoring.
Neil F. is offline   Reply With Quote Quick reply to this message
Unread 09-20-2010, 11:14 AM   #13
FireMedic777
Registered User
2006 LJ Wrangler

Join Date: Apr 2009
Location: Tampa
Posts: 35
Awesome! Just replaced mine today for about the same price at advanced. Thanks for the good tech thread!
FireMedic777 is offline   Reply With Quote Quick reply to this message
Unread 10-23-2010, 08:10 AM   #14
StangsAndJeeps
Registered User
2005 TJ Wrangler

Join Date: May 2010
Location: Waterloo Ont
Posts: 7
great guide. never knew i could bend that much.
StangsAndJeeps is offline   Reply With Quote Quick reply to this message
Unread 11-16-2010, 08:06 PM   #15
Boston_Wheeler
Registered User
2005 LJ Wrangler

Join Date: Feb 2009
Location: Westchester, New York
Posts: 54
Just did this myself. Thanks for the write-up. Definitely difficult to disconnect the harness. Also, one thing I found to be helpful. I secured the new resistor prior to reconnecting the harness. I had more room and found it much easier this way.
__________________
[URL="http://www.jeepforum.com/forum/f9/kc-driving-lights-rear-fog-lights-write-up-w-pics-1054319/"]My Aux Fuse Panel, KC Driving Lights and Rear Fog Lights write-up[/URL].
Boston_Wheeler is offline   Reply With Quote Quick reply to this message
