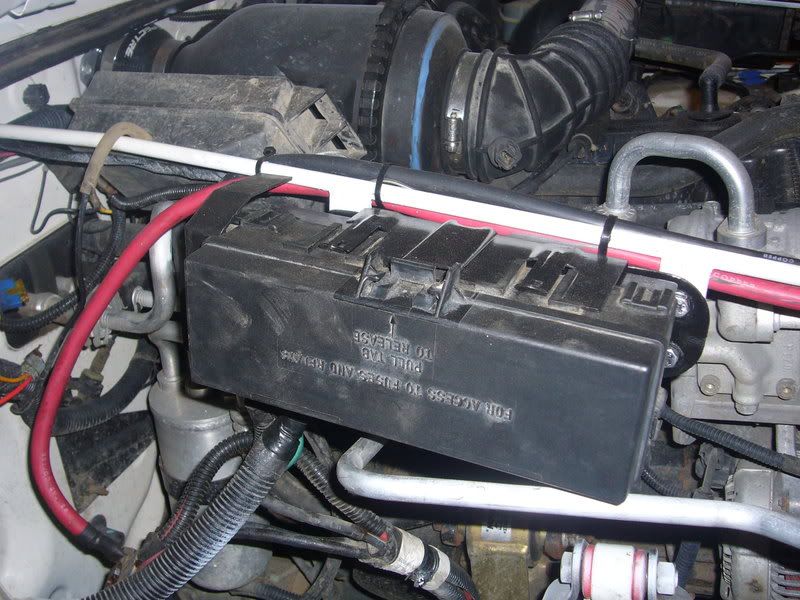

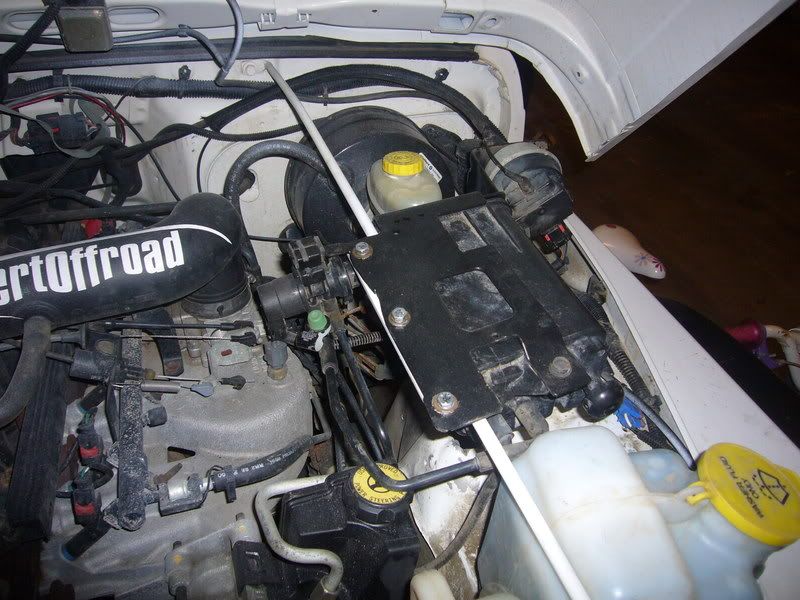

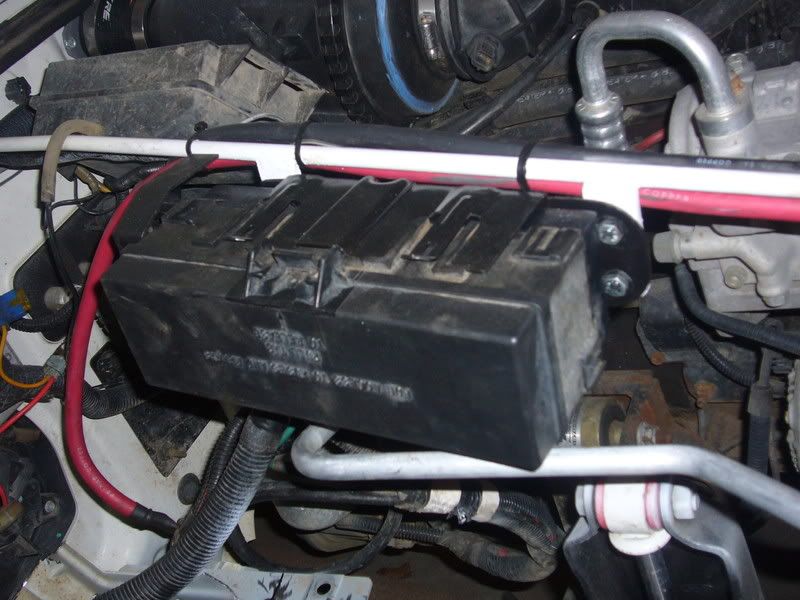

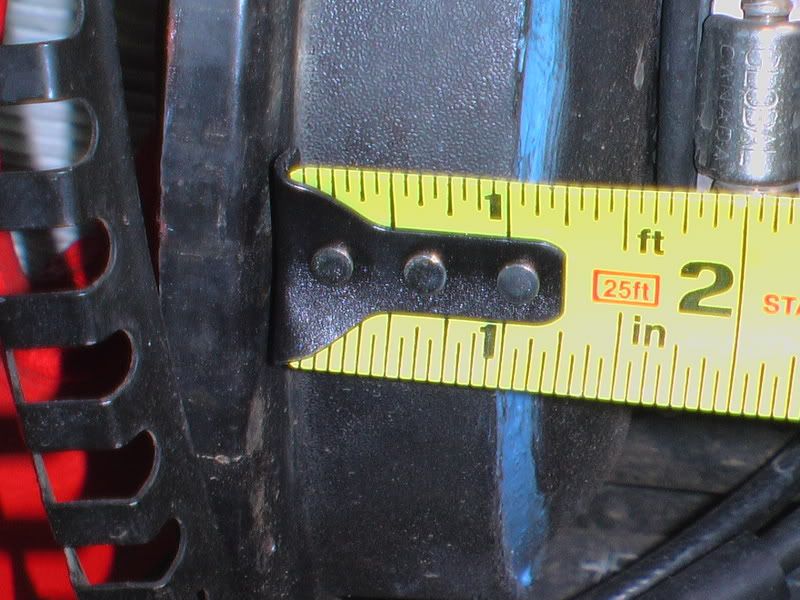

Some under the hood relocating.

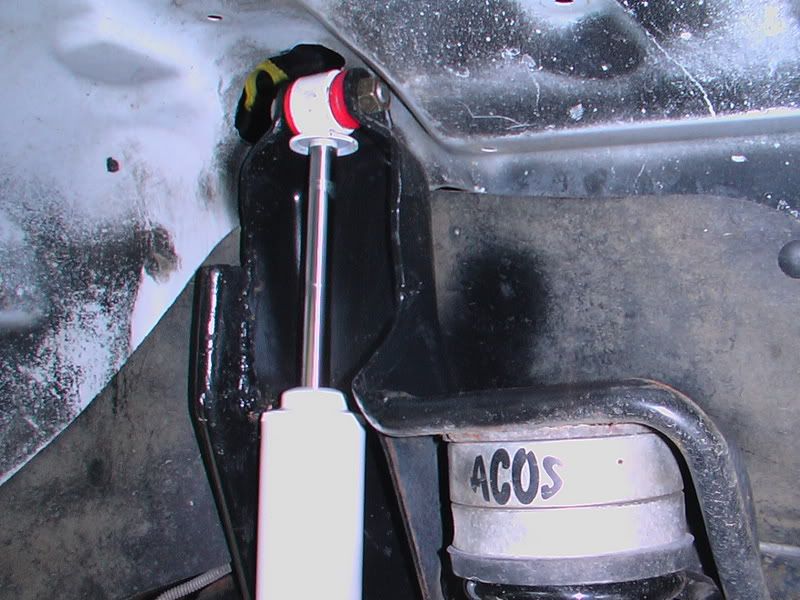

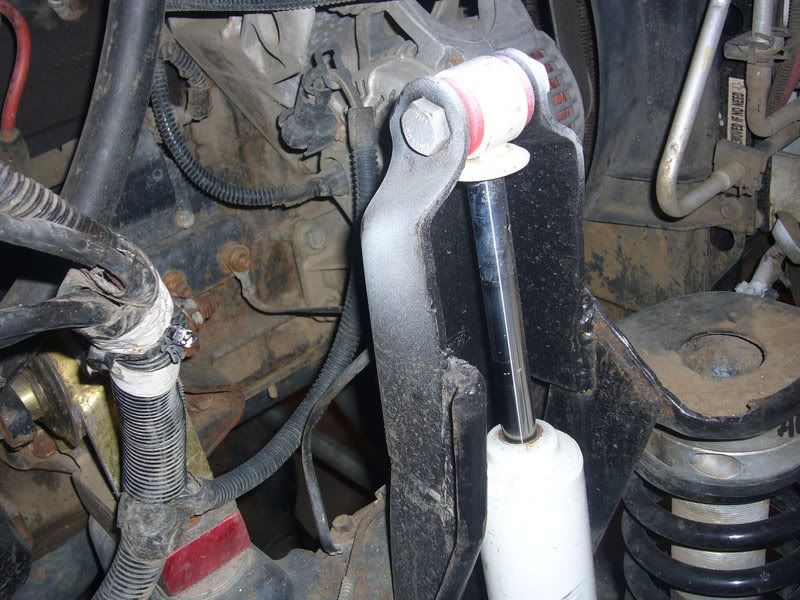

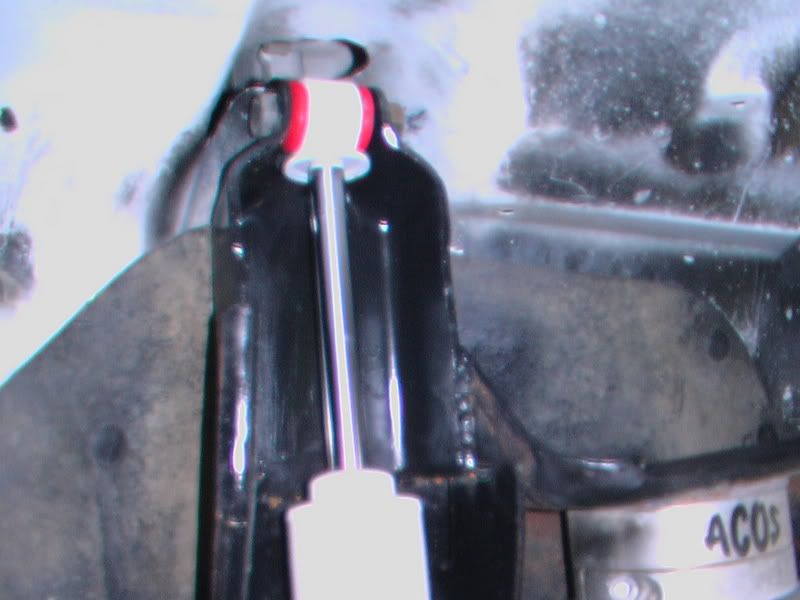

The Ford shock towers on the front and rear.












White99tj is offline   Reply With Quote Quick reply to this message
Unread 08-12-2008, 02:37 PM   #17
XXRider
Registered User
2003 TJ Wrangler

Join Date: Nov 2007
Location: NWT
Posts: 751
Quote:
Originally Posted by TJ-Marine PA View Post
x2

What air box did you use for your air intake setup?
+3

Love to know some details on this.
XXRider is offline   Reply With Quote Quick reply to this message
Unread 08-12-2008, 02:38 PM   #18
White99tj
Registered User
1999 TJ Wrangler

Join Date: Apr 2008
Location: KC
Posts: 69

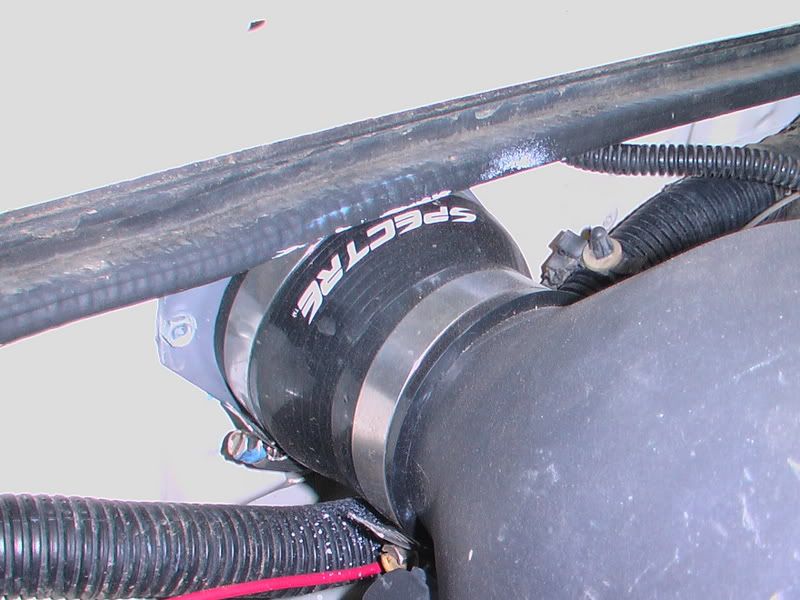

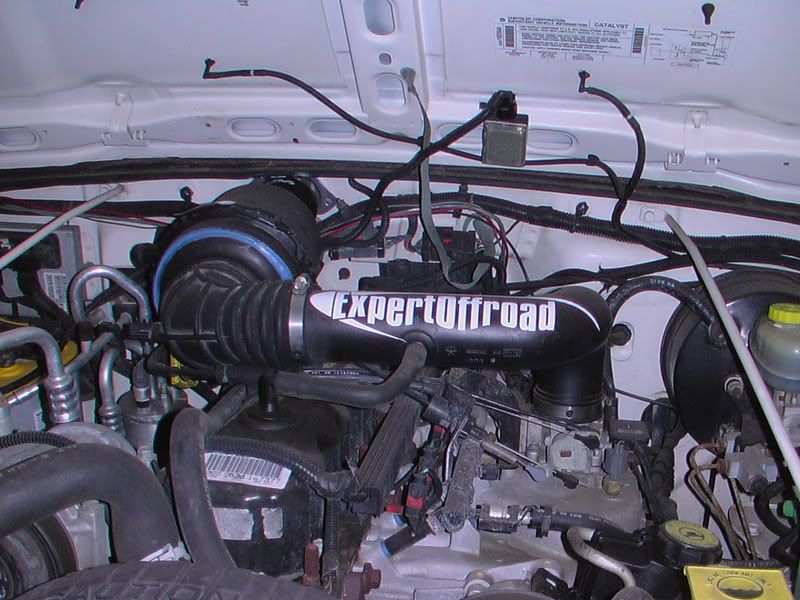

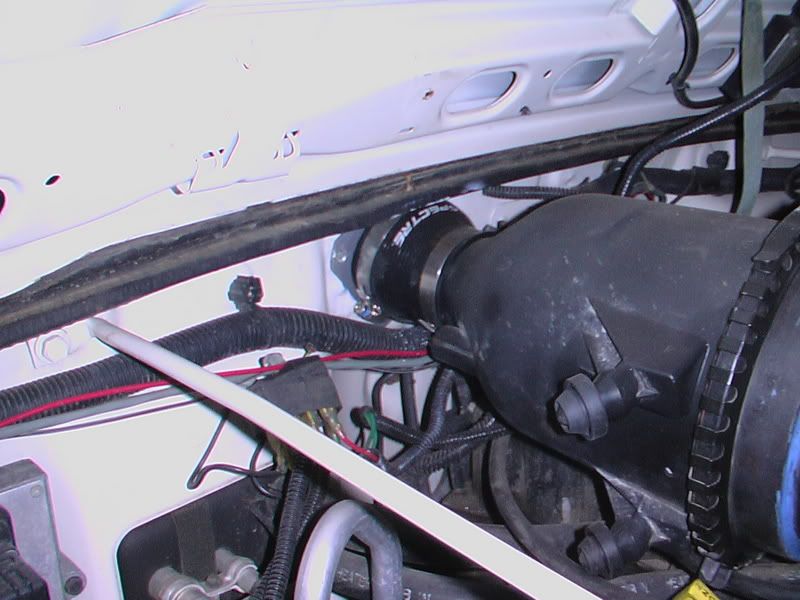

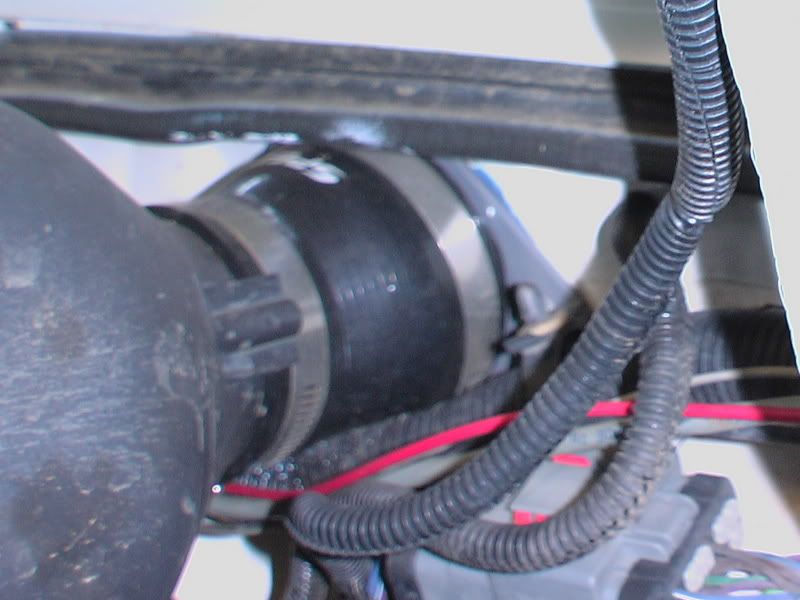

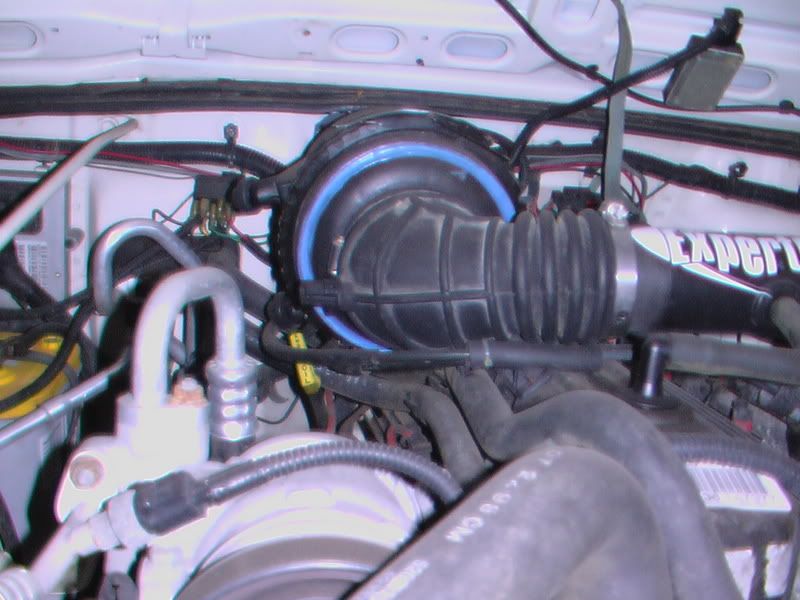

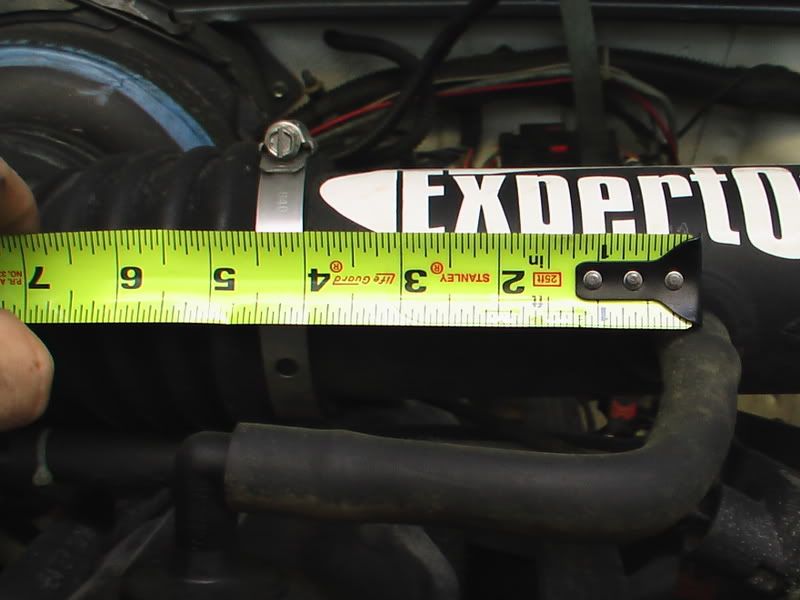

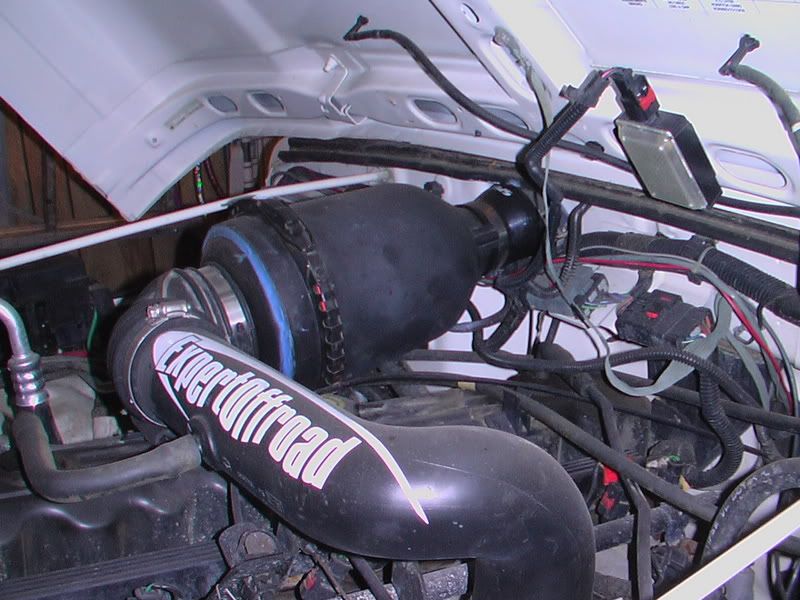

Some of the air intake its a ford mini van filter assy from the 90's explorers also used the same set up.




















The filter assy all snaps together. I just cut it down and slid the short end over the other longer one, snaped the inner piece in and siliconed it all up.
Its has been on my jeep for around two year no problems yet.
White99tj is offline   Reply With Quote Quick reply to this message
Unread 08-12-2008, 03:09 PM   #19
Hydro
Registered User
2000 TJ Wrangler

Join Date: Jun 2006
Location: East Springfield, Pa
Posts: 435
never seen the ford shock towers before, pretty sweet. Whats the advantage to this other than easy access?
__________________
tout le monde, tout mes amis, Je vous aime, Je dois partir. These are the last words I'll ever speak and they'll set me free.


Officially driving the Jason Ellis Bandwagon
Hydro is offline   Reply With Quote Quick reply to this message
Unread 08-12-2008, 04:21 PM   #20
TJ-xtreme
Registered User
2001 TJ Wrangler

Join Date: Sep 2007
Location: Woodstock, GA
Posts: 725
it allows you to use longer shocks without lifting anymore so you have more down travel and in effect more flex.
__________________
2001 TJ Sport w/ D44, 2.5" Susp. lift,1" BL w/ MML, 35x12.50 BFG KM2's on 15x8 Soft 8's, Smittybilt XRC Front Bumper and Rocker Guards, S/B SRC Rear Bumper, Xenon 4" Flat Flares, JKS Disconnects, 48" Hi-Lift Jack, OBA System, Optima Blue Top, Hella Lighting. More on the way... ;}
JEEP= Just+Empty+Every+Pocket.....
EAT-SLEEP-JEEP OlllllllO TJ-XTREME
TJ-xtreme is offline   Reply With Quote Quick reply to this message
Unread 08-12-2008, 04:26 PM   #21
White99tj
Registered User
1999 TJ Wrangler

Join Date: Apr 2008
Location: KC
Posts: 69
The main reason I went with the shock towers was. Less bump stop more up travel.
White99tj is offline   Reply With Quote Quick reply to this message
Unread 08-12-2008, 05:50 PM   #22
That1guy
Registered User
2007 WK

Join Date: Oct 2007
Location: West Virginia
Posts: 2,415
Wow thats awesome!
__________________
I'm forever grateful to Speedycat and RnEmOvr for their generosity
That1guy is offline   Reply With Quote Quick reply to this message
Unread 08-12-2008, 06:34 PM   #23
White99tj
Registered User
1999 TJ Wrangler

Join Date: Apr 2008
Location: KC
Posts: 69

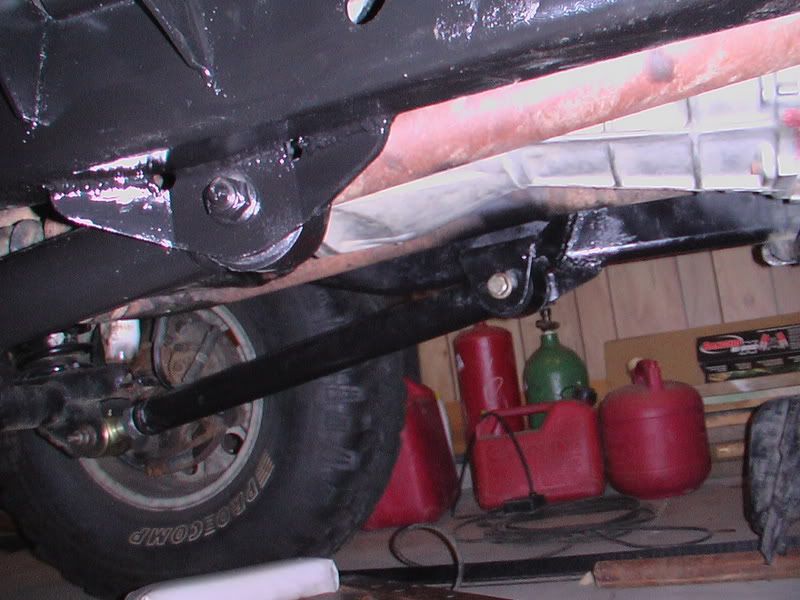

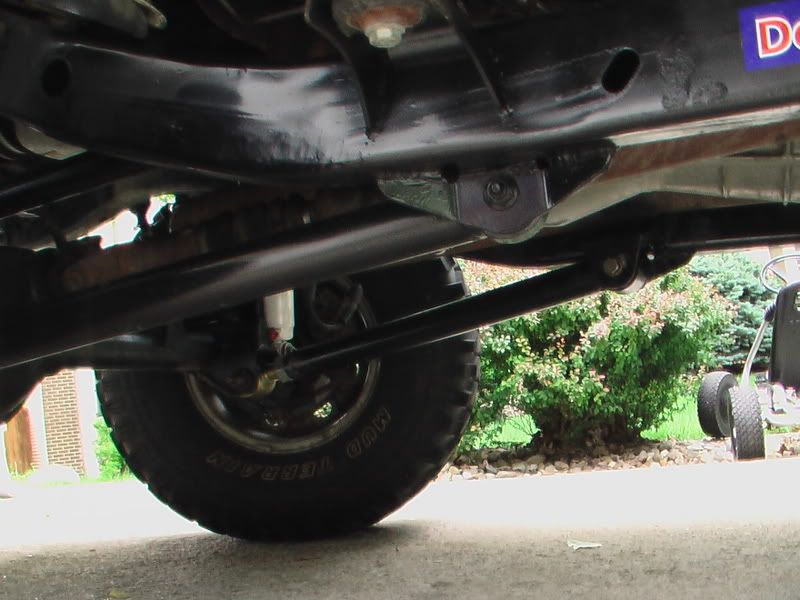

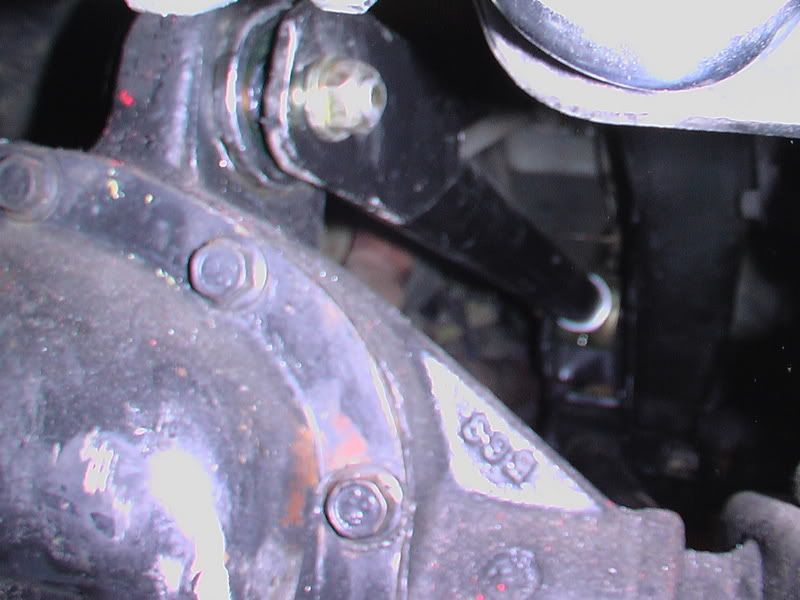

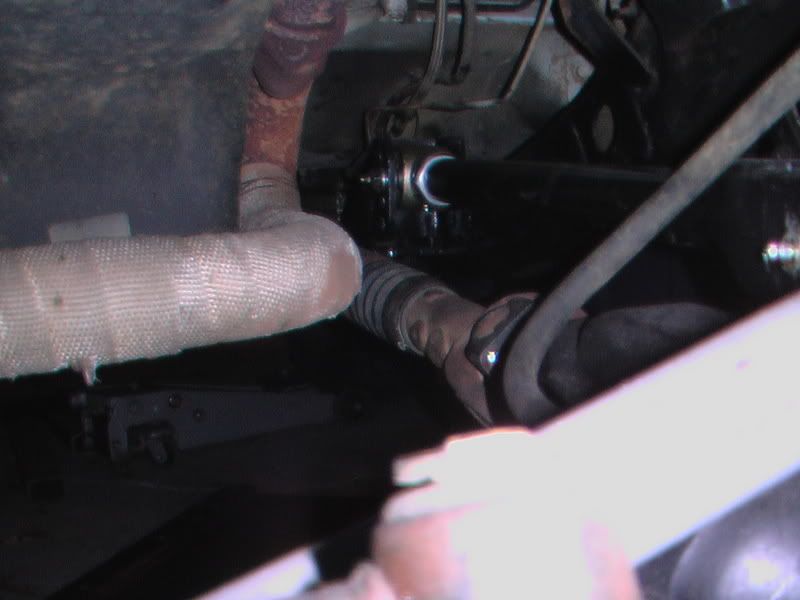

A few pics of the mid arms
Lowers 27"
Upper rear 25"
Rear trackbar 35"
Front upper ?

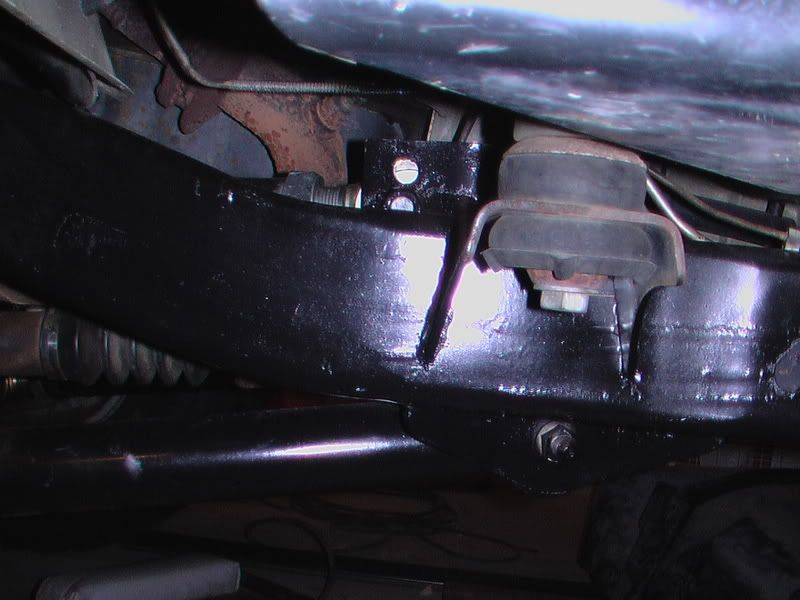

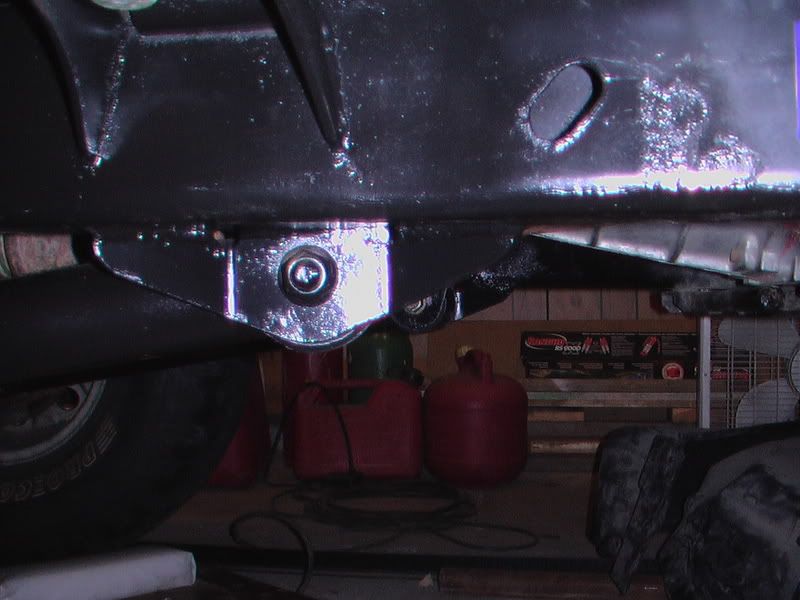

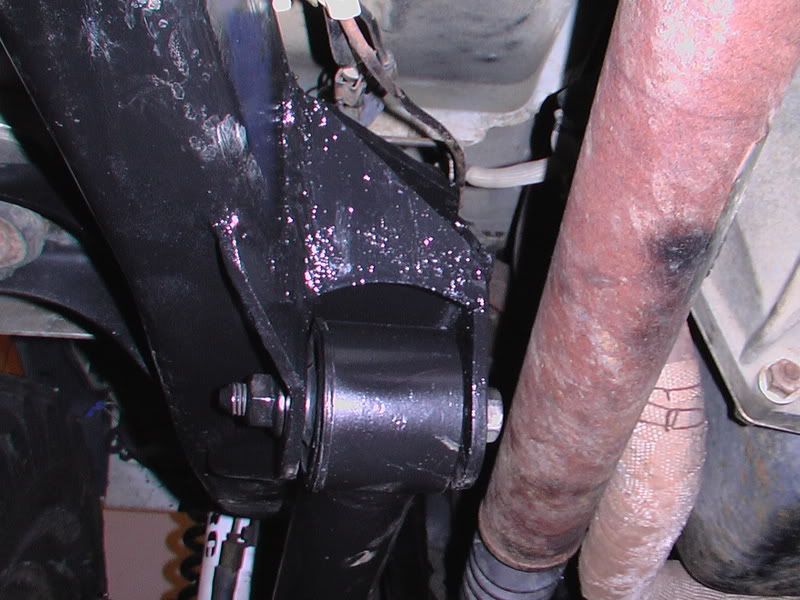

Poly performance frame brackets. The 10deg ones work best less trimming.


















White99tj is offline   Reply With Quote Quick reply to this message
Unread 08-13-2008, 07:14 AM   #24
White99tj
Registered User
1999 TJ Wrangler

Join Date: Apr 2008
Location: KC
Posts: 69
I did not take any pics of the rear wheel well.

The area to cut out is diff with every type of suspension set up IMO.
Short arms ,mid arms and long arms all have diff amounts of rear steer when fully flexed.
Not to mention shock length added to the mix.

I pulled the coils, unhooked the rear sway bar and shocks. Then put the tire on on the side I wanted to check and flexed it fully and compressed it fully.

Marked 1" above the tire and cut.

I could not count the # of times that I have pulled the front and rear coils to do all the mod that I have done.

And when you go out on the trail its diff yet.
White99tj is offline   Reply With Quote Quick reply to this message
Unread 08-13-2008, 10:13 AM   #25
Bennettj13
Web Wheeler

Bennettj13's Avatar
2005 TJ Wrangler

Join Date: Mar 2008
Location: Pendleton, IN
Posts: 5,373
Crawled, and subscribed. I like how you did the shock mounts a lot. That makes a lot of sense to me. With all of that downtravel, how much of that flex is useless? Do you still get decent traction even with that much droop? Were you still able to use those shock mounts without screwing with the fenders? I'm planning on doing a highline for my build, and I'm looking at the clayton LA lift. By the time it's said and done, I might just do the same with my shocks. Nice build.
__________________
::SELLING HALF OF MY JEEP::

http://www.jeepforum.com/forum/f33/?uid=152304

Rear Currie 4" coils - 190 shipped. (They've been sitting in the back of my Jeep for mock up but won't work out for me.)

Hornblasters Shocker S4 horn set with some extras $210 shipped. (It is not OBA, just an accessory for OBA)

"LCOG" isn't cheap and it certainly isn't easy. If you think so, you are doing it wrong. If you aren't willing to put in the effort, don't label your build "LCOG". You are just a cheap ******bag.

IndyORV- Dick and fart jokes, titties, throttle, flops, beer, tater balls, and good times.
Bennettj13 is offline   Reply With Quote Quick reply to this message
Unread 08-13-2008, 10:47 AM   #26
mrblaine
Wizard of Brakes

mrblaine's Avatar
1999 TJ Wrangler

Join Date: Dec 2004
Location: Quail Valley, California
Posts: 26,412
Quote:
Originally Posted by White99tj View Post
The filter assy all snaps together. I just cut it down and slid the short end over the other longer one, snaped the inner piece in and siliconed it all up.
Its has been on my jeep for around two year no problems yet.

For anyone that wants to do the same, be aware that non sensor safe RTV silicone will take out your O2 sensors if it's in the air supply.
__________________
I am Savvy
blackmagicbrakes.com
mrblaine is online now   Reply With Quote Quick reply to this message
Unread 08-13-2008, 12:36 PM   #27
White99tj
Registered User
1999 TJ Wrangler

Join Date: Apr 2008
Location: KC
Posts: 69
Quote:
Originally Posted by Bennettj13 View Post
Crawled, and subscribed. I like how you did the shock mounts a lot. That makes a lot of sense to me. With all of that downtravel, how much of that flex is useless? Do you still get decent traction even with that much droop? Were you still able to use those shock mounts without screwing with the fenders? I'm planning on doing a highline for my build, and I'm looking at the clayton LA lift. By the time it's said and done, I might just do the same with my shocks. Nice build.

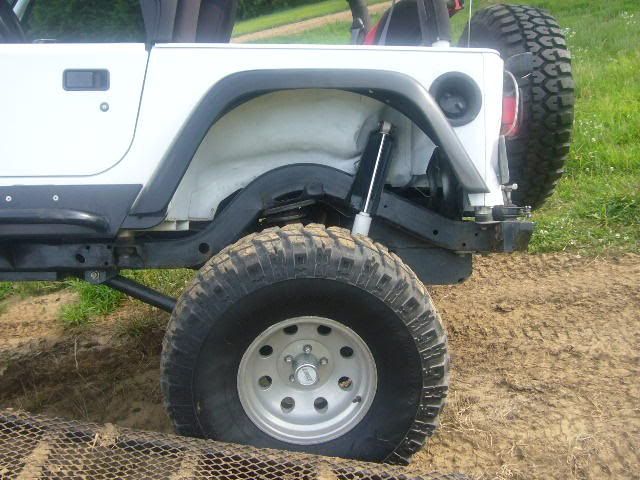

With the 33"tires I only rubed on the front factory fenders.
I have 5" of up 8" down travel in the front and 4" up 9" down in the rear.
The rear coils are still tight at full flex, front are loose.

Now with 35" tires highline hood I have 5/8" clearance on the front. The rear I trimmed and have about 3/4". Still have another 1/2 to 3/4 I could trim on the rear.

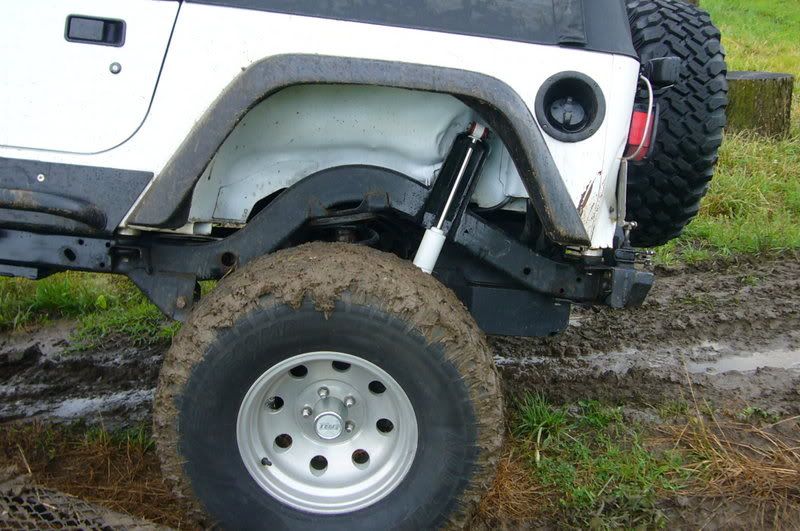

Full extension on front



Full compression on front

White99tj is offline   Reply With Quote Quick reply to this message
Unread 08-15-2008, 12:48 PM   #28
White99tj
Registered User
1999 TJ Wrangler

Join Date: Apr 2008
Location: KC
Posts: 69

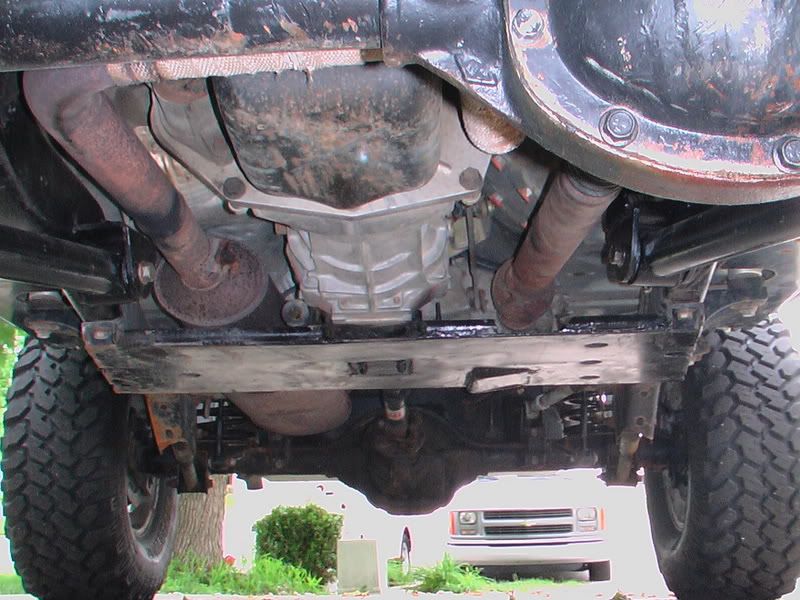

Some pics of the rear.

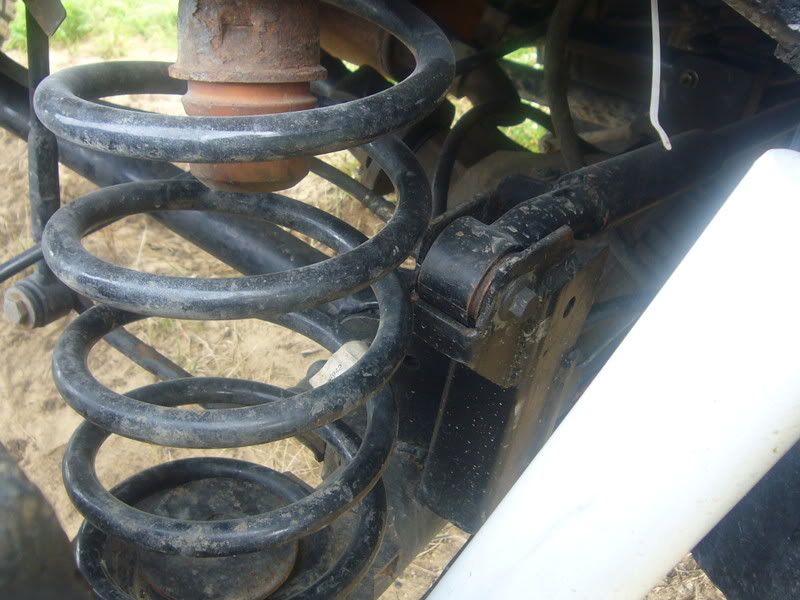

You can see where I moved the track bar up and out. This rid the rear from binding at full flex. Track bar is 35" long. Coils dont hit the brackets or track bar.

Man after all the work to make the track bar work I would have been time and materials ahead to four link it.

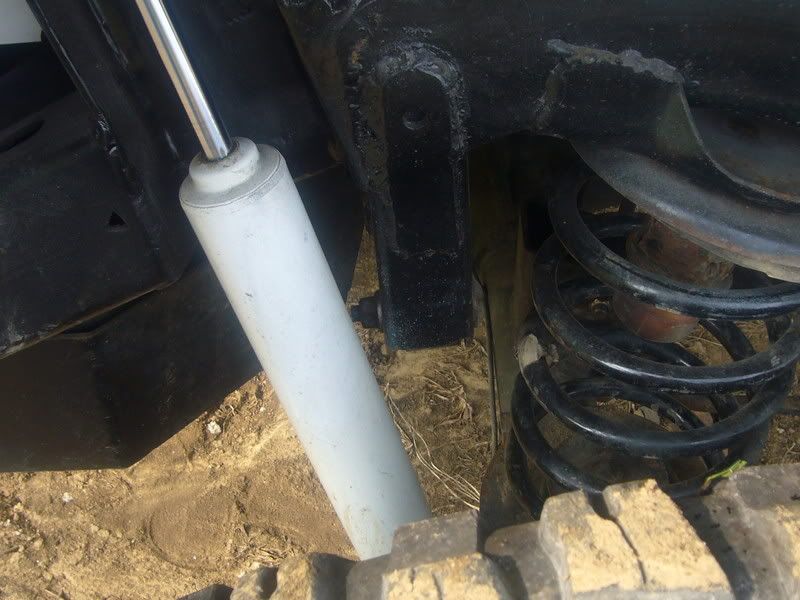

The other side track bar mount down and out . Bracket is clear of coils and shock.

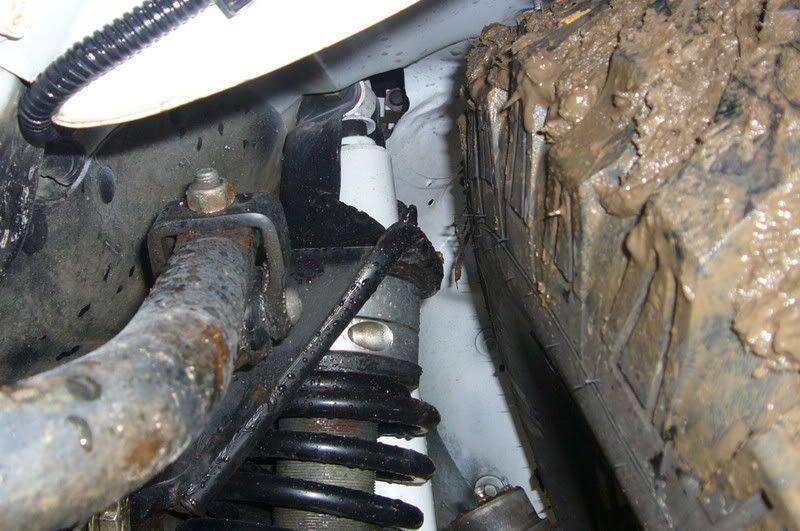

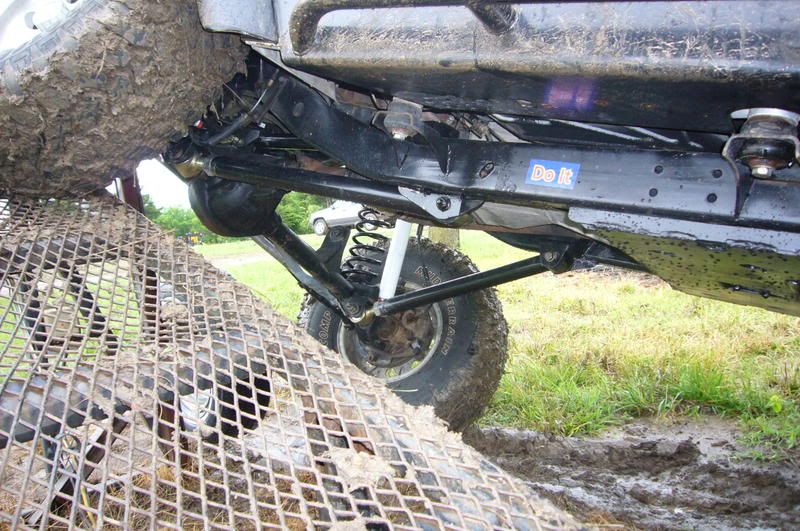

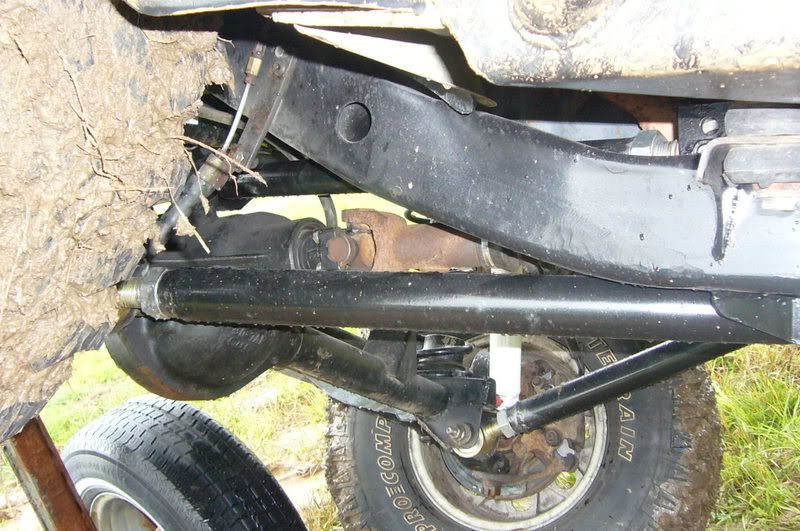

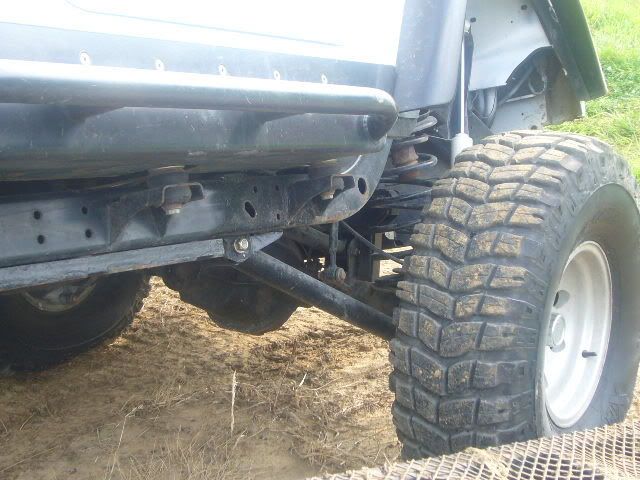

Some of the front mid arms at full flex.

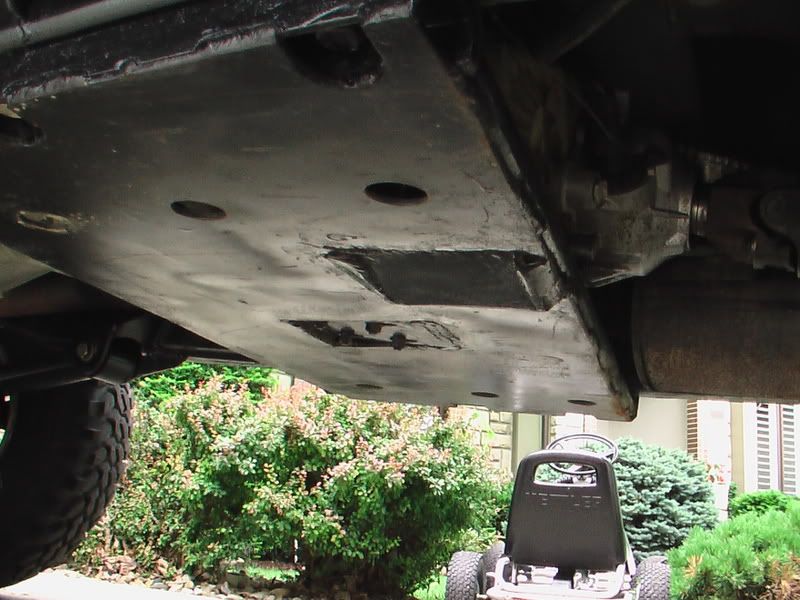

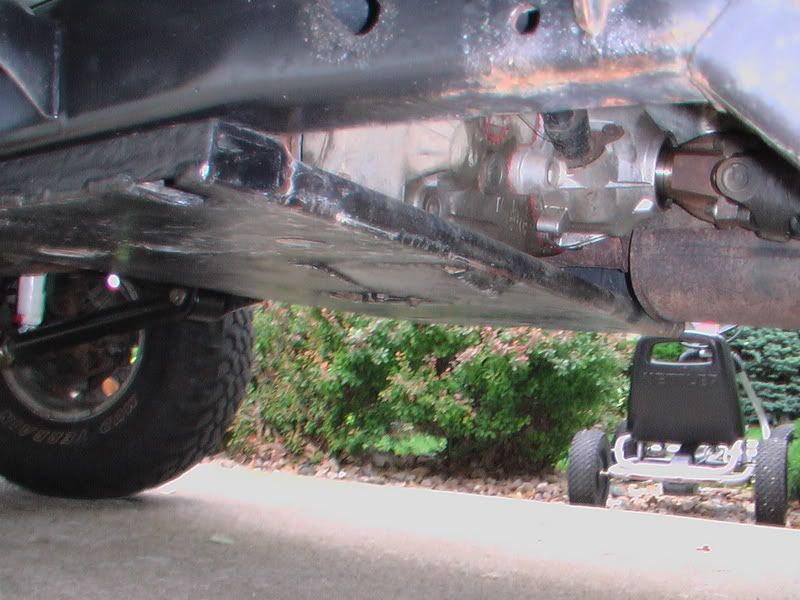

Some of the flat skid







White99tj is offline   Reply With Quote Quick reply to this message
