Unread 08-12-2008, 05:27 AM   #1
White99tj
Registered User
1999 TJ Wrangler

Join Date: Apr 2008
Location: KC
Posts: 69
Another Lcg, Hiline hood, Mid arms

This has been a few years in the making.
axles
HP30
8.8 centered pinion (very easy) Just measure the two axle shaft's length. Cut the axle and sleeve it. Use two long shafts.
4.88 gears

Lift
1"bl
2.5 ome Front & rear
Acos front

13" travel rs9000 shocks
2" bump stop front
1" bump stop rear

2"mml
35" tires

BTF DIY Fenders






















I will post more pics later. Im not much on typing but the pics are really what you want to look at.

White99tj is offline   Reply With Quote
Unread 08-12-2008, 06:09 AM   #2
lanesmat
Registered User
1998 TJ Wrangler

Join Date: Nov 2007
Location: Raleigh NC
Posts: 30
Best fresh air setup I've seen yet. Your going to have to give up some detail on that mod.

Scott L.
lanesmat is offline   Reply With Quote
Unread 08-12-2008, 06:21 AM   #3
Unlimited04
Read tech links in my sig

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 22,969
very nice. thats very close to what I have planned once I hit the lottery
Unlimited04 is offline   Reply With Quote
Unread 08-12-2008, 06:30 AM   #4
The Rat
Registered User
1995 YJ Wrangler

Join Date: Jul 2007
Location: North Dartmouth, MA
Posts: 847
More pics would make me a happy dude. That's a nice build.
__________________
OH WAIT. WHAT?
The Rat is offline   Reply With Quote
Unread 08-12-2008, 06:33 AM   #5
TJ-Marine PA
Registered User
1999 TJ Wrangler

Join Date: Aug 2005
Location: Spring Mills, PA
Posts: 121
Quote:
Originally Posted by lanesmat View Post
Best fresh air setup I've seen yet. Your going to have to give up some detail on that mod.

Scott L.
x2

What air box did you use for your air intake setup?
__________________
99 Gun Metal Blue TJ 4.0 w/ Cooper Discover STTs, Optima Red Top, Kilby Steering and Gas Tank Skids
10 Gray WK 4X4 Hemi Stock
09 Blue Ram 1500 4x4 Hemi Stock
JarHead Jeep Club Member #8 www.bbnt4x4.org
Go Pittsburgh!!! Go Penn State!!!
TJ-Marine PA is offline   Reply With Quote
Unread 08-12-2008, 08:37 AM   #6
jcssurf
Registered User
2004 LJ Wrangler

Join Date: Sep 2007
Location: Richmond, VA
Posts: 694
You could fit 37's on that thing. Nice rig.
__________________
2004 TJ-L with 3-4" of lift, 35's, and no money

The Unlimiteds shall inherit the earth.
jcssurf is offline   Reply With Quote
Unread 08-12-2008, 08:42 AM   #7
bebout
Registered User
2006 TJ Wrangler

Join Date: Aug 2007
Location: Georgia
Posts: 2,493

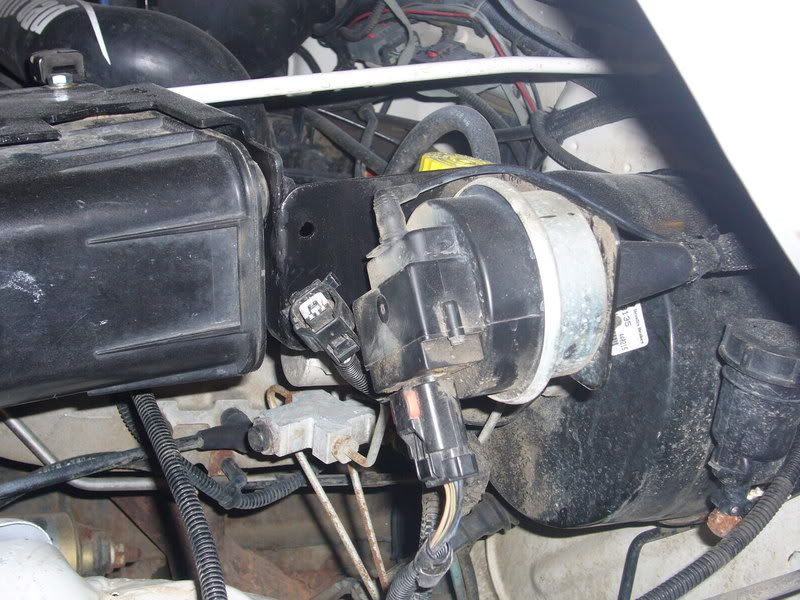

I just have one question. What did you do with the Vaccum Leak Detection canister on the pass. side? Please post pics on the pass. side.
bebout is offline   Reply With Quote
Unread 08-12-2008, 09:06 AM   #8
White99tj
Registered User
1999 TJ Wrangler

Join Date: Apr 2008
Location: KC
Posts: 69





















More pics to come
White99tj is offline   Reply With Quote
Unread 08-12-2008, 09:08 AM   #9
White99tj
Registered User
1999 TJ Wrangler

Join Date: Apr 2008
Location: KC
Posts: 69
37" tires will rub when flexed, I have some pics to show you.
White99tj is offline   Reply With Quote
Unread 08-12-2008, 09:51 AM   #10
TexanTJ
Registered User
2005 TJ Wrangler

Join Date: Jun 2005
Location: Tulsa Time, Displaced Texan
Posts: 1,017
Quote:
Originally Posted by White99tj View Post
37" tires will rub when flexed, I have some pics to show you.
lets see the pics you speak of

to the op. this rig looks very good
__________________
2005 Bright Silver Metallic X- Stolen on May 14, 2012
1988 MJ 2x4- AX15/4.0 ~ 318K miles and going
2006 GTO M6
TexanTJ is offline   Reply With Quote
Unread 08-12-2008, 10:14 AM   #11
bebout
Registered User
2006 TJ Wrangler

Join Date: Aug 2007
Location: Georgia
Posts: 2,493
Quote:
Originally Posted by 06trailrig View Post
I just have one question. What did you do with the Vaccum Leak Detection canister on the pass. side? Please post pics on the pass. side.
On the rear.
bebout is offline   Reply With Quote
Unread 08-12-2008, 10:21 AM   #12
That1guy
Registered User
2007 WK

Join Date: Oct 2007
Location: West Virginia
Posts: 2,415
Flex shots please!
__________________
I'm forever grateful to Speedycat and RnEmOvr for their generosity
That1guy is offline   Reply With Quote
Unread 08-12-2008, 10:24 AM   #13
White99tj
Registered User
1999 TJ Wrangler

Join Date: Apr 2008
Location: KC
Posts: 69
35" tires fully flexed 5/8" clearance from front fender

White99tj is offline   Reply With Quote
Unread 08-12-2008, 10:25 AM   #14
White99tj
Registered User
1999 TJ Wrangler

Join Date: Apr 2008
Location: KC
Posts: 69




White99tj is offline   Reply With Quote
Unread 08-12-2008, 10:30 AM   #15
bebout
Registered User
2006 TJ Wrangler

Join Date: Aug 2007
Location: Georgia
Posts: 2,493
No pics of the rear wheel tubs from where you raised those
bebout is offline   Reply With Quote
