42rle temp gauge

any one know where i can get a temp gauge for my tranny? also and how easy is it to install?

__________________
" All Out of Road" Vilseck Jeep Club

04 TJ 3 in. BL 2in. CS 4.88 power inverter CAI snorkel

Silver Jeep Club Number 23
04TJSport is offline   Reply With Quote Quick reply to this message
Unread 06-30-2009, 08:42 AM   #2
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 23,419
its an aw4 but you get the idea.
http://www.stu-offroad.com/engine/aw-4/aw-4-4.htm

there is a temp gauge already in the trans, and you could conceivably access the info through X-Gauge using a Scangauge II, but I have no idea how to do this.
Unlimited04 is offline   Reply With Quote Quick reply to this message
Unread 06-30-2009, 08:52 AM   #3
roadkill
Registered User
2006 LJ Wrangler

Join Date: Jun 2003
Location: Sandia, TX
Posts: 316
scanguage doesn't have an app or code for trans temps on the TJ/LJ. I wish it did.
roadkill is offline   Reply With Quote Quick reply to this message
Unread 06-30-2009, 09:00 AM   #4
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 23,419
Quote:
Originally Posted by roadkill View Post
scanguage doesn't have an app or code for trans temps on the TJ/LJ. I wish it did.
I was hoping someone smart could use X-Gauge to program their own code, thats what the feature is for.

Info for someone smart:
http://www.scangauge.com/support/pdfs/XGAUGE.pdf
http://www.scangauge.com/support/pdf...e%20Coding.pdf
Unlimited04 is offline   Reply With Quote Quick reply to this message
Unread 06-30-2009, 10:01 AM   #5
Jerry Bransford
Administrator

Jerry Bransford's Avatar
2004 TJ Wrangler

Join Date: Jan 2003
Location: Escondido, California, California
Posts: 60,717
Since Jeep trannies don't come with a tranny temp sender, no gauge is going to be able to give the tranny's temp. You need to either weld a tranny temp bung into the pan or place a sender in the coolant line before you can know the temperature.

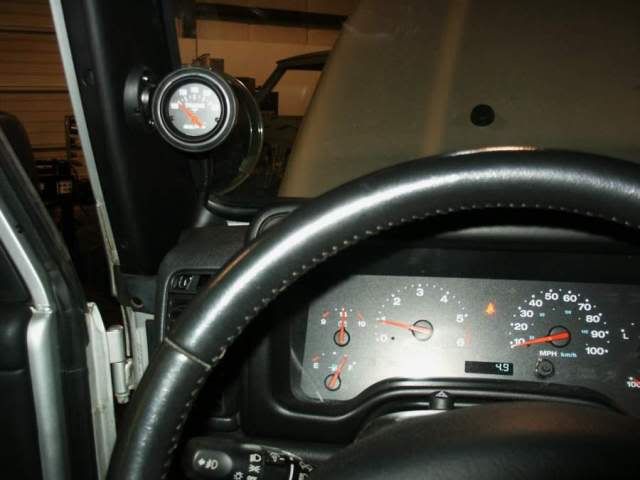

I have senders in both the pan and line, and have a switch for my tranny temp gauge (B&M and Autometer make them) so I can check both temps.
__________________
Getting Savvy...

Coolest offroad magazine ever! CRAWL Magazine

When you have a choice, buy American.
Jerry Bransford is offline   Reply With Quote Quick reply to this message
Unread 06-30-2009, 10:37 AM   #6
Wheelin98TJ
JEEP FREAK

Wheelin98TJ's Avatar
1998 TJ Wrangler

Join Date: Apr 2004
Location: , Southeast MI
Posts: 24,755
Quote:
Originally Posted by Jerry Bransford View Post
Since Jeep trannies don't come with a tranny temp sender, no gauge is going to be able to give the tranny's temp. You need to either weld a tranny temp bung into the pan or place a sender in the coolant line before you can know the temperature.

I have senders in both the pan and line, and have a switch for my tranny temp gauge (B&M and Autometer make them) so I can check both temps.
Since the 42RLE is electronic and uses a TCM, there is probably some sort of temp sender already present.

Unlimited04 mentioned this, but I'm not familiar enough with the 42RLE to say one way or another.
Wheelin98TJ is offline   Reply With Quote Quick reply to this message
Unread 06-30-2009, 10:43 AM   #7
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 23,419
the 42RLE does have a temp sensor in the side of the housing. the TCM uses it to determine shifts & lockup depending how warm the trans is.

DTC codes for it:
42RLE Code (DTC) P0711 Trans Temp Sensor, No Temp Rise After Start
42RLE Code (DTC) P0712 Trans Temp Sensor Voltage Too Low
42RLE Code (DTC) P0713 Trans Temp Sensor Voltage Too High
42RLE Code (DTC) P0714 Transmission Temperature Sensor Intermittent

Its wire #54 on the pinout, page 8:

http://atsg.biz/articles/html/Jeep%2...Supplement.htm

the 2004 FSM outlines the shift scheduling in Section 3.2.2 based on trans oil temperature - http://www.jeepforum.com/forum/showp...0&postcount=43
Unlimited04 is offline   Reply With Quote Quick reply to this message
Unread 06-30-2009, 10:57 AM   #8
Jerry Bransford
Administrator

Jerry Bransford's Avatar
2004 TJ Wrangler

Join Date: Jan 2003
Location: Escondido, California, California
Posts: 60,717
It may have a sensor to tell the computer if it's too hot or too cold but I don't believe it can give the kind of output needed for a gauge to know the actual transmission temperature which requires an actual temperature gauge sender.
__________________
Getting Savvy...

Coolest offroad magazine ever! CRAWL Magazine

When you have a choice, buy American.
Jerry Bransford is offline   Reply With Quote Quick reply to this message
Unread 06-30-2009, 11:32 AM   #9
NotURMailman
Registered User
2005 TJ Wrangler

Join Date: Nov 2006
Location: 'Round Here, Florida
Posts: 5,855
Quote:
Originally Posted by Jerry Bransford View Post
It may have a sensor to tell the computer if it's too hot or too cold but I don't believe it can give the kind of output needed for a gauge to know the actual transmission temperature which requires an actual temperature gauge sender.
Actually I believe it is an actual sending unit that sends a variable voltage signal to the PCM based on the temperature. If you could pinpoint the exact relationship of voltage level to temperature, you should be able to use it to run a digital gauge.
__________________
My RHD TJ - Savvy equipped... And loving it! - Durty Rok Carolina Offroad

I drive on the right side, what's wrong with you?

Quote:
Be very careful with the wife mod. Uninstallation can be extremely expensive. Wife mods have been known to take the Jeep and all other mods during the uninstall process. Also, make sure you service your wife mod properly as often as humanly possible. Wife mods not properly serviced may malfunction or uninstall themselves at any time.
NotURMailman is offline   Reply With Quote Quick reply to this message
Unread 06-30-2009, 12:17 PM   #10
Jerry Bransford
Administrator

Jerry Bransford's Avatar
2004 TJ Wrangler

Join Date: Jan 2003
Location: Escondido, California, California
Posts: 60,717
Quote:
Originally Posted by les.delancy View Post
Actually I believe it is an actual sending unit
What do you base that on?
__________________
Getting Savvy...

Coolest offroad magazine ever! CRAWL Magazine

When you have a choice, buy American.
Jerry Bransford is offline   Reply With Quote Quick reply to this message
Unread 06-30-2009, 12:53 PM   #11
Wheelin98TJ
JEEP FREAK

Wheelin98TJ's Avatar
1998 TJ Wrangler

Join Date: Apr 2004
Location: , Southeast MI
Posts: 24,755
Here is a graph from the FSM:

Wheelin98TJ is offline   Reply With Quote Quick reply to this message
Unread 06-30-2009, 01:31 PM   #12
Unlimited04
This post/info=my opinion

Unlimited04's Avatar
2004 LJ Wrangler

Join Date: Dec 2005
Location: Colorado
Posts: 23,419
Quote:
Originally Posted by Wheelin98TJ View Post
Here is a graph from the FSM:
oh man, thats awesome info! now we just need to put together the TXD, RXF, RXD and MTH codes to program into the X-Gauge to read voltage.

I tried 3 of the Ford Trans temp sensor codes and got a constant value of 5126 back...definitely not it.

EDIT: I just called Linear-Logic (they make the Scanguage II) - I sent them an email w/ the above chart and talked with a knowledgable person. They should get back to me soon about the TXD, RXF, RXD and MTH codes (if/how they can read this sensor).

Last edited by Unlimited04; 06-30-2009 at 01:45 PM..
Unlimited04 is offline   Reply With Quote Quick reply to this message
Unread 06-30-2009, 09:29 PM   #13
mudb8
want it rite or rite now?

mudb8's Avatar
1999 TJ Wrangler

Join Date: Sep 2008
Location: Estacada, oregon
Posts: 5,760
I've dabbled with the 42rle sender also and just ended up tapping the the line...

__________________
I want your factory 07-up take-off/thrown out JK front/rear Lower Control Arms! Bent ones are perfect also as long as the bushings and cold cut rings are in good shape/useable


HighLine Hood Jeepers
TJ Adjustable Track bars
DIY highline fenders.... 34-37's under 0"-2.5" lifts
shock length, bumpstop extension, tire size chart click here
DIY shock shifters, more uptravel/better ride




2011 E-350 4x4 Van conversion

2006 Rubicon Unlimited

ASE Certified Master Tech/Fabricator @ jeepwest.com
mudb8 is offline   Reply With Quote Quick reply to this message
Unread 07-01-2009, 06:07 PM   #14
Knuckelhead
AFSOC Retired

Knuckelhead's Avatar
2000 TJ Wrangler

Join Date: Aug 2005
Location: Colorado
Posts: 15,478
Install the sending unit in the transmission line with a "T" fitting and a ground wire...
__________________
TSB Information: http://www.automd.com/tsb/jeep_m/wrangler_mm/2000_y/
Knuckelhead is offline   Reply With Quote Quick reply to this message
Unread 07-01-2009, 06:43 PM   #15
Strizzy
Registered User
2004 TJ Wrangler

Join Date: Apr 2006
Location: Lemont, IL
Posts: 1,078
Quote:
Originally Posted by mudb8 View Post
I've dabbled with the 42rle sender also and just ended up tapping the the line...

So does tapping into the line with a digital temp gauge give correct readings?
