WEBER Carb Pics...

Can someone direct me to some pictures of installed Weber 34/34 carbs... especially their linkage on a CJ. Thanks.

Casey

breakthru is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 07:49 AM   #2
SuB8HaVeN
Registered User
1986 CJ7

Join Date: Dec 2006
Location: Tampa, FL
Posts: 2,287




There's my Weber 34/34. I know, my engine bay is a mess. I still haven't cleaned it from the last time I went wheeling. But note the Holley fuel pressure regulator. You will need one for the Weber 34/34, I got mine from Summitracing.com. Also, for the spring, I just attached it to that bracket on the intake manifold. Works for me.
__________________
1986 Jeep CJ7 4.2L I6 T176 (restoration in progress)
1961 Willys 4x4 Wagon L-226 I6 T90 (restoration also in progress)
SuB8HaVeN is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 08:22 AM   #3
CJ Chet
Registered User
1986 CJ7

Join Date: Dec 2005
Location: Yorktown, Virginia
Posts: 2,575
Don't worry about the linkage. Just remove it and run the cable right to the carb.
__________________
Beer is the answer - it doesn't matter what the question is!

'86 CJ7, 265 CI, DUI, TF999, Borla, Weber, 4" BDS Lift.
'04 AEV RUBICON.
'00 TJ Sahara.
CJ Chet is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 08:24 AM   #4
breakthru
Registered User
1985 CJ7

Join Date: Feb 2008
Location: Florida
Posts: 147
thanks so much!
breakthru is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 08:25 AM   #5
breakthru
Registered User
1985 CJ7

Join Date: Feb 2008
Location: Florida
Posts: 147
what's a fuel pressure regulator do? I don't have a computer anymore, will that affect the need or no need for one?

Casey
breakthru is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 09:25 AM   #6
SuB8HaVeN
Registered User
1986 CJ7

Join Date: Dec 2006
Location: Tampa, FL
Posts: 2,287
What happens is that your stock fuel pump is designed to give the stock Carter BBD 7psi of fuel, and the Weber is only designed to handle 3-3.5psi. I ran my Weber 34/34 without a FPR for a while, but it ran rich as could be and never ran right. After installing the FPR, it seemed like I just gained 50hp and no more running rich!
__________________
1986 Jeep CJ7 4.2L I6 T176 (restoration in progress)
1961 Willys 4x4 Wagon L-226 I6 T90 (restoration also in progress)
SuB8HaVeN is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 11:20 AM   #7
CJ Chet
Registered User
1986 CJ7

Join Date: Dec 2005
Location: Yorktown, Virginia
Posts: 2,575
Quote:
Originally Posted by SuB8HaVeN View Post
What happens is that your stock fuel pump is designed to give the stock Carter BBD 7psi of fuel, and the Weber is only designed to handle 3-3.5psi. I ran my Weber 34/34 without a FPR for a while, but it ran rich as could be and never ran right. After installing the FPR, it seemed like I just gained 50hp and no more running rich!
X2! Just make sure it's a HOLLEY regulator (Mr Gasket is garbage).
__________________
Beer is the answer - it doesn't matter what the question is!

'86 CJ7, 265 CI, DUI, TF999, Borla, Weber, 4" BDS Lift.
'04 AEV RUBICON.
'00 TJ Sahara.
CJ Chet is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 11:51 AM   #8
Mike Romain
Registered User
1986 CJ7

Join Date: Nov 2007
Location: Off the Grid in Chester Grant, Nova Scotia, Canada
Posts: 13,242
Quote:
Originally Posted by SuB8HaVeN View Post
What happens is that your stock fuel pump is designed to give the stock Carter BBD 7psi of fuel, and the Weber is only designed to handle 3-3.5psi. I ran my Weber 34/34 without a FPR for a while, but it ran rich as could be and never ran right. After installing the FPR, it seemed like I just gained 50hp and no more running rich!
Someone should put a pressure gauge on the stock fuel filter's output. Remember the center outlet goes to the carb at full flow for the tube's size and the 'top' outlet goes back to the gas tank.

I was told it is a metered output to the return line restricting the back flow so the carb sees 4.5 psi 'if I remember right', and upon inspection confirmed this visually. The outlet to the return line has a metered hole in it about 50% of the opening's diameter. The carb output is full flow.

I was thinking that this hole could just be expanded until the leftover going to the carb couldn't go above 3.5 psi.

Some days I think too much too though, but...?
__________________
Mike
86/00 CJ7 Laredo, 33x9.5 BFG AT's, 'glass nose to tail in '00, 'New' frame,wires and plumbing in '09. Carter BBD Carbed 4.0 HO in '10.
89 YJ Renegade. BBD Carbed 4.0 HO. Locked front and rear with 33x9.5 BFG AT's
Some Canadian Bush Jeep Runs and Build Photos: http://mikeromainjeeptrips.shutterfly.com (10 new albums added Sept 16/10)
Mike Romain is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 12:23 PM   #9
CJ Chet
Registered User
1986 CJ7

Join Date: Dec 2005
Location: Yorktown, Virginia
Posts: 2,575

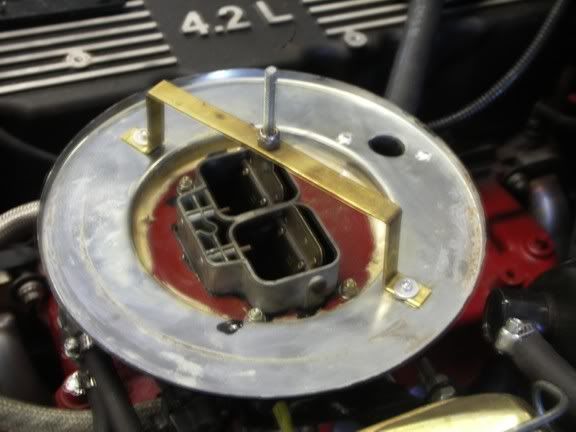

This works well:

__________________
Beer is the answer - it doesn't matter what the question is!

'86 CJ7, 265 CI, DUI, TF999, Borla, Weber, 4" BDS Lift.
'04 AEV RUBICON.
'00 TJ Sahara.
CJ Chet is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 12:47 PM   #10
SuB8HaVeN
Registered User
1986 CJ7

Join Date: Dec 2006
Location: Tampa, FL
Posts: 2,287
Amen brother, don't buy anything but the Holley. I bought the Mr. Gasket from Advance auto parts and that thing was leaking a river of fuel out of the regulator. Garbage...
__________________
1986 Jeep CJ7 4.2L I6 T176 (restoration in progress)
1961 Willys 4x4 Wagon L-226 I6 T90 (restoration also in progress)
SuB8HaVeN is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 03:18 PM   #11
breakthru
Registered User
1985 CJ7

Join Date: Feb 2008
Location: Florida
Posts: 147
Anyone got a link or part number to this Holley FPR? Thanks.
breakthru is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 06:56 PM   #12
CJ Chet
Registered User
1986 CJ7

Join Date: Dec 2005
Location: Yorktown, Virginia
Posts: 2,575
Ask and ye shall receive!

http://store.summitracing.com/partde...5&autoview=sku
__________________
Beer is the answer - it doesn't matter what the question is!

'86 CJ7, 265 CI, DUI, TF999, Borla, Weber, 4" BDS Lift.
'04 AEV RUBICON.
'00 TJ Sahara.
CJ Chet is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 08:26 PM   #13
86cj7jgn
Registered User
1986 CJ7

Join Date: Apr 2007
Location: NC
Posts: 60
Hey Cj Chet,
Nice install on the regulator, gauge & filter. What size fuel hose did you use?, and, where did you get that K&N filter? Do you have a PN# for it? I have looked everywhere for one with a weber base.
Thanks
86cj7jgn is offline   Reply With Quote Quick reply to this message
Unread 04-03-2008, 08:42 PM   #14
Indy
Registered User

Join Date: Oct 2004
Location: WY
Posts: 2,932
I run the extra inlet as an overflow back to the tank, never had a problem with too much pressure.
__________________
Odds are im typing on a tablet. It takes too much effort to add some punctuation. Im lazy, get over it

Never underestimate the power of stupid.
Indy is offline   Reply With Quote Quick reply to this message
Unread 04-04-2008, 06:08 AM   #15
CJ Chet
Registered User
1986 CJ7

Join Date: Dec 2005
Location: Yorktown, Virginia
Posts: 2,575
Quote:
Originally Posted by 86cj7jgn View Post
Hey Cj Chet,
Nice install on the regulator, gauge & filter. What size fuel hose did you use?, and, where did you get that K&N filter? Do you have a PN# for it? I have looked everywhere for one with a weber base.
Thanks
That's standard 3/8" fuel injection hose. I had to fabricate the filter base. I used the bottom piece of a Mr. Gasket unit. Using a piece of phenolic board, I had it laying around, I traced and cut out the Weber shape and fixed it into the bottom of the Mr. Gasket piece using small screw and epoxy. Once you have that you can just order the K&N filter and Extreme Flow top by SIZE rather than application. It flows QUITE nicely.
