Viair OBA system install w/pics

Most of the threads I have seen regarding this subject are in TJ's and lacking pictures of a complete system installed. So, this is my attempt at answering the questions I had for a CJ OBA system as to where to mount the various components that make up the system. By no means is this the beat all, end all, it is just my solution posted in one thread. I still can't figure out how to post pictures with the description below each pic, so picture 1 is where I mounted the compressor on the passenger side fender in the engine bay, it is close enough to the auxillary battery and fits nicely. The second picture shows the 2.5 gal tank mounted underneath the tub close to the frame rail near the transfer case and should be mostly out of harms way (I am somewhat concerned about the drain plug sticking out so I am carrying a spare). The 3rd picture is the pressure gauge mounted under the dash, easy enough and the last pic is not too good but shows where I brought in the female air connector inside the cab. I have a rubber furniture leg cover on it to keep debris out of the connector and I figured it would be better protected here than outside somewhere. It is central to the Jeep and the coiled hose reaches all 5 tires with ease. Again, there are other methods of mounting these pieces and this is how I chose to do mine. If anyone has had success or failure with their system and that system is similar to mine, please chime in and tell me your thoughts. BESRK and/or jeepskate feel free to move this if you think it belongs in the general jeep forum but I prefer to hear from the CJ experts here. Thanks...

Attached Thumbnails
S6301474.JPG   S6301473.JPG   S6301475.JPG   S6301470.JPG

1985 CJ-7, fuel injected 258, 2.5" Rubicon Express Extreme Duty Lift, 1" Body lift, Crabtree Shackle Hangers, T-5, Dana 300 w/ 4:1 Teralow kit, Dana 30, AMC 20 w/1 piece axle, 3.73 's with Detroit Truetrac front and rear, riding on 32x11.5x15" Cooper Discoverer STT mud terrains
mvigo is offline
Sponsored Links
Advertisement

post #2 of 38 Old 07-17-2010, 03:38 PM
1986cj
Registered User
1986 CJ7

Join Date: Dec 2007
Location: Denver Colorado
Posts: 1,878
I so want your hurst shifter
1986cj is offline
post #3 of 38 Old 07-17-2010, 03:44 PM Thread Starter
mvigo
Web Wheeler

mvigo's Avatar
1985 CJ7

Join Date: Jul 2008
Location: Northern California
Posts: 1,435
As stupid as it sounds, that simple Hurst shifter has made the drivability of my CJ infinitely better...

1985 CJ-7, fuel injected 258, 2.5" Rubicon Express Extreme Duty Lift, 1" Body lift, Crabtree Shackle Hangers, T-5, Dana 300 w/ 4:1 Teralow kit, Dana 30, AMC 20 w/1 piece axle, 3.73 's with Detroit Truetrac front and rear, riding on 32x11.5x15" Cooper Discoverer STT mud terrains
mvigo is offline
post #4 of 38 Old 07-17-2010, 03:59 PM
sgttaylor83CJ7
Registered User
1983 CJ7

Join Date: Apr 2009
Location: Dayton Ohio
Posts: 81
Thanks for sharing your install. I have a Viair system ready to go in. The only hold up is deciding where and how to mount things.

I wouldn't mind seeing more pictures of exactly how and where you, and anyone else who wouldnt mind posting, mounted their equipment (especially the tank).

Post em if ya got em!
sgttaylor83CJ7 is offline
post #5 of 38 Old 07-17-2010, 05:25 PM Thread Starter
mvigo
Web Wheeler

mvigo's Avatar
1985 CJ7

Join Date: Jul 2008
Location: Northern California
Posts: 1,435
my tank's location has plenty of room around it, the pressure switch/relay is protected above the transfer case skid, it is on the opposite side of my exhaust and it is close to the frame rail and hidden enough to where I think I should be OK. Jerry Bransford (he is a moderater here, he has a TJ) has had his there for years and not had a problem.

1985 CJ-7, fuel injected 258, 2.5" Rubicon Express Extreme Duty Lift, 1" Body lift, Crabtree Shackle Hangers, T-5, Dana 300 w/ 4:1 Teralow kit, Dana 30, AMC 20 w/1 piece axle, 3.73 's with Detroit Truetrac front and rear, riding on 32x11.5x15" Cooper Discoverer STT mud terrains
mvigo is offline
post #6 of 38 Old 07-17-2010, 05:35 PM
Darthteddy
Registered User
1955 M-38

Join Date: Sep 2007
Location: Louisburg, NC/Camp Pendleton, CA
Posts: 1,661
I wanted to put my tank under the frame like that, but i was concerned with havin it get nailed by a rock or something, just because thats all I play on.

I mounted mine on the drivers rear fender behind the drivers seat and the compressor right in front of it.


Its not takin up any room I was using before, is well out of the way, the compressors ventilated good, and plus it just looks sweet there. haha. Not sure if that location would work with a hard top but my soft top still goes on no problemo.

Dylan-19 and Yearning
93 Rubigrand - Sold... :'(
95 Grand Cherokee Limited - 5.2 Mall Crawler
55 Willy's M38a1 - 231v6, 33" Super Swampers, D44 Full Floater Rear, Locked Front and Rear, 5.38 Gears, Viair OBA, Bilsteen 5100 shocks, Dana 18, Turbo 350, S10 Power Steering, Tilt-wheel, Full Cage, Flat Fenders....
Darthteddy is offline
post #7 of 38 Old 07-17-2010, 09:18 PM
twoleos617
Registered User
1997 TJ Wrangler

Join Date: Nov 2008
Location: Louisville, Ky.
Posts: 2,075

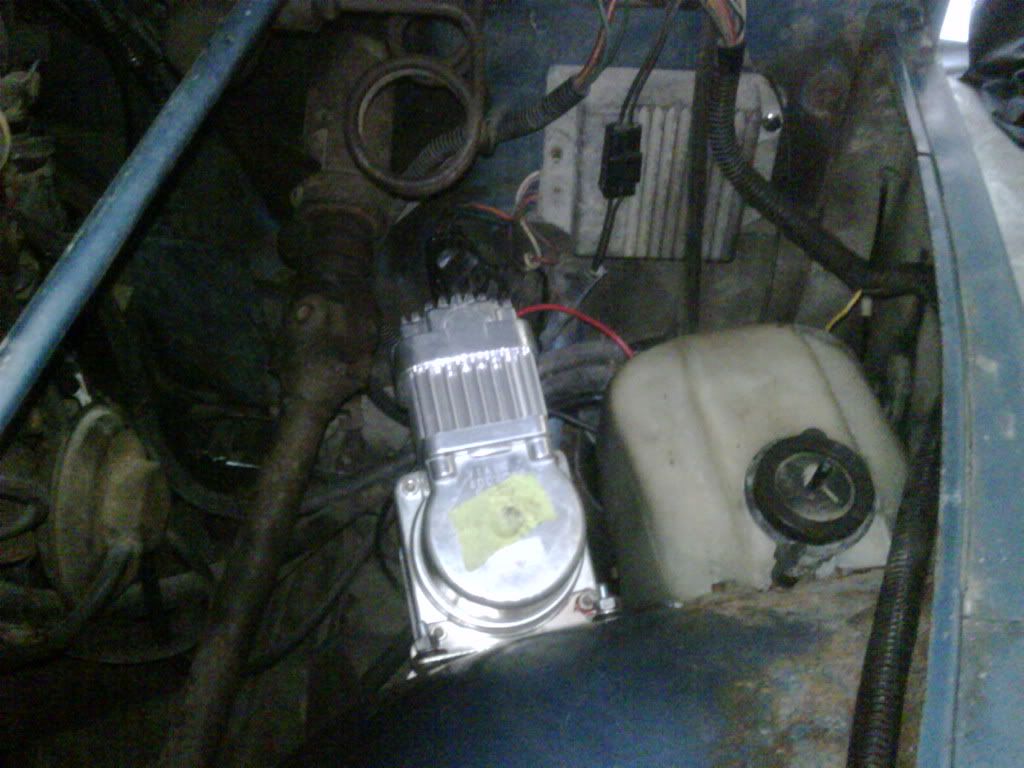

i moved my ignition modual to the firewall and mounted the compressor next the the wiper bottle, i plan on mounting the manifold to the top of the fender well. im moving the horns down a bit to the side of the fender well.
i thought about mounting everything on the passenger side since the install would be cleaner and less stuff to move but i wanted the manifold, connectors, and guages close to the drivers seat.


Torque is the measure of force that gets the cap off your beer.


Mike D.
twoleos617 is offline
post #8 of 38 Old 01-02-2011, 10:48 AM Thread Starter
mvigo
Web Wheeler

mvigo's Avatar
1985 CJ7

Join Date: Jul 2008
Location: Northern California
Posts: 1,435
As a follow up, I ran the Fordyce trail and parts of the Rubicon trail this past summer and had no problems with the air tank getting smacked by rocks so it seems the location where I mounted the tank is well protected. The only issue I did have was that the pressure switch brass fitting that connects to the tank cracked from the jarring of the Fordyce trail and would have rendered the OBA system useless had I not had a spare connector. The pressure switch on this particular system is rather large and apparently is too big for the fitting to account for jarring of rock crawling...either that or I need to slow down when going over rocks!!

1985 CJ-7, fuel injected 258, 2.5" Rubicon Express Extreme Duty Lift, 1" Body lift, Crabtree Shackle Hangers, T-5, Dana 300 w/ 4:1 Teralow kit, Dana 30, AMC 20 w/1 piece axle, 3.73 's with Detroit Truetrac front and rear, riding on 32x11.5x15" Cooper Discoverer STT mud terrains
mvigo is offline
post #9 of 38 Old 01-02-2011, 10:58 AM
1911Tyler
Registered User
1977 CJ5

Join Date: Oct 2010
Location: Charlotte
Posts: 441
I have the york compressor ready for install just havent had the time been busy with other stuff but lord knows i could have used it a dozen times by now. it is very handy and being that i live in and apt. i dont have an air compressor at my home so i always have to go to a friends or try and use my battery dremal. so props for getting it done.
1911Tyler is offline
post #10 of 38 Old 01-02-2011, 11:05 AM
LT1CJ7
Registered User

LT1CJ7's Avatar
1983 CJ7

Join Date: Aug 2004
Location: [duhm-as]
Posts: 4,512
Quote:
Originally Posted by twoleos617 View Post
i moved my ignition modual to the firewall and mounted the compressor next the the wiper bottle,
Your killing the compressors life having it mounted like that.
LT1CJ7 is offline
post #11 of 38 Old 01-02-2011, 11:23 AM
benullman
Registered User
1981 CJ7

Join Date: May 2010
Location: mechanicsville, VA
Posts: 2,139
Quote:
Originally Posted by LT1CJ7 View Post
Your killing the compressors life having it mounted like that.
how is that......?

Ben

Quote:
Originally Posted by Gregg79CJ7304 View Post
Great minds think alike, but so do serial killers......Thanks.
benullman is offline
post #12 of 38 Old 01-02-2011, 11:49 AM
LT1CJ7
Registered User

LT1CJ7's Avatar
1983 CJ7

Join Date: Aug 2004
Location: [duhm-as]
Posts: 4,512
Quote:
Originally Posted by benullman View Post
how is that......?

Ben
http://www.viaircorp.com/OnRoad/faq.html
Q: Is it possible to mount VIAIR compressors sideways, or must it be mounted with the cylinder upright?
A: You can mount in any direction or position since VIAIR compressors are oil-less. The only position we do not recommend is an upside-down mount, since heat tends to travel upward, and does not dissipate well in the motor housing. A sideways mounting may reduce the life of the piston seal, since everything is governed by gravity and has a weight associated with it.
LT1CJ7 is offline
post #13 of 38 Old 01-02-2011, 11:54 AM
benullman
Registered User
1981 CJ7

Join Date: May 2010
Location: mechanicsville, VA
Posts: 2,139
Quote:
Originally Posted by LT1CJ7 View Post
http://www.viaircorp.com/OnRoad/faq.html
Q: Is it possible to mount VIAIR compressors sideways, or must it be mounted with the cylinder upright?
A: You can mount in any direction or position since VIAIR compressors are oil-less. The only position we do not recommend is an upside-down mount, since heat tends to travel upward, and does not dissipate well in the motor housing. A sideways mounting may reduce the life of the piston seal, since everything is governed by gravity and has a weight associated with it.
learn something new every day!

Ben

Quote:
Originally Posted by Gregg79CJ7304 View Post
Great minds think alike, but so do serial killers......Thanks.
benullman is offline
post #14 of 38 Old 01-02-2011, 11:55 AM
Green73CJ5
Registered User
1973 CJ5

Join Date: Oct 2010
Location: Burlington County, NJ
Posts: 77
I am looking for a compressor for my CJ. This post was helpful to show me some options. I am deciding between a portable Viair and a mounted one. If I do a mounted system like above, do I need to have the extra tank or can I just use the air straight from the compressor?

'73 CJ-5, fully restored, 3" lift, 33" SuperSwampers, Warn x8000i (SOLD)
Green73CJ5 is offline
post #15 of 38 Old 01-02-2011, 02:39 PM
1911Tyler
Registered User
1977 CJ5

Join Date: Oct 2010
Location: Charlotte
Posts: 441
Quote:
Originally Posted by Green73CJ5 View Post
I am looking for a compressor for my CJ. This post was helpful to show me some options. I am deciding between a portable Viair and a mounted one. If I do a mounted system like above, do I need to have the extra tank or can I just use the air straight from the compressor?

the problem is that the CFM at 90 psi is only .98 i think and most air tools run off about 4.0 cfm so a tank would be the only way you would be able to turn any air tool. or blow something off with any power behind it.
1911Tyler is offline
