Unread 06-14-2010, 05:40 AM   #61
abernut
Registered User
1985 CJ7

Join Date: Jun 2010
Location: Jacksonville Beach
Posts: 444
In reference to the above diagram does it matter what type of EGR I have as Mike stated.

I drove my jeep to work Friday and dropped it off at the local off-road place so they could put it up on a lift and look at everything underneath. Went to pick it up and it magically would not go into gear. The only issue I had when I dropped it off was that it would slip out of first. The rubber boot for the shifter was still un-screwed so I'm not sure if they messed with it or not.

But as soon as I get it back I will test and see what type of EGR it has.

abernut is offline   Reply With Quote
Unread 06-14-2010, 05:46 AM   #62
Mike Romain
Registered User
1986 CJ7

Join Date: Nov 2007
Location: Off the Grid in Chester Grant, Nova Scotia, Canada
Posts: 13,105
Quote:
Originally Posted by abernut View Post
In reference to the above diagram does it matter what type of EGR I have as Mike stated.

I drove my jeep to work Friday and dropped it off at the local off-road place so they could put it up on a lift and look at everything underneath. Went to pick it up and it magically would not go into gear. The only issue I had when I dropped it off was that it would slip out of first. The rubber boot for the shifter was still un-screwed so I'm not sure if they messed with it or not.

But as soon as I get it back I will test and see what type of EGR it has.
If you use the E port, then the type doesn't really matter, it shouldn't be able to dump the advance back, but there is a reason it shows a reverse delay valve on the manifold line so if you go that route to mix the manifold vacuum when cold and ported when warmed up, if it bogs, think of that valve...
__________________
Mike
86/00 CJ7 Laredo, 33x9.5 BFG AT's, 'glass nose to tail in '00, 'New' frame,wires and plumbing in '09. Carter BBD Carbed 4.0 HO in '10.
89 YJ Renegade. BBD Carbed 4.0 HO. Locked front and rear with 33x9.5 BFG AT's
Some Canadian Bush Jeep Runs and Build Photos: http://mikeromainjeeptrips.shutterfly.com (10 new albums added Sept 16/10)
Mike Romain is offline   Reply With Quote
Unread 07-04-2010, 04:18 PM   #63
Ken4444
Corripe Cervisiam

Ken4444's Avatar
1985 CJ7

Join Date: Oct 2005
Location: Houston, Texas
Posts: 4,417
Keep TVS?

It is safe to assume I need to keep the TVS "Temperature controlled vacuum switch" (located on the air filter housing) and the two associated vaccum lines? This appears to be part of the EGR system, as shown here:

EGR-Related Vacuum Routing

This page shows a photo of the TVS (#3):

Air Cleaner
__________________
"I give you a republic, if you can keep it." - Benjamin Franklin
Ken4444 is offline   Reply With Quote
Unread 07-04-2010, 04:24 PM   #64
Mike Romain
Registered User
1986 CJ7

Join Date: Nov 2007
Location: Off the Grid in Chester Grant, Nova Scotia, Canada
Posts: 13,105
Quote:
Originally Posted by Ken4444 View Post
It is safe to assume I need to keep the TVS "Temperature controlled vacuum switch" (located on the air filter housing) and the two associated vaccum lines? This appears to be part of the EGR system, as shown here:

EGR-Related Vacuum Routing

This page shows a photo of the TVS (#3):

Air Cleaner
Yes, you need it. The EGR isn't supposed to turn on until the air going into the carb is warm enough so you also need the heat stove tube from the nose of the air filter down to the exhaust heat stove for it to work properly when it is cold out.
__________________
Mike
86/00 CJ7 Laredo, 33x9.5 BFG AT's, 'glass nose to tail in '00, 'New' frame,wires and plumbing in '09. Carter BBD Carbed 4.0 HO in '10.
89 YJ Renegade. BBD Carbed 4.0 HO. Locked front and rear with 33x9.5 BFG AT's
Some Canadian Bush Jeep Runs and Build Photos: http://mikeromainjeeptrips.shutterfly.com (10 new albums added Sept 16/10)
Mike Romain is offline   Reply With Quote
Unread 07-04-2010, 09:09 PM   #65
Ken4444
Corripe Cervisiam

Ken4444's Avatar
1985 CJ7

Join Date: Oct 2005
Location: Houston, Texas
Posts: 4,417
Phew. Thanks to this thread, Mike Romain, and Dale's Advenetures under the Hood, I was able to remove these items:



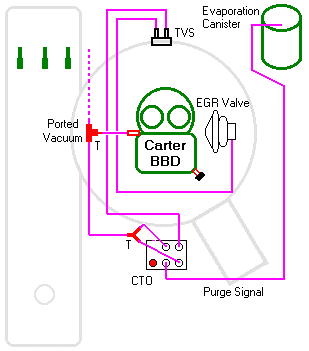

After I got to know the general layout of all of the lines, this diagram was very helpful:



Ultimately I used that as a checklist to make sure I was left with the necessary plumbing.

For the first time I can now see the back of the valve cover!



Now I need to go back and replace the worn out vacuum and vent lines, which is basically all of them. I also want to pull and refurbish the charcoal canister. I don't think it's ever been serviced. It looks exceedingly dusty.

One other question: What's the best way to deal with the obsolete connectors on the wiring harness? Removing each obsolete wire from the harness is probably more than I want to deal with right now. I could cut off each connector, apply shrink tubing to each wire, and then shrink each bundle together. That would at least be better than having those large connectors hanging there.
__________________
"I give you a republic, if you can keep it." - Benjamin Franklin

Last edited by Ken4444; 07-04-2010 at 09:13 PM.. Reason: Added a photo
Ken4444 is offline   Reply With Quote
Unread 01-04-2011, 09:58 AM   #66
waterdowg
Registered User
1984 CJ7

Join Date: Mar 2009
Location: nj
Posts: 2,231
I realize this an old thread but would like to bring it back to life with few questions. Were are the "Thermal Electric Switch" and the the "Temp Cont. Vacuum Switch" located? Also every thing that is left open now gets plugged? Last, the tube all 1/4" except for the PCV valve lines correct? I was thinking of just running new line as I go. Then anything left thats old remove and plug as an easy way to follow the diagram.
waterdowg is online now   Reply With Quote
Unread 01-04-2011, 01:03 PM   #67
abernut
Registered User
1985 CJ7

Join Date: Jun 2010
Location: Jacksonville Beach
Posts: 444
My TVS was located on the back of my Air Filter Housing.
abernut is offline   Reply With Quote
Unread 01-04-2011, 01:33 PM   #68
waterdowg
Registered User
1984 CJ7

Join Date: Mar 2009
Location: nj
Posts: 2,231
Ok I undersatnd now. The way I was looking at it since I did not know were those two items were located, was . I thought that there was a hose going to from the air filter to the Temp control and Thermal electric Switch. Thanks for clearing that up.
waterdowg is online now   Reply With Quote
Unread 01-04-2011, 05:21 PM   #69
waterdowg
Registered User
1984 CJ7

Join Date: Mar 2009
Location: nj
Posts: 2,231
Now I need to what for warm weather
waterdowg is online now   Reply With Quote
Unread 01-12-2011, 05:54 PM   #70
waterdowg
Registered User
1984 CJ7

Join Date: Mar 2009
Location: nj
Posts: 2,231
Ok. I looked at the Jeep today to see if it all looked the same as the picture. One thing I noticed was that my CTO valve only has 2 ports. How would I a run the vacuum lines. I have a carter carb.
waterdowg is online now   Reply With Quote
Unread 01-13-2011, 05:52 AM   #71
abernut
Registered User
1985 CJ7

Join Date: Jun 2010
Location: Jacksonville Beach
Posts: 444
Can you post pictures of your CTO Valve
abernut is offline   Reply With Quote
Unread 01-13-2011, 06:16 AM   #72
waterdowg
Registered User
1984 CJ7

Join Date: Mar 2009
Location: nj
Posts: 2,231
I will try to take a picture tonight.
waterdowg is online now   Reply With Quote
Unread 01-13-2011, 08:50 AM   #73
waterdowg
Registered User
1984 CJ7

Join Date: Mar 2009
Location: nj
Posts: 2,231
EDIT: Removed bad drawing
waterdowg is online now   Reply With Quote
Unread 01-14-2011, 05:10 AM   #74
waterdowg
Registered User
1984 CJ7

Join Date: Mar 2009
Location: nj
Posts: 2,231
Here is a picture of my CTO Valve. While looking at it, it may be a 3 Port valve. It looked tlike there was a broken piece of hose off the bottom. One picture you can see the two hoses coming out of the top, the other is the side picture. I trace the 2 vacuum hose and one goes to the "Temp Control Vacuum Switch" on the air cleaner and the other goes to the Sol-Vac on the Carb. I will haveto get this in the garage or wait until it warms up. Everything is a little stiff in 20* cold.
imag0135-medium-.jpg   imag0136-medium-.jpg
waterdowg is online now   Reply With Quote
Unread 01-14-2011, 11:30 AM   #75
mcmud
Web Wheeler
1983 CJ8

Join Date: May 2008
Location: N.E. Alabama
Posts: 2,650
Quote:
Originally Posted by waterdowg View Post
I re-drew the diagram to show a 2 port CTO Valve. Will this work? I only really changed the Ported vac to one tube going to the CTO and T'ed the Charcoal cansister with the Temp Control Vacuum Switch.
See post #18

The point of it is that you should NOT share the "S" ported nipple to control vacuum spark advance with any bleeding device.
mcmud is offline   Reply With Quote
