Transfer case shifter removal

I have gotten a bushing kit for my T20 transfer case shifter. I removed most of the old mechanism from the shifter where it is attached to the bell crank. Oh, did I mention that the transfer case is still in the Jeep attached to the transmission? Anyway, I have the bolt loose that holds the shifter into the U mount but can't remove the bolt entirely because it hits the tunnel and I do not want to remove the bell crank if possible. It actually appears that it would almost be easier to remove the transfer case. I was hoping that was not the case. Have I bitten off more than I can chew? Any suggestions?

Tractor Boy is offline
Sponsored Links
Advertisement

post #2 of 8 Old 11-09-2011, 09:41 PM
Mickey_D
Registered User
1997 ZJ

Join Date: Aug 2008
Location: 40 3'42.36"N 112 2'16.73"W
Posts: 6,867
On mine there's a removable cover on the passenger's side of the tunnel. Two screws and a little round plate. Allows direct access to the grease fitting end of the pivot bolt.

1997 ZJ 5.2 Orvis, Baby!
1953 Willys M100 trailer Tagalong
________________
[_][][][][][][][][_]



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
#4
Mickey_D is offline
post #3 of 8 Old 11-09-2011, 09:50 PM Thread Starter
Tractor Boy
Registered User
1977 CJ5

Join Date: Feb 2007
Location: Arlington, Texas
Posts: 116
Thanks! I don't recall seeing a place like that on mine but it might be easier to drill a hole there, get the bolt out and put a plug in after. I gave up for tonight and will take a fresh look tomorrow night.
Tractor Boy is offline
post #4 of 8 Old 11-09-2011, 09:52 PM
Mickey_D
Registered User
1997 ZJ

Join Date: Aug 2008
Location: 40 3'42.36"N 112 2'16.73"W
Posts: 6,867
If there's no removable plate there like on mine, a 1.5" hole saw and a 1.5" floor drain plug would do the trick.

1997 ZJ 5.2 Orvis, Baby!
1953 Willys M100 trailer Tagalong
________________
[_][][][][][][][][_]



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
#4
Mickey_D is offline
post #5 of 8 Old 11-10-2011, 07:07 AM Thread Starter
Tractor Boy
Registered User
1977 CJ5

Join Date: Feb 2007
Location: Arlington, Texas
Posts: 116
Thanks, Mickey D.

That's looking more like the solution. I just had my tub lined but I don't want to pull that transfer case out either. What's another hole in the tub anyway? I know! under tunnel ventilation. That's the ticket! I've been eyeing a hole saw set at HD.

This forum is awesome!!!!!
Tractor Boy is offline
post #6 of 8 Old 11-10-2011, 07:46 AM
h2ogun
Registered User
2006 TJ Wrangler

Join Date: Aug 2011
Location: Texas
Posts: 213
The inch and half hole saw is too big. A well placed 7/8 hole saw worked well on mine. You can put a 9/16 socket on an extension to remove or tighten very easy. I have to position my lever with a drift punch before installing the bolt, but it is simple.

You can cover the hole in the floor pan with a plastic furniture plug from a hardware store.

I will look to see if I have photos. It is a quick fix, took me about 5 min. and makes life a lot easier.
h2ogun is offline
post #7 of 8 Old 11-10-2011, 08:47 AM
h2ogun
Registered User
2006 TJ Wrangler

Join Date: Aug 2011
Location: Texas
Posts: 213

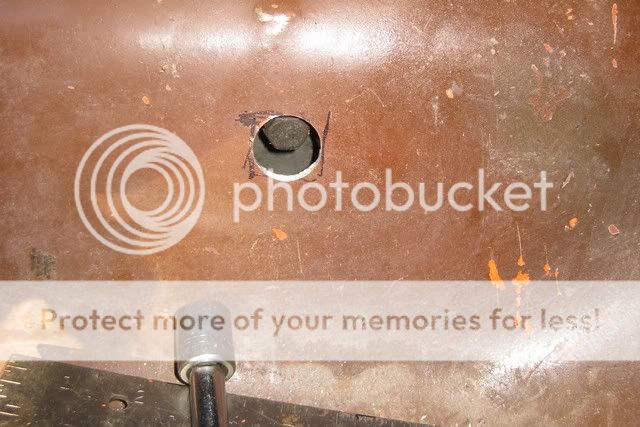

Photos with the 7/8 hole to remove D20 shift lever. I did not take a photo of the plug, but it looks like it came from the factory with the plug in.



h2ogun is offline
post #8 of 8 Old 11-10-2011, 09:29 AM Thread Starter
Tractor Boy
Registered User
1977 CJ5

Join Date: Feb 2007
Location: Arlington, Texas
Posts: 116
Thanks for the replies. When I was under the Jeep last night, I was like bummed out. I just needed a skosh to get the thing out. Man that was frustrating. I just got my tub lined and now I'm going to drill a hole in it. Oh well, I drilled more holes in it to install my new seatbelts. So, what's another. I may try to drill the hole the same size as my floor holes so I could use a standard plug. However, I'll go to my favorite hardware store (Arlington Hardware) and see what size plugs they have before firing up the hole saw. I knew this project sounded too easy.
Tractor Boy is offline
