T176 tranny problems

So ever since I bought my cj first gear never worked properly. I can put it in first gear but has to be held in place. And even when held in place as the rpms get higher, it still kicks itself out while being held. I pulled tranny and took the shifter cover off and all the gears look good. The only gear that doesn't is the reverse idler but even it has no major chips or chunks. Just normal wear. Can that gear cause first gear to not work properly? No other gears or synchros are worn. Could it have something to do with the shifter? Any ideas would be appreciated.

jfallon1 is offline   Reply With Quote
Unread 02-16-2013, 12:44 PM   #2
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 12,969
Nothing probably nothing to do at all with the gears but the syncros for the gears.

It's the brass ring between the gears.

Sent from my iPhone using JeepForum
John Strenk is offline   Reply With Quote
Unread 02-16-2013, 02:59 PM   #3
jfallon1
Registered User
1980 CJ7

Join Date: Mar 2012
Location: LUCEDALE, Mississippi
Posts: 41
How do I tell if they are bad? All have good teeth and mesh well. No chips in the teeth or chunks gone
jfallon1 is offline   Reply With Quote
Unread 02-16-2013, 04:52 PM   #4
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 12,969
I'll have to check when I get home but it almost looks like the dog gear (?) Is too close to the syncro. That us a sign that the cone is worn out.

The cone is what speeds the gear up to the same speed as the gear that's driving it.

. That happens if the PO liked to drive with his hand on the shifter. Or so I'm told.

Sent from my iPhone using JeepForum
John Strenk is offline   Reply With Quote
Unread 02-16-2013, 04:57 PM   #5
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
Need pics of the shift forks.

Typically, on transmissions with the brass style shift forks, kicking out of gear is caused by heavily worn shift forks that fail to fully engage the hub sleeve. I just rebuilt a T176 last week with the same issues.

Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote
Unread 02-16-2013, 08:08 PM   #6
jfallon1
Registered User
1980 CJ7

Join Date: Mar 2012
Location: LUCEDALE, Mississippi
Posts: 41

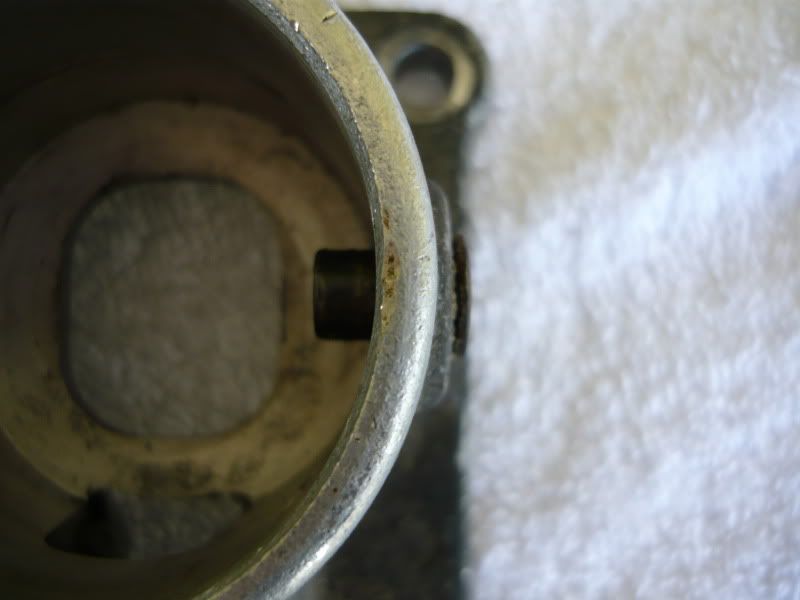

Looked at them all and they look good. Tell me what yaw think. Not real sure what to look for. The shifting was sloppy. They wasn't a tightness to it like other stick shifts. Not real sure how other cj's shift though. All the help is appreciated
jfallon1 is offline   Reply With Quote
Unread 02-16-2013, 08:10 PM   #7
jfallon1
Registered User
1980 CJ7

Join Date: Mar 2012
Location: LUCEDALE, Mississippi
Posts: 41
Another
jfallon1 is offline   Reply With Quote
Unread 02-16-2013, 08:49 PM   #8
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 5,755
Check for end play in the gears and shafts. The FSM gives acceptable end play tolerances. The brass rings only act as braking devices. Also, look at your shifter and make sure the shift rails are not sloppy in the cover and also that the forks are not loose on the rails.
80cj is offline   Reply With Quote
Unread 02-17-2013, 05:33 AM   #9
Mean Max
Don't poke the bear

Mean Max's Avatar
1991 YJ Wrangler

Join Date: Jul 2007
Location: Stuart, Florida
Posts: 13,682
Check the grooves on the sides of the shifter cane where it sits in the shift tower, and the condition of the guide pins.

These pics are of an AX-15 shifter & tower, but the concept is the same.






If the grooves are worn away, weld some new material onto the shifter & then grind it into shape.

Max
__________________
Click here to see all of my different albums on Photobucket.
Choose any album to see all of my pics!


Quote:
Originally Posted by UltimatE View Post
Max has a picture of every Jeep part ever made.
Quote:
Originally Posted by Benderff View Post
No one here knows what they are talking about. You should try Pirate 4x4 they will be happy to help you.

There is no situation that cannot be improved with a small but well-placed explosive.
Mean Max is offline   Reply With Quote
Unread 02-17-2013, 10:49 AM   #10
80cj
Web Wheeler

80cj's Avatar
1980 CJ5

Join Date: May 2002
Location: Hawaii
Posts: 5,755
While looking at your pic, I happened to notice that your output shaft splines appear to be a bit worn. You might take a look at them.

80cj is offline   Reply With Quote
Unread 02-17-2013, 07:22 PM   #11
jfallon1
Registered User
1980 CJ7

Join Date: Mar 2012
Location: LUCEDALE, Mississippi
Posts: 41
Gonna try my hand at rebuilding it. What tools do yaw suggest getting? Snap ring pliers and a puller? Some say use a wooden dowel, is it necessary?
jfallon1 is offline   Reply With Quote
Unread 02-17-2013, 07:41 PM   #12
lavern23
Registered User
2005 LJ Wrangler

Join Date: Apr 2011
Location: Louisville, KY
Posts: 75
I use a copper rod a lot in place of the dowel. Won't splinter and still soft enough not to hurt things.
lavern23 is offline   Reply With Quote
Unread 02-17-2013, 08:00 PM   #13
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 12,969
Quote:
Originally Posted by 80cj
Check for end play in the gears and shafts. The FSM gives acceptable end play tolerances. The brass rings only act as braking devices. Also, look at your shifter and make sure the shift rails are not sloppy in the cover and also that the forks are not loose on the rails.
If you think they are only braking devises, your missing half of the job they do

But yes, check the endplay of the gears.

Last time I had a tranny that I had to hold it in gear was because the mechanic forgot to put oil in the tranny when he rebuilt the tranny. Time before that was a split case.
John Strenk is offline   Reply With Quote
Unread 02-17-2013, 08:06 PM   #14
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 12,969
Quote:
Originally Posted by jfallon1
Gonna try my hand at rebuilding it. What tools do yaw suggest getting? Snap ring pliers and a puller? Some say use a wooden dowel, is it necessary?

Quote:
Originally Posted by lavern23
I use a copper rod a lot in place of the dowel. Won't splinter and still soft enough not to hurt things.
Depends, are you going to use the dowel as a dummy rod to hold the bearings in place or use it a punch to hammer things out?

I found that some conduit and plastic pipe are the exact diameter to use as an arbor (dummy) shaft.




Good catch on those output splines. Check the splines in the D300 also

What's the end play on the clutch (input) shaft.?
John Strenk is offline   Reply With Quote
Unread 02-17-2013, 08:09 PM   #15
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 12,969
Quote:
Originally Posted by Mean Max
Check the grooves on the sides of the shifter cane where it sits in the shift tower, and the condition of the guide pins.

These pics are of an AX-15 shifter & tower, but the concept is the same.

If the grooves are worn away, weld some new material onto the shifter & then grind it into shape.

Max
Good thought but I don't think you can weld on new material. You just have to get new shift rods. Unless you mean the end of the shifter.
Usually the end of the shifter is what wears first.
John Strenk is offline   Reply With Quote
