Unread 09-14-2009, 08:39 AM   #1
DT5150
Registered User
1983 CJ7

Join Date: Jun 2007
Location: Lakes Region, NH
Posts: 1,494
Reverse lights wires, Location?

just swapped a manual for an auto and need to get the reverse/backup lights going again. i know they connected to the old manual tranny, but i can't seem to find that wire at the moment. can anyone tell me where that wire should be, or where it originates from? perhaps i could trace it.. what colors the wires are, what the plug looks like etc.

i found one wire, well 2 together actually, both black with a black connector at the end. it seems to terminate at the brake thing (can't recall the name) mounted on the D side frame rail. proportioning valve? is that it?

i'm sure the wires are still there, but i'm having trouble finding it/them. i need to hook them to a b&m mega shifter to get the lights working again. any pics would be great as well. thanks!

__________________
SOLD! 83 CJ-7. TBI Small Block Chevy 350/TH350/D300, Scout II Dana 44 front, CJ Dana 44 rear. 4" BDS Lift with 35's. Currently Jeepless.
DT5150 is offline   Reply With Quote Quick reply to this message
Unread 09-14-2009, 09:01 AM   #2
Pathkiller
Registered User
1974 CJ5

Join Date: Jan 2009
Location: Lorton, VA
Posts: 2,580
Wiring reverse lights is honesty one of the simplest circuits there is. I assume your B&M shifter has an integrated switch? All you need is a hot wire running to the switch and from the switch to the lights. The lights ground at the mounting point, so no need to run a separate ground wire. If you can't find the existing wiring just run a wire from a fused source and route it in a safe location. About a 5 minute job.
Pathkiller is offline   Reply With Quote Quick reply to this message
Unread 09-14-2009, 09:07 AM   #3
DT5150
Registered User
1983 CJ7

Join Date: Jun 2007
Location: Lakes Region, NH
Posts: 1,494
yeah but i didn't want to resort to that if i didn't have to. i know they're there.. i just can't find em. all i'd need to do is hook those to the switch on the shifter and i'd be golden.
__________________
SOLD! 83 CJ-7. TBI Small Block Chevy 350/TH350/D300, Scout II Dana 44 front, CJ Dana 44 rear. 4" BDS Lift with 35's. Currently Jeepless.
DT5150 is offline   Reply With Quote Quick reply to this message
Unread 09-14-2009, 09:28 AM   #4
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 13,230
Well they come from a inline plug on the harness usually on the passenger side of the engine. It has 3 or 4 wires going in sometimes. With a manual it probably had 3 wires coming out the other side of the plug and two wires went to the back up switch and one wire went to the 4WD switch.
John Strenk is offline   Reply With Quote Quick reply to this message
Unread 09-14-2009, 09:31 AM   #5
DT5150
Registered User
1983 CJ7

Join Date: Jun 2007
Location: Lakes Region, NH
Posts: 1,494
you wouldn't have a pic, would you john?
__________________
SOLD! 83 CJ-7. TBI Small Block Chevy 350/TH350/D300, Scout II Dana 44 front, CJ Dana 44 rear. 4" BDS Lift with 35's. Currently Jeepless.
DT5150 is offline   Reply With Quote Quick reply to this message
Unread 09-15-2009, 08:00 AM   #6
DT5150
Registered User
1983 CJ7

Join Date: Jun 2007
Location: Lakes Region, NH
Posts: 1,494

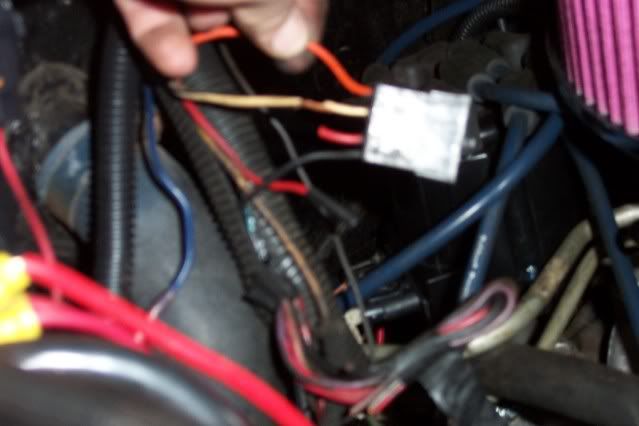

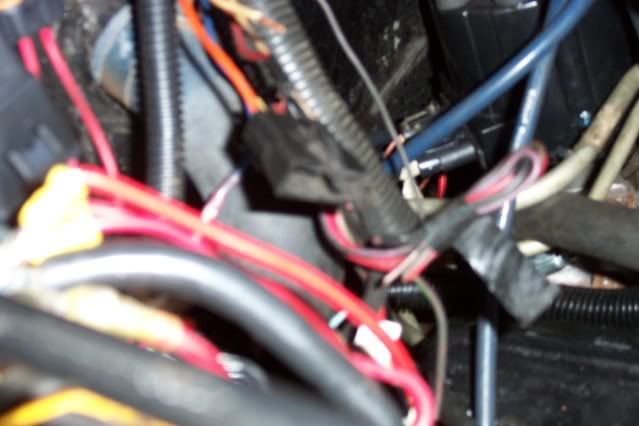

i found this plug on the pass. side (i cut those wires to try them, see if they'd work. didn't.) is this the one i'm looking for?





i also looked in the loom running along the D side inside the tub, it goes back to the tail lights. i also attempted to tap into the wht/stripe wire, but that didn't work either. could i tap in here somewhere?

__________________
SOLD! 83 CJ-7. TBI Small Block Chevy 350/TH350/D300, Scout II Dana 44 front, CJ Dana 44 rear. 4" BDS Lift with 35's. Currently Jeepless.
DT5150 is offline   Reply With Quote Quick reply to this message
Unread 09-15-2009, 09:48 AM   #7
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 13,230
Quote:
Originally Posted by DT5150 View Post
you wouldn't have a pic, would you john?
This is mine:





Here are the wires in the plug on the harness:


The Red and White with Trace are the wires you need to get the BU Lights working.
John Strenk is offline   Reply With Quote Quick reply to this message
Unread 09-15-2009, 09:53 AM   #8
DT5150
Registered User
1983 CJ7

Join Date: Jun 2007
Location: Lakes Region, NH
Posts: 1,494
thanks john. that looks like the one i've been messing with, only i think i'm missing the bottom, second section that goes to the trans. i should be able to splice in some wires at that plug i have in the pic and route them to the b&m shifter, no?

which wires would i need? the red "hot" wire and what else?
__________________
SOLD! 83 CJ-7. TBI Small Block Chevy 350/TH350/D300, Scout II Dana 44 front, CJ Dana 44 rear. 4" BDS Lift with 35's. Currently Jeepless.
DT5150 is offline   Reply With Quote Quick reply to this message
Unread 09-15-2009, 09:55 AM   #9
DT5150
Registered User
1983 CJ7

Join Date: Jun 2007
Location: Lakes Region, NH
Posts: 1,494
by the way, my tail lights, directionals and brake lights are currently working
__________________
SOLD! 83 CJ-7. TBI Small Block Chevy 350/TH350/D300, Scout II Dana 44 front, CJ Dana 44 rear. 4" BDS Lift with 35's. Currently Jeepless.
DT5150 is offline   Reply With Quote Quick reply to this message
Unread 09-15-2009, 09:55 AM   #10
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 13,230
Quote:
Originally Posted by DT5150 View Post
thanks john. that looks like the one i've been messing with, only i think i'm missing the bottom, second section that goes to the trans. i should be able to splice in some wires at that plug i have in the pic and route them to the b&m shifter, no?

which wires would i need? the red "hot" wire and what else?

Heh, I was adding to my post when you posted. Red and White with trace are the wires you need. Short them together to be sure your back up lights work.
John Strenk is offline   Reply With Quote Quick reply to this message
Unread 09-15-2009, 10:03 AM   #11
DT5150
Registered User
1983 CJ7

Join Date: Jun 2007
Location: Lakes Region, NH
Posts: 1,494
great, many thanks john.

here's the other part of it... there are 2 connections on the shifter (see pic, the unused ones). should i run one from the red wire to one of them, and one from the wht/trace to the other? or do i need to combine them somehow?

__________________
SOLD! 83 CJ-7. TBI Small Block Chevy 350/TH350/D300, Scout II Dana 44 front, CJ Dana 44 rear. 4" BDS Lift with 35's. Currently Jeepless.
DT5150 is offline   Reply With Quote Quick reply to this message
Unread 09-15-2009, 10:07 AM   #12
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 13,230
No, Your right, red to one and White/trace to other.

Is that a Normally Open switch or Normally Closed switch?
John Strenk is offline   Reply With Quote Quick reply to this message
Unread 09-15-2009, 10:10 AM   #13
DT5150
Registered User
1983 CJ7

Join Date: Jun 2007
Location: Lakes Region, NH
Posts: 1,494
umm.. i'm not sure. when you put the shifter in reverse, those little "fingers" make contact activating the lights. any guesses on which wire goes to which connection?

thank you so much fo the help man.
__________________
SOLD! 83 CJ-7. TBI Small Block Chevy 350/TH350/D300, Scout II Dana 44 front, CJ Dana 44 rear. 4" BDS Lift with 35's. Currently Jeepless.
DT5150 is offline   Reply With Quote Quick reply to this message
Unread 09-15-2009, 10:53 AM   #14
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 13,230
Must be OK. That sounds like a Normally Open switch.

It shouldn't matter which wire is connected were on that switch.
John Strenk is offline   Reply With Quote Quick reply to this message
Unread 09-15-2009, 10:57 AM   #15
DT5150
Registered User
1983 CJ7

Join Date: Jun 2007
Location: Lakes Region, NH
Posts: 1,494
ok, i'll give it a shot. thanks john.

hey, isn't the 4wd light mixed in this somewhere too?
