Rear Drum Brakes

Hey everyone, having trouble removing my rear drums to put in new parking brake lines and shoes, 1980 CJ7. Tried pounding with a hammer, prying with a bar, but they simply won't come off. Seems like something is holding them in the center, and they snap back into place after some prying. What approach should I try to remove these? Thanks in advance!

stansama is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 10:31 AM   #2
daltonw
Registered User
1981 CJ7

Join Date: Sep 2009
Location: KS
Posts: 279
mine tapped off with a hammer. It did help to remove the plastic covers that cover the axle nut
__________________
1981 CJ7 renegade, 1981 scrambler, 1986 CJ7 laredo
daltonw is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 10:31 AM   #3
garbageman
Registered User
1976 CJ7

Join Date: Sep 2008
Location: Lexington, SC
Posts: 234
Use a screwdriver and release the tension on the shoes. There is a slack adjuster spreading them out that can be accessed by the rear backing plate.
__________________
1976 CJ7 - Built 360/TH400/Quadratrac/One piece Model 20/4" BDS lift and 35" BFG KM2.

** Always looking for Quadratracs (Original Borg 1339 cases and parts). PM me what you have! **
garbageman is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 10:39 AM   #4
Mike Romain
Registered User
1986 CJ7

Join Date: Nov 2007
Location: Off the Grid in Chester Grant, Nova Scotia, Canada
Posts: 13,574
You have to go in from the back bottom and loosen off the star wheel inside to release the brake shoes. They are now stuck under the lip they wore into the drum. Sometimes you need one small screwdriver to push the locking tab at the top of the star wheel inward and out of the way to move the star wheel.

Make sure you manually adjust the star wheel back up for the new shoes before adjusting the emergency brake cable's tension or the cable can become the pivot point for the shoes which will break things eventually.
__________________
Mike
86/00 CJ7 Laredo, 33x9.5 BFG AT's, 'glass nose to tail in '00, 'New' frame,wires and plumbing in '09. Carter BBD Carbed 4.0 HO in '10.
89 YJ Renegade. BBD Carbed 4.0 HO. Locked front and rear with 33x9.5 BFG AT's
Some Canadian Bush Jeep Runs and Build Photos: http://mikeromainjeeptrips.shutterfly.com (10 new albums added Sept 16/10)
Mike Romain is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 03:31 PM   #5
stansama
Registered User
1980 CJ7

Join Date: Sep 2009
Location: maine
Posts: 12
Is the star wheel accessed via the two black rubber/plastic oval-shaped grommets? Sorry, never dealt with drum brakes before. Dalton, not sure what you mean. Seems like the front of the drum is one solid piece that covers the drum and axle, don't see any plastic covers.
stansama is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 03:37 PM   #6
ahuppertz
Registered User
1993 ZJ

Join Date: Sep 2008
Location: Albuquerque, New Mexico
Posts: 23
That's precisely it. Pull those out, push just under the adjuster and to the rear of the vehicle side of the star wheel, then use another screwdriver to push the star wheels up on both sides. It's much easier to just pound them off though.
__________________
1993 Jeep Grand Cherokee Laredo
4.0L, 253,000 miles and counting
ahuppertz is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 03:47 PM   #7
stansama
Registered User
1980 CJ7

Join Date: Sep 2009
Location: maine
Posts: 12
Ok, thanks for the clarification. I won't be able to get to this until after the weekend now, and since I haven't had the drums apart I don't know what the hardware and drums look like inside, so I'm wondering if I should order new hardware while I'm going to be in there? Judging by the front brakes when I replaced them the previous owner did no prior brake work. I'm a bit afraid to see what's inside the drums!
stansama is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 03:53 PM   #8
ahuppertz
Registered User
1993 ZJ

Join Date: Sep 2008
Location: Albuquerque, New Mexico
Posts: 23
Get the drum brake repair kit if they have one. I've got a 93 gc with drums so i'm workin of thr knowledge of that, but definately I would buy those if they have them for your model.
__________________
1993 Jeep Grand Cherokee Laredo
4.0L, 253,000 miles and counting
ahuppertz is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 03:59 PM   #9
ahuppertz
Registered User
1993 ZJ

Join Date: Sep 2008
Location: Albuquerque, New Mexico
Posts: 23
(sorry for double post)

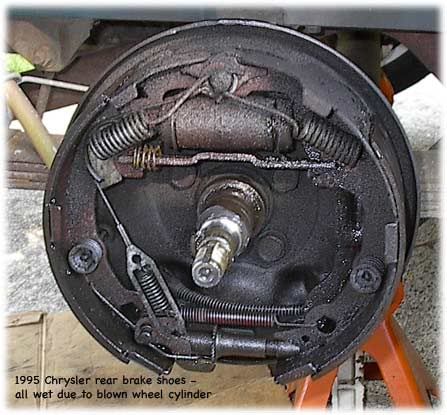

you should be looking at this when you remove the drum.

looks exactly like mine, and the most common things to fail are the adjuster ratchet cable (you can only see a piece of it in the upper left side around the static pulley behind the spring)

here's a picture of my year with the hub removed (it looks just like your year to me. the access port with the grommet in it is right behind the star wheel, but this will kind of give you an idea as to what i'm talking about.
__________________
1993 Jeep Grand Cherokee Laredo
4.0L, 253,000 miles and counting
ahuppertz is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 04:00 PM   #10
Mike Romain
Registered User
1986 CJ7

Join Date: Nov 2007
Location: Off the Grid in Chester Grant, Nova Scotia, Canada
Posts: 13,574
The hardware and adjuster kits (2 different kits) are worth buying and are inexpensive. Then it is all new inside.

Here are some photos and a writeup:

Jeepin.com: Installing new drum shoes
__________________
Mike
86/00 CJ7 Laredo, 33x9.5 BFG AT's, 'glass nose to tail in '00, 'New' frame,wires and plumbing in '09. Carter BBD Carbed 4.0 HO in '10.
89 YJ Renegade. BBD Carbed 4.0 HO. Locked front and rear with 33x9.5 BFG AT's
Some Canadian Bush Jeep Runs and Build Photos: http://mikeromainjeeptrips.shutterfly.com (10 new albums added Sept 16/10)
Mike Romain is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 04:02 PM   #11
ahuppertz
Registered User
1993 ZJ

Join Date: Sep 2008
Location: Albuquerque, New Mexico
Posts: 23
i hate drum brakes so much. i can't wait till i can afford the v8 posi rear end with discs.
hope that helped!
__________________
1993 Jeep Grand Cherokee Laredo
4.0L, 253,000 miles and counting
ahuppertz is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 04:06 PM   #12
stansama
Registered User
1980 CJ7

Join Date: Sep 2009
Location: maine
Posts: 12
Great pictures and link, thank you! What is the difference in the two kits? I saw them both online. I'm assuming that my jeep is non-self adjusting. Does one kit replace the other, or do they work together?
stansama is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 04:07 PM   #13
bigjoe
Registered User
1977 CJ7

Join Date: May 2006
Location: New Paltz,NY
Posts: 2,083
The guys have covered it pretty well. Only thing to add that may help you if you have not rebuilt drum brakes is do one side at a time. Don't pull them both apart and start to rebuild. By doing one side at a time it will give a reference to look at if you get into trouble. Just an idea for ya. The hardware kit will be all the mounting springs for the shoes. The adj. kit is for the start wheel as I recall. That keeps adjusting the shoes to the drum as theshoes wear down. Get both kits. They don't cost much and the brakes will work better. Good Luck.
__________________
Seems like everyday is a Monday.

77' CJ-7 84' CJ-7 83' Chevy K10
bigjoe is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 04:10 PM   #14
Mike Romain
Registered User
1986 CJ7

Join Date: Nov 2007
Location: Off the Grid in Chester Grant, Nova Scotia, Canada
Posts: 13,574
Quote:
Originally Posted by ahuppertz View Post
i hate drum brakes so much. i can't wait till i can afford the v8 posi rear end with discs.
hope that helped!
The drums do have a use. If you have an open diff and get stuck on ice with one front and one rear tire spinning, you can use the emergency brake slowly (even the CJ7 owners manual mentions it) or give the brake pedal a hard fast shot to load up the spinning wheel until it reaches enough torque to break the other wheel free. It works well with some practice.

Sometimes, all 4 will spin out, but the disk brakes don't load up as nice or smooth as shoes do.
__________________
Mike
86/00 CJ7 Laredo, 33x9.5 BFG AT's, 'glass nose to tail in '00, 'New' frame,wires and plumbing in '09. Carter BBD Carbed 4.0 HO in '10.
89 YJ Renegade. BBD Carbed 4.0 HO. Locked front and rear with 33x9.5 BFG AT's
Some Canadian Bush Jeep Runs and Build Photos: http://mikeromainjeeptrips.shutterfly.com (10 new albums added Sept 16/10)
Mike Romain is offline   Reply With Quote Quick reply to this message
Unread 11-18-2009, 04:11 PM   #15
stansama
Registered User
1980 CJ7

Join Date: Sep 2009
Location: maine
Posts: 12
Thanks Joe, certainly a good idea!
