Question about relays

1984 CJ7 258 I-6

I am installing a 3 switch panel on my dash. Running a toggle switch for ignition, push button start, and accessory toggle switch. It says it is a 40 amp switch.



How many relays do I need to install going to this panel?

I was thinking that if I put a 4 pin, 40 amp relay on the supplied power, that might be all I need.

Also, where is a good place to get the relays from? I can't seem to find more than one at my local parts stores. Plus I know they are cheap on the internet and I don't mind waiting on them. This is all new to me so anyone with any expert advice would be greatly appreciated.

I just installed the Painless 10110 wiring harness and this is the last step I have to get my jeep back on the road.

I know it is not what most guys would do, but I like the idea of having a push button start. The PO didn't have a key to the column and all my internals of the column as well as ignition switch were shot. I bought this switch panel and also am installing a keyed kill switch on the battery terminal for a little bit of protection. This is just a trail rig/hunting rig so I'm not looking to spend a bunch on new/rebuilt column, lock cylinder, etc.

Thanks in advance

TexAg09 is offline   Reply With Quote Quick reply to this message
Unread 08-26-2014, 02:37 PM   #2
CSP
Registered User

Join Date: Aug 2002
Location: Colorado
Posts: 12,774
I'm not sure where you think you need a relay with that schematic.

Or why a relay is needed. There aren't any relays for those circuits using the stock ignition switch.
CSP is offline   Reply With Quote Quick reply to this message
Unread 08-26-2014, 02:43 PM   #3
TexAg09
Registered User
1984 CJ7

Join Date: May 2014
Location: Abilene, TX
Posts: 40
When I contacted painless, they told me I needed a relay going to the switch.

I was thinking the same thing about not needing a relay, but I wanted to see what the consensus is before messing something up. I've spent a lot of time and effort so far and don't want to mess it up.
TexAg09 is offline   Reply With Quote Quick reply to this message
Unread 08-26-2014, 02:45 PM   #4
Mike Romain
Registered User
1986 CJ7

Join Date: Nov 2007
Location: Off the Grid in Chester Grant, Nova Scotia, Canada
Posts: 14,015
I can't see you really needing a relay with a 40a switch. The stock key switch has none. Your output from the various switches needs to be full power.

You could set up each circuit on a relay and just use the switches to trigger each relay, but that is just more parts to go bad some day. Folks do that when they want to run low amp micro switches to turn on big power. You are using big power switches already.
__________________
Mike
86/00 CJ7 Laredo, 33x9.5 BFG AT's, 'glass nose to tail in '00, 'New' frame,wires and plumbing in '09. Carter BBD Carbed 4.0 HO in '10.
89 YJ Renegade. BBD Carbed 4.0 HO. Locked front and rear with 33x9.5 BFG AT's
Some Canadian Bush Jeep Runs and Build Photos: http://mikeromainjeeptrips.shutterfly.com (10 new albums added Sept 16/10)
Mike Romain is online now   Reply With Quote Quick reply to this message
Unread 08-26-2014, 02:53 PM   #5
TexAg09
Registered User
1984 CJ7

Join Date: May 2014
Location: Abilene, TX
Posts: 40
Thanks Mike. It was just a precaution and wanting to be sure before messing something up.

This electrical is all new to me.

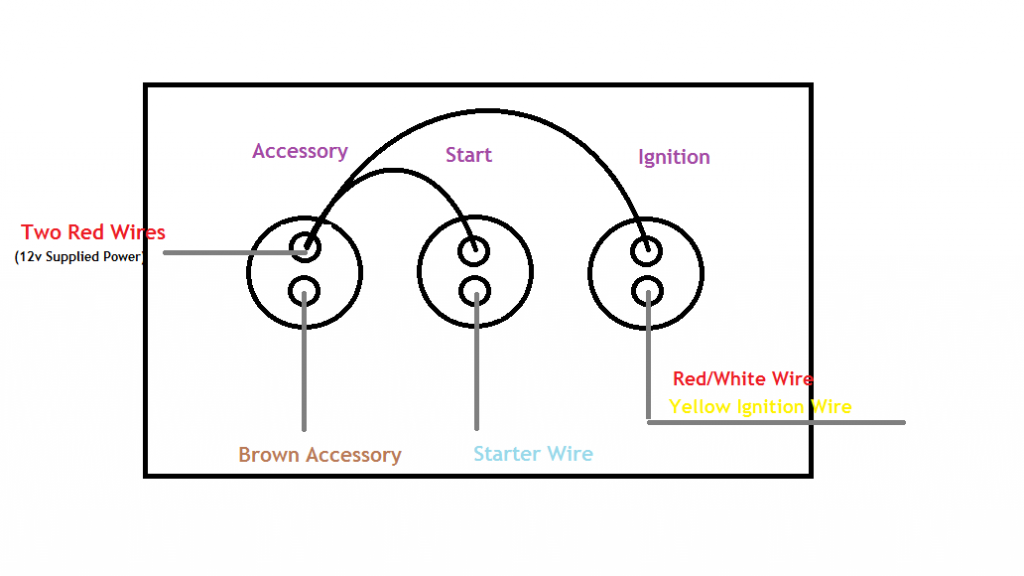

If someone else needed a diagram for what wires go where, there ya go. I used the Joe's Racing 46100 switch panel
TexAg09 is offline   Reply With Quote Quick reply to this message
Unread 08-26-2014, 03:28 PM   #6
CSP
Registered User

Join Date: Aug 2002
Location: Colorado
Posts: 12,774
I agree with Mike and don't quite understand why Painless would suggest that, other than they might think you're using a common parts store switch which doesn't have a very high rating.

I also believe that the correct way to put it would be that a switch would be used to trigger a relay rather than a relay going to a switch.

The former means the relay is downstream of the switch and the latter means the relay is providing power to the switch.
CSP is offline   Reply With Quote Quick reply to this message
Unread 08-26-2014, 04:00 PM   #7
JeepHammer
Running On Empty...
1973 CJ5

Join Date: Aug 2007
Location: South West Indiana
Posts: 10,737
Depending on wire size and switch capacity, you probably don't need a relay in the 'Start' circuit/push button.
The starter relay on the fender will need about an amp capacity, and most common automotive switches will handle that.

IF you have a factory ignition, you are looking at about 3 amps, so again, most common automotive switches will do that job.

Accessories are another story.
Since you didn't give a list of the things you want to hook up to 'Accessory' we have no idea how much of a load you are going to draw.

High draw will need a relay, low draw won't.

---------
JeepHammer is offline   Reply With Quote Quick reply to this message
Unread 08-26-2014, 04:12 PM   #8
TexAg09
Registered User
1984 CJ7

Join Date: May 2014
Location: Abilene, TX
Posts: 40
No accessories right now. Will install radio at later date but as of now, nothing.

Thanks for the direction guys
TexAg09 is offline   Reply With Quote Quick reply to this message
Unread 08-26-2014, 04:23 PM   #9
dirtdudeaz
Registered User
1983 CJ7

Join Date: Jan 2013
Location: Lake Stevens, Washington
Posts: 506
If you connect all your power in series and add a 12V source to it in the beginning, then technically you are reducing the system to a 2-switch system: "ON" and "Start". You would be able to turn over the engine and not be able to get it running if the accessory or ignition switches are off.

These may help...or maybe they don't. Second one is from John Strenk.

dirtdudeaz is offline   Reply With Quote Quick reply to this message
Unread 08-27-2014, 09:30 AM   #10
Ken4444
Corripe Cervisiam

Ken4444's Avatar
1985 CJ7

Join Date: Oct 2005
Location: Houston, Texas
Posts: 4,604
Since you're new to electrical, keep in mind what a relay does: It is just a switch that is turned on/off by another switch or circuit. Literally, the mechanism "relays" (or switches) your control (on/off) to the other circuit.

Why are relays needed then? Classic example: If you have a high amperage circuit like headlights or a light bar full of lights that create a large electrical load, and you want to switch the lights on/off with a smaller (low amperage) switch, or a switch that can't handle the high electrical load of headlights, then you let the relay do the switching of the lights, and you use your small/tiny/low-amperage switch to turn the relay on and off. One benefit to this (the heeadlight scenario), is that you can avoid having to run thick gauge electrical wires all the way to the on/off switch. Instead, all of the big wiring hits the relay, and you use smaller/thinner/lower amperage wires to switch the relay on and off.

As has been posted already, if you have a 40 amp switch then that is heavy duty and you would be less likely to need a relay in the circuit. I think automotive relays are typically found in amperage ratings of 10 to 50 amps, so your 40 amp switch would take the place of most relays.
__________________
"I give you a republic, if you can keep it." - Benjamin Franklin
Ken4444 is offline   Reply With Quote Quick reply to this message
Unread 08-27-2014, 09:35 AM   #11
CSP
Registered User

Join Date: Aug 2002
Location: Colorado
Posts: 12,774
Voltage drop is probably a bigger reason to use relays.

With the light example if you have a switch that can handle the load you're running a long distance of wire from the battery to the switch and then back out to the grille area. With a relay the main power feed can go straight from the battery to the lights, eliminating a lot of wire distance which equals voltage drop from one point to the end.
CSP is offline   Reply With Quote Quick reply to this message
Unread 08-27-2014, 09:47 AM   #12
Ken4444
Corripe Cervisiam

Ken4444's Avatar
1985 CJ7

Join Date: Oct 2005
Location: Houston, Texas
Posts: 4,604
Quote:
Originally Posted by CSP View Post
Voltage drop is probably a bigger reason to use relays..
Good point. When you're only starting with 13 or 14 volts, even a 5% drop in voltage equates to over half a volt loss. Lose 20% of your voltage and you've gone from 14 to 11 volts. With lighting, that equates to dimmer lights which goes against the point of the lights in the first place
__________________
"I give you a republic, if you can keep it." - Benjamin Franklin
Ken4444 is offline   Reply With Quote Quick reply to this message
Unread 08-27-2014, 09:57 AM   #13
grasmo
Registered User
1982 CJ5

Join Date: May 2014
Location: tallahassee, florida
Posts: 205
Quote:
Originally Posted by CSP View Post
Voltage drop is probably a bigger reason to use relays.
this is not correct at all. you did say probably though.
grasmo is offline   Reply With Quote Quick reply to this message
Unread 08-27-2014, 09:58 AM   #14
CSP
Registered User

Join Date: Aug 2002
Location: Colorado
Posts: 12,774
So in your opinion, what is correct?
CSP is offline   Reply With Quote Quick reply to this message
Unread 08-27-2014, 10:05 AM   #15
grasmo
Registered User
1982 CJ5

Join Date: May 2014
Location: tallahassee, florida
Posts: 205
there is no opinion as to what a relay is for. it's a switch that uses a low current circuit to CONTROL a high current circuit.
