PVC Train Horn build

I talked about train horns with my son and his friends. Looked into them on the internet and saw the total cost could exceed $1,200.00. I watched a couple of videos of folks tearing apart "real" train horns, and pictures of pvc horns and decided to attempt to build my own.

The materials are easy to obtain at the big box or corner hardware store. I made three for my CJ-7.

What you need: 4" to 2", or 4" to 1 1/2" reducer, which is the main body of the horn.

a 2" to 1" or 1 1/2" to 1" reducer (depending on what you purchased above).

threaded nipples to thread into the body, and the manifold you will build (I bought 7)

a foot or two of 4" PVC pipe

a 5' section of 1" PVC pipe

a couple of 1" caps to cap off the manifold

some plastic for the horn diaphram (i used dollar store plastic food container lids) trimmed to fit the 4" end of the body

plastic transmission funnel for each train horn's "flare"

reinforced tubing to run from the horns to the manifold and from the manifold to your air source/on/off valve

light PVC cement (for reducer to 1" pipe and inner diaphram ring)

screws to secure back diaphram retaining ring and to secure flare



an image of some materials



a completed horn with flare

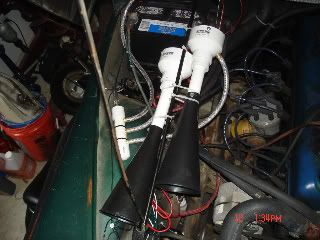

two horns under hood with a view of the air distribution manifold

jaxfljeep is offline   Reply With Quote
Unread 02-12-2012, 09:54 PM   #2
jaxfljeep
Registered User
1980 CJ7

Join Date: May 2009
Location: Jacksonville, FL, Florida
Posts: 105
To build, take the body and the reducer to the 1" pipe.

You will need to use a file or dremel to cut down the stop inside the 1" reducer to allow the 1" pipe to go all the way through the reducer. Just grind or file enough to allow the pipe to pass.

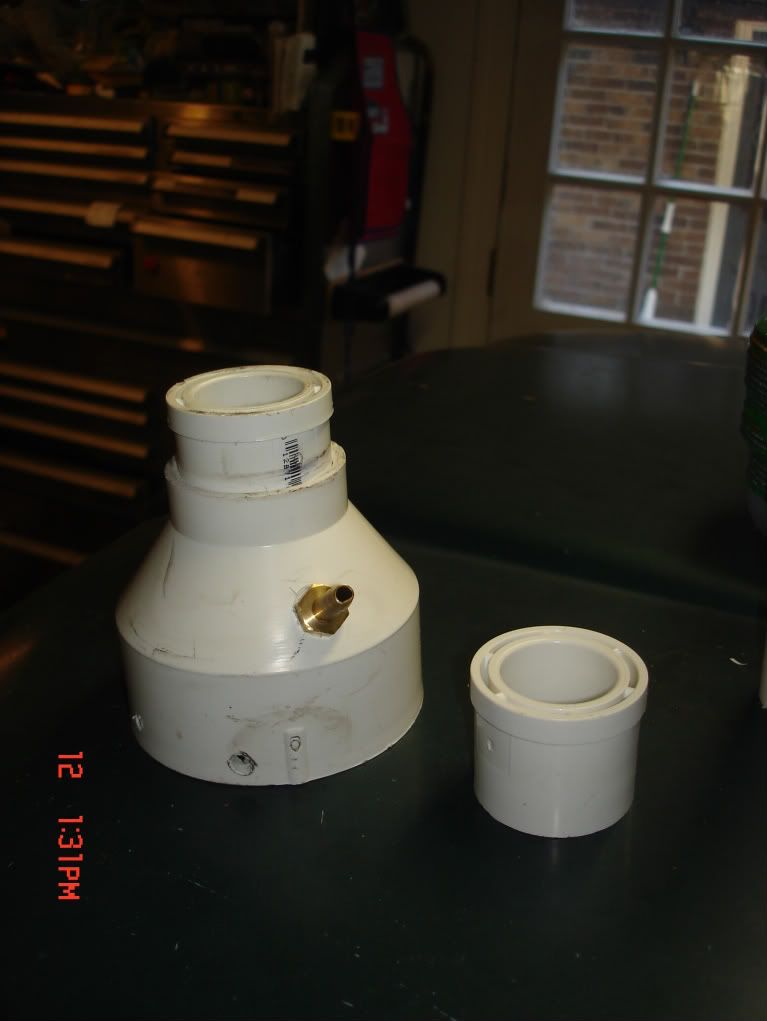

The reducer is on the right in the picture above, and another is shown in place in the horn body on the left.

After the pipe stop is ground or filed away, you can cement it into the body.

Next you will have to cut small slivers of the 4" pipe to serve as diaphram rests. The small was about 1/2 inch wide and the larger was about 1".

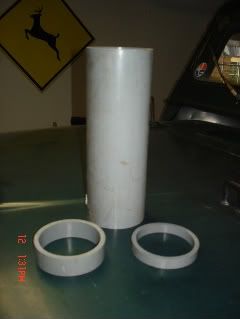

above picture shows the cut pieces. I cut with my chop saw. They need to be square.

The smaller piece gets glued in with a very light coat of pvc cement.

next, drill a hole slightly smaller than the threaded nipple. Screw the nipple into the body of the horn at the location in the picture(s)

cut the plastic 4" in diameter to fit into the end of the body. should fit without slop or being too tight. Then put the larger 4" piece into the end and drill on the edge and secure the larger piece of 4" with the screws. I used larger sheet metal screws. This is screwed in so the outer diaphram retainer can be removed if the diaphram breaks or needs to be replaced.

jaxfljeep is offline   Reply With Quote
Unread 02-12-2012, 09:59 PM   #3
John87
Registered User
1985 CJ7

Join Date: Jan 2012
Location: Littlestown, PA
Posts: 470
how did it work?
__________________
-John
°llllll° 1985 CJ-7
[url]www.jeepforum.com/forum/f8/85-cj-7-frame-resto-1311807/[/url]
John87 is offline   Reply With Quote
Unread 02-12-2012, 10:12 PM   #4
jaxfljeep
Registered User
1980 CJ7

Join Date: May 2009
Location: Jacksonville, FL, Florida
Posts: 105
Next, the 1" pipe gets tapped in from the top down to the diaphram. Before you tap it in, make sure the end cut is totally flush and square. Once again, I used a chop saw to cut. I tried to use the hand PVC cutters but could not get a totally square cut. This is very important because the horn sound is created when the air pushes out on the end of the daiphram and comes back up the 1" pipe and out the flare. If the cut is not totally flush, the air will "leak" through without the necessary vibrations.

Tap the 1" pipe down. It will be tight. If it is not going past the stop you grinded away, you may have to undo the diaphram retainer and grind a little more away.

once the 1" pipe touches the diaphram, tap a little more to create some tension on the diaphram. At this point, you can try to blow air through with your mouth to see if there is any resistance. Should not blow easily. (Blow through the brass fitting)

This tension on the diaphram is one part of tuning the horns. I just kept tapping on the diaphram to see how tight it was and stopped when I felt tension and it was difficult to blow through.

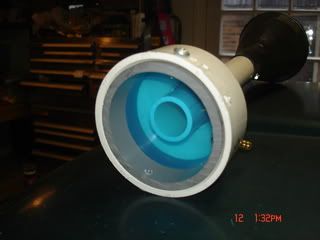

The picture above shows the inside of the body with the inner diaphram seat in place.

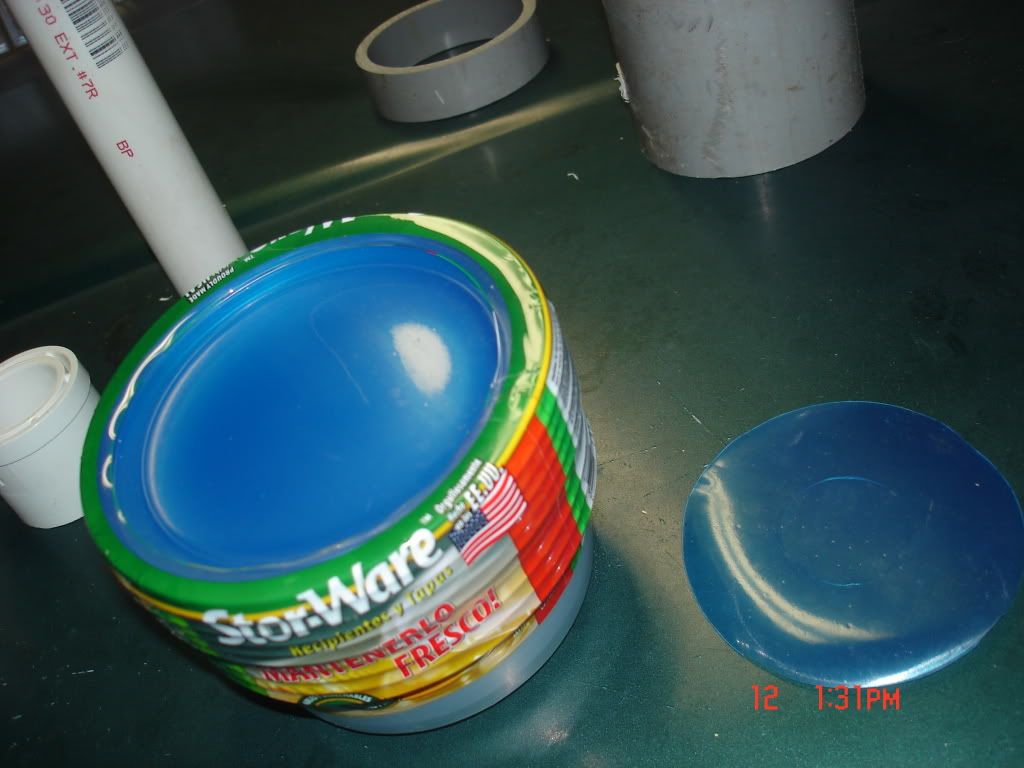

These are the dollar store food containers I bought for the diaphram material. I have heard you can also use very light gauge metal, but I did not try.

The different notes are achieved with different length 1" tubes coming out of the body.

I have three different lengths, all with the cut off black plastic transmission funnel on the end for a flare. The flare does increase to tone volume.

I made three horns and a manifold for air distribution

The manifold is a pience of 1" pipe (about 8 inches) with caps on both ends. I drilled one end and three holes in the side for the threaded nipples

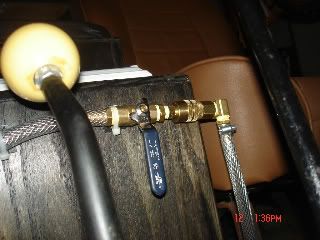

As you can see, I zip tied my horns to the radiator support rods. I ran the air line from my 10 gallon tank behind the rear seat, with a valve at the front of my console/radio cb holder.



Hope this helps for those of you who asked.
jaxfljeep is offline   Reply With Quote
Unread 02-12-2012, 10:15 PM   #5
jaxfljeep
Registered User
1980 CJ7

Join Date: May 2009
Location: Jacksonville, FL, Florida
Posts: 105



This is a video of the train horns at 100 psi. Click on the image and the video is at photobucket.
I still can't believe how my recorded voice sounds so "country".
jaxfljeep is offline   Reply With Quote
Unread 02-12-2012, 10:56 PM   #6
lucdog
Web Wheeler

lucdog's Avatar
1980 CJ5

Join Date: Jul 2006
Location: , Il.
Posts: 7,921
It does sound a little southern, Thanks for posting this. I probabley have the materials to do this.

Bill
__________________
1957 WILLYS pickup, needs work.
1973 J 4000,
1978 CJ7 DD.
1979 CJ7 360, TH400/Quadratrac trail Jeep.
1979 J20
1980 CJ5 trail Jeep.
1983 CJ7 pretty weekend and sometimes to work Driver in the summer, My first rebuild, if the Q-trac and 5 are broke, this one is the one to take. its just as capable as the other 2, except nice paint.
1984 Grand Wagoneer, 1 ton axles, great 360/727, and a big a$& tree fell on it .
1989 YJ the CJ to YJ conversion.
2005 TJ Rubicon.
2011 Grand Cherokee Laredo 4x4, Mrs. LUCDOG's DD.
Lots of parts not for sale, i'm a hoarder.
lucdog is offline   Reply With Quote
Unread 02-13-2012, 04:30 AM   #7
243
Registered User
1983 CJ7

Join Date: Sep 2002
Posts: 3,210
Really cool jax, how about a video at 125-150 if the horns can take that much pressure.
__________________
Measure twice, cut once, beat to fit and paint to match...
243 is offline   Reply With Quote
Unread 02-13-2012, 07:18 AM   #8
GlennLever
Web Wheeler

GlennLever's Avatar
1984 CJ7

Join Date: Sep 2011
Location: Rochester, New York
Posts: 2,005
A great how to project.

Would love to hear them (u-tube)?

I went a different way, a train horn was not loud enough, this is a ships horn, I put two on.
pb190006.jpg   pb190018.jpg   pb200038.jpg   pb200039.jpg
__________________
Glenn R. Lever
Rochester, New York 14617-2012
My Cars http://www.leverfamilysite.com/vehicles.htm

My restoration thread here on the Jeep forum
http://www.jeepforum.com/forum/f8/cj...build-1269301/

New FED, Drag Racing Forum (I am an Administrator) at
http://www.frontenginedragsters.org/forum/index.php
GlennLever is offline   Reply With Quote
Unread 02-13-2012, 07:19 AM   #9
Masta-P
Registered User
1993 YJ Wrangler

Join Date: Apr 2010
Location: Hollidaysburg, PA
Posts: 85
That's awesome. I really need to get oba. Good write up.
Masta-P is offline   Reply With Quote
Unread 02-13-2012, 10:34 AM   #10
jm708
Registered User
2014 JK Wrangler

Join Date: Sep 2005
Location: sycamore, IL, IL
Posts: 277
Where would one find a ship horn at?
jm708 is offline   Reply With Quote
Unread 02-13-2012, 10:38 AM   #11
KevKaos
Registered User
2005 TJ Wrangler

Join Date: Jan 2011
Location: Baltimore, Maryland
Posts: 2,422
Quote:
Originally Posted by jm708 View Post
Where would one find a ship horn at?
A ship perhaps.

Sorry, I couldnt resist.

Start looking for marine salvage yards.
__________________
[SIZE="4"]KevKaos[/SIZE]
[SIZE="4"]Honey Badger Wheelin'[/SIZE]

[FONT="Arial Black"][SIZE="5"][COLOR="Red"]RED JEEP CLUB # 621[/COLOR][/SIZE][/FONT]
It's not much, but check out my build thread;
[url]http://www.jeepforum.com/forum/f22/kevkaoss-05-red-rubicon-build-thread-1170741/[/url]
[QUOTE=krashnpa;12397572] I know kev was riding his tank skid and belly pretty good on some of the blacks up at RC, but he doesn't back down from the line either.[/QUOTE]

[QUOTE=squazz;13612008]so I use my original nuts?[/QUOTE]

You should, in no way, take any of this personally. It's just business. So to recap, I come in peace, I mean you no harm, and you all will die. Gallaxhar out.
KevKaos is offline   Reply With Quote
Unread 02-13-2012, 10:40 AM   #12
GlennLever
Web Wheeler

GlennLever's Avatar
1984 CJ7

Join Date: Sep 2011
Location: Rochester, New York
Posts: 2,005
Quote:
Originally Posted by jm708 View Post
Where would one find a ship horn at?
E-Bay
http://www.ebay.com/itm/Copper-Bronz...item56487814a2
__________________
Glenn R. Lever
Rochester, New York 14617-2012
My Cars http://www.leverfamilysite.com/vehicles.htm

My restoration thread here on the Jeep forum
http://www.jeepforum.com/forum/f8/cj...build-1269301/

New FED, Drag Racing Forum (I am an Administrator) at
http://www.frontenginedragsters.org/forum/index.php
GlennLever is offline   Reply With Quote
Unread 02-13-2012, 11:09 AM   #13
scoutboater
Member

scoutboater's Avatar
1974 CJ5

Join Date: Oct 2011
Location: Huntsville, Alabama
Posts: 325
Thats awesome!

How is the sound / volume in real life? They sound pretty good in the video.
__________________
The D.I.N.K Build - 1974 CJ5
scoutboater is offline   Reply With Quote
Unread 02-13-2012, 12:02 PM   #14
jaxfljeep
Registered User
1980 CJ7

Join Date: May 2009
Location: Jacksonville, FL, Florida
Posts: 105
I really like the sound of them. They are fun, and I really like the "I did it factor". I have tried my best to not use them to try to scare anyone (other than my dad one time at a train crossing). As with anything, the best part of the project was the time with my son trying various combinations and going back and forth to the store to buy and look for parts.
jaxfljeep is offline   Reply With Quote
Unread 02-13-2012, 12:05 PM   #15
jaxfljeep
Registered User
1980 CJ7

Join Date: May 2009
Location: Jacksonville, FL, Florida
Posts: 105
I've got another video somewhere when the horns were mounted on a board, before I put them in the Jeep. I will see if I can find it.
