Unread 04-21-2010, 09:08 PM   #46
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434
Jeepman, got it from a buddy of mine.
It's a Lakewood 15080. Strong and heavy !

Lakewood :: Product Details

__________________
Fatman is offline   Reply With Quote
Unread 04-28-2010, 03:39 PM   #47
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434

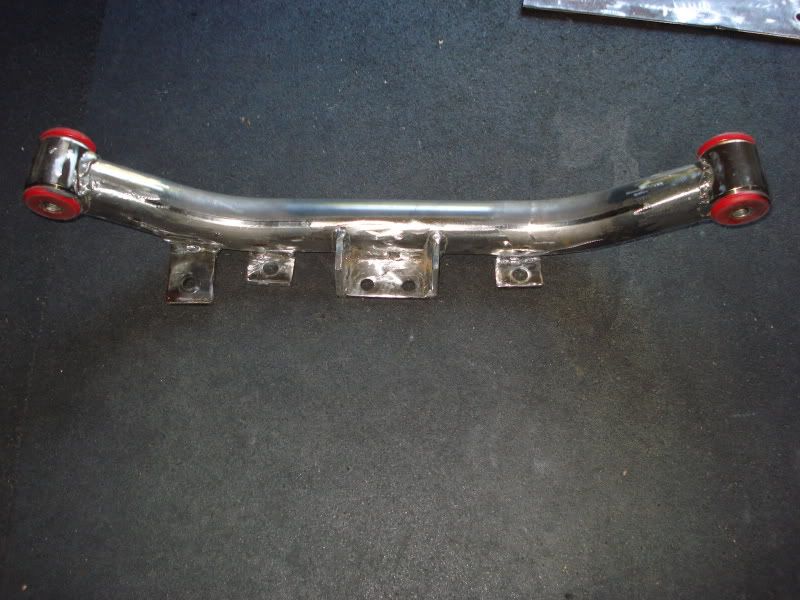

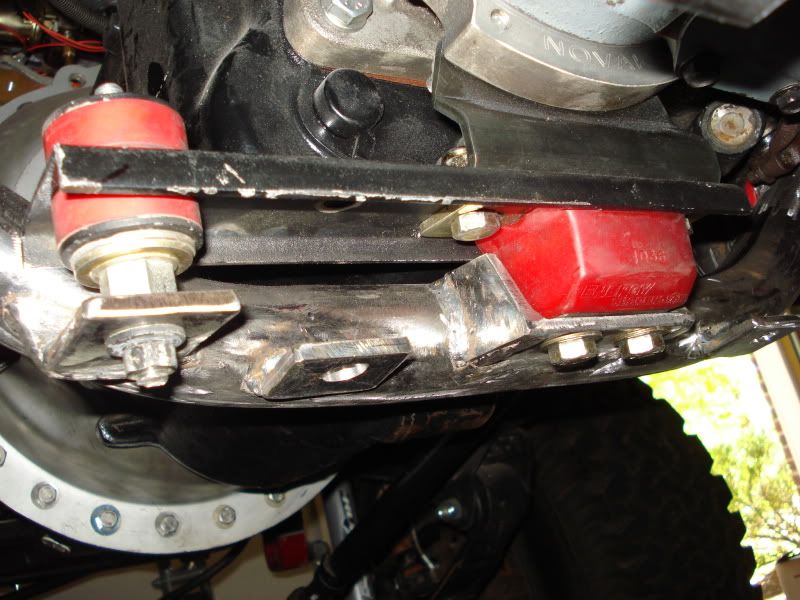

Had time to build the trans crossmember.
Will make a hard tab off the rear brace for a torque stop and directly mount it into the D300.

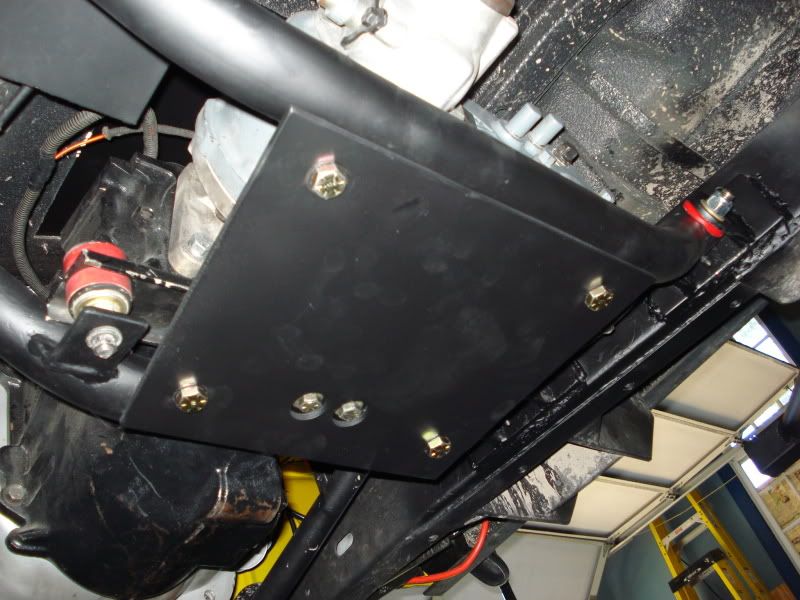

Have to cut a skid, probably use 1/4" plate and fasten it to tabs

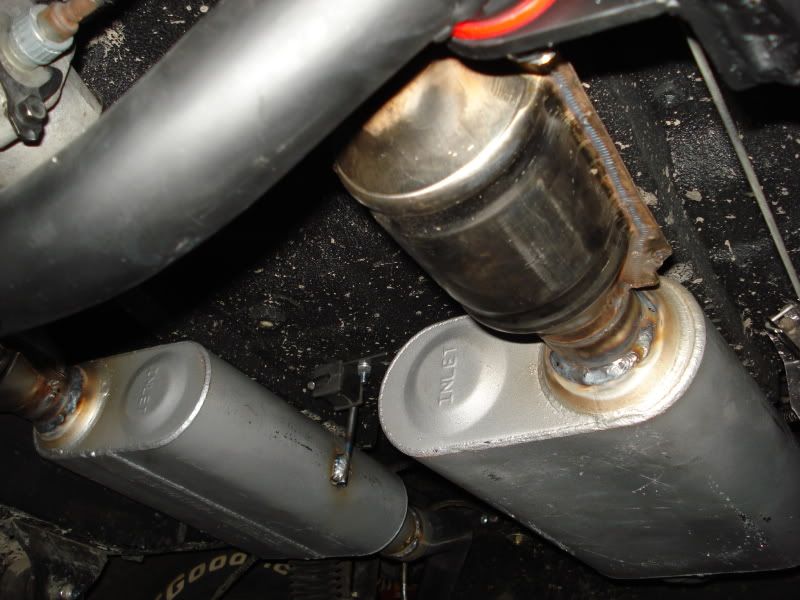

Catalytics and Flowmasters are here and waiting to be installed.
Still need to find a shop to cut my front drive shaft adn re-tube the rear.
Once the exhaust is finished. I can cun the fuel lines.

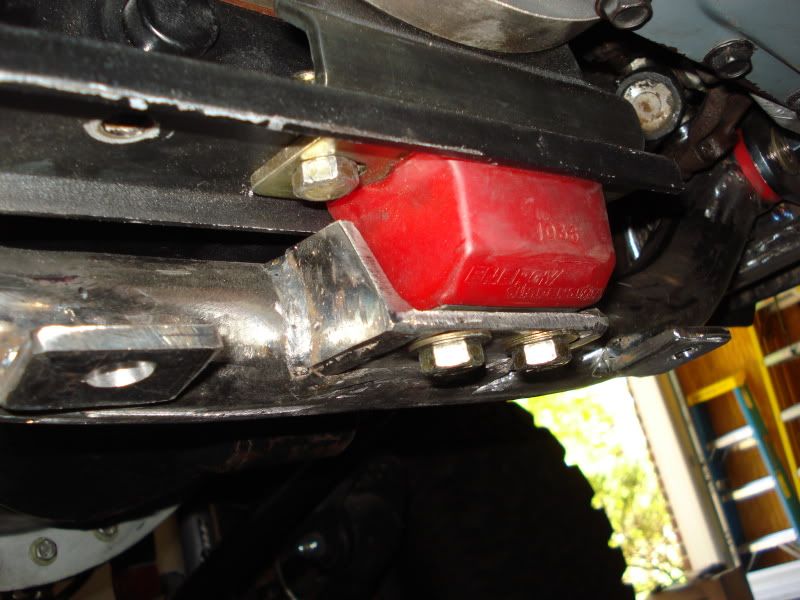

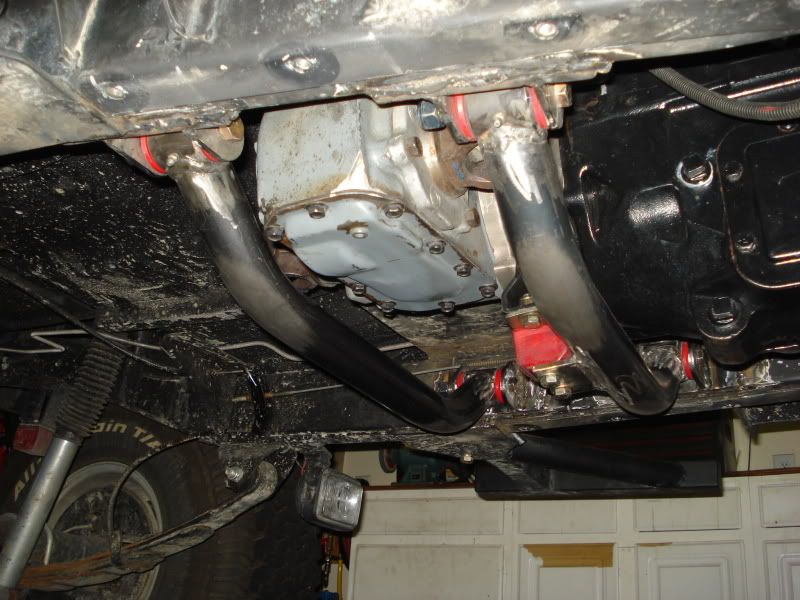

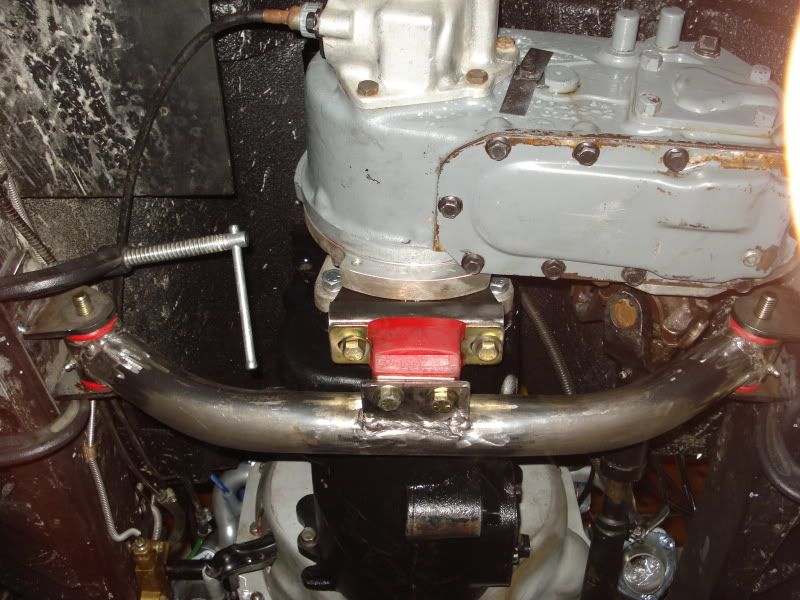

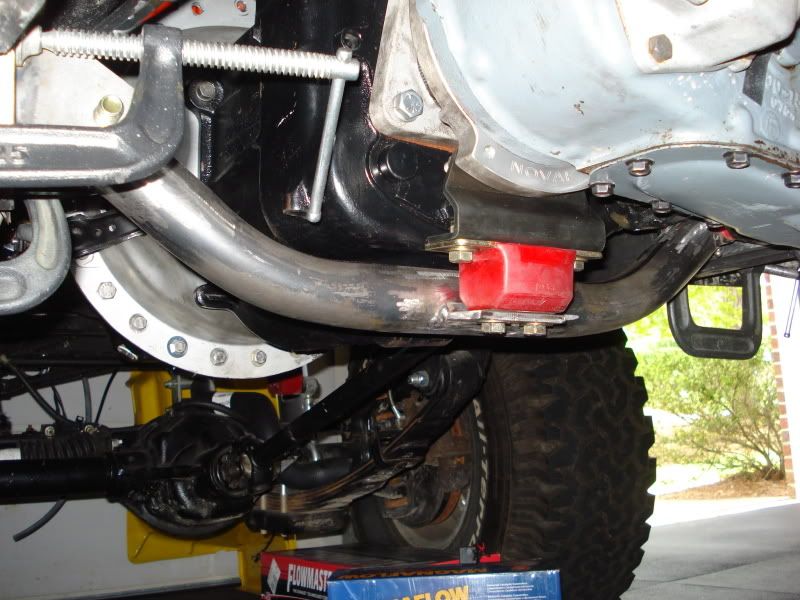

Few pics:








__________________
Fatman is offline   Reply With Quote
Unread 04-28-2010, 06:36 PM   #48
jatepper
Registered User
1985 CJ7

Join Date: Mar 2007
Location: Tucson, AZ
Posts: 2,274
Why wouldnt the old skit plate work?
__________________
1985 Jeep CJ-7
Automatic-258 I6- Detroit lockers front/rear - Superior 1-piece axles, Ramsey Pro 9000 Winch, Quick Disconnects, 33 BFG AT's, 4.10 gears, Howell TBI, DUI HEI Ignition, Ground Pounder Rear Bumper / Tire Carrier Combo, Handen Fab integrated winch plate front bumper w/hoop, ORF weld-in front sport cage.

USMC 1999-2004 Semper Fi!

Hood Hi-Lift Jack Mounts for CJ/YJ/TJ/JK

Torchmate CNC Plasma Table Build / Projects

The Target Man, LLC - AR500 Shooting Targets
jatepper is offline   Reply With Quote
Unread 04-28-2010, 06:45 PM   #49
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,168
That tab your transmission mount is attached to would make me a little nervous. Is it that stout or should you add a couple gussets on the ends toward the top of the bar?

Everything is looking great.
__________________
Mike
My build thread
1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline   Reply With Quote
Unread 04-28-2010, 07:24 PM   #50
lifeisgd
Registered User
1989 YJ Wrangler

Join Date: Jul 2009
Location: North carolina
Posts: 5
Looks like you will be back up and running sooner than I will. Have had major issues with "old blue" due to the head gasket issue and finally am breaking down for a complete re-build from top to bottom. For anyone doing a 4.0 head swap on a 4.2 make sure you use a 4.0 head gasket....
lifeisgd is offline   Reply With Quote
Unread 04-28-2010, 07:30 PM   #51
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,264
Looking good Dave!

One thing I did notice... you're using poly bushings both at the ends of your tranny crossmember, and at the TC mount itself.
It may work fine for you but I used a similar setup on my old CJ5 (with a SBC and Turbo 350) and ended up cracking the tranny case because the double poly mounting system (for the tranny/tc) flexed more than the engine mounts (which were also poly bushings like yours). Granted, it cracked the tranny when I landed on the front tires at full throttle after the Jeep "hopped" during a steep climb.

Might want to keep an eye on it.. maybe add a bar to limit torque induced roll... something similar to the stock D300 torque bar.

Of course, you know there's only one sure fire way to check the system right?... it involves floating valves and side stepping the clutch..
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 04-28-2010, 09:03 PM   #52
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434
Quote:
Originally Posted by Coiz View Post
That tab your transmission mount is attached to would make me a little nervous. Is it that stout or should you add a couple gussets on the ends toward the top of the bar?
Everything is looking great.
1/4 inch plate, it's stout.
The 1/4" skid plate will back it up.

Quote:
Originally Posted by BESRK View Post
Looking good Dave!
One thing I did notice... you're using poly bushings both at the ends of your tranny crossmember, and at the TC mount itself.
It may work fine for you but I used a similar setup on my old CJ5 (with a SBC and Turbo 350) and ended up cracking the tranny case because the double poly mounting system (for the tranny/tc) flexed more than the engine mounts (which were also poly bushings like yours). Granted, it cracked the tranny when I landed on the front tires at full throttle after the Jeep "hopped" during a steep climb.

Might want to keep an eye on it.. maybe add a bar to limit torque induced roll... something similar to the stock D300 torque bar.
I was looking at controlling torque roll with a 1/4" bracket welded off the rear crossmember and bolted to the back of the shim cover of the front output shaft.
I could always just throw on the stock torque arm and weld in another tab, cool thing is, it'd be covered by the skid plate. ... thoughts ?

Quote:
Originally Posted by BESRK View Post
Of course, you know there's only one sure fire way to check the system right?... it involves floating valves and side stepping the clutch..
hell yes, that sounds like your cam break-in procedure !
__________________
Fatman is offline   Reply With Quote
Unread 04-30-2010, 05:49 AM   #53
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,264
Quote:
Originally Posted by Fatman View Post
I was looking at controlling torque roll with a 1/4" bracket welded off the rear crossmember and bolted to the back of the shim cover of the front output shaft.
I could always just throw on the stock torque arm and weld in another tab, cool thing is, it'd be covered by the skid plate. ... thoughts ?
I think either method would work for you..

This thread has me pumped! I think I'm gonna roast my back tires this weekend in tribute.
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 05-04-2010, 04:53 PM   #54
Stan99
Registered User
1978 CJ7

Join Date: Aug 2007
Location: Antioch
Posts: 869
Man if I didnt enjoy falowing your builds, I would really hate you! Youre gona have this thing rebuilt for a second time before Im done with my first build.

Great Job!!!!!!!!!!!!!!!!!!!!!!!!
__________________
1978 Jeep Cj7 Soa, Shackle Reversle, 36x13.5x15 Irocks, 4.5 Stroker MPI, Dana 300 twin Sticked, 4.88's
Stan99 is offline   Reply With Quote
Unread 05-04-2010, 08:37 PM   #55
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434
Thanks Stan, stay the course, you'll be there in no time.

Broke a finger Friday helping a friend work on his dash. Using the tube notcher and the bit hung up, swung the drill around and did a number on my hand.

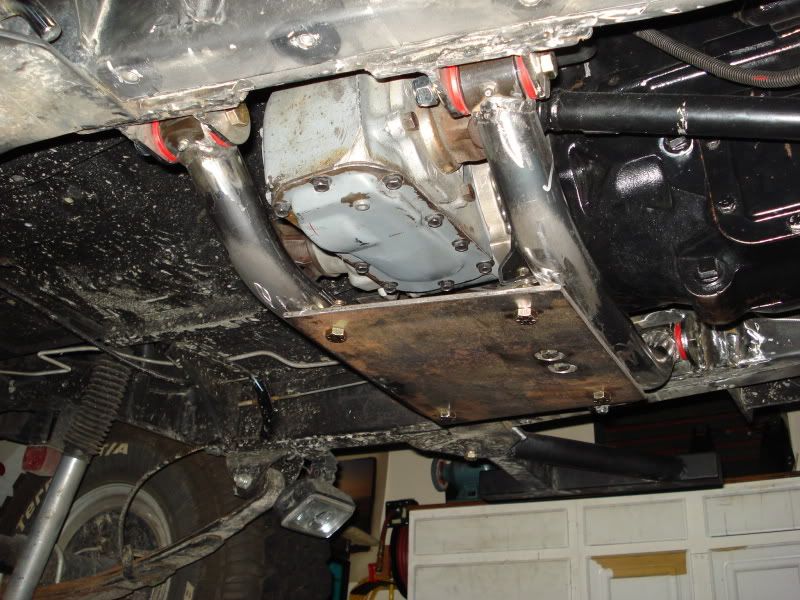

Was able to finish welding the tabs on the rear cross member and set the skid plate. Can't hardly even hold anything w my right hand. Tried to put a coat of spray down but to painful to push the trigger.
Will make some progress one handed. Trying to get things tightened up so I can take it up to the exhaust shop.

__________________
Fatman is offline   Reply With Quote
Unread 05-04-2010, 09:26 PM   #56
Skerr
<*////><

Skerr's Avatar
1985 CJ7

Join Date: Sep 2008
Location: White Springs, Florida
Posts: 8,800
Looks really clean. Very nice work.
__________________
Kerrdog
Go Fish! <*////><

"Contemplate the mangled bodies of your countrymen, and then say 'what should be the reward of such sacrifices?' ... If ye love wealth better than liberty, the tranquility of servitude than the animated contest of freedom, go from us in peace. We ask not your counsels or arms. Crouch down and lick the hands which feed you. May your chains sit lightly upon you, and may posterity forget that you were our countrymen!" —Samuel Adams

Clay's Build Thread
http://www.jeepforum.com/forum/f8/cl...hread-1061897/
Scott's Build Thread
http://www.jeepforum.com/forum/f8/sc...5-cj7-1147913/
Fallon (and Dad) Build Thread
http://www.jeepforum.com/forum/f11/f...-okee-1445206/
Skerr is offline   Reply With Quote
Unread 05-10-2010, 01:24 PM   #57
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434
Coiz, you'll be glad to know I beefed up the bracket ! Good advice,










Got my Flowmasters finished, put Magnaflo CATs in front of them. Guys at Bob's did a great job.

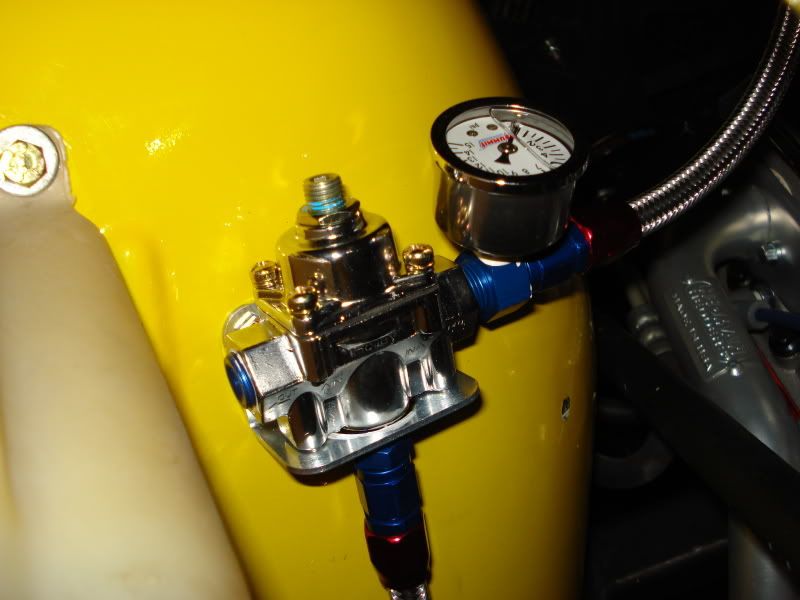

Finished up the fuel system last night, Check valve to filter to Holley blue to Holley FPR.









Need to add fluids, prime the oil pump, set the dizzy and she's ready to run.

Still looking for a good driveshaft in the 24 - 27" field.
__________________

Last edited by Fatman; 05-10-2010 at 01:56 PM..
Fatman is offline   Reply With Quote
Unread 05-10-2010, 01:40 PM   #58
swatson454
Mall-crawlin' Hot Rodder

swatson454's Avatar
1983 CJ7

Join Date: May 2009
Location: Dripping Springs, TX (soon)
Posts: 4,803
That's a pretty slick throttle linkage set-up.

Shawn
__________________
Live in a way that those who know you but don't know God will come to know God because they know you.
swatson454 is offline   Reply With Quote
Unread 05-15-2010, 03:54 PM   #59
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434
Well she runs ! STRONG !
Did the start up Thursday night, ran it for 20 min @ 2300 to break in the cam, got the timing set and everything checked out great.

Shut it down and came back to it 30 min later, would not start ? Quick trouble shoot and i determine it's the MSD ignition box. So I pull the box and wire the coil to ignition, she fires back to life. Trigger testing of the box reviles the box is dead. WT*, 20 min on the box just pisses me off. Got a RMA # from MSD on Friday so back it goes. Runs perfect in HEI mode w/o the ignition so I'm debating if the 6A goes back in when returned.

Got the replacement DS in:

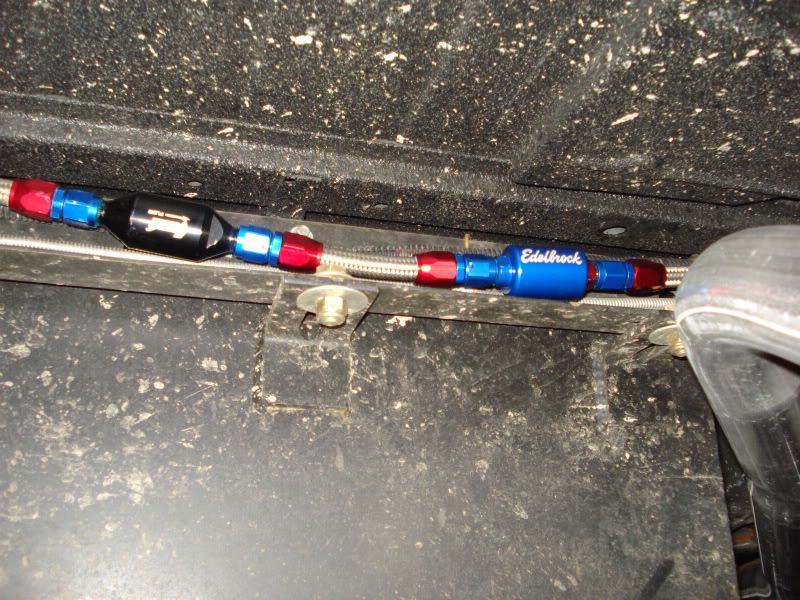

Mount brackets for the check valve and fuel filter:


I shot some video of the start up, unfortunately the sound is not being picked up on the camera.

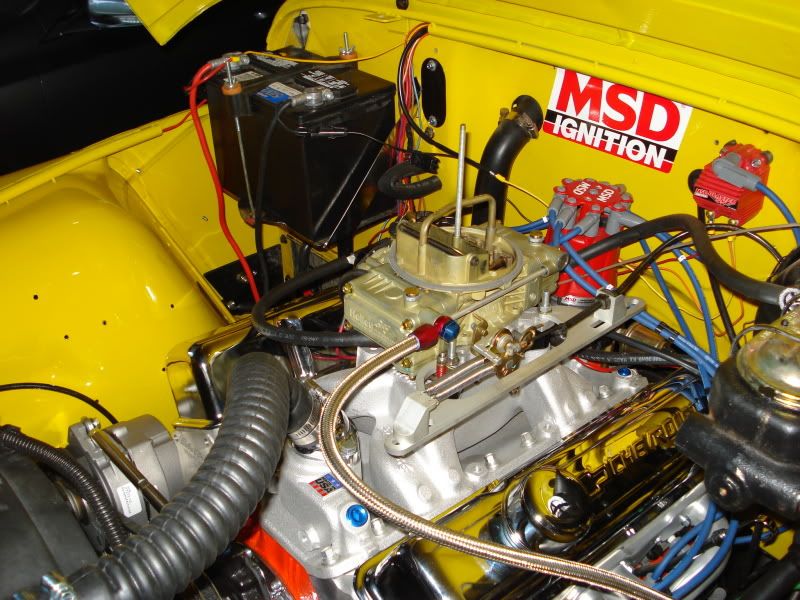

Pulled the Ign box:
__________________
Fatman is offline   Reply With Quote
Unread 05-15-2010, 04:05 PM   #60
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,168
Quote:
Originally Posted by Fatman View Post
Coiz, you'll be glad to know I beefed up the bracket ! Good advice,
Good call! That looks exactly like what I was picturing. That's just a whole lot of weight and torque sitting on that tab to just be hanging out there like that.

Everything looks outstanding as usual. I'll bet that thing is a hoot to drive.
__________________
Mike
My build thread
1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline   Reply With Quote
