Project "Cage"

Ok, so the tub posts (on my part) are going to take a vacation.
We have to fit up a few things before the tub comes back off.

Ordered a Kentrol Inc. Sport Cage. The kit came with L & R floor plates, the front sport bar 0.125, and a pair of pre-bent "kicker" tubes also 0.125. As well as some instructions.

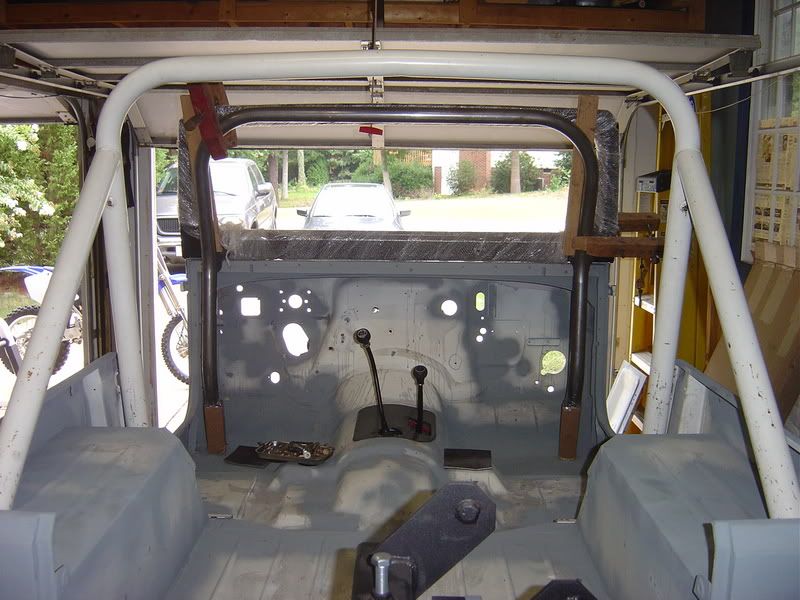

So we put the bar in moved it around and decided on 3/4" off the windshield

Oh, we put the windshield frame in place and cleaned up the old brackets, I have new black stainless everything waiting for the after paint party. Also installed the stock "show" bar


Added some oak plank to keep the gap equal, checked the angle on both sides and marked the floor.


Placed the plates and found the pre formed plate angles needed about 7* more, so some massaging with the press and we have a nice fit


Cleaned up the plates, and measured up the bar for the needed cuts, leveled, measured, repeat, repeat, repeat, ..... cut!


BTW, I'll just show one side as the left and right work is almost the same thing. Just remember to line up the tube based on the body location, not the plate location.
Left:


Right:

Fooled ya!

Next we measured out the tube for the dash bar. Super Friend let me borrow this awesome tool:



Dash bar held in by compression, need to put in old dash and cut the dash pad to check height



More pics and details to follow shortly

__________________
Fatman is offline   Reply With Quote Quick reply to this message
Unread 08-14-2007, 09:14 PM   #2
1979CJ7
Registered User
1979 CJ7

Join Date: Feb 2006
Location: Cincinnati, Ohio
Posts: 614
looki good man. cant wait to tsee the rest... where did you buddy get that notcher from>
1979CJ7 is offline   Reply With Quote Quick reply to this message
Unread 08-15-2007, 06:51 AM   #3
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434
To bring this up to date,

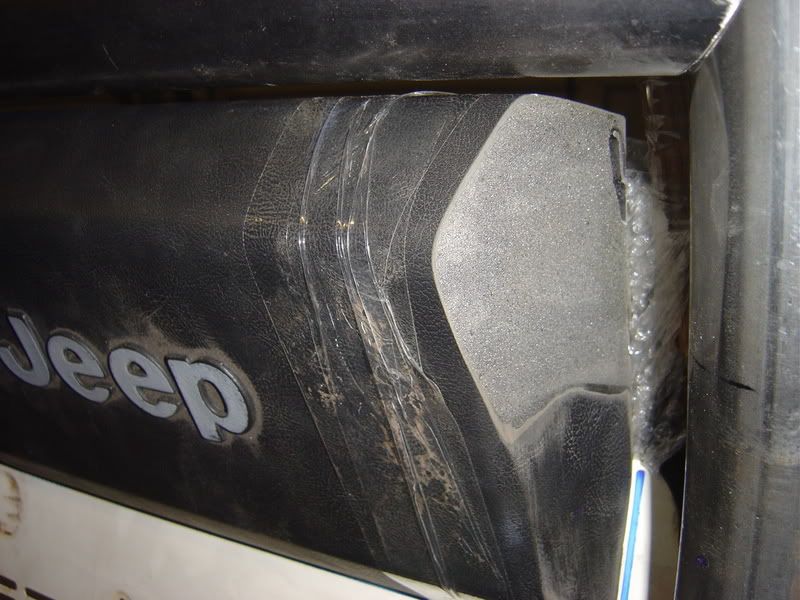

After putting on the old dash panel, we cut the dash pad with a sawsall and used a belt sander to shape the sides of the pad:

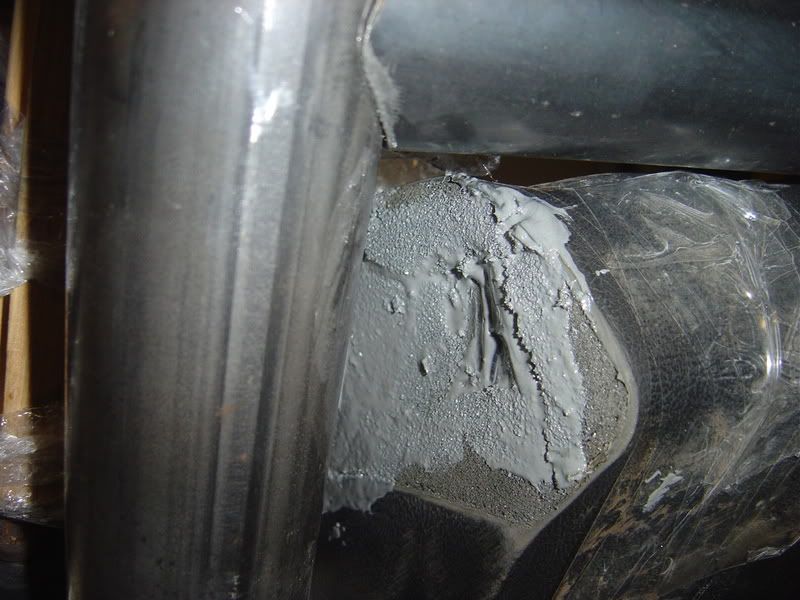

put some JB Weld on the drivers end where it became a little frayed:


I'm looking for a product that I can paint on or dip the pad in to get a nice simi-hard finish over the foam again.

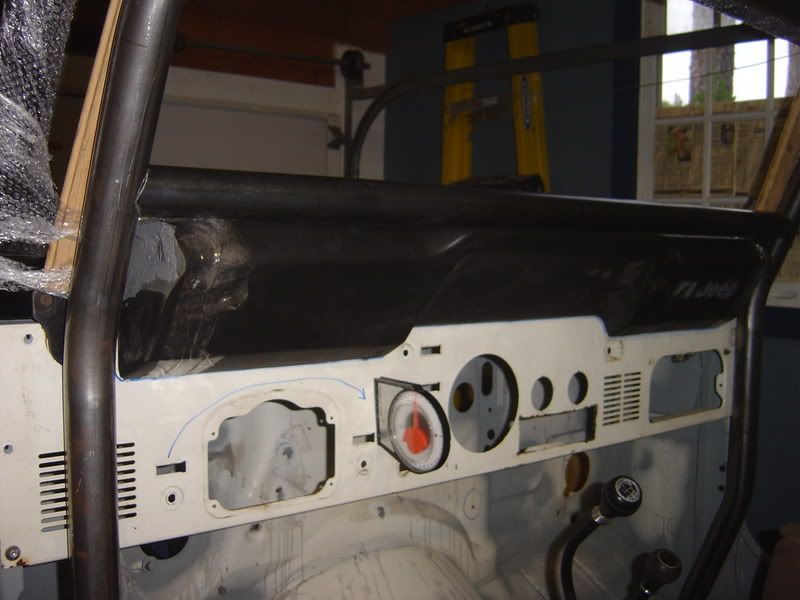

Pad installed and dash bar height adjusted

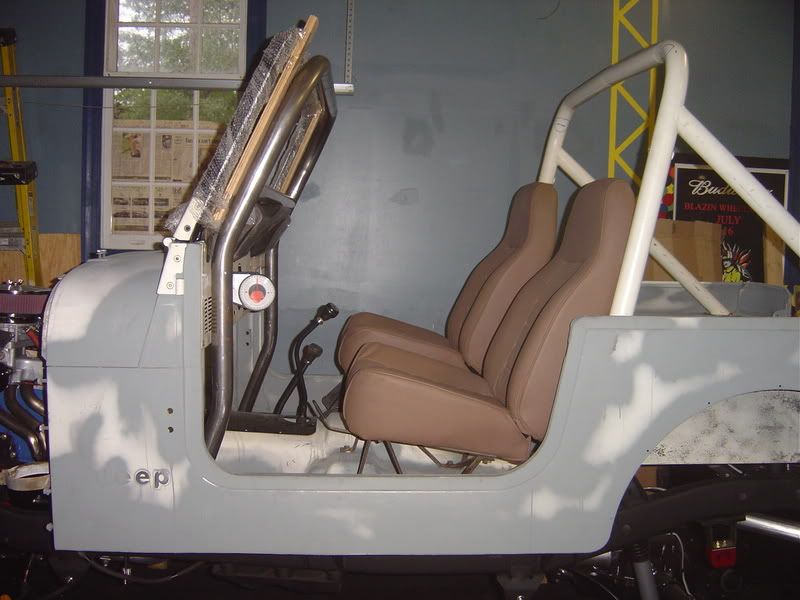

Put the seats in so we could check the fit of the diagonal lateral bar


Me and my son. First time we have sat in the Jeep since November


We bent two bars out of 2" 0.225 to match the ones that came with the kit. We'll install those shortly along with the lateral and a few grab bars.
Of course the lateral goes behind the seat but you get the idea.


Random shots:



Will stop this afternoon and pick up the 3/16" for the front and center frame tie in's. Need to order some isolators for the rear tie ins and cut out the rear quarter panel supports
__________________
Fatman is offline   Reply With Quote Quick reply to this message
Unread 08-15-2007, 08:01 AM   #4
JoonHoss
Registered User
2011 JK Wrangler

Join Date: Mar 2005
Location: Washington State
Posts: 6,425
Quote:
Originally Posted by Fatman
Quote:
Originally Posted by Fatman
this has been a very rewarding project...

Quote:
Originally Posted by Fatmans Son
this jeep will get me SOOOO many chicks...




for your dash pad- you might try contacting a place like this:

http://www.creativecolorsintl.com/

hth

Keep up the good work!

Hoss
__________________
Quote:
It's hard to say no to yoo-hoo, the name literally beckons...

Don't mind me, I'm just another FNG around here...
JoonHoss is offline   Reply With Quote Quick reply to this message
Unread 08-16-2007, 06:02 AM   #5
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434
Quote:
Originally Posted by 1979CJ7
looki good man. cant wait to tsee the rest... where did you buddy get that notcher from>
It's a Northern Industries product, I guess that means Northern tool?
__________________
Fatman is offline   Reply With Quote Quick reply to this message
Unread 08-16-2007, 06:43 AM   #6
certifiablejeep
Bicentennial Nickel

certifiablejeep's Avatar
1976 CJ5

Join Date: Aug 2002
Location: Bedford, NH
Posts: 2,272
quick search yielded...

http://www.amazon.com/Northern-Indus.../dp/B0000AX6PN

cb
__________________

CertifiableJeep website
'76 ORANGE CJ-5
'76 MAROON CJ-5
'78 SILVER CJ-7
'82 WHITE CJ-8 Build Thread
'83 GREEN UK CJ-7 Build Thread
ORANGE JEEP CLUB #41
SILVER JEEP CLUB #41
SIENNA JEEP CLUB #62
RHD JEEP CLUB #41

NEWJO Member
Forum
certifiablejeep is offline   Reply With Quote Quick reply to this message
Unread 08-16-2007, 03:44 PM   #7
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,274
Might try brushing or spraying on several coats of Plasti-Dip on those exposed ends. I've dipped rope ends into the stuff and built it up to a pretty thick coating to keep the rope from unravelling.
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote Quick reply to this message
Unread 08-16-2007, 03:48 PM   #8
bulljeeper
Registered User
1986 CJ7

Join Date: Jan 2007
Location: Prattville
Posts: 217
i really the jeep so far. the rollbar is a nice touch. i just hope it doesnt have to come in handy.


oh yeah, i hate all of you who have shops, garages, and even carports!
__________________
1986 CJ7
258 Inline 6
HEI Distributor
4.0 Head Swap
MC 2150
lOd Rear Tire Carrier

Soon to be:
4.0 Motor
All New Wiring
Gauges
OBA
Spyder Customs Crusher Corners

http://www.cardomain.com/ride/2527972/1
bulljeeper is offline   Reply With Quote Quick reply to this message
Unread 08-17-2007, 05:06 AM   #9
84MSRB
Registered User
1984 CJ7

Join Date: May 2006
Location: OH-IO
Posts: 749
Pretty cool looking stuff so far. We are definitely not doing things in the same order though.

Does that upper radius on the front bar bother you at all? I never really saw one from the angle you showed, and it looks like it takes out a decent chunk of your windshield- not that the upper corners will let you see much other than incoming aircraft, I guess.
__________________
1984 CJ7 Mud Slingin Rust Bucket
90 YJ tub
Ford Mutt 5.0( 69 block, 89 EFI)
84MSRB is offline   Reply With Quote Quick reply to this message
Unread 08-17-2007, 07:34 AM   #10
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434
Quote:
Originally Posted by 84MSRB
Does that upper radius on the front bar bother you at all? I never really saw one from the angle you showed, and it looks like it takes out a decent chunk of your windshield- not that the upper corners will let you see much other than incoming aircraft, I guess.
It's not so bad, lil bit-o trade off
__________________
Fatman is offline   Reply With Quote Quick reply to this message
Unread 08-18-2007, 06:32 AM   #11
Axehandle
Registered User

Join Date: Aug 2007
Location: Alabama
Posts: 8
Good Stuff... I need to do the same on my CJ5. Might entice my wife to ride in it. How bad was the shipping on that front roll bar?
Axehandle is offline   Reply With Quote Quick reply to this message
Unread 08-19-2007, 01:00 PM   #12
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434
Well I was not able to pick up any steel Friday so I just did some small tasks to get ready for the frame tie-ins.

Cut up the last of my 3/16 plate.
Drivers front plate:


Drivers center, drilled out and ground off the old tie in nuts:

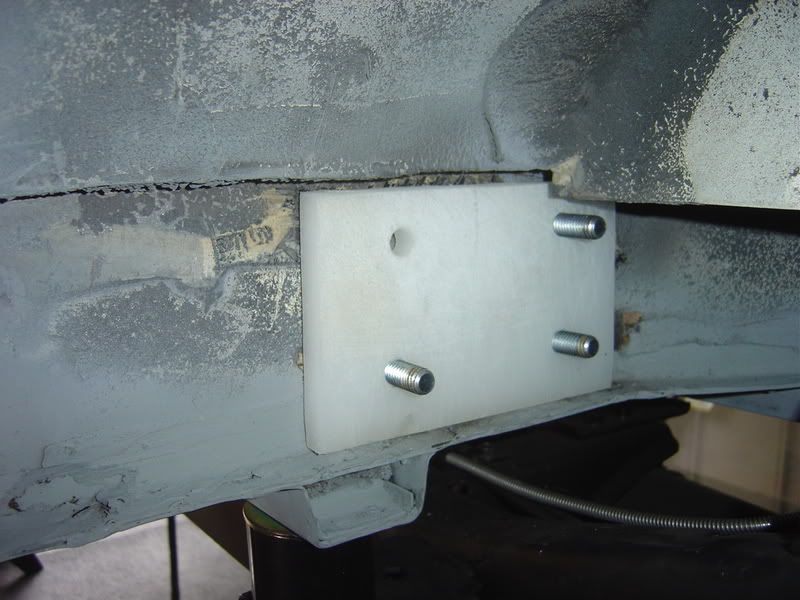

Plate is not enough, frame is going to hang up on the tub lip. Made isolators:


One plate was not enough to get out from the lip, used the right side plate I cut and looks like we're there.

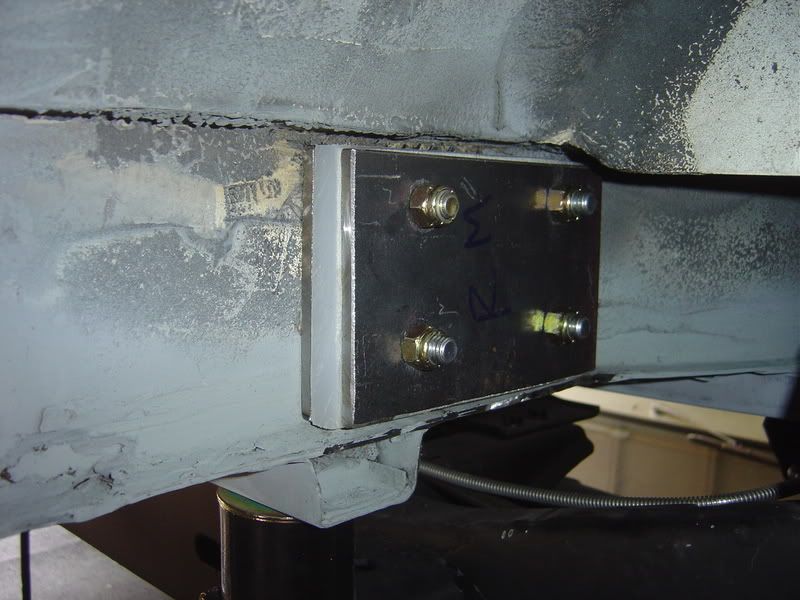

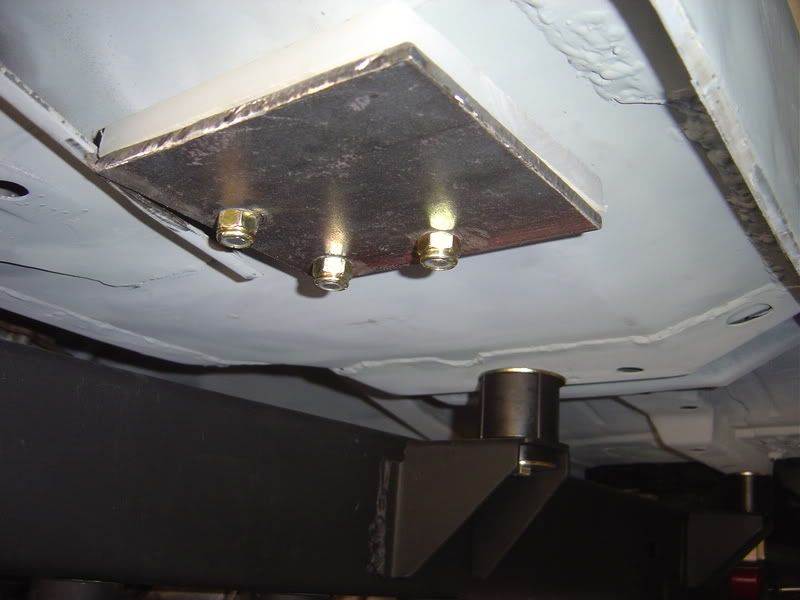

Went back and put isolators under the front tie-ins:
