Problem with my air control mechanism

While I was cleaning up my air ducts, I noticed a problem with the control for the air/heat vents. The specific mechanism is in the pic below:



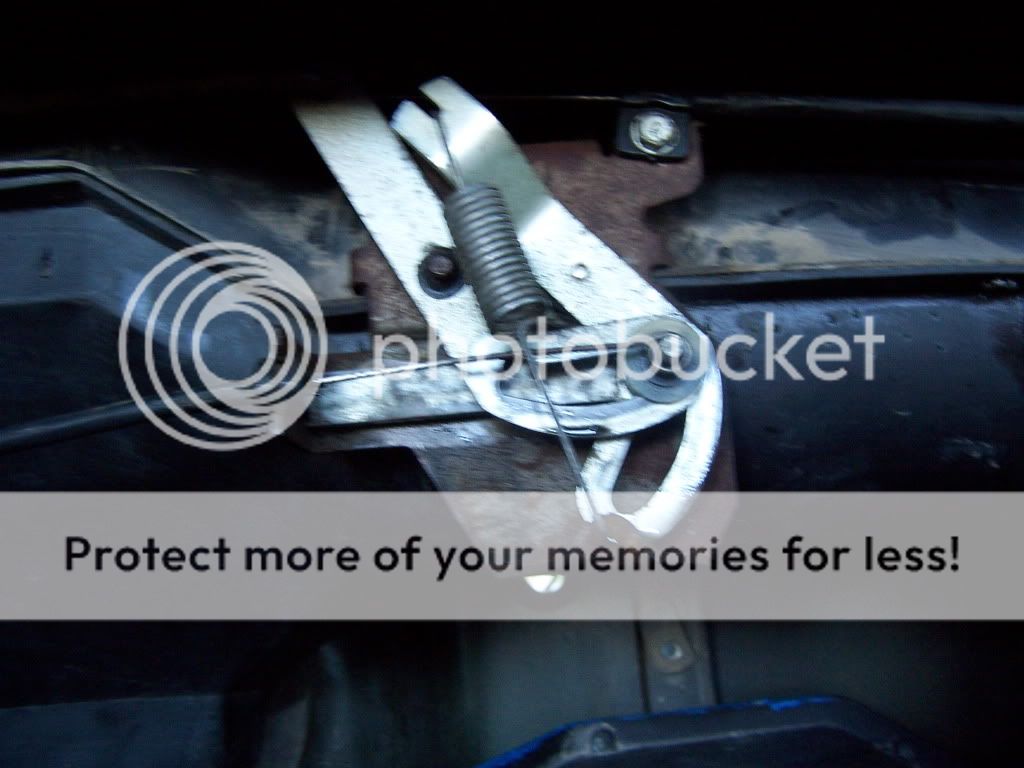

In the image, the 'L' shaped bracket with the cable connected controls the heat flapper. The one with the spring controls the three vent flappers. When I pull the knob it comes out to what seems like its limit, but only moves the bracket on the left.

Now, when I pull out the vent knob, it comes to a solid stop, and seems to go no further. But this only controls the flapper for the heat. The flappers in the cowl and on the inside vent, down on the passenger side don't do anything. I can however pull the knob out even further, with some force, and it opens the other three flappers. But, this causes the rod(?) to completely come out of it's housing. It's as if the cable is too long for what it's supposed to do.

I met with another CJ7 owner this afternoon to take a look at his controls, to see where I'm having my problems, but his does the exact same thing, except he can't get his vent flappers to open at all.

What could be causing this problem, and how do I go about fixing it?
