Go Back JeepForum.com > Models > Jeep CJ Forum > Pics and/or diagrams of 304 alternator brackets w/ York AC?

Introducing MONSTALINER™ UV Permanent DIY Roll On Bed LineSteering and more from Ruffstuff!The Original 3/8" Ruffstuff Diff Cover!

Reply
Unread 02-17-2012, 05:33 PM   #1
BuckleshootCJ5
Member

BuckleshootCJ5's Avatar
1973 CJ5

Join Date: May 2011
Location: Western, Washington
Posts: 333
Pics and/or diagrams of 304 alternator brackets w/ York AC?

I sure could use some pics of the alternator brackets on a 304 that also has a York AC compressor.

I have the York mount and a bunch of other brackets that came with it (got it from ebay, used). I know that the non AC alternator bracket that is currently on my Jeep won't work.

I've been eyeballing the situation and I think I have all brackets and bolts and the guy said they were all there. I'd just like to see a pic or diagram of the alternator brackets installed before I tear it all apart and start my OBA project.

I just don't want to get the thing ripped apart and find out I'm missing some hard to find piece that will keep my Jeep down for an extended period of time...

Thanks guys...

__________________
The world would be a better place if being stupid hurt...
BuckleshootCJ5 is offline   Reply With Quote
Unread 02-17-2012, 05:44 PM   #2
MoC
Web Wheeler

MoC's Avatar
1986 CJ7

Join Date: Jun 2008
Location: The otherside of your monitor...
Posts: 5,649
This might help.
100_6268.jpg   100_6269.jpg   100_6266.jpg
__________________
Under A Sun Thats See It All Before...
MoC is offline   Reply With Quote
Unread 02-17-2012, 07:33 PM   #3
BioTex
Registered User
2006 TJ Wrangler

Join Date: May 2008
Location: Alpine, Tx.
Posts: 3,173
Maybe this will help?

I believe bracket number 1 is for non A/C, the one in MoC's middle picture is the one for A/C (obviously)
__________________
'85 CJ7, BDS 4" lift, 1" Body lift, 33x12.5, Shrockworks Sliders, 304 V8 with RV cam., T-176, D300, Dana 30, AMC 20.
1986 CJ10-A SD-33 Diesel/727/np208
1971 800B with 345/T-19
06' TJ Rubicon, 4" R.C. springs, BFG/AT 35s M.C. 6" fenders, rockers and surrounds, Currie front & rear adj. tracbars, tattons DC rear shaft, adj. upper - lower CA's. Bilstein 5100's
YJ Buggy Build Current project. Stroker/FI ?
1990 MJ Comanche 4.0L AX15/np231
BioTex is offline   Reply With Quote
Unread 02-18-2012, 03:36 AM   #4
mylittlecj5
Registered User
1974 CJ5

Join Date: Jul 2008
Location: Bethany, OK
Posts: 694

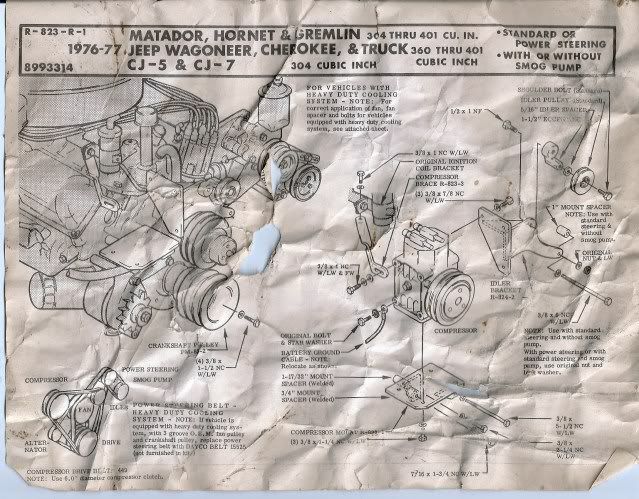

Here are the instructions to a dealer re-fit to put A/C on a non A/C engine. I used to have the NOS complete kit but ended up selling it since it didn't fit my engine, and I had already bought one that had A/C on it.

__________________
Default Jeepers Club #10
mylittlecj5 is offline   Reply With Quote
Unread 02-18-2012, 05:16 AM   #5
BioTex
Registered User
2006 TJ Wrangler

Join Date: May 2008
Location: Alpine, Tx.
Posts: 3,173
Quote:
Originally Posted by mylittlecj5 View Post
Here are the instructions to a dealer re-fit to put A/C on a non A/C engine. I used to have the NOS complete kit but ended up selling it since it didn't fit my engine, and I had already bought one that had A/C on it.
littlecj5.
Can you e-mail me a larger version of that diagram please? I'd like that for my records. Way cool!
__________________
'85 CJ7, BDS 4" lift, 1" Body lift, 33x12.5, Shrockworks Sliders, 304 V8 with RV cam., T-176, D300, Dana 30, AMC 20.
1986 CJ10-A SD-33 Diesel/727/np208
1971 800B with 345/T-19
06' TJ Rubicon, 4" R.C. springs, BFG/AT 35s M.C. 6" fenders, rockers and surrounds, Currie front & rear adj. tracbars, tattons DC rear shaft, adj. upper - lower CA's. Bilstein 5100's
YJ Buggy Build Current project. Stroker/FI ?
1990 MJ Comanche 4.0L AX15/np231
BioTex is offline   Reply With Quote
Unread 02-18-2012, 07:50 AM   #6
mylittlecj5
Registered User
1974 CJ5

Join Date: Jul 2008
Location: Bethany, OK
Posts: 694
Unfortunately this is the only size I have of it. I have it posted on Photobucket, so you are welcome to copy it off there if you like.

LINK

I will email the guys that have asked for a copy as well.
__________________
Default Jeepers Club #10
mylittlecj5 is offline   Reply With Quote
Unread 02-18-2012, 11:08 AM   #7
BuckleshootCJ5
Member

BuckleshootCJ5's Avatar
1973 CJ5

Join Date: May 2011
Location: Western, Washington
Posts: 333
Thanks guys!

Moc's pics look like the stuff I have. I was able to identify almost all the pieces I have on those pics. I should be able to figure the others out.

Now I gotta get all my fittings, hoses, air tank, etc... then it's game on. I want to have EVERYTHING ready to go when I do this, so I can get it done in a day or so.

Thanks again...!
__________________
The world would be a better place if being stupid hurt...
BuckleshootCJ5 is offline   Reply With Quote
Unread 02-18-2012, 12:39 PM   #8
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 4,782
I'm doing this right now on a 304. The biggest issue I am running into is the crank pulley. To run AC on it, you need a 3 groove pulley. My harmonic balancer uses 3 bolts to mount the pulley. The 3 groove pulleys use a 4 bolt mounting system. I think I am going to have to swap to a newer 304 balancer with the 4 bolt surface. My brackets look a little bit different than those shown. I will take pics later.
__________________
Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline   Reply With Quote
Unread 02-18-2012, 01:40 PM   #9
BuckleshootCJ5
Member

BuckleshootCJ5's Avatar
1973 CJ5

Join Date: May 2011
Location: Western, Washington
Posts: 333
Why wouldn't a two groove pulley work? Looking at the pics above, MoC is using a 3 groove, but two of the belts are doing the same thing.

Couldn't you just route one belt over to the power steering (leave the same) and have one belt around the alternator and York? I was just figuring the two groove would work, as long as things lined up, now you got me wondering...?
__________________
The world would be a better place if being stupid hurt...
BuckleshootCJ5 is offline   Reply With Quote
Unread 02-18-2012, 05:22 PM   #10
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 4,782
The York pulls quite a bit when its compressing. Plus, it also runs the alternator so you want to make sure its well driven. The third and outer grove goes around the crank, water pump, and power steering pump.

I just got in from the shop a few minutes ago. Besides the power steering pump, everything is mounted. Once everything checks out, it all comes off for paint.







Figured out a cool way to hang stuff to paint that is not too heavy. Pick up a few of the pants hangers from department stores. The ones with the clips on the rod. Clip the hanger onto something up high, and use the hook to hold up what your painting. The hook rotates.

__________________
Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline   Reply With Quote
Unread 02-18-2012, 06:06 PM   #11
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 4,782
Here is a pic from the factory service manual showing the belt routing for the setup I am running.
__________________
Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline   Reply With Quote
Unread 02-18-2012, 06:59 PM   #12
BuckleshootCJ5
Member

BuckleshootCJ5's Avatar
1973 CJ5

Join Date: May 2011
Location: Western, Washington
Posts: 333
CRAP! I wasn't planning on that. Well, looks like I'm gonna need to get the three groove pulleys and a two groove alternator pulley.

Glad you guys showed me this now and not when I had the thing tore apart and half back together...

My OBA project may just get pushed back for next winters project list, unless I can scrounge up the pulleys quickly and cheaply.

Thanks for saving me a HUGE headache!!!
__________________
The world would be a better place if being stupid hurt...
BuckleshootCJ5 is offline   Reply With Quote
Unread 02-19-2012, 12:13 AM   #13
Chewtoy
Registered User
1976 CJ5

Join Date: Jul 2009
Location: Post Falls, Idaho
Posts: 862
I am running just the one belt and works just fine. I have it wired so the compressor runs only when I flip the switch so the rest of the time it just free wheels. Some day if I ever find the 3 grove pullies Ill probably use them, but so far it has proven to be a non issue.
__________________
With a great Jeep comes an empty wallet.
Chewtoy is offline   Reply With Quote
Unread 02-19-2012, 03:37 AM   #14
thomas_j
Registered User
1976 CJ7

Join Date: Nov 2009
Location: Norway
Posts: 154
Hi BuckleshootCJ5

Kilby sells a bracket kit for 304/360 without AC (York):

http://www.kilbyenterprises.com/KE-8000.htm
Installation manual: http://www.kilbyenterprises.com/web-...ns/ke-8000.htm

I can't find the price anywhere, but I bet it's not cheap...

Thomas
thomas_j is offline   Reply With Quote
Unread 02-19-2012, 04:12 AM   #15
WhatWasThat
Registered User
1983 CJ7

Join Date: Apr 2011
Location: newnan, georgia
Posts: 35
Thomas_j:
Thank you for posting the instructions! When I bought my 304 it had that kit installed and for the life of me I can’t remember how to put it back. All I need now is the time to put it back together.

Philip
