post #1 of Old 03-23-2013, 02:44 PM Thread Starter
Ranger1861
Registered User
1982 CJ5

Join Date: Nov 2012
Location: Lancaster
Posts: 38
Pics of cj5 with a 2.5 gm engine

I am looking for pics of a 2.5 engine for reference of the mounting brackets for the alternator, power steering pump, coil etc. Anyone have any? Mine is a 1982 cj5 with a 2.5 gm engine and T4 tranny. Thanks.

Ranger1861 is offline
post #2 of Old 03-23-2013, 05:17 PM
BSetera
Registered User
1980 CJ5

Join Date: Dec 2009
Location: Sugar Land, TX
Posts: 127
May be able to help...

Is this the "iron duke" engine? if so, i will have lots of pictures of it before the tear down that may help...

Brad

1980 Jeep CJ5
Currently in frame-off restoration
BSetera is offline
post #3 of Old 03-23-2013, 06:18 PM Thread Starter
Ranger1861
Registered User
1982 CJ5

Join Date: Nov 2012
Location: Lancaster
Posts: 38
It is the iron Duke. I am just doing a DD for my son right now. Had to pull the engine to fix a broken head bolt and now I can't remember where everything goes to mount back on the engine. Any and all pics of the engine and mounts for the alt, ps pump etc will be very much appreciated...
Ranger1861 is offline
post #4 of Old 03-23-2013, 07:25 PM
BSetera
Registered User
1980 CJ5

Join Date: Dec 2009
Location: Sugar Land, TX
Posts: 127

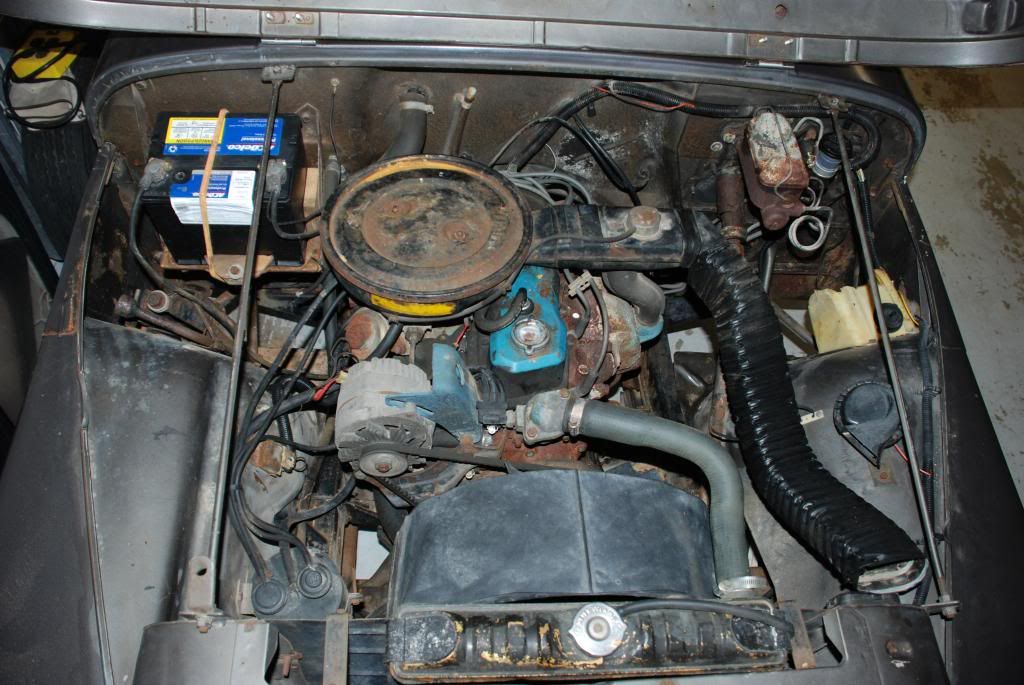

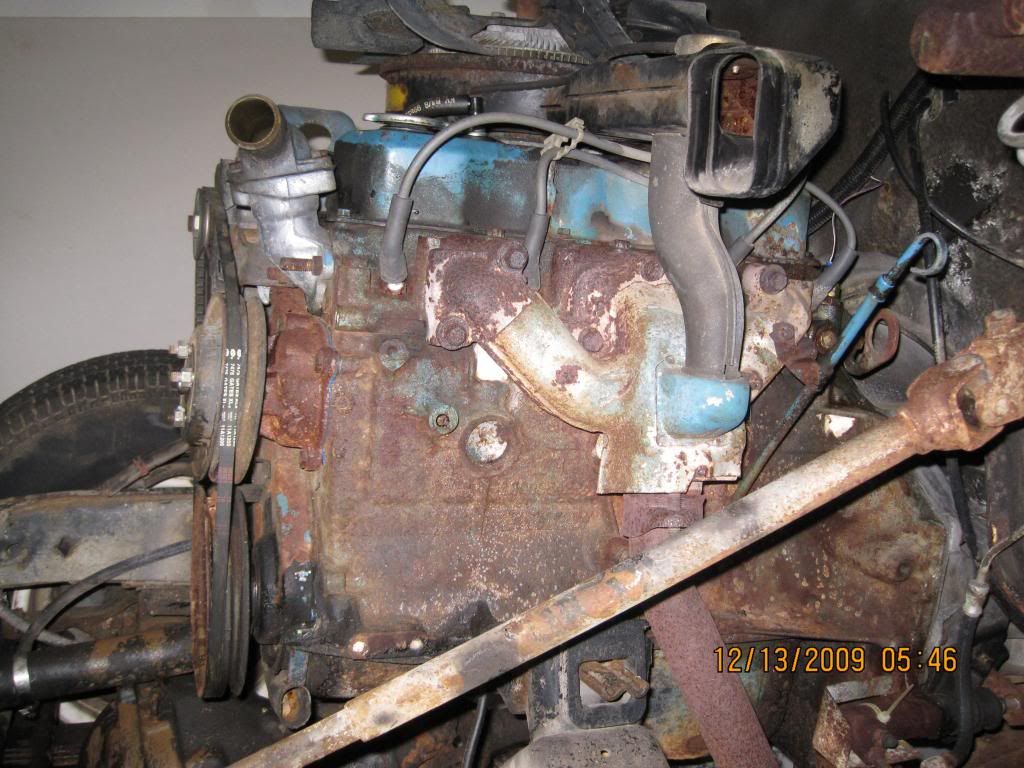

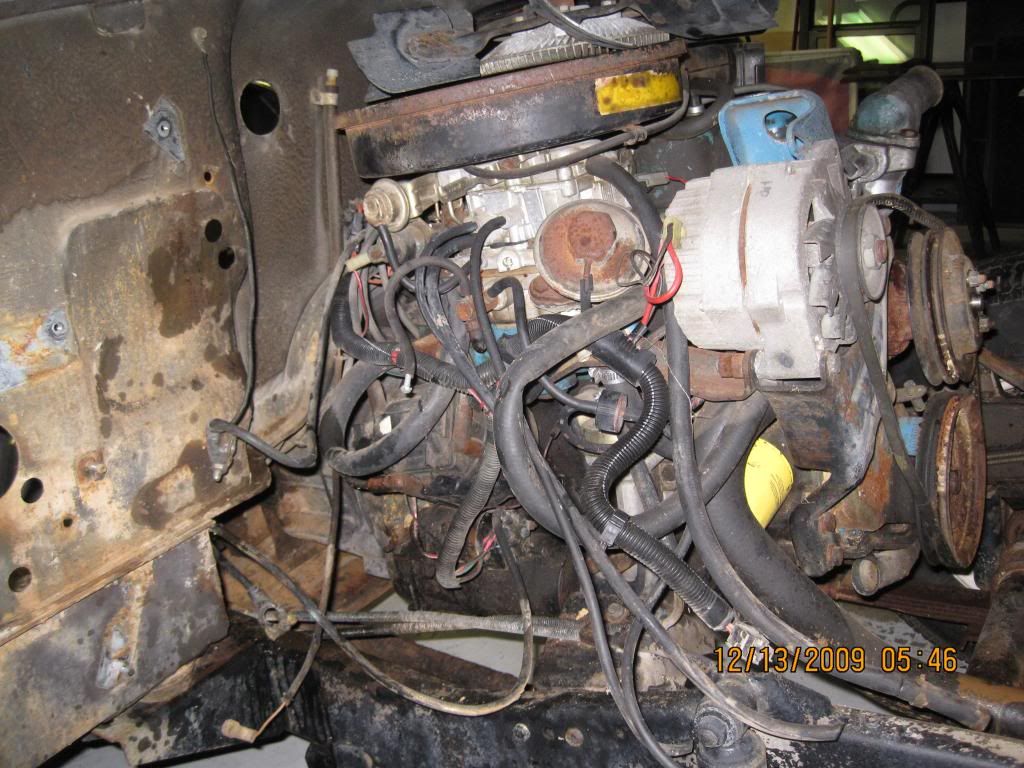

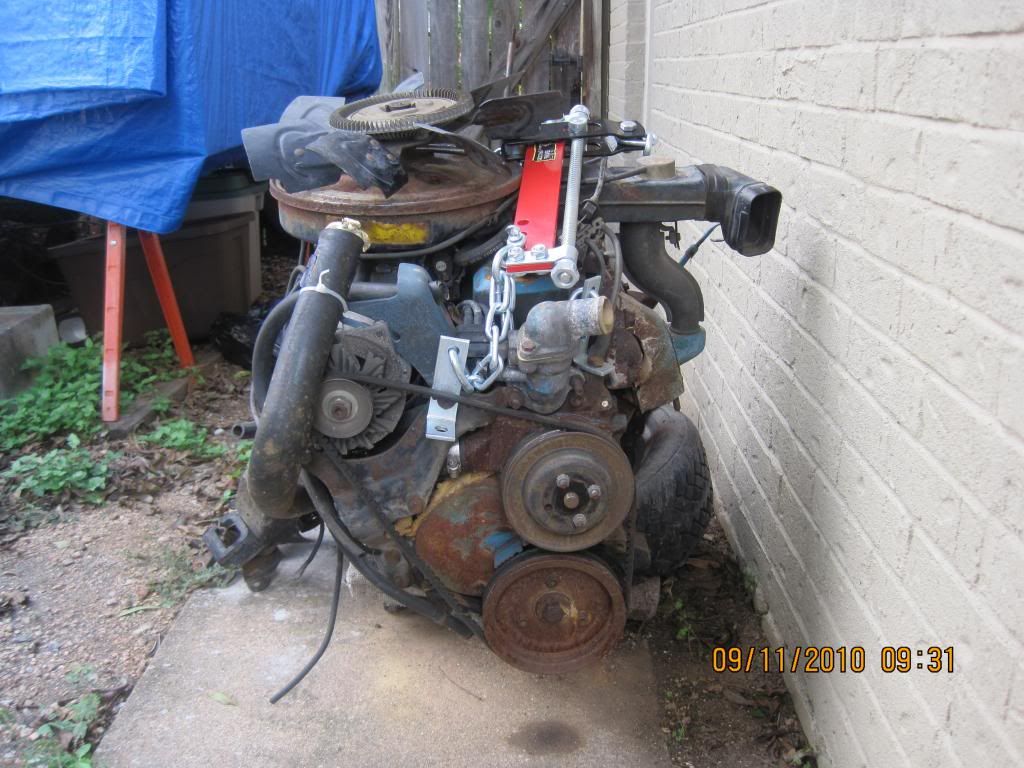

See if any of these will help...

If you need any more, I will see what I can dig up. May have to email as it took forever to upload these. Let me know and hope it helps.













I finally got to contribute to someone on the forum...

Brad

1980 Jeep CJ5
Currently in frame-off restoration
BSetera is offline
post #5 of Old 03-23-2013, 08:32 PM Thread Starter
Ranger1861
Registered User
1982 CJ5

Join Date: Nov 2012
Location: Lancaster
Posts: 38
Thank you so much. That will help tremendously!
Ranger1861 is offline
post #6 of Old 03-24-2013, 01:28 AM
caseypotts
Registered User
1980 CJ7

Join Date: Nov 2003
Posts: 236

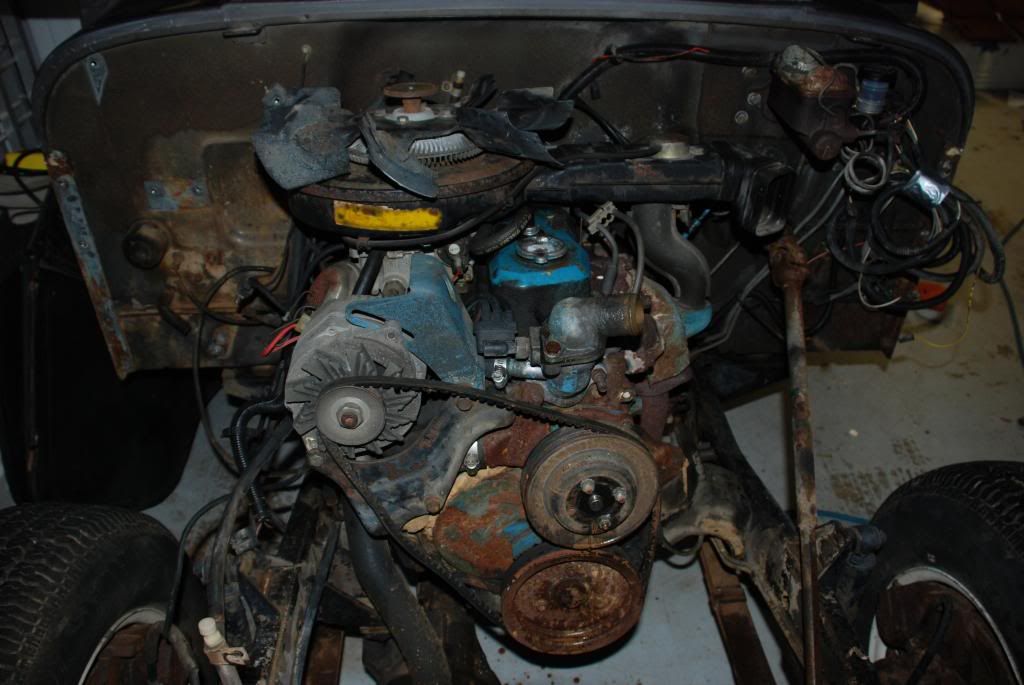

Best I can do for you for now.
1981 GM151 in a 1980 Cj7.
Attached Thumbnails

1980 CJ7 GM151 Bored out, Flat Top Pistons, Hedman Header, 2.5in Superlift springs, Extrem Shocks' 31 10.5 Mastercraft Courser MT tires on Allied MockLoc rims, Blazer heater upgrade.

Her Ride
2003 Liberty Renegade
caseypotts is offline
post #7 of Old 03-24-2013, 10:05 AM Thread Starter
Ranger1861
Registered User
1982 CJ5

Join Date: Nov 2012
Location: Lancaster
Posts: 38
Casey, If you get any more pics of the engine from the sides to show the alt and ps pump brackets please post or msg the to me. Thanks for all your help everyone.
Ranger1861 is offline
post #8 of Old 03-24-2013, 02:26 PM
243
Registered User
1978 FSJ Cherokee

Join Date: Sep 2002
Posts: 3,356
Page 10 and 12 of this thread may help...

http://www.jeepforum.com/forum/f8/pr...tarian-495797/

1978 Cherokee, TBI 360/T400/QT...6.0/6L80/NP241C in the works...
243 is offline
post #9 of Old 03-24-2013, 07:30 PM
caseypotts
Registered User
1980 CJ7

Join Date: Nov 2003
Posts: 236
I would love to help you out more but yesterday I took my jeep to a buddies house in order to drop the tranny, so now it is 45 minutes away and I won't be back to it until next weekend. If you still need them then let me know and I'll take whatever you need.

1980 CJ7 GM151 Bored out, Flat Top Pistons, Hedman Header, 2.5in Superlift springs, Extrem Shocks' 31 10.5 Mastercraft Courser MT tires on Allied MockLoc rims, Blazer heater upgrade.

Her Ride
2003 Liberty Renegade
caseypotts is offline
post #10 of Old 04-04-2013, 09:48 PM
caseypotts
Registered User
1980 CJ7

Join Date: Nov 2003
Posts: 236

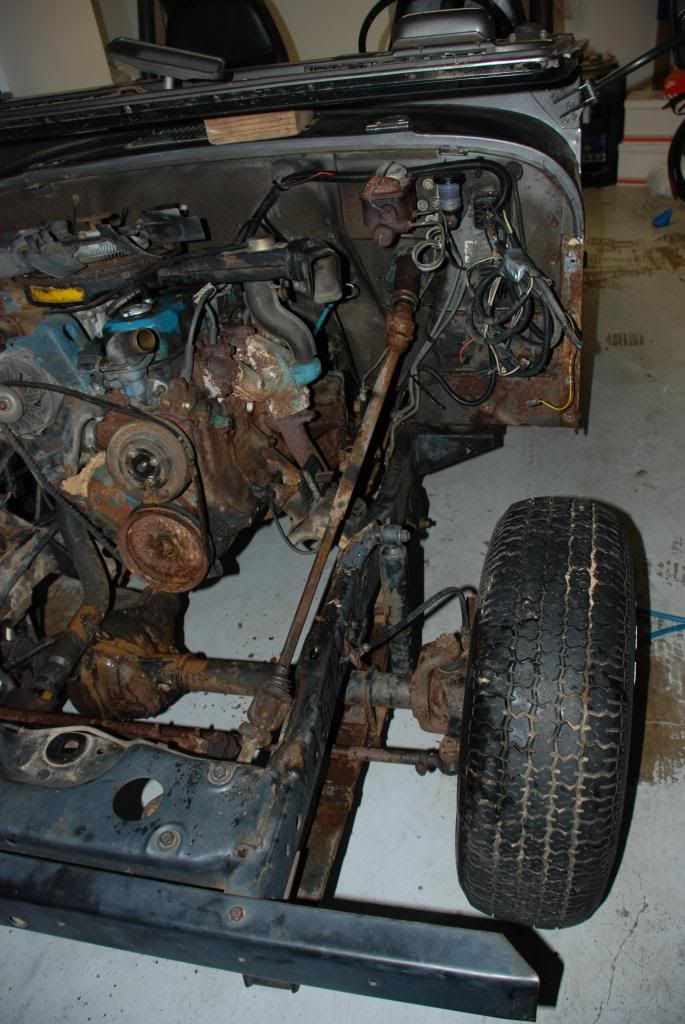

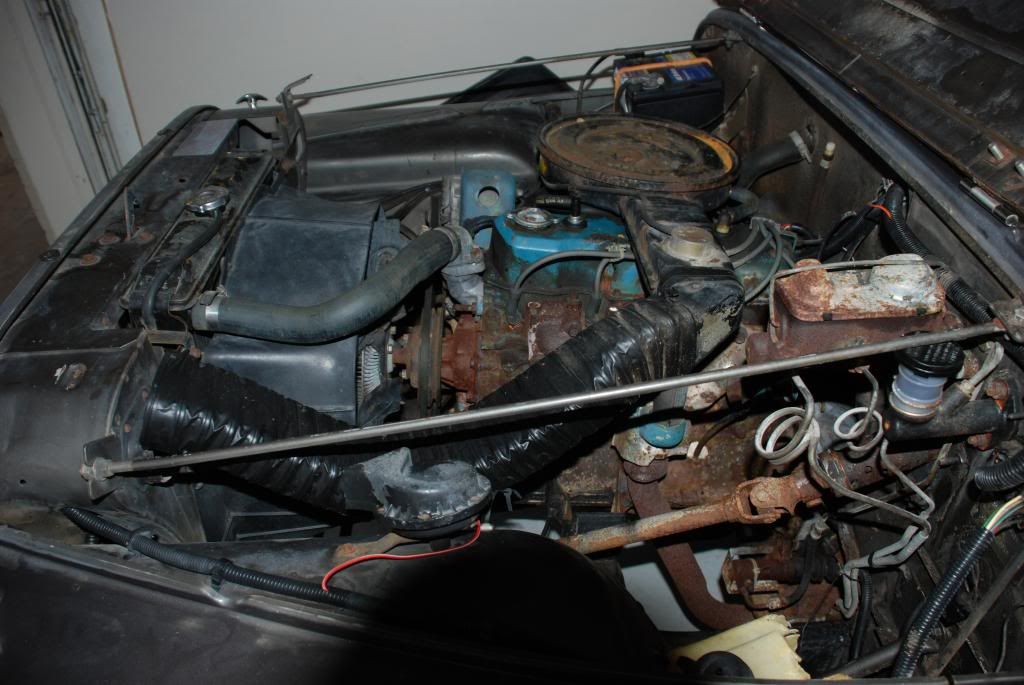

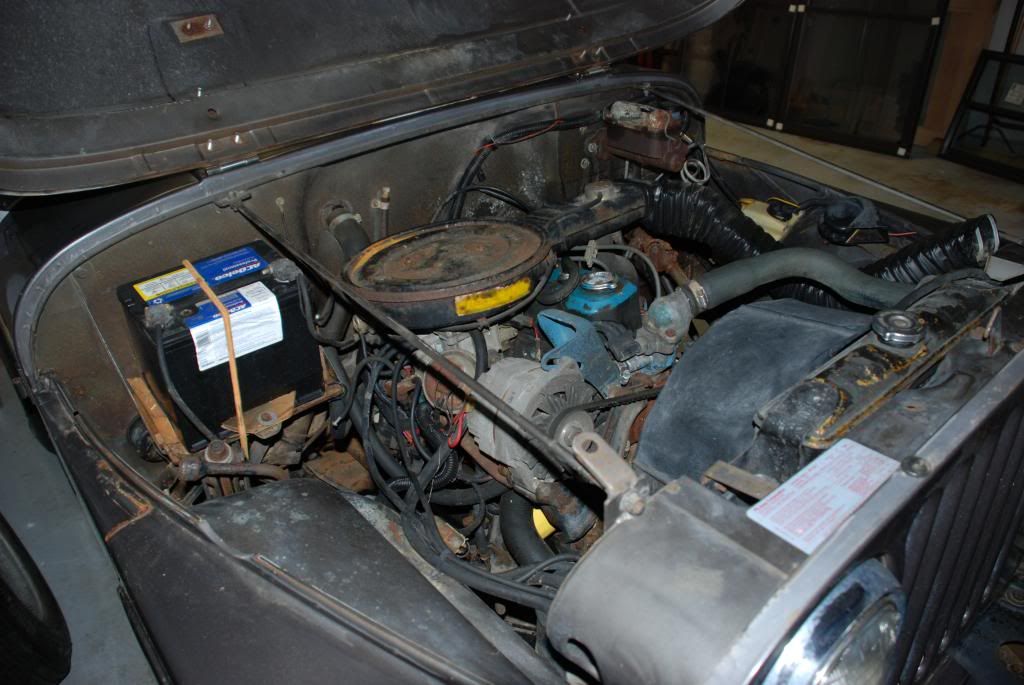

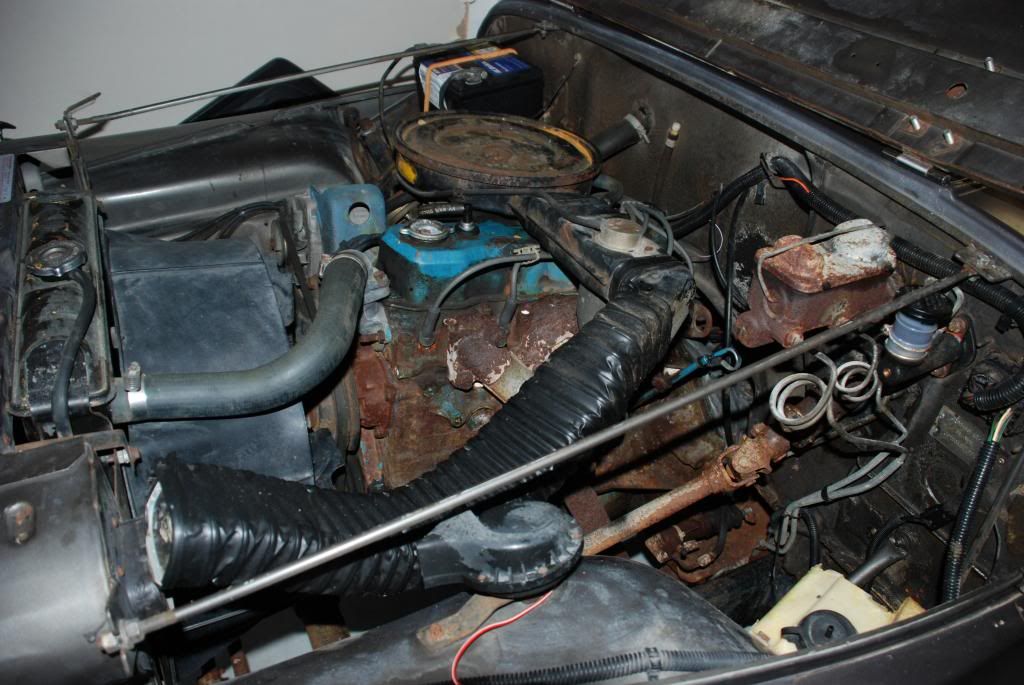

Here are a few. Let me know if you need more.
Attached Thumbnails
IMG_20130404_191553_261.jpg   IMG_20130404_191601_316.jpg   IMG_20130404_191541_780.jpg   IMG_20130404_191524_820.jpg   IMG_20130404_191514_017.jpg

IMG_20130404_191453_389.jpg   IMG_20130404_191501_134.jpg

1980 CJ7 GM151 Bored out, Flat Top Pistons, Hedman Header, 2.5in Superlift springs, Extrem Shocks' 31 10.5 Mastercraft Courser MT tires on Allied MockLoc rims, Blazer heater upgrade.

Her Ride
2003 Liberty Renegade
caseypotts is offline
post #11 of Old 04-06-2013, 03:00 PM Thread Starter
Ranger1861
Registered User
1982 CJ5

Join Date: Nov 2012
Location: Lancaster
Posts: 38
thank you
Ranger1861 is offline
Reply
