post #16 of 42 Old 04-18-2013, 12:53 PM
ROB03HD
Registered User
1982 CJ7

Join Date: Jan 2006
Location: S.A.
Posts: 66
Lots of great info fellas. Will be doing this on saturday. Hopefully it helps my ignition problems.

ROB03HD is offline
Sponsored Links
Advertisement

post #17 of 42 Old 06-05-2013, 07:51 AM
CJ7ROB
Registered User
1986 CJ7

Join Date: Apr 2010
Location: Whitehouse Stn,NJ
Posts: 1,459

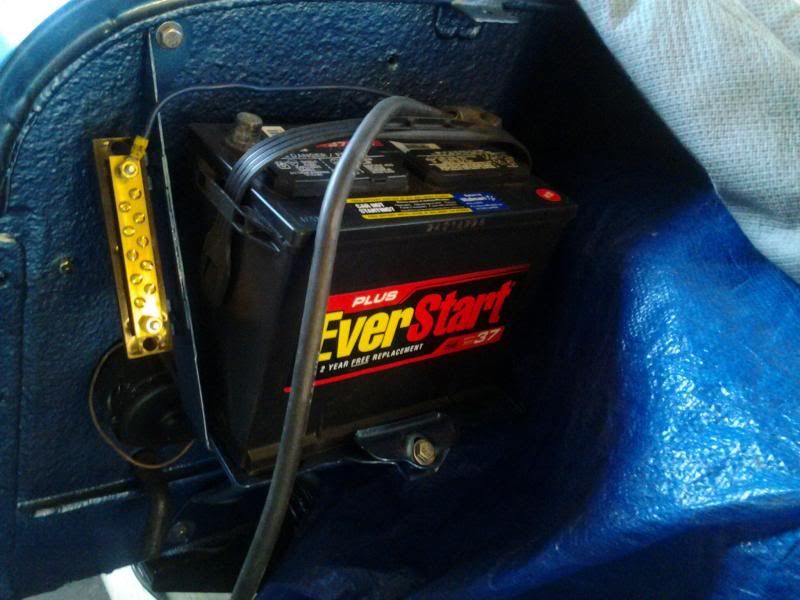

I put mine here where those nutter test plug things were. What do you guys think, will it look too busy?

CJ7ROB is offline
post #18 of 42 Old 06-05-2013, 07:57 AM
MoC
Registered User
1986 CJ7

Join Date: Jun 2008
Location: The otherside of your monitor...
Posts: 5,656
Quote:
Originally Posted by CJ7ROB View Post
I put mine here where those nutter test plug things were. What do you guys think, will it look too busy?

The wires you run to it will add up fast. I would run them all under the battery tray so that you dont have a hard time removing the battery.
MoC is offline
post #19 of 42 Old 06-05-2013, 08:09 AM
CJ7ROB
Registered User
1986 CJ7

Join Date: Apr 2010
Location: Whitehouse Stn,NJ
Posts: 1,459
Quote:
Originally Posted by MoC View Post
The wires you run to it will add up fast. I would run them all under the battery tray so that you dont have a hard time removing the battery.
Yea that's a good idea Moc, thx.. I'll run them underneath in looms and keep them secured under there. I picked up some stainless steel zip ties by Storehouse at Harbor Freight. Anyone ever use them? I was thinking of using them here and there as I get stuff wired back up.
CJ7ROB is offline
post #20 of 42 Old 06-05-2013, 05:38 PM
Bubba Ray
Registered User
1984 CJ7

Join Date: Dec 2005
Location: SC
Posts: 1,696
keith460, very nice as usual. Why the ground to the hood?
Bubba Ray is offline
post #21 of 42 Old 06-05-2013, 05:57 PM
keith460
Jeep. There's Only One

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 6,608
Quote:
Originally Posted by Bubba Ray View Post
Why the ground to the hood?
Because both sides of the hood hinges and the entire hood are painted base color and clear coated so I lost the ability to ground the factory underhood light. Without it, the underhood light will not function.


.
1984 CJ-7 Renegade
__________________
keith460 is online now
post #22 of 42 Old 06-05-2013, 06:24 PM
Bubba Ray
Registered User
1984 CJ7

Join Date: Dec 2005
Location: SC
Posts: 1,696
It helps to read all the post and not just stare at the pics! Nice work again.
Bubba Ray is offline
post #23 of 42 Old 06-06-2013, 03:34 AM
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 15,809
Don't forget to ground your wiper motor.
Seems like if you make a mechanical item like hinges forced to carry the electrical load, they have a tendency to rust/corrode faster.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
John Strenk is offline
post #24 of 42 Old 06-06-2013, 08:29 AM
keith460
Jeep. There's Only One

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 6,608
I just recently had to add another ground wire to the headlight switch. My interior courtesy lights wouldn't come on sometimes and it was due to the fact that the paint on the dash plate was causing poor grounding of the switch. I used an internal tooth ring terminal where the switch goes through the dash plate and terminated it to a grounding post used for the dash instruments. Sorry, no pics but it now works every time like it should.

Anytime an electrical issue pops up on the old Jeep, 90% of the time it is due to poor grounding. I think I have them all covered now, even the wiper motor too.

.
1984 CJ-7 Renegade
__________________
keith460 is online now
post #25 of 42 Old 06-06-2013, 08:51 AM
CJ Chet
Registered User
1986 CJ7

Join Date: Dec 2005
Location: Yorktown, Virginia
Posts: 2,576
You can never have TOO MANY grounds!

'86 CJ7
'04 AEV RUBICON
2015 Grand Cherokee Limited
CJ Chet is offline
post #26 of 42 Old 06-10-2013, 09:05 PM
lonetrader
Registered User
1975 CJ5

Join Date: Sep 2012
Location: Pahrump
Posts: 36
Quote:
Originally Posted by Bubba Ray View Post
keith460, very nice as usual. Why the ground to the hood?

Grounds to the hood also prevent noise in 2 way radio and your amfm radio. Along with grounds from body to frame. Some guys even put grounds on their exhaust pipes. Read Jeep Hammer's blog on dedicated grounds. Military vehicles have them. Civilian Jeeps do not.
lonetrader is offline
post #27 of 42 Old 11-25-2013, 08:47 AM
JeepHammer
Running On Empty...
1973 CJ5

Join Date: Aug 2007
Location: South West Indiana
Posts: 11,180
PROPER, and properly MAINTAINED 'Grounds' will also slow corrosion, like rust since the entire vehicle is at the same electrical potential...

If the juice gets into something electrically operated,
Doesn't it make sense to give it a path to get OUT without torturing it?

It's called an ELECTRICAL CIRCUIT for a reason, it has to get back to the battery before it works...
The smoother the return path, the better your electrical loads will operate.

REMEMBER,
'Free' internet information is worth EXACTLY what you paid for it!
LINK:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

LINK:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

LINK:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

LINK:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

LINK:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

LINK:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

LINK:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

LINK:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

LINK:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

LINK:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
JeepHammer is offline
post #28 of 42 Old 12-14-2013, 11:03 PM
Gigem1983
Registered User
1975 CJ5

Join Date: Nov 2013
Location: Arlington
Posts: 17
This threads very helpful...love all the pics. I need to source the GM Grounding Bus Bars. Specifically on what GM models can these be found? Are they strictly an auto salvage product or something from flaps.
Gigem1983 is offline
post #29 of 42 Old 12-15-2013, 02:18 AM
WSS
Web Wheeler

WSS's Avatar
1972 CJ5

Join Date: Oct 2012
Location: Chino
Posts: 2,667
I just completed a dual battery setup and added two studs to the bottom of the tray for the extra grounds I have added. Anything I add gets a ground. This summer, I redid the dash and added a 10ga wire to the switch panel, this solved a whole bunch of gremlin like problems



Here it is installed:


WSS is offline
post #30 of 42 Old 12-15-2013, 06:07 AM
keith460
Jeep. There's Only One

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 6,608
Quote:
Originally Posted by Gigem1983 View Post
This threads very helpful...love all the pics. I need to source the GM Grounding Bus Bars. Specifically on what GM models can these be found? Are they strictly an auto salvage product or something from flaps.
Flaps? Don't know what that is. Are we talking airplane surface controls here.?

GM Grounding Buss Bars can be found cheap at the bone yards on late 80's and 90's GM vehicles like pickup trucks and SUV's.

.
1984 CJ-7 Renegade
__________________
keith460 is online now
