Photo Request - Dedicated Grounds

There seems to have been a lot of interest lately (myself included) in resolving electrical issues and the use of Dedicated Grounds.
Likewise there is plenty of informaiton here.

But I have yet to find any photos of said Dedicated Grounds (major and minor) to use as a guide to neatly running the wires. I am trying to clean up 30+ years of rat's nests and don't want to contribute to the mess... lol

So, let's see some photos of your grounding setups. Please.

Thanks in advance!

2X

2Xtreme is offline
Sponsored Links
Advertisement

post #2 of 42 Old 04-15-2013, 11:09 AM
Northside23222
Registered User
1977 CJ5

Join Date: Sep 2011
Location: Richmond
Posts: 33
Good topic...i'm interested in new ideas also

Michael
--RVA--
Northside23222 is offline
post #3 of 42 Old 04-15-2013, 12:47 PM
ASteve
Registered User
1972 CJ5

Join Date: Oct 2009
Location: Nor-Cal
Posts: 1,616
Not a great shot but...
Attached Thumbnails
ASteve is offline
post #4 of 42 Old 04-15-2013, 11:06 PM
row684
Registered User
1984 CJ7

Join Date: Sep 2008
Location: Logan
Posts: 747
Quote:
Originally Posted by 2Xtreme
There seems to have been a lot of interest lately (myself included) in resolving electrical issues and the use of Dedicated Grounds.
Likewise there is plenty of informaiton here.

But I have yet to find any photos of said Dedicated Grounds (major and minor) to use as a guide to neatly running the wires. I am trying to clean up 30+ years of rat's nests and don't want to contribute to the mess... lol

So, let's see some photos of your grounding setups. Please.

Thanks in advance!

2X
Bump for more.
row684 is offline
post #5 of 42 Old 04-16-2013, 08:00 AM
CJ7ROB
Registered User
1986 CJ7

Join Date: Apr 2010
Location: Whitehouse Stn,NJ
Posts: 1,459

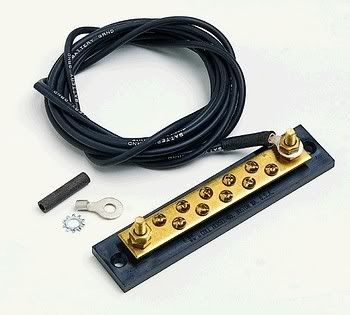

I've used these ground bus bars before. I think they can look cleaner if you route your grounds correctly.

CJ7ROB is offline
post #6 of 42 Old 04-16-2013, 10:02 AM
yellow85cj
Registered User
1985 CJ7

Join Date: Apr 2006
Location: Ft Worth
Posts: 846
How about Fatmans' set up

http://www.jeepforum.com/forum/f8/pr...ml#post7471740

And check Keith460's thread for grounding bus bar.

Currently in pieces - all of them
yellow85cj is offline
post #7 of 42 Old 04-17-2013, 05:22 AM Thread Starter
2Xtreme
Web Wheeler

2Xtreme's Avatar
1979 CJ7

Join Date: Dec 2003
Location: Schenectady
Posts: 1,417
Garage
Anyone else??

I plan to redo all of my grounding this coming weekend and am looking for references.

Thanks in advance!

2X
2Xtreme is offline
post #8 of 42 Old 04-17-2013, 05:54 AM
PROJECT 23
Registered User
1985 CJ7

Join Date: May 2011
Posts: 2,599
This is what I have in my rig (well, until I was having power issues and I removed everything I did prior to having these issues). Once I get things sorted out with the power issues, I will be reinstalling it.
One terminal is directly from the negative battery post and the other is a ground to the dash. I plan on utilizing the other smaller posts for things under the hood.
Attached Thumbnails
Copy of Ground Bar.JPG
PROJECT 23 is offline
post #9 of 42 Old 04-17-2013, 06:50 AM
MoC
Registered User
1986 CJ7

Join Date: Jun 2008
Location: The otherside of your monitor...
Posts: 5,649


Few more starting around --->Here<---
MoC is offline
post #10 of 42 Old 04-17-2013, 07:06 PM
pritchaj2000
Registered User
1972 CJ5

Join Date: May 2007
Location: Highlands, NJ
Posts: 51
Power on the left side of the buss. Supplied from the bat via the circuit breaker. One power line runs to the headlight relays, the other to the fuse box via a short run of fusable link (grey wire).

Grounds are on the right. Ong ground wire to each section of the jeep, forward of the firewall, cab and rear. Each light, component, etc splices into the ground and terminates on a bolt post of the component.


Al Pritchard - 1972 Renegade | AMC 304

Build thread: http://www.earlycj5.net/forums/showthread.php?78780-1972-CJ-5-Almost-Restoration
pritchaj2000 is offline
post #11 of 42 Old 04-17-2013, 10:42 PM
CJ7KAHUNA
Registered User
1985 CJ7

Join Date: Oct 2011
Location: Charlotte
Posts: 492
Quote:
Originally Posted by CJ7ROB View Post
I've used these ground bus bars before. I think they can look cleaner if you route your grounds correctly.

Where can you get these? Link or part number?
CJ7KAHUNA is offline
post #12 of 42 Old 04-17-2013, 10:49 PM
sanctified
Registered User
2013 JK Wrangler

Join Date: Mar 2013
Location: WVC
Posts: 447
You can get them at Lowes and home depot. Pretty cheap at under $10. They are by the electrical tools. I bought one at the depot last weekend.

2013 JK (see info on left)
SOLD: 1983 CJ7
Utah Jeep Crew #178
sanctified is offline
post #13 of 42 Old 04-17-2013, 10:53 PM
CJ7KAHUNA
Registered User
1985 CJ7

Join Date: Oct 2011
Location: Charlotte
Posts: 492
Quote:
Originally Posted by sanctified View Post
You can get them at Lowes and home depot. Pretty cheap at under $10. They are by the electrical tools. I bought one at the depot last weekend.
Awesome...thanks!
CJ7KAHUNA is offline
post #14 of 42 Old 04-18-2013, 05:39 AM
keith460
Jeep. There's Only One

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 6,201
Like most others have done now, get yourself a GM grounding bus bar from the junkyard for cheap.



A lead off of the battery negative side (-) goes directly to the bus bar and from there, branches out to several points around the Jeep.

Looped wire at far right goes to the firewall and on the other side of the bolt is an attached ground wire that goes to the dash to various points for grounding the instruments to.



Then we have two ground wires coming off the bus bar that go through the frame and one comes out at the rear and connects to the factory location for the Fuel Sending Unit ground were I have also branched off of that to the rear tail lights. Sorry, no picture.
The other wire going through the frame pops out at the front for grounding the headlight relays and parking lights.

In the center of the ground bus bar we have a ground wire coming off and going to the Starter Solenoid to provide a good ground there and it also provides a tap point for some accessory light and the MSD unit.



Then we have yet another wire that provides a ground for the factory underhood light at the far left on the bus bar (has since been changed to a S.S. ground strap).



All instruments and lighting works as they should and I never have problems with anything associated with grounding problems.

Dedicated grounds should be on the top of everyone's list for projects to complete on a Jeep CJ.

.
1984 CJ-7 Renegade
__________________

Restoration Thread:http://www.jeepsunlimited.com/forums...d.php?t=434226
keith460 is online now
post #15 of 42 Old 04-18-2013, 06:09 AM
PROJECT 23
Registered User
1985 CJ7

Join Date: May 2011
Posts: 2,599
Quote:
Originally Posted by CJ7KAHUNA View Post
Where can you get these? Link or part number?
I bought mine at a boat/ marine shop. Something like $10 as somebody else stated.......
PROJECT 23 is offline
