old heater plug wont fit new one from painless kit (see pic)

the plug coming from my heater does not plug into the one marked heater resistor on the painless wiring kit. what are my options also where does the one marked for heater motor on the engine harness plug into

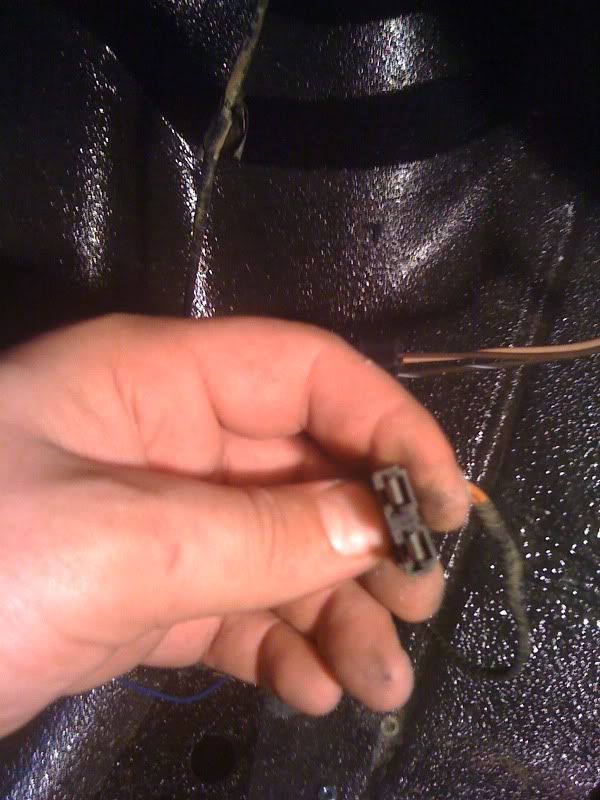

this is what the plug on the heater looks like

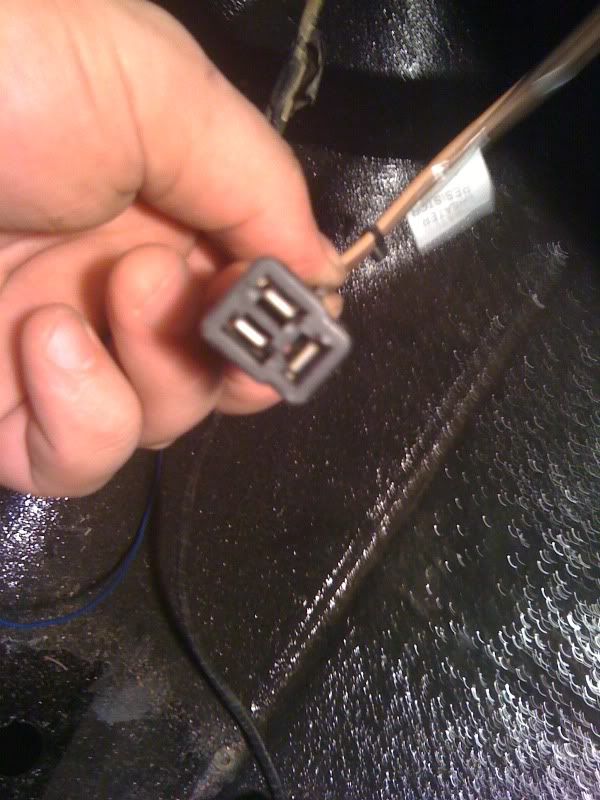

this is what the one on the painless kit looks like


DeadPhish is offline
Sponsored Links
Advertisement

post #2 of 13 Old 08-04-2009, 03:27 PM
smokedog
Registered User
1984 CJ7

Join Date: Mar 2007
Location: Brandon, MS
Posts: 201
Mine has that 3 plug type connector on the inside of the jeep (passenger side bottom right of heater box)... I think!? I am in Houston and can't go look right now.

Smokedog - Brandon, MS

84' CJ7 Renegade - Tungsten grey metallic paint, 388ci Chevy, 700r4, D300, SOA lift with YJ springs, 1" body lift, Bilstein 5150 shocks, Currie Rock Crawler Shackles, Trussed Ford 9 Rear w/ 4:56 gears, Detroit lockers, Dana 44 front, full poison spyder cage and lots of chrome and stainless.
smokedog is offline
post #3 of 13 Old 08-04-2009, 03:30 PM Thread Starter
DeadPhish
Registered User
1977 CJ7

Join Date: Jan 2009
Location: Brandon MS
Posts: 329
I thought you said you were going to houston to work? checking the jf doesnt get me paid. tell me how you do it
DeadPhish is offline
post #4 of 13 Old 08-04-2009, 03:31 PM
smokedog
Registered User
1984 CJ7

Join Date: Mar 2007
Location: Brandon, MS
Posts: 201
go to this link and on page 2 there is a pic -

http://www.jeepforum.com/forum/showt...+heater+blower

Smokedog - Brandon, MS

84' CJ7 Renegade - Tungsten grey metallic paint, 388ci Chevy, 700r4, D300, SOA lift with YJ springs, 1" body lift, Bilstein 5150 shocks, Currie Rock Crawler Shackles, Trussed Ford 9 Rear w/ 4:56 gears, Detroit lockers, Dana 44 front, full poison spyder cage and lots of chrome and stainless.
smokedog is offline
post #5 of 13 Old 08-04-2009, 03:32 PM
smokedog
Registered User
1984 CJ7

Join Date: Mar 2007
Location: Brandon, MS
Posts: 201
Quote:
Originally Posted by phishmaster View Post
I thought you said you were going to houston to work? checking the jf doesnt get me paid. tell me how you do it
haha - just taking a break from the daily grind.

Smokedog - Brandon, MS

84' CJ7 Renegade - Tungsten grey metallic paint, 388ci Chevy, 700r4, D300, SOA lift with YJ springs, 1" body lift, Bilstein 5150 shocks, Currie Rock Crawler Shackles, Trussed Ford 9 Rear w/ 4:56 gears, Detroit lockers, Dana 44 front, full poison spyder cage and lots of chrome and stainless.
smokedog is offline
post #6 of 13 Old 08-04-2009, 08:31 PM
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 15,808
thats because the oem plug was for a heater blower inside the tub typical for 76 and half of 77 CJ's and the new painless plug is for a heater system were the motor was outside in the engine compartment. typial of half the 77 and later CJ's

Call painless and see what they can do for you


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
John Strenk is offline
post #7 of 13 Old 08-13-2009, 06:28 PM Thread Starter
DeadPhish
Registered User
1977 CJ7

Join Date: Jan 2009
Location: Brandon MS
Posts: 329
how could i go about connecting the 2
DeadPhish is offline
post #8 of 13 Old 08-13-2009, 11:38 PM
OldSailor
Registered User
1977 CJ7

Join Date: Sep 2007
Location: Livonia, Michigan
Posts: 858
Call Painless. They will send you any connectors you properly need. You have an early 1977 CJ7, which had a two-speed blower moter and it took the two-connector plug. Starting in late 1977, they went to a 3-speed blower motor that used the 3-connector plug you see for the resistor. Also, in late 1977, the 12 volts for the heater blower connected to the motor power terminal, which stuck through a hold in the firewall into the engine compartment and was connected to a heater power wire on the engine wiring harness.

1977 CJ7, AMC360 V8 w/ headers, DUI HEI, Edelbrock intake, Holley 4150 carb, , TF999, D300, D30 front and AMC20 rear with 4.56 gears and lockers both ends, 4" susp lift, 2.5" body lift, 35" BFGs, ARG steering, 8000-lb winch, etc.
OldSailor is offline
post #9 of 13 Old 08-23-2009, 11:55 PM Thread Starter
DeadPhish
Registered User
1977 CJ7

Join Date: Jan 2009
Location: Brandon MS
Posts: 329
so what all is needed to get the new plug and to make it work?

"The inherent vice of capitalism is the uneven division of blessings, while the inherent virtue of socialism is the equal division of misery."
DeadPhish is offline
post #10 of 13 Old 12-16-2009, 08:42 PM Thread Starter
DeadPhish
Registered User
1977 CJ7

Join Date: Jan 2009
Location: Brandon MS
Posts: 329
does any one know if i can ditch the plugs and just wire it up directly? the plug from the motor has 2 wires and then there is a ground coming from the motor housing and the wire kit has 3 wires going into the plug. the wires are not the same color so how would i wire it up?

"The inherent vice of capitalism is the uneven division of blessings, while the inherent virtue of socialism is the equal division of misery."
DeadPhish is offline
post #11 of 13 Old 01-22-2010, 11:07 AM
JP_aka_Rowdy
Registered User
1976 CJ7

Join Date: Jul 2009
Location: Houston, TX
Posts: 3
I am having the same problem with my '76. I called Painless, and they were Clueless. Did you get any resolve to this? I've seen the heater plug in the engine compartment, and wonder if there's something you have to do with it as well.
JP_aka_Rowdy is offline
post #12 of 13 Old 01-22-2010, 11:49 AM
John Strenk
Moderator

John Strenk's Avatar
1976 CJ5

Join Date: Feb 2005
Location: Shalersville Ohio
Posts: 15,808
Well it depends on the switch you have installed. If you still have a 76-77 switch then you can just make up a new harness just for the Heater or use your old one over.

If you have your old switch and plugs, which it seems you do. Then connect the Tan wire from the new plug to the tan wire on the old plug. This supplies power to the switch. The other two wires, orange and red I think, go to the plug shown in the picture above.

Then get rid of the 3 wire plug and new heater switch plug.

If you want to use the new 3 speed switch and try running it with only two speeds, let me know.

In either case the simplest is to reuse your old connectors and switch. Snip the power wire off the new socket and connect it to your old switch socket.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
John Strenk is offline
post #13 of 13 Old 01-22-2010, 01:42 PM
JP_aka_Rowdy
Registered User
1976 CJ7

Join Date: Jul 2009
Location: Houston, TX
Posts: 3
Thanks John. I am actually updating everything in the dash and ordered the old '76 style two speed switch from 4WD:
2 speed switch: Heater Motor Switch by Omix and Other Jeep Parts and Jeep Accessories by 4 Wheel Drive Hardware

I may hold off on installing it in lieu of what you said and update it to a 3 speed just in case at some point in the future I may have to remove and replace the blower.
3 speed switch: Heater Motor Switch by Mopar and Other Jeep Parts and Jeep Accessories by 4 Wheel Drive Hardware

I'll repost once I figure it out. There is little to no info regarding this.
JP_aka_Rowdy is offline
