Now What?

So I've got the front end torn off my CJ for a cam change. I was looking at this fandangled suspension setup they have on the front end. Now I'm not a Jeep guy really, I have a 3rd Gen 4Runner that I've toyed with in the past. But my question is, why is there a friggen track bar on this front end? I thought you only ran those with coils? The bracket that's supposed to be "Bolted" to the frame was welded, thus weakening the steel at the welds and the frame now has two cracks about 2 inches long next to the bracket on both sides. Some people............

frodin1 is offline   Reply With Quote Quick reply to this message
Unread 02-26-2010, 08:46 PM   #2
Cutlass327
Web Wheeler

Cutlass327's Avatar
1978 CJ5

Join Date: Jan 2009
Location: Beach City, Ohio
Posts: 5,146
Is it a stock setup? I don't remember noticing a track bar on mine. Are you sure it's not the sway bar? What kind of CJ you have?
__________________
Rick

1978 CJ5 258/T177/D300, '86 D30/D44 WT axles, 'glass tub windshield frame, and fenders, 31x10.5 BFG A/T, TDK galv'd frame - DD and weekend toy

http://www.jeepforum.com/forum/f8/ri...8-cj5-1223197/
Cutlass327 is offline   Reply With Quote Quick reply to this message
Unread 02-26-2010, 09:37 PM   #3
John N
Registered User
1981 CJ8

Join Date: Oct 2003
Location: Rockville, Va
Posts: 2,356
CJs don't have track bars in original form, they do have a sway bar on most '76 and latter models. Post some pictures for some real input.
__________________
'81 Scrambler w/ FI 360 AMC, 33x12.50 BFG M/T's, 5" of lift, ARB'd Dana 44's F & R, Dana 300 clocked & twin sticked w/4:1, Warn XD9000i, etc...
2002 Grand Cherokee Limited, 2008 Overland Grand Cherokee, a 1976 CJ-7 in pieces and 3 more off-brand 4x4s...............
John N
John N is offline   Reply With Quote Quick reply to this message
Unread 02-26-2010, 10:57 PM   #4
frodin1
Registered User
1980 CJ7

Join Date: Feb 2010
Location: Havasu
Posts: 238
I actually posed some pics on another thread because they had the steering stabilizer all screwed up as well " I'm going to have to build a bracket for that". Yes it's a track bar. It's bolted on top of the differential housing "using the top 4 bolts and has a a rod with two heim joints on either end, over to the frame where there's another bracket. I'll get some better pics tomorrow! My setup is far from stock. I have no sway bar, and everything has Heim ends not tie rod ends, the steering rods are probably 1.25 inches in diameter. 1 rod goes from the steering box to the passenger side, and the other goes all the way across to the other wheel. Kind of like a drag link setup I guess. No where even close to stock. I know one thing for sure, this track bar is coming off. Manana!
frodin1 is offline   Reply With Quote Quick reply to this message
Unread 02-27-2010, 01:31 AM   #5
86cjjeeper
Registered User
1986 CJ7

Join Date: Jun 2009
Location: Rimersburg, PA
Posts: 21
Quote:
Originally Posted by frodin1 View Post
the steering rods are probably 1.25 inches in diameter. 1 rod goes from the steering box to the passenger side, and the other goes all the way across to the other wheel. Kind of like a drag link setup I guess.
that sounds like a factory CJ steering setup to me. on a stock cj, there is a draglink from the pitman arm to the passenger side knuckle, and then a tie rod runs from there to the driverside. i also read your post about the steering stabilizer. all cj steering stabilizers i've seen attach to the tie rod with 2 u bolts holding connecting it to a bracket. then the other end goes under the spring plate on the driverside with the spring centerbolt. yea, better pictures would really help determine what kind of setup you are dealing with.

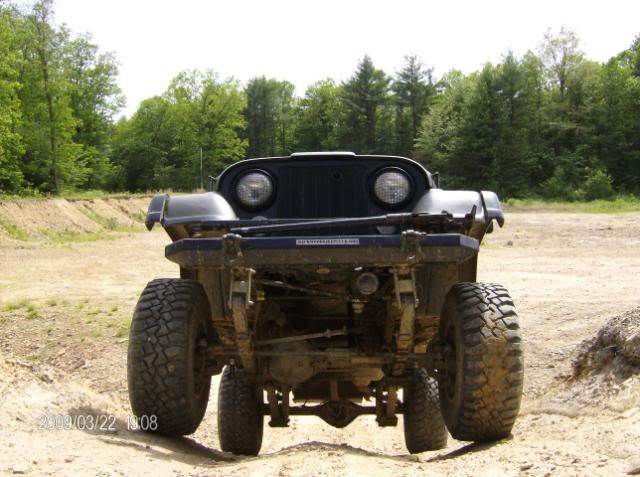

here is how it should look under there if it was stock.

__________________
'86 CJ7-258-T5-D300 - D44/D30 4.56's w/ Truetracs F/R
and a few other doodads and geegaws

Last edited by 86cjjeeper; 02-27-2010 at 08:36 AM..
86cjjeeper is offline   Reply With Quote Quick reply to this message
Unread 02-27-2010, 06:15 AM   #6
Mike Romain
Registered User
1986 CJ7

Join Date: Nov 2007
Location: Off the Grid in Chester Grant, Nova Scotia, Canada
Posts: 13,781
Quote:
Originally Posted by 86cjjeeper View Post
that sounds like a factory CJ steering setup to me. on a stock cj, there is a tierod from the pitman arm to the passenger side knuckle, and then a draglink runs from there to the driverside. i also read your post about the steering stabilizer. all cj steering stabilizers i've seen attach to the draglink with 2 u bolts holding connecting it to a bracket.

He did post photos in another link and does indeed have a homemade track bar on there to try and cover for worn out spring bushings.

You have your terminology slightly off. The 'drag link' is the adjuster for the steering wheel only alignment and runs from the pitman arm to the passenger side knuckle. The 'tie rod' goes between the two tires and sets the toe in only alignment.
__________________
Mike
86/00 CJ7 Laredo, 33x9.5 BFG AT's, 'glass nose to tail in '00, 'New' frame,wires and plumbing in '09. Carter BBD Carbed 4.0 HO in '10.
89 YJ Renegade. BBD Carbed 4.0 HO. Locked front and rear with 33x9.5 BFG AT's
Some Canadian Bush Jeep Runs and Build Photos: http://mikeromainjeeptrips.shutterfly.com (10 new albums added Sept 16/10)
Mike Romain is offline   Reply With Quote Quick reply to this message
Unread 02-27-2010, 08:35 AM   #7
86cjjeeper
Registered User
1986 CJ7

Join Date: Jun 2009
Location: Rimersburg, PA
Posts: 21
whoops, guess i shouldnt be posting things at 2:30 in the morning....i'll get things mixed up.....fixed it

i was not commenting on the track bar. i was just stating my views on the steering setup he has. i just found the thread with his steering pics. and IMO, besides the 'drag link' being flipped(cant clearly see if the 'tie rod' is too) and everything having the wrong joints, the setup appears to be the stock form, with the addition of some heavier steering rods.
__________________
'86 CJ7-258-T5-D300 - D44/D30 4.56's w/ Truetracs F/R
and a few other doodads and geegaws
86cjjeeper is offline   Reply With Quote Quick reply to this message
Unread 02-27-2010, 02:07 PM   #8
frodin1
Registered User
1980 CJ7

Join Date: Feb 2010
Location: Havasu
Posts: 238

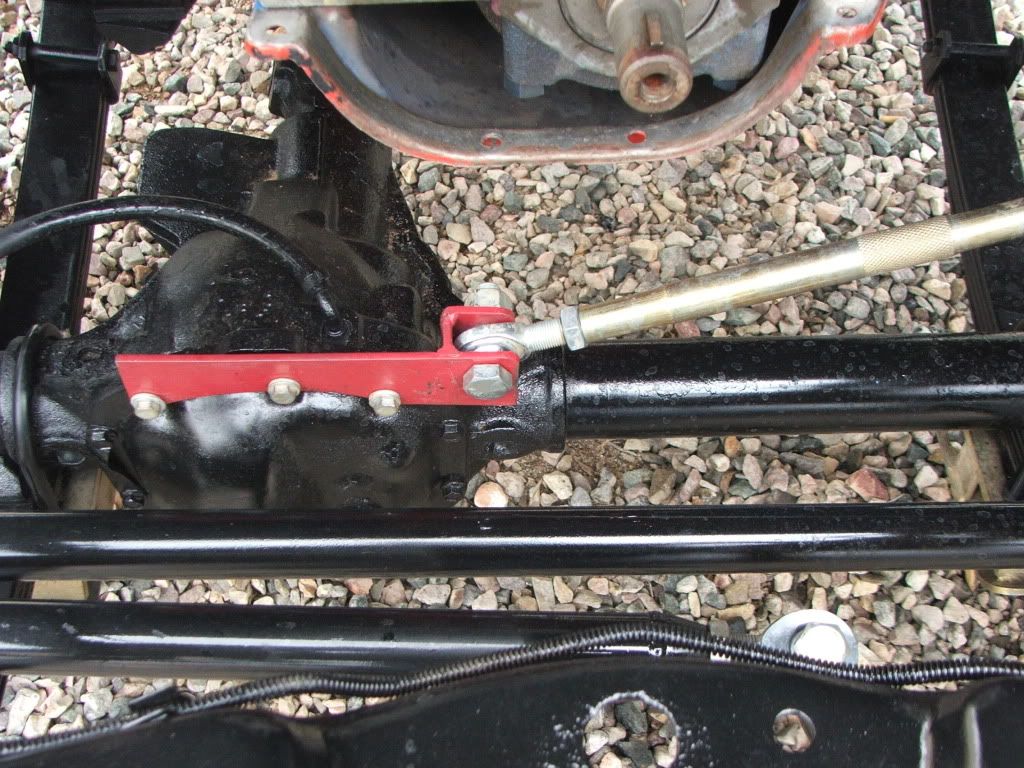

OK, gentlemen, I finally got around to some pictures. The first is the track bar, you'll see where the bracket attaches to the frame, I put a couple bolts through it to pull it back into position. After the axle has tried to rip it off. If anybody has a suggestion on how I can attach my stabilizer please let me know, the original mounts won't work. The angle is to great from the axle to the first rod. On the other stabilizer it actually twisted it upwards, and almost broke the threaded end off the shock.


A pic of the old stabilizer.

and a pic of my rods.
frodin1 is offline   Reply With Quote Quick reply to this message
Unread 02-27-2010, 02:16 PM   #9
frodin1
Registered User
1980 CJ7

Join Date: Feb 2010
Location: Havasu
Posts: 238
You can't really see it, but on both sides of the welds, on the frame bracket there are 2 cracks about 2 inches in length. I'm not sure if I should cut the bracket off and re-weld the cracks. Or try to cover it with another plate of steel? Got any ideas how to fix the cracks in the frame? Let me know.
frodin1 is offline   Reply With Quote Quick reply to this message
Unread 02-27-2010, 02:20 PM   #10
frodin1
Registered User
1980 CJ7

Join Date: Feb 2010
Location: Havasu
Posts: 238
My spring bushing aren't worn out, they're actually pretty new urethane ones. This is the way I got this. I'm just trying to make it right!
frodin1 is offline   Reply With Quote Quick reply to this message
Unread 02-27-2010, 03:16 PM   #11
Cutlass327
Web Wheeler

Cutlass327's Avatar
1978 CJ5

Join Date: Jan 2009
Location: Beach City, Ohio
Posts: 5,146
Make it right and get rid of that Add-on piece. Others here will give a better idea on a good way to repair the frame - I've seen some beautiful work on frames on this site.

That panhard bar should have been as long as possible and as level in the at-rest position as possible. Being it is short and angled, the upward movement of the axle is trying to push the axle over from the swing of the arc, which is why it is tearing your frame apart.. Poor design.
__________________
Rick

1978 CJ5 258/T177/D300, '86 D30/D44 WT axles, 'glass tub windshield frame, and fenders, 31x10.5 BFG A/T, TDK galv'd frame - DD and weekend toy

http://www.jeepforum.com/forum/f8/ri...8-cj5-1223197/
Cutlass327 is offline   Reply With Quote Quick reply to this message
Unread 02-27-2010, 03:53 PM   #12
Xtremjeep
Registered User
1988 YJ Wrangler

Join Date: Oct 2007
Location: Minnesota
Posts: 630
I remember seeing a few years back, someone on Ebay was making track bars just like this one. It was an attempt to solve "death wobble". Not a very good attempt IMO.
__________________
Build Thread: http://www.jeepforum.com/forum/f22/p...-88-yj-925398/

1980 CJ-7 Mall crawler (RIP 2010)
1983 CJ-8 Scrambler Full resto in progress
1988 YJ Fully Built but never Done

Xtremjeep is offline   Reply With Quote Quick reply to this message
Unread 02-27-2010, 06:19 PM   #13
CjAl
Registered User
1980 CJ7

Join Date: Feb 2010
Location: Texas
Posts: 658
you have a nice high steer setup with beefy links. That's nice but those heim joints I believe are technicly not street legal

as for the frame. cut the bracket off, grind into the cracks a little to open them up and make room for some weld to get in. Weld them, grind them smooth then put a fish plate over the area and weld it to the frame to reinforce the area
CjAl is offline   Reply With Quote Quick reply to this message
Unread 02-27-2010, 08:06 PM   #14
frodin1
Registered User
1980 CJ7

Join Date: Feb 2010
Location: Havasu
Posts: 238
I live in Lake Havasu AZ. about 90% of what's on the road out here isn't street legal. But this isn't my daily driver anyhow. That's what the Bug, sandrail and 4 Runner is for. I can't believe the things they allow out here. Lets see, dirt bikes "2 stroker is ok." rails of all sizes, razors, rhinos, quads, and not the big fancy ones either, if you have a banshee you can make it street legal. Full on rock crawler buggies, truggies can be street legal out here. I don't think they'll ever look at my heim joints.
frodin1 is offline   Reply With Quote Quick reply to this message
Unread 02-27-2010, 08:10 PM   #15
frodin1
Registered User
1980 CJ7

Join Date: Feb 2010
Location: Havasu
Posts: 238
I need to see how someones steering stabilizer is setup with rods like these? ANYBODY with an 80ish. Like I said before, I believe I need to use some sort of bracket that mounts on the leaf mount. My stabilizer has the threaded studs on both ends.
frodin1 is offline   Reply With Quote Quick reply to this message
