post #46 of 115 Old 03-16-2011, 08:30 PM
Jim1611
Web Wheeler

Jim1611's Avatar
1985 CJ7

Join Date: Jul 2009
Posts: 7,190
Nice install Ned and it sounds like they're going to work great. Hey make sure the pictures on this thread are always visable, I will be referring back to it later on. Thanks!!



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
(Crabtree Shackle Hangers)

My build thread

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Jim1611 is online now
Sponsored Links
Advertisement

post #47 of 115 Old 03-23-2011, 03:21 PM
WillyC24
Member
1980 CJ7

Join Date: Aug 2010
Location: Dallas
Posts: 143
Shoot, now I think I ordered the wrong parts for the exact same setup (contour dual electric fans)....

I have this one: Painless 30102

Can someone point me to a product which will give me instant plug-and-play dual fan control?

I saw the post for the JEGS dual fan controls (185 On/170 Off for 180 thermostat), but there is also this one (200 On/185 Off for 195 thermostat).

Which thermostat is best, and would either of these be preferable to the one I currently have?
WillyC24 is offline
post #48 of 115 Old 03-24-2011, 03:07 AM
Cutlass327
Web Wheeler

Cutlass327's Avatar
1978 CJ5

Join Date: Jan 2009
Location: Beach City
Posts: 5,898
Did you put some sort of reinforcement plate on the front of the WP pulley after you took the fan off? I had one on a donor engine for my Ranger - Turbo Coupes use electric fans. I imagine the flexing of the pulley could allow it to crack, and a dummy fan mount base would help support it for less flexing.

Rick

1978 CJ5 5.0HO/T177/D300, '86 D30/D44 WT axles, 'glass body, 31x10.5 BFG A/T, TDK galv'd frame - DD and weekend toy


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Cutlass327 is online now
post #49 of 115 Old 03-26-2011, 12:31 AM Thread Starter
nedmoore
Senior Member

nedmoore's Avatar
1982 CJ7

Join Date: Jan 2010
Location: Houston
Posts: 837
Did my first Highway trip with the Jeep today. Did a one hour highway trip. So far only rode around the hood....

On the highway it ran hotter! I guess because I was keeping up with traffic (around 70) temps were at 200. Exit the freeway and stop and go traffic and temps are at 180-190. What's up with that?
nedmoore is offline
post #50 of 115 Old 03-26-2011, 06:12 PM
Cutlass327
Web Wheeler

Cutlass327's Avatar
1978 CJ5

Join Date: Jan 2009
Location: Beach City
Posts: 5,898
Those large areas of the fan shroud where there really isn't anything is blocking your flow. I've seen some OEM fans that had those areas like that only they were cut out and flaps of rubber put on the back of the shroud. This allows air to blow the flaps open if need be, but the fans will pull them closed when at lower speeds. This will allow more airflow at highway speeds.

Rick

1978 CJ5 5.0HO/T177/D300, '86 D30/D44 WT axles, 'glass body, 31x10.5 BFG A/T, TDK galv'd frame - DD and weekend toy


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Cutlass327 is online now
post #51 of 115 Old 06-28-2011, 01:37 AM
Cutlass327
Web Wheeler

Cutlass327's Avatar
1978 CJ5

Join Date: Jan 2009
Location: Beach City
Posts: 5,898
Quote:
Originally Posted by rdsk8ter View Post
your package is in the mail if you need any help wiring it let me know I have a whopping 30 bucks into my setup (relays,wiring two switches and two surface temp switches) and it works great
Where'd you get the 2 temp switches? Everywhere I look temp sensors are like $36.00 each!

We need a thread in the Stickies for this. One that includes the simple 1 sensor and 2 relays for both on High, clear up to how to wire in the popular budget VSC.

Personally, I think one sensor for both on low and another for both on high would be ideal. I just need to know if I can rob some parts from donor vehicles for temp switches, or a budget friendly source for temp switches designed around a 195* t-stat system. I know Ford likes to use "idiot gauges", so I imagine the temp 'sensor' is a basic switch, that if it can turn on an idiot light or an idiot gauge, it can turn on a relay. I figure the idiot light is for overheating, so it could run the high speed, but the low speed is another question, Not sure about on/off temps for the idiot gauges..

Rick

1978 CJ5 5.0HO/T177/D300, '86 D30/D44 WT axles, 'glass body, 31x10.5 BFG A/T, TDK galv'd frame - DD and weekend toy


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Cutlass327 is online now
post #52 of 115 Old 07-09-2011, 12:15 AM
rdsk8ter
Registered User
1982 CJ7

Join Date: Jan 2011
Location: Northglenn
Posts: 573
sorry for the delay they are simple surface temp sensors I picked up from Johnson controls HVAC company
rdsk8ter is offline
post #53 of 115 Old 08-14-2011, 05:58 PM
godrocksus1
Registered User

Join Date: May 2008
Location: oklahoma
Posts: 89
Can someone post a parts list for the wiring diagram in the beginning of this thread? I have all of the sensors and wiring from fom the donor car. Can't I somehow just use the ford stuff?
godrocksus1 is offline
post #54 of 115 Old 08-06-2012, 11:05 AM
turbogus
Registered User
1978 CJ5

Join Date: Jun 2005
Location: Albany~town, Oregon
Posts: 2,069
Garage
Quote:
Originally Posted by Coiz View Post
If you have all the wiring going to the resistor and the fans, then you should have two main wires. A green with white and green with blue. If you give power to the green with white you will get dual low speed fans. If you supply power to the green with blue, you get dual high speed fans. Notice they are protected by a 60A fuse and need a minimum of 10 gauge wire.



If you are missing the wiring to the resistor then you likely have a green with yellow and a green with orange at the fans. Treat them as simple motors at that point, power and grounds, use relays. This is a good way to do it with the popular flex-a-lite controller. This would be for dual high speed fans.


And if you would like to have it wired with a three way switch for the option of on/off/auto, you would wire it like this.
Far out! That controller appears to be the same critter I presently have controlling that 13" fan on mine now got it from NAPA;



Now I just got to figure out how to rig a slow start gizmo and I can start bench building this.

The parts shop that stocks part for Skylab II will not have parts for our year/model of Jeep
We cannot accurately judge the trajectory of a speeding critter (cat, dog, sasquatch)
Record heat waves and floods only occur when we visit that area
turbogus is offline
post #55 of 115 Old 08-07-2012, 11:36 AM
turbogus
Registered User
1978 CJ5

Join Date: Jun 2005
Location: Albany~town, Oregon
Posts: 2,069
Garage
THANKS FOR ALL THE DIAGRAMS! Now, what parts and how can I incorporate a soft start for these fans? Thanks in advance for responses and a lift of the lynch lid !

Gus

The parts shop that stocks part for Skylab II will not have parts for our year/model of Jeep
We cannot accurately judge the trajectory of a speeding critter (cat, dog, sasquatch)
Record heat waves and floods only occur when we visit that area
turbogus is offline
post #56 of 115 Old 08-07-2012, 12:10 PM
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,226
Garage

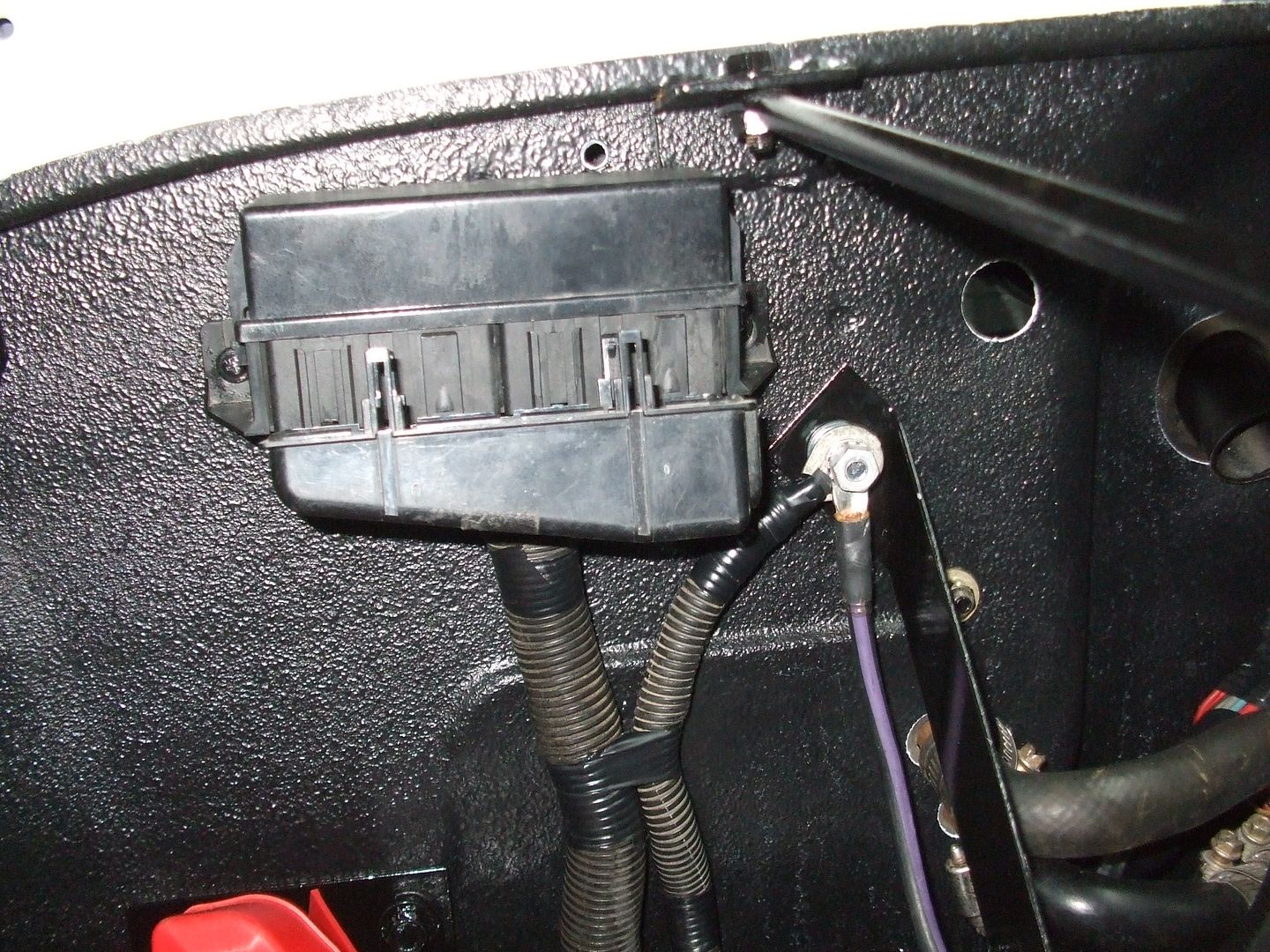

All you need are two standard 30/40A relays. I picked up a relay box with the cover from a salvage yard for $5.



This one has three main relays and 2 mini relays. You can use one for each fan and still have three left over for fog lamps, headlamps, high beams, etc.,.



As far as a soft start, you can't do that with that style of controller. You can achieve the same effect as a soft start if you wire in a capacitor in the circuit just like you would for a big stereo amplifier. I didn't bother with the capacitor as the momentary dip in my volt gauge is not a big deal to me and even helps me to see when the fans are turning on and off while driving down the road when you can't hear them.

Mike

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline
post #57 of 115 Old 08-07-2012, 01:33 PM
turbogus
Registered User
1978 CJ5

Join Date: Jun 2005
Location: Albany~town, Oregon
Posts: 2,069
Garage
Thanks so much for your speedy respone Coiz! You da Man!
Perhaps I'm being too cautious or it's the inner anal Marine in me but I've read in a magazine a while back and a few posts here and there that as far as the fan motors were concerned the instant on was hard on 'em so soft start was a good feature. Also it occurrs that since I'd be wiring in relays for protection of the control wiring and this entire procedure is intended to protect against overheating, it follows in my mind to take the protection all the way. I guess now you know how my mind works!
Only now learing how capacitors work in this situation, if a line carrying DC voltage has ripples or spikes in it, a big capacitor can even out the voltage by absorbing the peaks and filling in the valleys. IF this is so and the capacitor eventually discharges wouldn't it dump it's charge once it reaches capacity? (Like bang goes the wiring?) Would that capacitor wire in between the relays and the fans, or before the relays?
Sorry for all the ameteurish questions, I'm no one's electrician.

The parts shop that stocks part for Skylab II will not have parts for our year/model of Jeep
We cannot accurately judge the trajectory of a speeding critter (cat, dog, sasquatch)
Record heat waves and floods only occur when we visit that area
turbogus is offline
post #58 of 115 Old 08-07-2012, 07:21 PM
98blacksahara
Registered User
1951 CJ3A

Join Date: Nov 2008
Location: Littleton NH
Posts: 663
Any of you guys know how to take 3 relays and make a Low to High step up relay system? I am going to run a mkVIII fan and would like it to come on at 170ish and turn to high at 195. But that set-up requires a step up, as high draws a ton of voltage at first. Not sure if this is the right place to ask.

Thanks

Quote:
Originally Posted by RubiconRazorbac View Post
Well, I've never eaten a turd sandwich, but I wouldn't have a problem recommending not to try it.:thumbsup:

But I'm sure someone out there will post that they regularly eat turd sandwiches with no problems...
98blacksahara is offline
post #59 of 115 Old 08-08-2012, 02:55 PM
turbogus
Registered User
1978 CJ5

Join Date: Jun 2005
Location: Albany~town, Oregon
Posts: 2,069
Garage
Where's that icon for slapping my forehead?

Only NOW do I get it! That resistor (R27) on the shroud provides the slow speed and I don't imagine that's going to jolt the fan motors as I feared! So just a pair of 30/40 or 70 amp relay ahead of the whole shooting match should do the trick then! whew! ....unless I'm wrong again !


The parts shop that stocks part for Skylab II will not have parts for our year/model of Jeep
We cannot accurately judge the trajectory of a speeding critter (cat, dog, sasquatch)
Record heat waves and floods only occur when we visit that area
turbogus is offline
post #60 of 115 Old 08-08-2012, 05:47 PM
turbogus
Registered User
1978 CJ5

Join Date: Jun 2005
Location: Albany~town, Oregon
Posts: 2,069
Garage
BTW this fan cleaned up really well using De-solv-it and some ArmorAll

Before;


and after;



...not that I'm building some trailer queen

The parts shop that stocks part for Skylab II will not have parts for our year/model of Jeep
We cannot accurately judge the trajectory of a speeding critter (cat, dog, sasquatch)
Record heat waves and floods only occur when we visit that area
turbogus is offline
