Measuring the Caster

Hello Everyone-
I recently purchased a 1984 CJ-7 and have been reading all of the posts related to steering issues because the Jeep I have is all over the road. I tried to measure the caster last night with an angle meter I bought at Northern Tool, but I'm not sure if I did it correctly. I turned the wheels all the way to the left and placed the angle meter on the passenger side hub, right on top of the lock out dial, and measured 91 degrees. Then, I turned the wheels all the way to the right and again measured from the hub and got 86 degrees. To me, it would seem to have 6 degrees of caster. Did I measure this correctly or should I have taken the measurement from somewhere else. This is the only flat spot I could find in the center of hub.

Thanks in advance for any comments

caxmach is offline   Reply With Quote
Unread 02-08-2007, 12:56 PM   #2
bdmonist
WTF is that?

bdmonist's Avatar
1984 CJ7

Join Date: May 2006
Location: Brandon, MS
Posts: 1,441
Put your angle finder on the bottom of the knuckles to measure your castor anlge. You may have to pull the grease fitting out to get a flat surface.
__________________
1984 CJ 7, SBC 350TBI, 700R4, D 300, AMC 20, D30, 35" Mickeys, 3.54 Gears, 4" susp. Lift, 2" body lift.

AMC 20 Write Up
In Progress - 4.56 gears, Aussie Rear Locker, Moser 1 Piece Axles
Coming Soon - CV Shafts, Welded Tubes, trusses
bdmonist is offline   Reply With Quote
Unread 02-09-2007, 04:28 PM   #3
jode
Registered User
1990 YJ Wrangler

Join Date: Jul 2004
Location: Midway, UT
Posts: 552

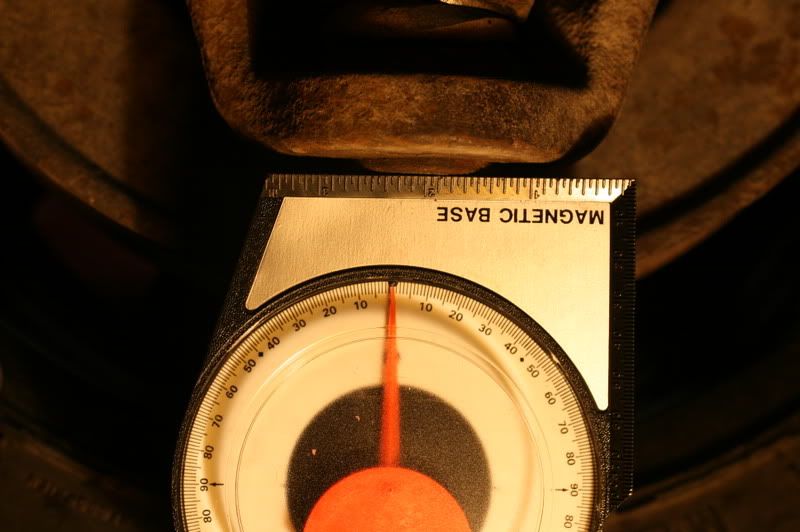

Nto sure what the deal is with all the wheel turning...I pulled the zerk off the bottom of the balljoint, threw the angle finder on there and got this:

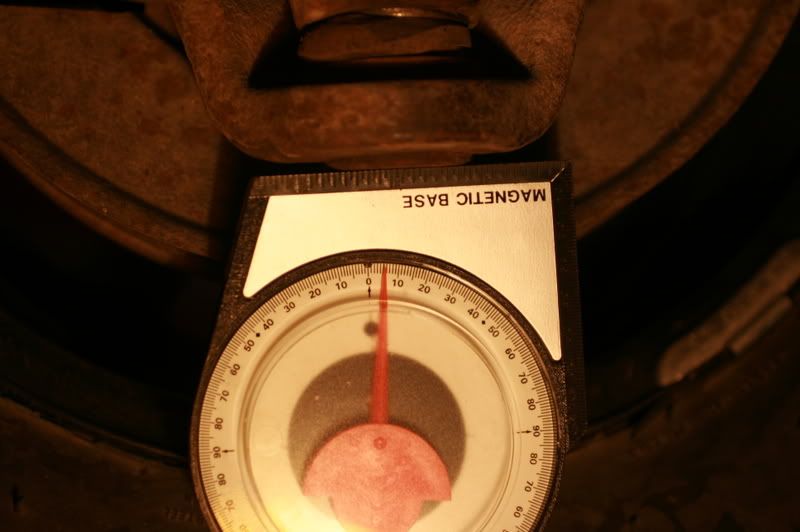

So I threw in some 4* shims and now I have this:



That is with the wheels pointing straight forward. It drives better now, but there are still some normal "wear and tear" type issues that need resolution before it drives to my liking. It is still a bit loose for my tastes. I'll also be shortening my shackles to get another degree or two of caster.
__________________
Hung like Einstein and smart as a horse...


90 YJ, 2.5L, 5-speed
jode is offline   Reply With Quote
Unread 02-09-2007, 06:00 PM   #4
BESRK
GROUND POUNDER

BESRK's Avatar
1980 CJ5

Join Date: Nov 2002
Location: Newport News, VA
Posts: 12,264
Make sure to take into account any driveway slope... this is from a guy who builds rigs on a 4 degree driveway slope.. have to figure that into caster, driveline angles..etc.
__________________
'80 CJ5 w/AMC360, T176, D44 w/Detroit 4.56, RE 4" YJ lift and 35s..

Ground Pounder Fab


Lower 2

Guardrail

Down Schoolbus

Slickrock Tellico

Save

Crozet

More Crozet
BESRK is offline   Reply With Quote
Unread 02-09-2007, 08:14 PM   #5
bdmonist
WTF is that?

bdmonist's Avatar
1984 CJ7

Join Date: May 2006
Location: Brandon, MS
Posts: 1,441
When you are measuring castor angle, shouldn't the bottom knuckle be more forward than the top? I always thought bottom, which would put Jodes castor angle at 5* in the wrong direction? Am i wrong here?
__________________
1984 CJ 7, SBC 350TBI, 700R4, D 300, AMC 20, D30, 35" Mickeys, 3.54 Gears, 4" susp. Lift, 2" body lift.

AMC 20 Write Up
In Progress - 4.56 gears, Aussie Rear Locker, Moser 1 Piece Axles
Coming Soon - CV Shafts, Welded Tubes, trusses
bdmonist is offline   Reply With Quote
Unread 02-09-2007, 08:30 PM   #6
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434
Quote:
Originally Posted by BESRK
Make sure to take into account any driveway slope... this is from a guy who builds rigs on a 4 degree driveway slope.. have to figure that into caster, driveline angles..etc.
Eddie, I did the same thing.
I read 5* on the dial gauge after installing the RE4.5 and was thinking of putting shims in. Then I laid an 8' level on the garage floor and found I had a 2* slope.
7* is target right?
__________________
Fatman is offline   Reply With Quote
Unread 02-09-2007, 08:34 PM   #7
Fatman
Registered User
2008 CJ7

Join Date: May 2006
Location: Raleigh, NC
Posts: 2,434
Quote:
Originally Posted by bdmonist
When you are measuring castor angle, shouldn't the bottom knuckle be more forward than the top? I always thought bottom, which would put Jodes castor angle at 5* in the wrong direction? Am i wrong here?
I'd assume Jode is measuring the left side in the pic. If it's the right side then yes he is the wrong way.
__________________
Fatman is offline   Reply With Quote
Unread 02-10-2007, 10:29 AM   #8
jode
Registered User
1990 YJ Wrangler

Join Date: Jul 2004
Location: Midway, UT
Posts: 552
It' the driver side, so the front is to the right.
Also, it is in my garage which has a slight slope (unmeasured). The slope is from the right, down to the left, so if I thinking correctly, any slope in the drive would cause me to read more caster than I actually have....which brings me to phase 2 of my plan...shortening my shackles.
__________________
Hung like Einstein and smart as a horse...


90 YJ, 2.5L, 5-speed
jode is offline   Reply With Quote
Unread 02-11-2007, 12:19 PM   #9
bdmonist
WTF is that?

bdmonist's Avatar
1984 CJ7

Join Date: May 2006
Location: Brandon, MS
Posts: 1,441
Ah yes, the driver's side! Too many beers Fri night!
__________________
1984 CJ 7, SBC 350TBI, 700R4, D 300, AMC 20, D30, 35" Mickeys, 3.54 Gears, 4" susp. Lift, 2" body lift.

AMC 20 Write Up
In Progress - 4.56 gears, Aussie Rear Locker, Moser 1 Piece Axles
Coming Soon - CV Shafts, Welded Tubes, trusses
bdmonist is offline   Reply With Quote
Unread 02-12-2007, 08:51 AM   #10
caxmach
Registered User

Join Date: Feb 2007
Location: Fort Worth
Posts: 7
Thanks. I took the measurement from the bottom of the knuckle and it was 7deg. I guess I'll have to keep looking.
caxmach is offline   Reply With Quote
Unread 02-12-2007, 04:25 PM   #11
jode
Registered User
1990 YJ Wrangler

Join Date: Jul 2004
Location: Midway, UT
Posts: 552
A few more things to check:

Tie rod ends
Play in steering box sector shaft
loose spring bushings
Weak OEM steering box mount brackets with large offroad tires
Blown shocks
Bad draglink angle
Loose hubs
No steering stabilizer
Loose bolts
Too-long shackles
Large, aggressive, or cheap or bias ply tires
