post #31 of 127 Old 03-08-2012, 05:02 PM
brownbagg
Registered User
1930 MK Compass

Join Date: Feb 2010
Location: pearl
Posts: 2,471
here mine

brownbagg is offline
Sponsored Links
Advertisement

post #32 of 127 Old 03-08-2012, 07:05 PM
scoutboater
Registered User
1974 CJ5

Join Date: Oct 2011
Location: Huntsville
Posts: 612
Here's mine

For the record: The top is now white, the oil leak is not hers, and the tires are now better fitting 33's. Oh, and it is definitely an 8274 under there, you'll just have to take my word for it...
Attached Thumbnails
scoutboater is offline
post #33 of 127 Old 03-08-2012, 08:38 PM
Magical_Merlin
Registered User
1976 CJ5

Join Date: Jan 2008
Location: Renton, WA
Posts: 67
Here is mine.
Attached Thumbnails
Magical_Merlin is offline
post #34 of 127 Old 03-09-2012, 06:50 AM
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 5,433
Cool, another wheeler from Washington!

Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline
post #35 of 127 Old 03-09-2012, 08:02 AM
BuckleshootCJ5
Registered User
1973 CJ5

Join Date: May 2011
Location: Western
Posts: 335
Here's mine...



The world would be a better place if being stupid hurt...
BuckleshootCJ5 is offline
post #36 of 127 Old 03-14-2012, 10:39 AM
VirtualRussel
Registered User
1985 CJ7

Join Date: Jul 2010
Location: Rochester Hills
Posts: 101
Garage
Here's my '85 CJ . . .
Attached Thumbnails
VirtualRussel is offline
post #37 of 127 Old 04-10-2012, 07:02 PM
walkerhoundvm
Registered User
1981 CJ8

Join Date: Apr 2010
Location: The Little Apple
Posts: 3,408

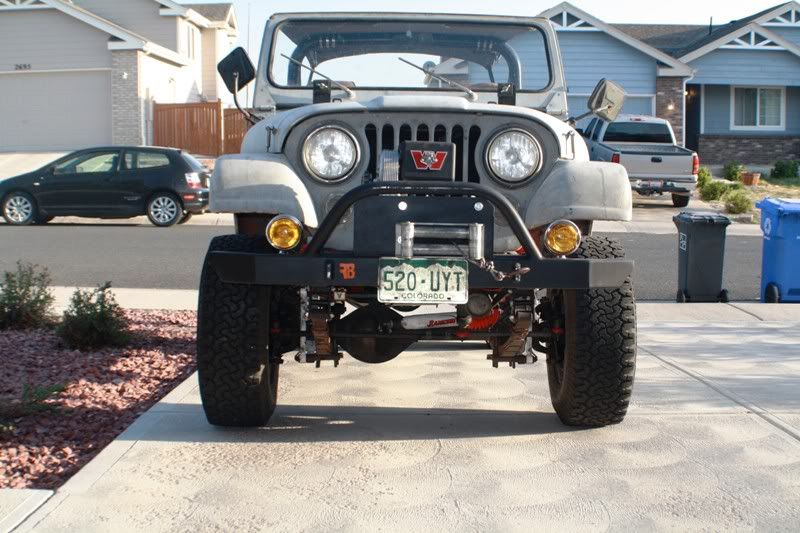

Just wanted to resurrect this thread to post up pics of my 8274 on my new bumper from fessybuilt.com in Broomfield, CO:

walkerhoundvm is offline
post #38 of 127 Old 04-11-2012, 07:27 AM
lockedcj7
Registered User
1985 CJ7

Join Date: Dec 2008
Location: Anderson
Posts: 185


New tires and wheels since the pic but everything else is basically the same.
lockedcj7 is offline
post #39 of 127 Old 04-12-2012, 08:01 AM
steveojeepster
Registered User
1978 CJ7

Join Date: Apr 2009
Location: Newton
Posts: 122
Guys, some real good looking Jeeps here. I'm thinking of picking up a 1977 8274 model for $500 locally. I'm curious if you guys can share some thoughts and perhaps detailed pictures on your mounts. I'm trying to plan the best way to mount a winch on my rig. I'm thinking I may bolt a verticle plate to the back of my 2"x4" 3/16ths bumper with a welded horizonal plate extending back and bolted to the top of my cross member. Thoughts?

78 CJ7 - Fiberglass Tub - 258, T18, Dana 44 Rear - York OBA - 8274 - 33 MTs - Team Rush & MSD
steveojeepster is offline
post #40 of 127 Old 04-12-2012, 08:24 AM
walkerhoundvm
Registered User
1981 CJ8

Join Date: Apr 2010
Location: The Little Apple
Posts: 3,408
1. See if you can get it for less - has it been rebuilt recently? Needs painting? Cleaning? New lead? Motor? Depending on how it looks on the outside, you may need to crack it open and check the gears. It's fairly easy to rebuild with the right tools, but there are a lot of heavy, difficult to maneuver parts.

2. Mine came with a CJ mount - total for both after all said and done ~$300, and my fabricator incorporated the mount into the bumper when he built it. Other than that, I'm sure you could fab a mount up but I'm not the one to ask about that.
walkerhoundvm is offline
post #41 of 127 Old 04-12-2012, 08:45 AM
steveojeepster
Registered User
1978 CJ7

Join Date: Apr 2009
Location: Newton
Posts: 122
Here's a pic. From what I understand it's been in storage for 9 or so years and hasn't been serviced recently. Doesn't come with a remote or winch plate but does work when powered on the bench. I was thinking $300 given my research but they are fairly rare up here in the north east.
Attached Thumbnails

78 CJ7 - Fiberglass Tub - 258, T18, Dana 44 Rear - York OBA - 8274 - 33 MTs - Team Rush & MSD
steveojeepster is offline
post #42 of 127 Old 04-12-2012, 09:27 AM
82JeepCJ7
Registered User
1982 CJ7

Join Date: Jun 2010
Location: Marysville, WA
Posts: 5,433
Quote:
Originally Posted by steveojeepster View Post
Guys, some real good looking Jeeps here. I'm thinking of picking up a 1977 8274 model for $500 locally. I'm curious if you guys can share some thoughts and perhaps detailed pictures on your mounts. I'm trying to plan the best way to mount a winch on my rig. I'm thinking I may bolt a verticle plate to the back of my 2"x4" 3/16ths bumper with a welded horizonal plate extending back and bolted to the top of my cross member. Thoughts?

The best way to fab a mount is to pick up a big piece of 8x8 angle iron. Cut it to the same width as your frame. Drill some mounting holes to match the holes in the top of your frame rails. Drill the 4 holes (4.5x10" pattern) and make the cut out for the cable. Add a couple of diagonal braces to either side of the winch, trim down the top corners, paint and bolt it on.

Here is the mounting pattern for all 8274's.

Beat it to fit, paint it to match!

Wheel, Wrench, Repeat.
82JeepCJ7 is offline
post #43 of 127 Old 04-12-2012, 10:41 AM
brownbagg
Registered User
1930 MK Compass

Join Date: Feb 2010
Location: pearl
Posts: 2,471
if you get it for 500 is still a good deal, cheaper is better but dont walk away if they only go 500
brownbagg is offline
post #44 of 127 Old 04-12-2012, 02:42 PM
walkerhoundvm
Registered User
1981 CJ8

Join Date: Apr 2010
Location: The Little Apple
Posts: 3,408
^^^^ Here's a picture of mine when I brought it home:



Personally, I wouldn't pay more than $350 for that, no matter where you are. It's mostly in good shape, but defo needs a tear down and cleaning. If they're rare, well, maybe extend your search a little farther. Try using SearchTempest.com and searching all the misspellings - "Warren" "Wench", etc. I've got half a dozen 8274s within a two hour drive of my place, half of them misspelled.
walkerhoundvm is offline
post #45 of 127 Old 04-12-2012, 02:47 PM
walkerhoundvm
Registered User
1981 CJ8

Join Date: Apr 2010
Location: The Little Apple
Posts: 3,408
Also - how do you know the year? Mine is a '79 and it hasn't got a clutch/free spool; I thought that was added in later years...
