I need some gas tank basics

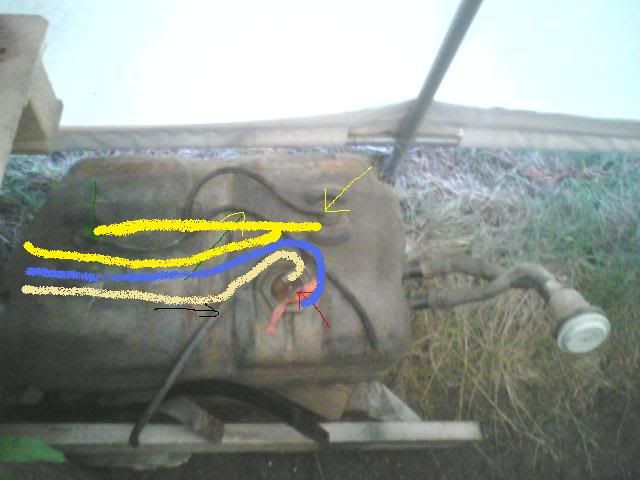

So i just lowerd my gas tank and realized i dont know squat about what is going on with the basic operations. Im not sure why there 3 lines running toward the front. in the pic im guessing that the yellow and green arrow is for vapour return splitting to 2 lines (not sure why). So then im thinking red arrow is fuel to and black would be fuel back too tank. So if someone could help explain some of this to me that would great. also iwas wondering if this plastic tank would be the stock for my 83 cj5.
Thanks for any help...

davegt is offline   Reply With Quote Quick reply to this message
Unread 09-13-2010, 05:56 PM   #2
jeepman1
Registered User
1994 YJ Wrangler

Join Date: Feb 2010
Location: Harbor Springs, michigan
Posts: 8
i pretty sure the other two are just overflow tubes
jeepman1 is offline   Reply With Quote Quick reply to this message
Unread 09-13-2010, 06:48 PM   #3
SlikRic
Muddin Maniac

SlikRic's Avatar
1983 CJ7

Join Date: Jan 2008
Location: North Port, Florida
Posts: 3,114
Yellow and green are for the overflow, red and black run up to the fuel filter (larger one gas to filter/carb, smaller one return line from the filter. Can't tell which is which by the pic)
__________________
United States of America
Born: July 4, 1776
Died: Nov 4, 2008
SUICIDE
SlikRic is offline   Reply With Quote Quick reply to this message
Unread 09-13-2010, 11:52 PM   #4
wrongway92407
Member

wrongway92407's Avatar
1986 CJ7

Join Date: Nov 2009
Location: Devore Ca.
Posts: 483
The 2 plastic valves are roll over check valves, they are usually connected together by a plastic Y. The larger hose is the fuel line crosses over at the rear cross member and goes to the fuel pump on the right side of the engine the other is a fuel return line comes from the small line on the fuel filter and returns excess gas back to the tank. Be sure to replace all the line since you have the tank out.
__________________
Wrongway
My fleet:
86 CJ7 5.7 vortec. 4L60,D44's,OBA,Air tank bumpers w/D rings detroits,4.88,35" bfg, mt's 9500ti warn
86 CJ7 2.5 detroits, OBA 4.56, air tank bumpers, w/D rings,9500I warn 31x10.5x15, Trxus
86 CJ7 bone stock, w/factory 44 never seen the dirt soon to be for sale
87 Wrangler also never seen the dirt.
wrongway92407 is offline   Reply With Quote Quick reply to this message
Unread 09-14-2010, 10:17 AM   #5
83vert
Registered User
1982 CJ7

Join Date: Aug 2010
Location: New York
Posts: 807
My CJ also has a plastic tank but I thought it was aftermarket. Are these tanks stock?
83vert is offline   Reply With Quote Quick reply to this message
Unread 09-14-2010, 10:37 AM   #6
Mike1084
Registered User
1979 CJ7

Join Date: Apr 2009
Location: VA
Posts: 273
Might also want to do a seach on CJ fuel system diagram. IIRC there are pics from the service manual showing factory set up.

Mike1084 is offline   Reply With Quote Quick reply to this message
Unread 09-14-2010, 11:04 AM   #7
84jeepjohn
Registered User
1984 CJ7

Join Date: Aug 2005
Location: Satellite Beach FL
Posts: 596
FYI the one mike showed is for a 15 gallon. The plumbing is way different
__________________
84 CJ-7 RE 4.5" lift TJ flares and 35"BFG's
4.88's and OX lockers front and rear
2000 Grand Cherokee, 2" lift, BFG AT's (SOLD)
2005 Z71 Suburban with 1.5" rear spacers, and front leveled
84jeepjohn is offline   Reply With Quote Quick reply to this message
Unread 09-14-2010, 01:46 PM   #8
wrongway92407
Member

wrongway92407's Avatar
1986 CJ7

Join Date: Nov 2009
Location: Devore Ca.
Posts: 483
Those are factory tanks, I believe it was an option. and 84jeepjohn is correct a 15 gal tank is a whole different animal with the the valves located under the left rear 1/4 panel behind the light
__________________
Wrongway
My fleet:
86 CJ7 5.7 vortec. 4L60,D44's,OBA,Air tank bumpers w/D rings detroits,4.88,35" bfg, mt's 9500ti warn
86 CJ7 2.5 detroits, OBA 4.56, air tank bumpers, w/D rings,9500I warn 31x10.5x15, Trxus
86 CJ7 bone stock, w/factory 44 never seen the dirt soon to be for sale
87 Wrangler also never seen the dirt.
wrongway92407 is offline   Reply With Quote Quick reply to this message
Unread 09-14-2010, 03:27 PM   #9
84jeepjohn
Registered User
1984 CJ7

Join Date: Aug 2005
Location: Satellite Beach FL
Posts: 596
From what I can see I'm the pic. Your line between the check valves is backwards. The one off the sending unit is the suply line to the motor and the one I can't see right next to the supply is the return

If you have it out I'd suggest changing all the stuff so you don't have to worry about it. The check valves and grommets are the same as for a YJ (FYI just replaced all my stuff) I had to order them from the dealer about $55 for 2 valves and 2 grommets

I also went ahead and did the sending unit, o-ring, and filter sock at the same time

On a personal note my old tank did not have any insulation on the center hold down strap. And after 25 years cut the tank. When I got another, I cut some of the extra rubber liner to give some cushion.
__________________
84 CJ-7 RE 4.5" lift TJ flares and 35"BFG's
4.88's and OX lockers front and rear
2000 Grand Cherokee, 2" lift, BFG AT's (SOLD)
2005 Z71 Suburban with 1.5" rear spacers, and front leveled
84jeepjohn is offline   Reply With Quote Quick reply to this message
Unread 09-19-2010, 07:22 PM   #10
davegt
Registered User
1983 CJ5

Join Date: Jul 2008
Location: canada
Posts: 380
jeepjohn...Im not sure what you mean backyards...also should the line coming from the green arrow be smaller or was that a P.O. job.
davegt is offline   Reply With Quote Quick reply to this message
Unread 09-19-2010, 07:36 PM   #11
84jeepjohn
Registered User
1984 CJ7

Join Date: Aug 2005
Location: Satellite Beach FL
Posts: 596
Quote:
Originally Posted by davegt View Post
jeepjohn...Im not sure what you mean backyards...also should the line coming from the green arrow be smaller or was that a P.O. job.

the yellow is the vent from between the two check valves and then it goes up to the charcol canister (mine has a green plastic hose by the front)

the tan line is the pick up going to the motor (5/8 I belive)

the blue is the return line from the fuel filter by the carb (smaller than the suply line)
__________________
84 CJ-7 RE 4.5" lift TJ flares and 35"BFG's
4.88's and OX lockers front and rear
2000 Grand Cherokee, 2" lift, BFG AT's (SOLD)
2005 Z71 Suburban with 1.5" rear spacers, and front leveled
84jeepjohn is offline   Reply With Quote Quick reply to this message
Unread 11-30-2012, 10:13 AM   #12
Rander911
Registered User

Join Date: Nov 2012
Location: Belen, New Mexico
Posts: 6
I have a 1983 Jeep CJ5 with the exact same tank as you. I am trying to replace that tank but cannot find any sources that recognize that tank. Does anyone know where I can get a tank that is pictured above?
Rander911 is offline   Reply With Quote Quick reply to this message
Unread 11-30-2012, 12:11 PM   #13
texasdave
Web Wheeler

texasdave's Avatar
1980 CJ7

Join Date: Dec 2007
Location: Killeen, Texas
Posts: 1,015
Quadratec has one for 279 with all the mounting hardwre.
texasdave is offline   Reply With Quote Quick reply to this message
Unread 11-30-2012, 02:45 PM   #14
wm69
Registered User

Join Date: Jun 2003
Posts: 3,220
OEM plastic 20 gal tank there are not any direct fit replacements. You can get new sending units for them, but if you need a replacement tank you'll have to find an original used one. There ARE aftermarket 21 gal tanks, but they don't fit the factory 20 gal skids.

You can also get aftermarket skids (Kilby, for one) for the factory 20 gal tanks, but again, the 20 gal OEM-style tanks themselves are not available new.
__________________
85 CJ7 258, borla header, Team Rush, MC2100 ,optima batt, Warn 8274, agr super box 2 & pump, T5 w/ B&M shifter, centerforce 2, superior 1 piece axles, warn hubs 2.5 in lift, 31" BFG MT

85 CJ7 258, A/C, T176, MC2100, Team Rush, Warn XD8000i, superwinch hubs, 3in lift 31" BFG AT/KO
wm69 is offline   Reply With Quote Quick reply to this message
Unread 11-30-2012, 07:34 PM   #15
Ken4444
Corripe Cervisiam

Ken4444's Avatar
1985 CJ7

Join Date: Oct 2005
Location: Houston, Texas
Posts: 4,604
My CJ came with a 21 gallon tank and replaced it with a 15 gallon tank and all of the necessary parts from MTS. To do it right, you also have to install a rollover valve (available new) and a liquid check valve (no longer made, but not hard to find used) so that your Jeep has the parts that would have been there if it came with a 15 gal. So it's not a cheap proposition by the time you buy everything but it's better than having an old, leaky tank.
