post #1 of 50 Old 05-22-2010, 05:33 PM Thread Starter
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: Saunderstown
Posts: 2,355
I'm Building a Dash....lots of pics!!

Well, I'm doing a full frame-up redo of my Jeep. I'm doing it the hard way, though, for several reasons...the hard way meaning that I'm almost building a second jeep. I'm getting all the sub-assemblies done that I can, so when the time comes, it'll be a quick swap.

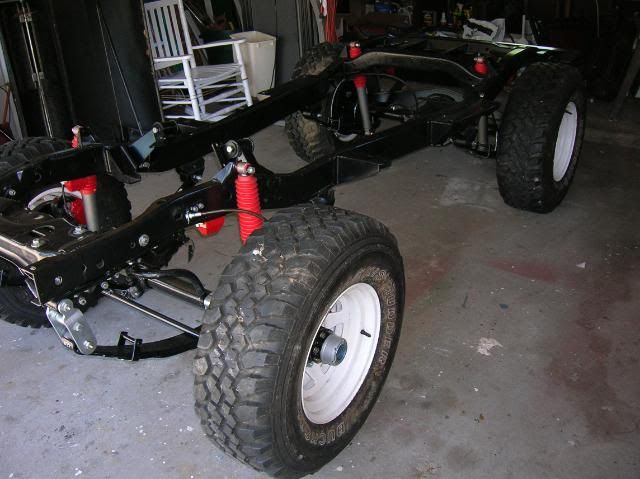

I've restored a complete second rolling chassis...here are a few pics of that project...











The reason that I'm doing the restoration this way is because I don't have the room to completely tear my jeep apart, and have stuff all over the place, while I repair, paint, etc. everything. This is taking me years to do. Plus, I can continue to drive my jeep until the last minute.

One of my sub-assemblies is a new dash. I bought an aluminum dash, and am modifying it the way I want.

I want the gauges to aim at me. That involves gauge bezels. I looked online, and the only ones that I found were 15* angles, and they were fatter than the gauge. To compensate for that, the bezel manufacturers bevel the top edge, to fit the gauge. I don't like that look, and I wanted more than a 15* angle.

Here goes..I started with a basic layout of the gauges...

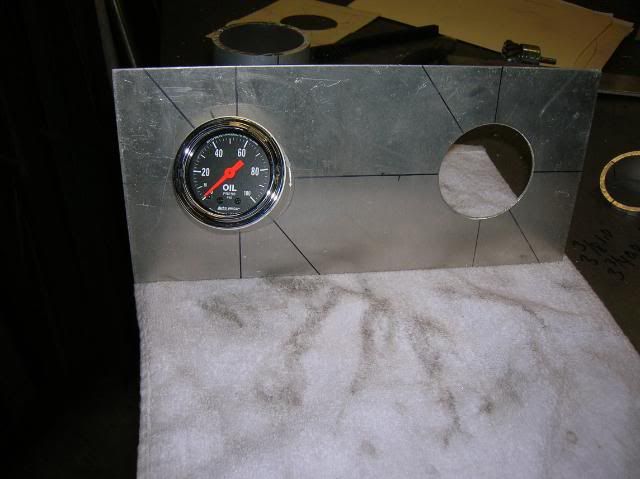

Making up samples...

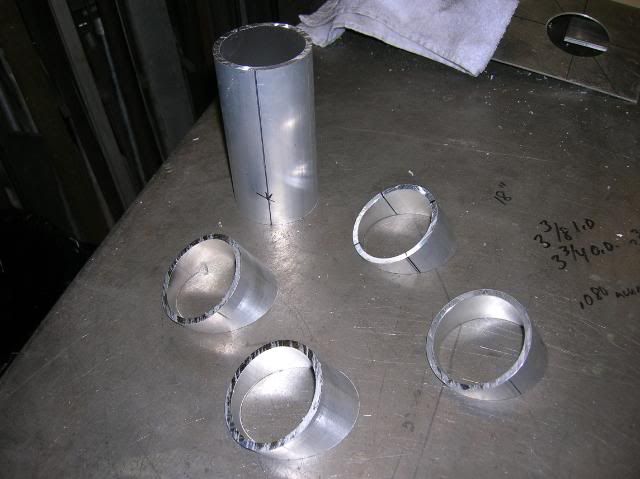

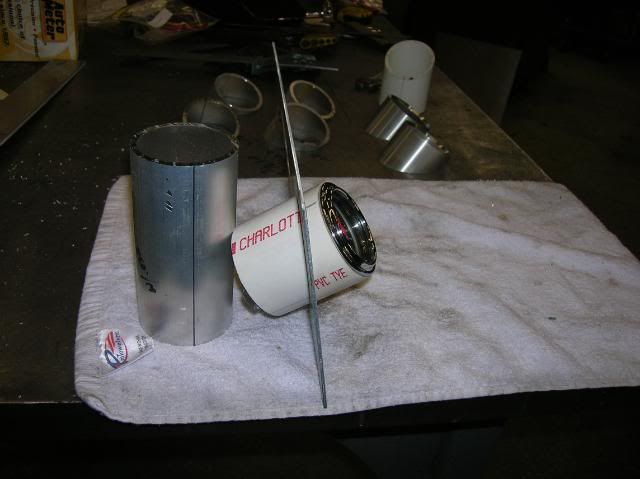

I cut the bezels for the 2 1/16" gauges out of 2" sch. 40 aluminum pipe..

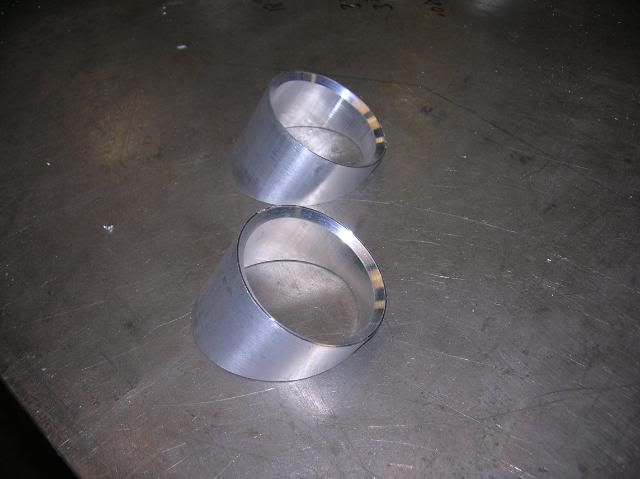

Then, the bezels were beveled, to accept the angle on the backside of the gauge bezel. This make the fit and look much better...



...without the bevel...

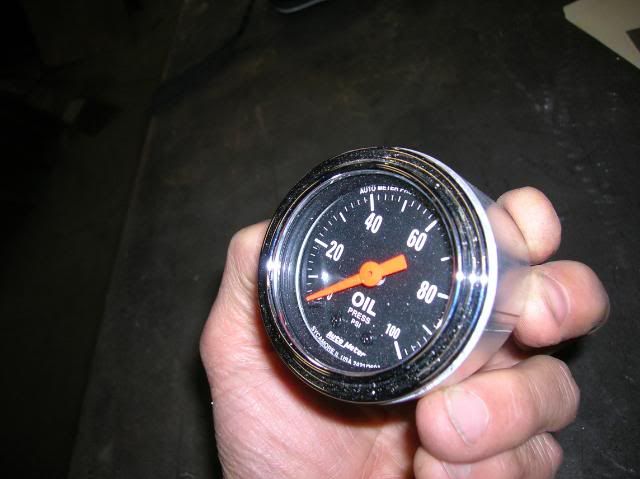

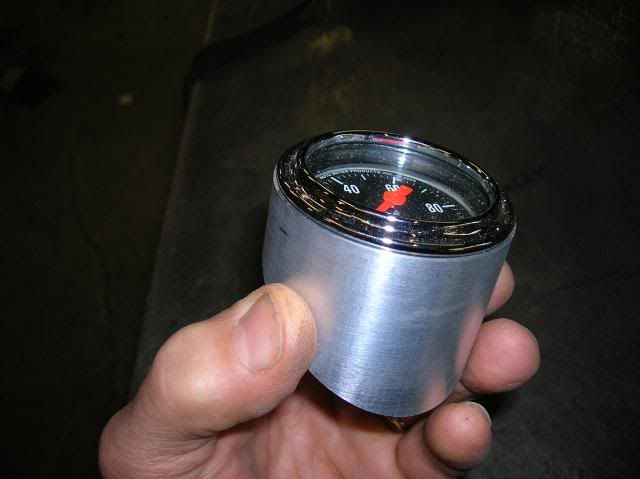

...with the bevel...

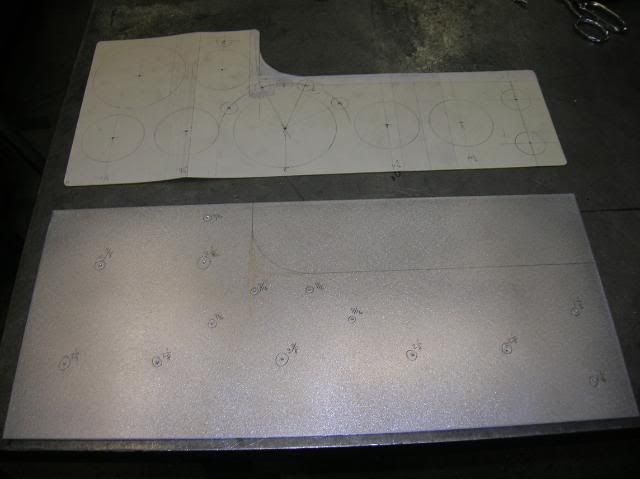

Transferred the layout onto a piece of 14 ga. aluminum...

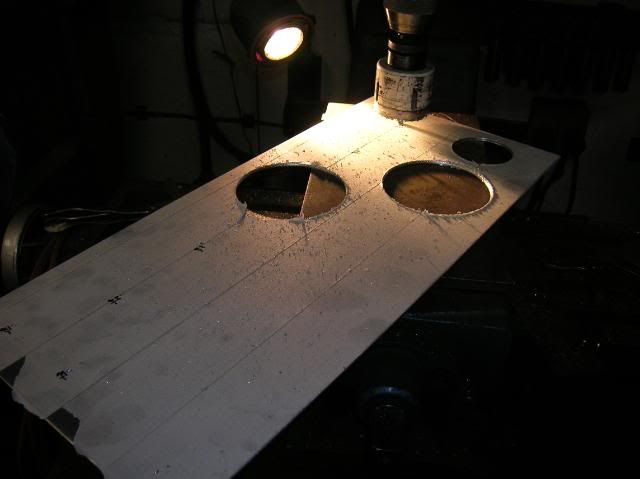

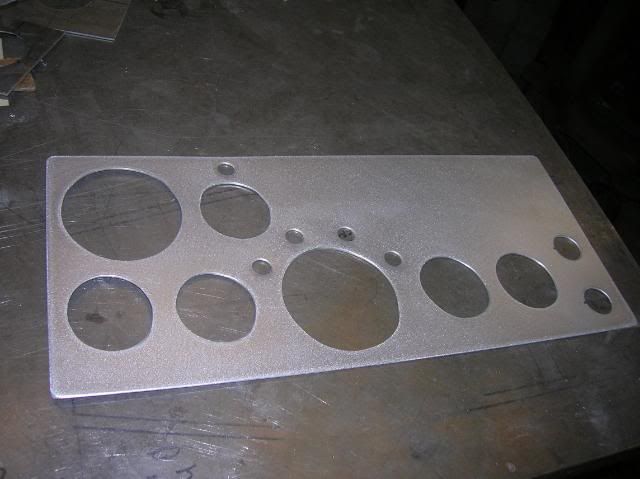

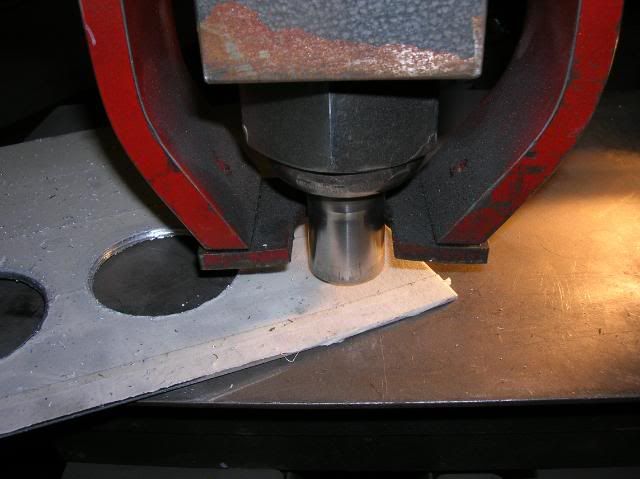

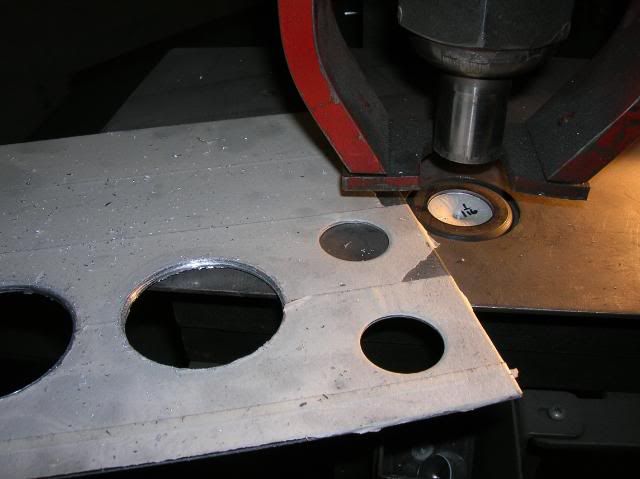

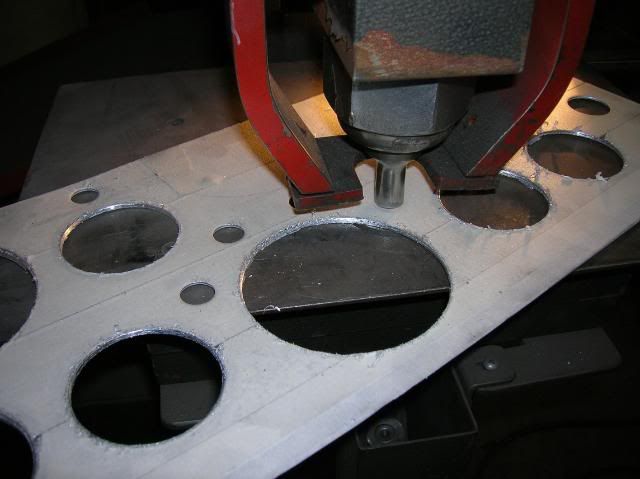

Hole sawed the larger holes, punched the smaller holes...



The smaller holes are for indicator lights and power outlets...

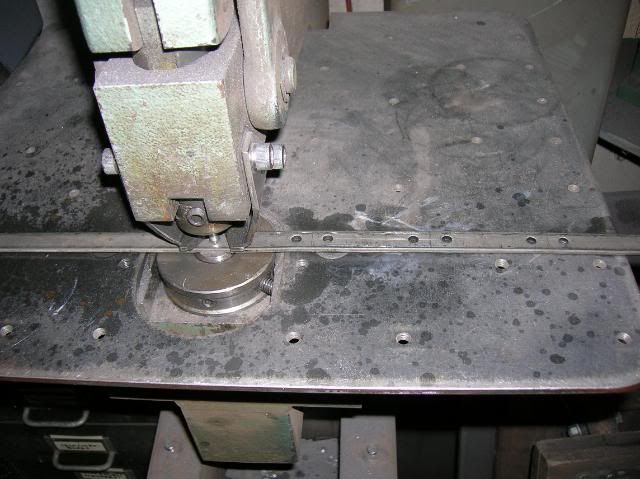

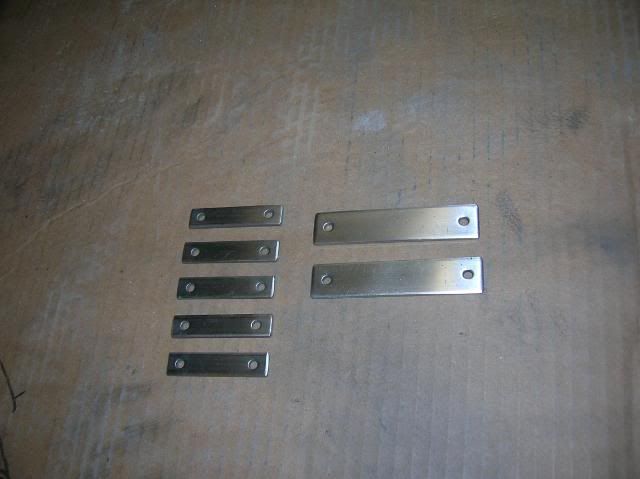

Punched out the retainer strips out of stainless steel...

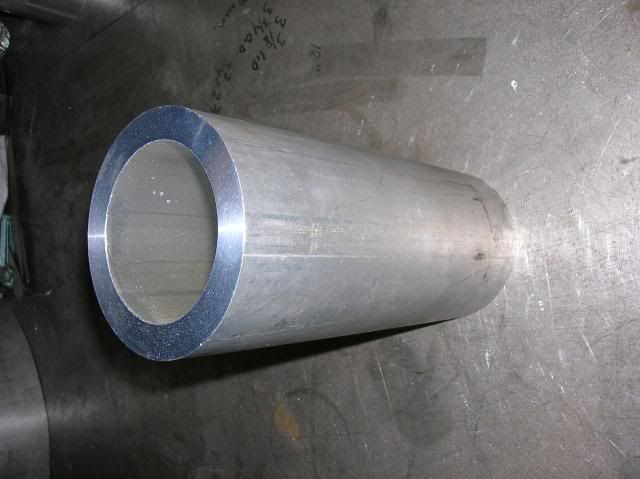

The larger bezels were quite challenging. I had to start out with this heavy wall aluminum tube...

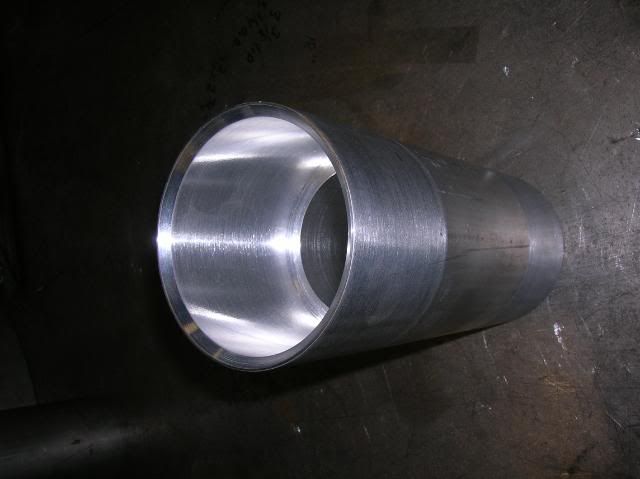

...and bore out the I.D. to fit the gauges...




'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".

Last edited by rixcj; 06-17-2010 at 06:21 PM.
rixcj is offline
Sponsored Links
Advertisement

post #2 of 50 Old 05-22-2010, 05:34 PM Thread Starter
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: Saunderstown
Posts: 2,355
(..Continued..)

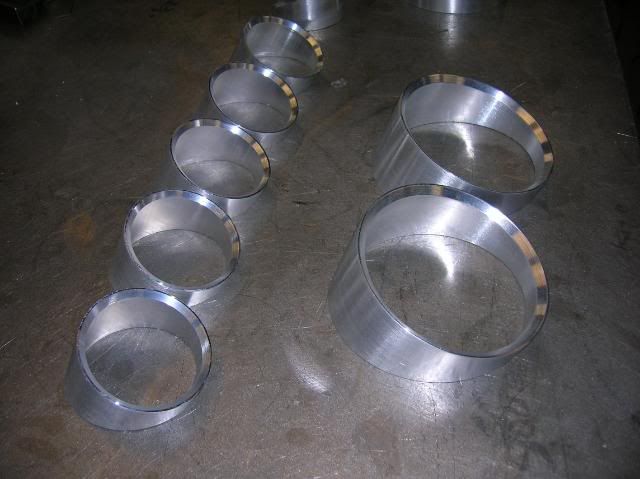

..the finished front bezels...

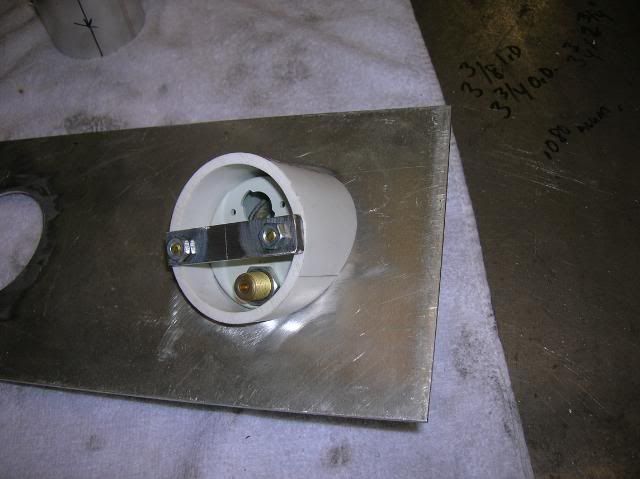

For bezels to work, there has to be a bezel for the backside, too. here they are...

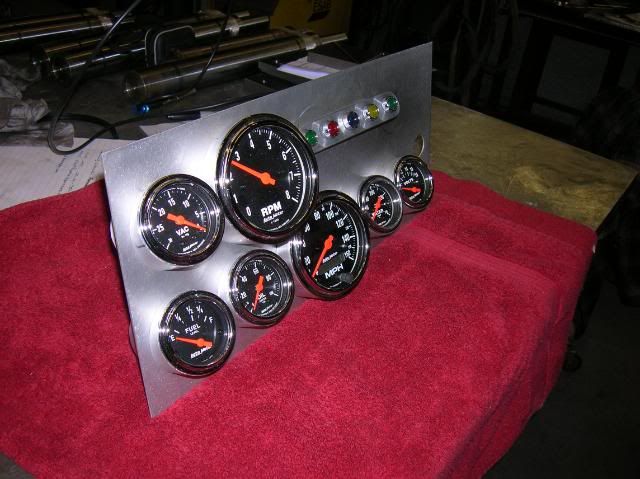

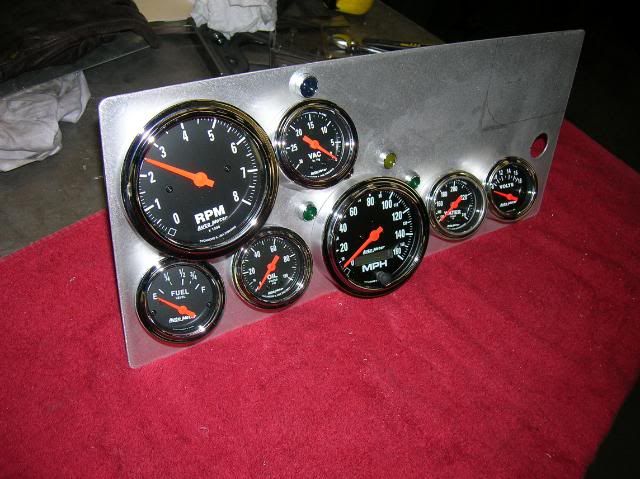

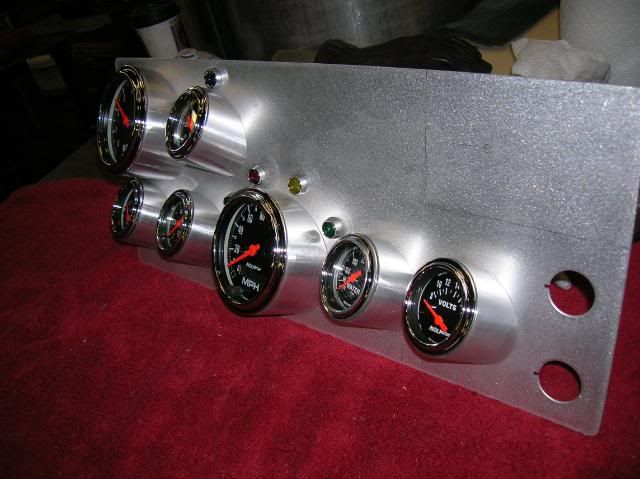

Here are the pieces installed...





I didn't like the way the indicator lights looked! Since the gauges had angled bezels, the lights looked too flat. They needed a bezel, too, so, back to the drawing board!

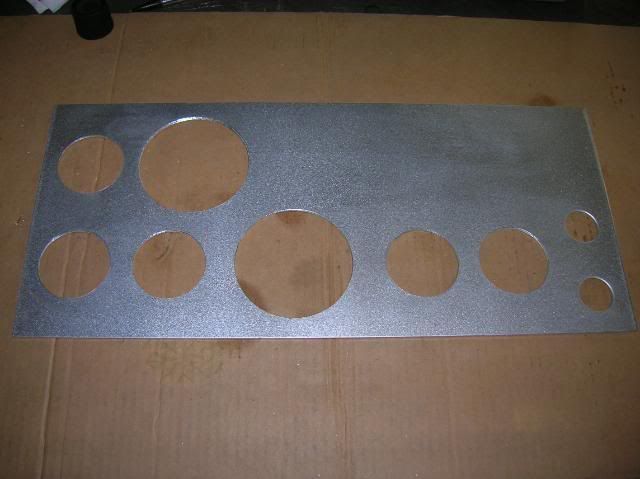

I made another aluminum plate to mount all the stuff. this time, I changed the layout, a little...

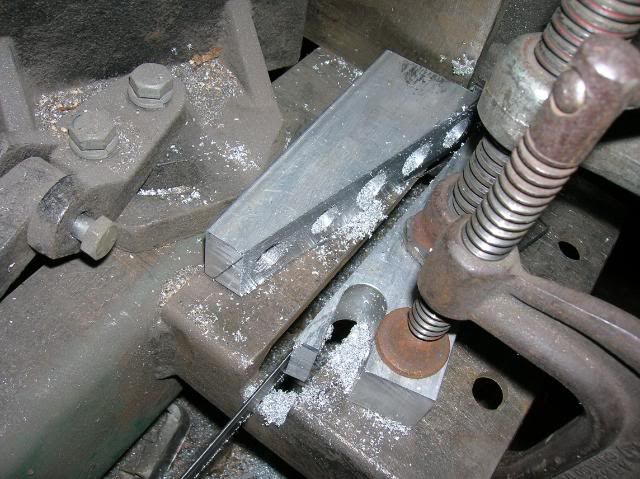

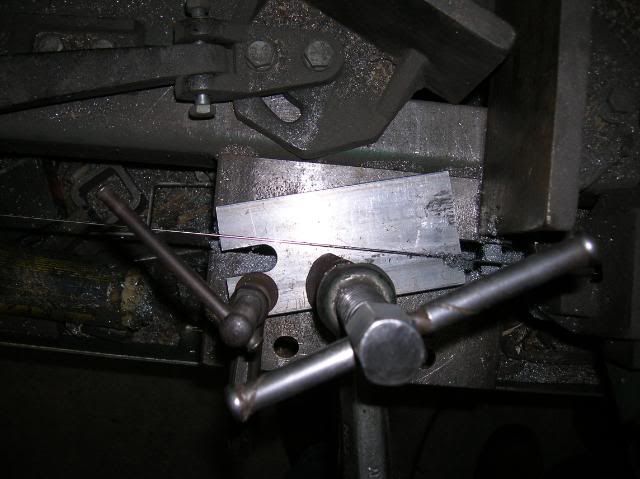

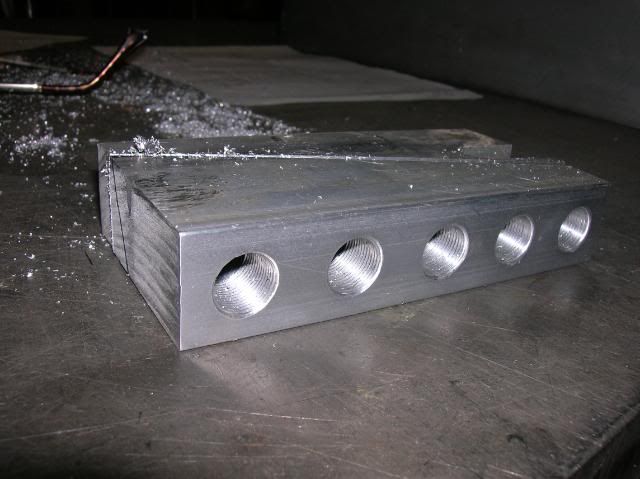

I took a block of aluminum, drilled and tapped some holes in it, then cut it on an angle...

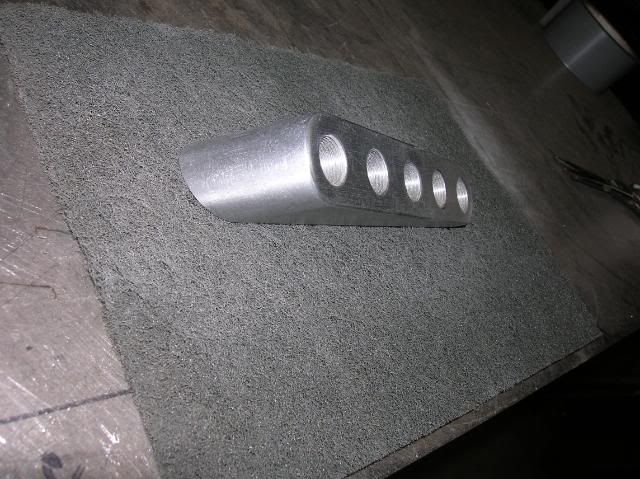

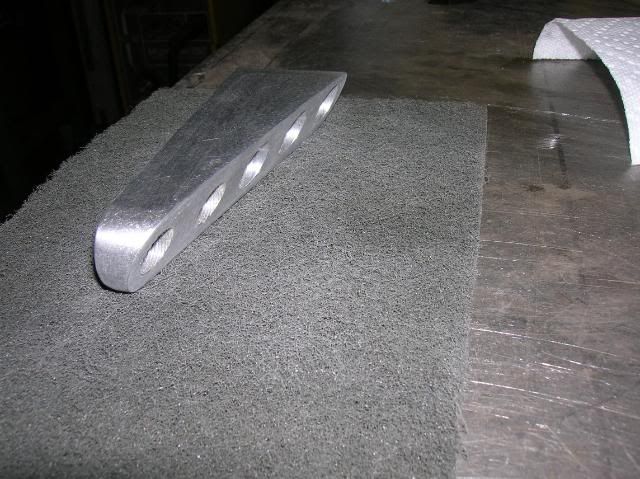

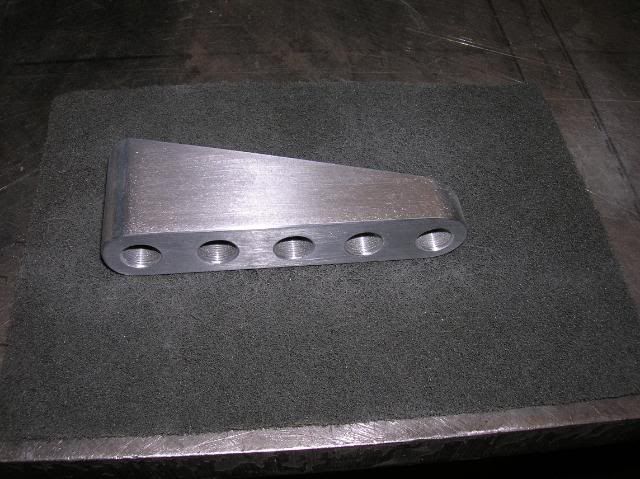

I machined a compound angle on it...

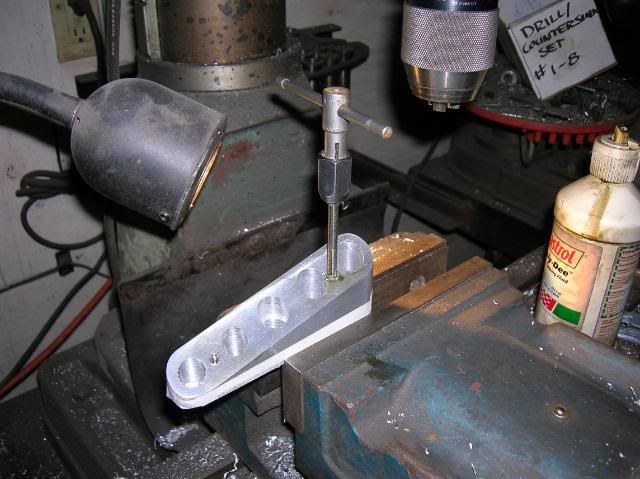

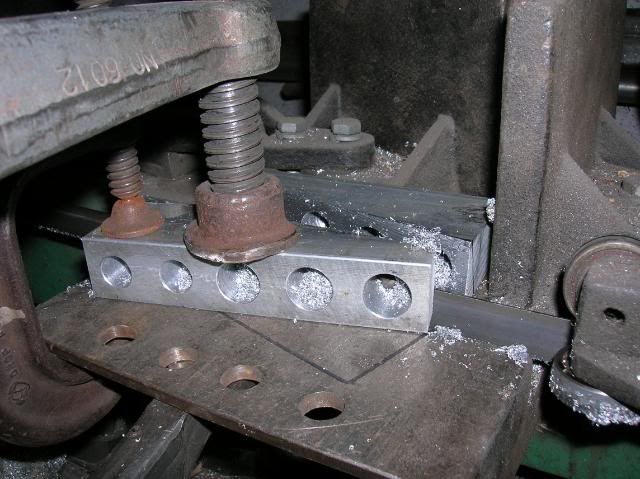

Now, threaded mounting holes had to be put into the backside of the block...

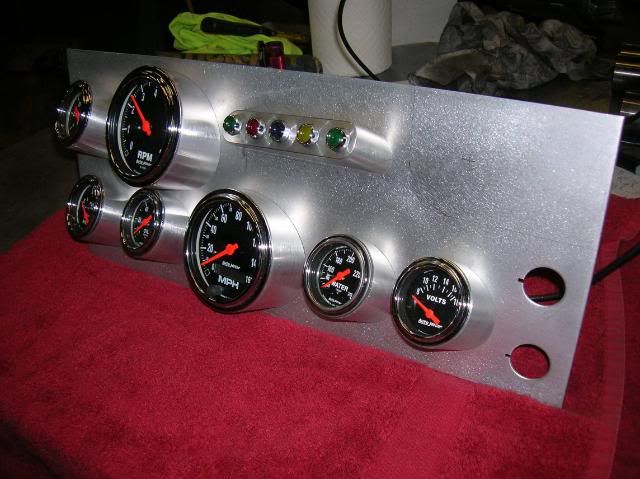

A test fit on the mounting plate...




'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".

Last edited by rixcj; 06-17-2010 at 06:25 PM.
rixcj is offline
post #3 of 50 Old 05-22-2010, 05:34 PM Thread Starter
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: Saunderstown
Posts: 2,355
(..Continued...)

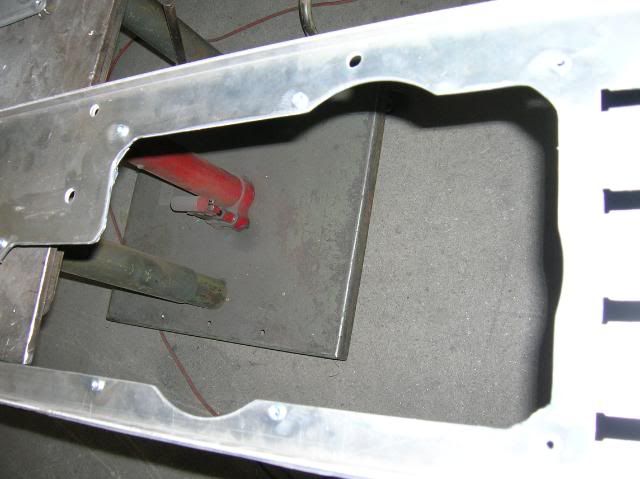

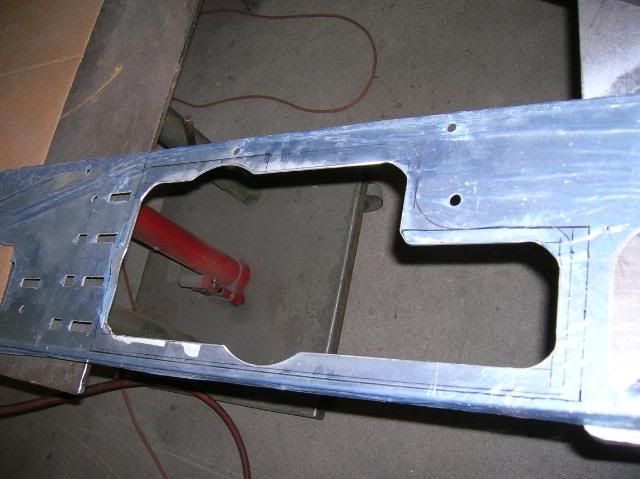

Time to layout the dash, for cutting...







Next, #10-32 threaded inserts were pressed into the dash, so the aluminum plate can be attached to it...

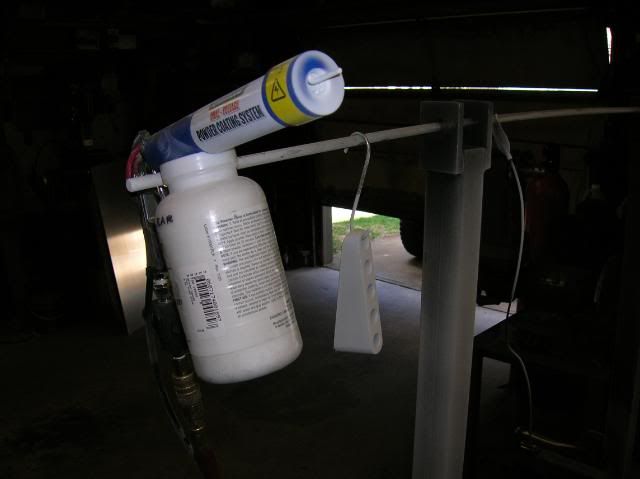

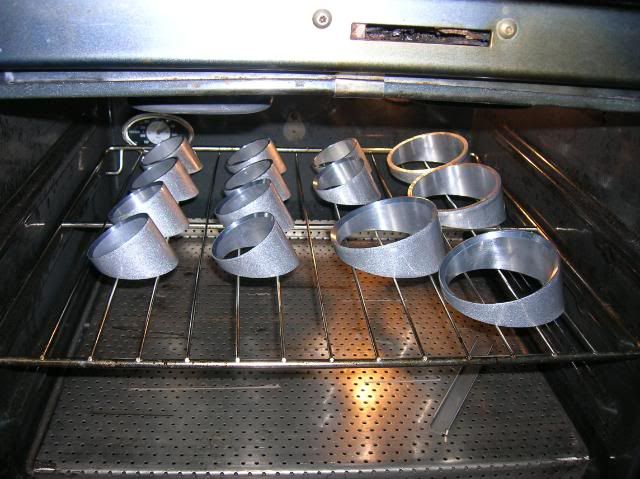

Now, it's time to prep the bezels, and plate for clear powdercoat...

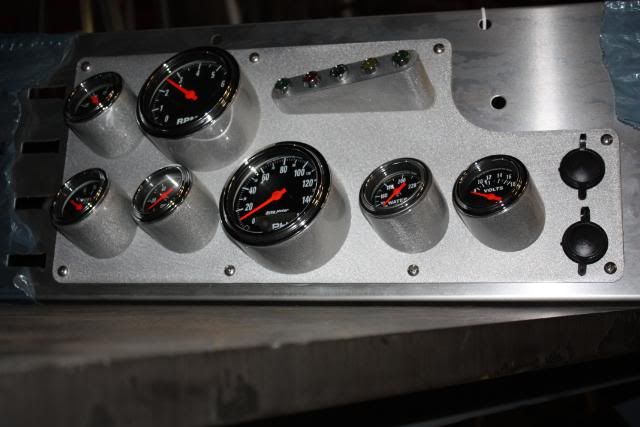

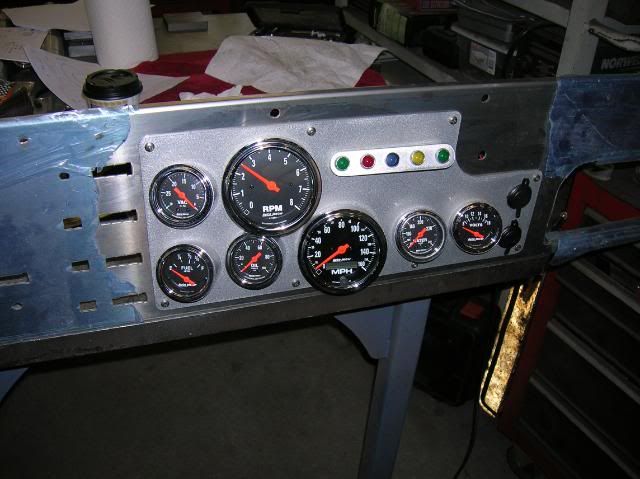

Here's the whole assembly...













Well, that's it for now. Eventually, the entire dash will be painted whatever color that I choose for the jeep body. Just this fabricated plate, and the gauges will remain the way you see them here.

Rich

'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".

Last edited by rixcj; 06-17-2010 at 06:27 PM.
rixcj is offline

post #4 of 50 Old 05-22-2010, 05:37 PM
jeepwhore
Registered User
1984 CJ7

Join Date: Jun 2006
Location: Kamloops
Posts: 4,101
ummmm......wow. That is sick! Awesome work! Do you need a left nut by chance?....cuz I'd give you mine for that set up!

'84 CJ-7: Yota axles (spartan locked front, e-locked rear) 4" BDS, 1" Daystar & 3/8" shackle lifts, 35" X-Terrains on steelies, YJ Tub & family roll bar, heater blower upgrade, 4.2L w/MC2100 & Team Rush, Warn 8274. Rebuilt 4.2/4.0 hybrid, AX15 and twin sticks/clocking ring waiting to go in.

The advertised position for a topless, dirty jeep girl has been filled......by my wife. Thanks to all that applied.
<------------and yes, that is her.
:-D
jeepwhore is offline
post #5 of 50 Old 05-22-2010, 06:27 PM
Coiz
Registered User
1979 CJ7

Join Date: Mar 2008
Location: Northern, IL
Posts: 4,226
Garage
Very cool, that looks great!

Mike

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1979 CJ7, FI 5.0L Ford, NP435, D300, Full floated D44 Detroit, D30 Detroit EZ Locker.
Coiz is offline
post #6 of 50 Old 05-22-2010, 07:13 PM
frank c
Registered User
1981 CJ5

Join Date: Sep 2007
Location: northwest arizona
Posts: 403
Definitely ALOT of custom work, nice when you have the tools. Looks great and unique.
frank c is offline
post #7 of 50 Old 05-22-2010, 07:38 PM Thread Starter
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: Saunderstown
Posts: 2,355
Thanks, guys!

Rich

'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline
post #8 of 50 Old 05-22-2010, 07:56 PM
Skerr
Registered User
1985 CJ7

Join Date: Sep 2008
Location: White Springs
Posts: 9,617
That is totally KILLER! I really like the angled gauges.

Kerrdog
Go Fish! <*////><

But the right word at the right time... "Hey, give me a little hug!" That's the difference between lightning and a harmless lightning bug!
Skerr is offline
post #9 of 50 Old 05-22-2010, 08:03 PM Thread Starter
rixcj
Web Wheeler

rixcj's Avatar
1979 CJ5

Join Date: Jun 2007
Location: Saunderstown
Posts: 2,355
Thanks, Skerr. I spent a lot of dough on those gauges, and I want to be able to see them, from the drivers' seat. So, I went through pains to get what I wanted.

Rich

'79 CJ5, AMC 360, t-18/d20 twin stick, dana 30/amc20(Mosers), Edelbrock Performer intake, Holley 600, ps/pb, DUI HEI, 'glass tub/1pc. tilt nose, 33x12.50 BFG AT's.

There's a fine line between "hobby" and "mental illness".
rixcj is offline
post #10 of 50 Old 05-22-2010, 08:15 PM
Wrangler11
Registered User

Wrangler11's Avatar
2002 WJ

Join Date: Feb 2006
Location: Chicago
Posts: 2,249
you definitely have some skills. Nice work.

2002 Grand Cherokee Limited
1994 Toyota Land Cruiser (camping offload toy)
Wrangler11 is offline
post #11 of 50 Old 05-22-2010, 08:18 PM
Guitar
Registered User
1984 CJ7

Join Date: May 2010
Location: NC
Posts: 304
That's awesome.

1984 Blue CJ7 Renegade
Guitar is offline
post #12 of 50 Old 05-23-2010, 06:11 AM
Patter
Registered User
1981 CJ5

Join Date: Jul 2008
Location: Nashville
Posts: 263
Very nice, as usual Rich. A second rolling chassis huh? Not so sure about this "fine line between" you speak of so often. LOL. Super job!!
Patter is offline
post #13 of 50 Old 05-23-2010, 06:20 AM
Mark4883
Registered User
1991 YJ Wrangler

Join Date: Jul 2009
Location: Wisconsin
Posts: 2,364
Wow. Nicest gauge cluster I have ever seen in a Jeep. Fantastic work!
Mark4883 is offline
post #14 of 50 Old 05-23-2010, 06:22 AM
dagr8tim
Web Wheeler

dagr8tim's Avatar
1997 XJ Cherokee

Join Date: May 2008
Location: Galloway, Oh
Posts: 3,111
Garage
That is such a freaking awesome idea.

Jeeping - The art of getting dirty & going broke while slowly heading nowhere, and taking all day to do it.

97 XJ SE - The War Wagon
98 TJ - Mall Crawler/Light Trail Rig
dagr8tim is offline
post #15 of 50 Old 05-23-2010, 06:35 AM
243
Registered User
1978 FSJ Cherokee

Join Date: Sep 2002
Posts: 3,461
Outstanding craftsmanship Rich

What's your day job?

Dave's 78 Build
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
243 is offline
