How much lift for 35s?

I'll be surprised if anyone even reads this after readin the subject. But here it goes: I've decided on bds (please don't try to convince me otherwise it's taken months already to get here) and I'm going to do a pieced together yj conversion. The goal is to have 35 without rubbing. My jeep is an 84with a 1" body lift, and from my understanding ill also want to account for another 1/2" lift from the longer yj shackles. The questionis: bds only makes either 3.5" springs or 5" springs. Would 5" be too much? I don't want to spend all of this money for something that looks dumb or won't drive worth a crap! Already have gears, and one pieces in the garage so I should be set there. I will be using Crabtree shackles and hangers. Does anyone have a setup similar to this? Sounds like I'd end up with 6.5" of lift total, and if I wanted a 6 ft long monster truck I would have just done soa.

RedRaiderCJ7 is offline   Reply With Quote Quick reply to this message
Unread 01-24-2013, 10:35 PM   #2
13riverking
Registered User
1981 CJ7

Join Date: Dec 2010
Location: Fallon, Nevada
Posts: 187
I would try a 3.5" with the shackle and slight body lift. If it ends up tight you can do a reversal shackle and make up what you need with taller shackles. I've got a 4" with 1 shackle and one body I don't rub except in extreme cases but I have 14.5" wide 35s. So I'm thinking of one more inch after a reverse shackle.
13riverking is offline   Reply With Quote Quick reply to this message
Unread 01-25-2013, 07:06 AM   #3
aufan
Registered User
1986 CJ7

Join Date: Nov 2012
Location: nashville, tennessee
Posts: 115
I think 5" SUA would be a very harsh ride imo.
aufan is offline   Reply With Quote Quick reply to this message
Unread 01-25-2013, 08:00 AM   #4
my73CJ
Registered User
1973 CJ5

Join Date: Jul 2007
Location: Monroe, CT
Posts: 462
on my 5 I have a 2.5 BDS lift with a 2" body lift with 35x15.5 SS and I have minor rubbing when fully flexed.
my73CJ is offline   Reply With Quote Quick reply to this message
Unread 01-25-2013, 09:29 AM   #5
dandd
Registered User
1982 CJ8

Join Date: Oct 2012
Location: San Jose, California
Posts: 64
I have a RE 4.5" with 1" body lift on a 82 Scrambler and 1.5" wheel spacer's. After testing on a ramp I moved the front and rear axle forward 1" with new rear spring pads and front spring relocation pins from M.O.R.E (Mountain Off Road). Doing this centered the tire inside the cutouts otherwise the tires would hit the rear fender lip when flexing.

I also used their sterring box relocation bracket (forward 1 1/4") maybe not required.
dandd is offline   Reply With Quote Quick reply to this message
Unread 01-25-2013, 09:33 AM   #6
CSP
Registered User

Join Date: Aug 2002
Location: Colorado
Posts: 12,349
Go with the 3.5". Every BDS lift I've heard of usually amounts to more lift than advertised.
CSP is offline   Reply With Quote Quick reply to this message
Unread 01-25-2013, 09:52 AM   #7
Jack61
Registered User
1981 CJ7

Join Date: Feb 2012
Location: Page, Az
Posts: 440
I plan to change mine over to the BDS Yj 5" springs in the near future. I think a lot of what springs you should go with depends on what extras you may have mounted on your Jeep. I have a trailmaster 4" spring lift, 2" longer than stock shackles, 2" body lift and I scrape the fenders a lot more than I should, but I also have a winch, heavy bumpers, 35" spare, rear storage box that's full, 1/4" SS diamond plate on the rear floor, etc, etc all helping to weigh it down. I'm really hoping that the Bds springs yield a little more than advertised lift.
__________________
It used to be, God bless America, it has become God help America
Jack61 is offline   Reply With Quote Quick reply to this message
Unread 01-25-2013, 12:48 PM   #8
83cj8
Registered User
1983 CJ8

Join Date: Jan 2009
Location: Aledo, TX
Posts: 41
Lift

Based on your body lift and increased shackle length the 3.5" BDS should get you there so your 35s don't rub. I've got a CJ-8 and I did a BDS lift last year. I went with the 5" lift springs in the rear and 3.5" lift springs in the front. This is becuase I did a MORE shackle reversal at the same time which adds about 1.5" to your lift in the front. I also put on 6" shackles which only give you 1" in lift over stock. Since a stock shackle is 4" (hole center to hole center), every inch of shackle length you add only gets you 1/2" of actual lift. So a 6" shackle will get you 1" of lift over stock. My scrambler has no body lift. I only run 33" tires and can stuff them at full stuff probably because the 6" shackles really flatten out the spring more than a 4" shackle would. Also, the shackle reversal really centered the front axle in the whell well.

Karl
83cj8 is offline   Reply With Quote Quick reply to this message
Unread 01-25-2013, 03:36 PM   #9
Anakedman
Registered User

Join Date: Mar 2012
Location: decatur, in
Posts: 10
My plan is to old man emu 2.5 lift 5/8 shackle and 1 body lift with either tube fenders or tj flares. With waggy dana 44s at full with should clear the body and fenders nicely in theroy.

This will all happen when i gets the monies.........
Anakedman is offline   Reply With Quote Quick reply to this message
Unread 01-25-2013, 04:49 PM   #10
RedRaiderCJ7
Registered User
1984 CJ7

Join Date: Oct 2012
Location: Amarillo, Texas
Posts: 96
Wow this is going better than I thought. Can y'all post pictures if you have them? Also that's more than one mention of shackle reversals. Trying not to change the direction of the thread here but I read somewhere that those were dangerous and companies quit making them because you lose stopping power?

To address one response, I have a hardtop and maybe eventually a 35" spare and way in the future a winch up front. Stock bumpers etc., no significant weight issues.

Maybe I'm wrong but stock cj shackles are 3" right? So my 4" yj shackles would yield .5" lift, but 6" shackles would yield 1.5", no?

Thank for the responses guys, it looks like now I'm leaning to 3.5" springs instead of the 5"! Why can't bds make a 4" yj spring? I feel like that would be perfect. But I have heard most bds lifts are conservative on their advertised height... Atleast initially.
RedRaiderCJ7 is offline   Reply With Quote Quick reply to this message
Unread 01-25-2013, 07:23 PM   #11
78treehugger
Registered User
1980 CJ7

Join Date: May 2008
Location: , IN
Posts: 1,605
I have a 3" Black Diamond lift and a 1" BL and I rub on full flex with my TJ flaresand 2" wheel spacers. But since your's is an 84 you should have WT axles and I'm currently running NT axles. I hope this helps.

Side Note.....83cj8-------- Stock CJ shackles are 3" eye to eye. YJ shackles are 4" eye to eye. So you have 1 1/2" lift over stock.
__________________
1980 CJ 7--3" Black Diamond, 1" body, locked both ends, 4.56, 35x12.50x15 SS LTB, "family" cage

It's easier to get forgiveness than permision.
Salad is what food eats!!!
http://emptypocketsoffroad.org/
78treehugger is offline   Reply With Quote Quick reply to this message
Unread 01-26-2013, 09:47 PM   #12
RedRaiderCJ7
Registered User
1984 CJ7

Join Date: Oct 2012
Location: Amarillo, Texas
Posts: 96
Treehugger,

Do you have cj springs with 3 inch shackles? And I'm assuming you trimmed quite a bit the get the flares on there, where does it still rub?
RedRaiderCJ7 is offline   Reply With Quote Quick reply to this message
Unread 01-27-2013, 06:12 AM   #13
gojeepin
Registered User
1983 CJ7

Join Date: Feb 2006
Location: Riverview, Florida
Posts: 3,441
Since a true 35" tire will not fit in the rear wheel well opening, you'll need to trim the tub on the rear of the opening... or you could wait and have the tire show you how much clearance you need the next time you go wheeling.

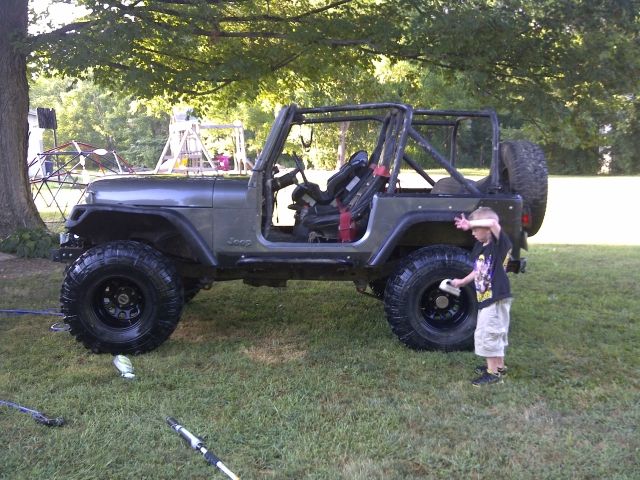

If you want a picture, my profile gallery shows the passenger rear wheel well.

NOTE: I painted any body parts under the flare with flat black so the body may be mistaken for part of the flare.
__________________
Vibration? Bump steer? Wandering? Read: Steering, suspension, and driveline basics. An article on how it works and where to look for problems.

83 CJ7, 4.1L 6cyl (4.0L bored .030" over), 35" tires, T-5 transmission, Dana 300 TC, Trussed AMC 20.
gojeepin is offline   Reply With Quote Quick reply to this message
Unread 01-28-2013, 02:25 PM   #14
83cj8
Registered User
1983 CJ8

Join Date: Jan 2009
Location: Aledo, TX
Posts: 41
Treehugger, thanks for clearing up the 3" eye to eye on a cj stock shackle. My jeep has a little sag in the rear and I have plenty of room in the front with the 33" tires so I'll probably put a little shorter (5') shackle on the front in the future.

karl
83cj8 is offline   Reply With Quote Quick reply to this message
Unread 01-28-2013, 06:59 PM   #15
78treehugger
Registered User
1980 CJ7

Join Date: May 2008
Location: , IN
Posts: 1,605
RedRaiderCJ7--I have CJ shackles, yes.

83cj8--5" shackle will net you about 1 1/2" of lift. That's a HUGE lift shackle. And will more than likely mess with your steering also. So please be careful.

__________________
1980 CJ 7--3" Black Diamond, 1" body, locked both ends, 4.56, 35x12.50x15 SS LTB, "family" cage

It's easier to get forgiveness than permision.
Salad is what food eats!!!
http://emptypocketsoffroad.org/
78treehugger is offline   Reply With Quote Quick reply to this message
