Home made dual battery tray - JeepForum.com
Search
Sign Up   Today's Posts
User: Pass: Remember?
Advertise Here
Jeep Home Jeep Forum Jeep Classifieds Jeep Registry JeepSpace Jeep Reviews Jeep Gallery Jeep Clubs Jeep Groups Jeep Videos Jeep Events Jeep Articles
Go Back JeepForum.com > Models > Jeep CJ Forum > Home made dual battery tray

Engo winches available at www.rockridge4wd.com! Free shippThe Original 3/8" Ruffstuff Diff Cover!The Ruffstuff NOT Universal 4 Link Kit!

Reply
Unread 08-12-2009, 05:52 PM   #1
jatepper
Registered User
1985 CJ7

Join Date: Mar 2007
Location: Tucson, AZ
Posts: 2,274
Home made dual battery tray

I searched the forum and the dual battery sticky and found no plans for making a dual battery tray. I want to attempt to make one. Does anyone have plans?

__________________
1985 Jeep CJ-7
Automatic-258 I6- Detroit lockers front/rear - Superior 1-piece axles, Ramsey Pro 9000 Winch, Quick Disconnects, 33 BFG AT's, 4.10 gears, Howell TBI, DUI HEI Ignition, Ground Pounder Rear Bumper / Tire Carrier Combo, Handen Fab integrated winch plate front bumper w/hoop, ORF weld-in front sport cage.

USMC 1999-2004 Semper Fi!

Hood Hi-Lift Jack Mounts for CJ/YJ/TJ/JK

Torchmate CNC Plasma Table Build / Projects

The Target Man, LLC - AR500 Shooting Targets
jatepper is offline   Reply With Quote
Unread 08-12-2009, 05:55 PM   #2
RetiredSERE
Member

RetiredSERE's Avatar
1980 CJ7

Join Date: Dec 2007
Location: Chesapeake, VA
Posts: 449
Been thinking about it myself. I just plan on patterning out two batteries side by side then make up a plate out of 3/16 and then fab supports. Should be one of the easier fabs.

Dave
__________________
Shoot, Move, Communicate

Admit to Nothing, Deny Everything, Make Counter Accusations...

I Feel Like a Monkey F***ing a Football..
RetiredSERE is offline   Reply With Quote
Unread 08-12-2009, 06:02 PM   #3
jatepper
Registered User
1985 CJ7

Join Date: Mar 2007
Location: Tucson, AZ
Posts: 2,274
Quote:
Originally Posted by RetiredSERE View Post
Been thinking about it myself. I just plan on patterning out two batteries side by side then make up a plate out of 3/16 and then fab supports. Should be one of the easier fabs.

Dave

I have found while working on the jeep that nothing is ever easy, although it does sound like it should be!
__________________
1985 Jeep CJ-7
Automatic-258 I6- Detroit lockers front/rear - Superior 1-piece axles, Ramsey Pro 9000 Winch, Quick Disconnects, 33 BFG AT's, 4.10 gears, Howell TBI, DUI HEI Ignition, Ground Pounder Rear Bumper / Tire Carrier Combo, Handen Fab integrated winch plate front bumper w/hoop, ORF weld-in front sport cage.

USMC 1999-2004 Semper Fi!

Hood Hi-Lift Jack Mounts for CJ/YJ/TJ/JK

Torchmate CNC Plasma Table Build / Projects

The Target Man, LLC - AR500 Shooting Targets
jatepper is offline   Reply With Quote
Unread 08-12-2009, 07:55 PM   #4
JeepHammer
Running On Empty...
1973 CJ5

Join Date: Aug 2007
Location: South West Indiana
Posts: 9,952
Angle iron with a center support under the batteries,
Center support makes a good place for tie down.

Just a square frame with center support, so it's not a big deal.
JeepHammer is offline   Reply With Quote
Unread 08-12-2009, 09:00 PM   #5
jatepper
Registered User
1985 CJ7

Join Date: Mar 2007
Location: Tucson, AZ
Posts: 2,274
Quote:
Originally Posted by JeepHammer View Post
Angle iron with a center support under the batteries,
Center support makes a good place for tie down.

Just a square frame with center support, so it's not a big deal.
Cool. What about mounting it to the firewall. I am worried about the extra weight with another battery. Do most people use the same holes their OEM battery tray used or will I need to drill some more holes and add extra nuts and bolts?
__________________
1985 Jeep CJ-7
Automatic-258 I6- Detroit lockers front/rear - Superior 1-piece axles, Ramsey Pro 9000 Winch, Quick Disconnects, 33 BFG AT's, 4.10 gears, Howell TBI, DUI HEI Ignition, Ground Pounder Rear Bumper / Tire Carrier Combo, Handen Fab integrated winch plate front bumper w/hoop, ORF weld-in front sport cage.

USMC 1999-2004 Semper Fi!

Hood Hi-Lift Jack Mounts for CJ/YJ/TJ/JK

Torchmate CNC Plasma Table Build / Projects

The Target Man, LLC - AR500 Shooting Targets
jatepper is offline   Reply With Quote
Unread 08-13-2009, 03:36 AM   #6
JavaTee
Registered User
1979 CJ5

Join Date: Nov 2008
Location: Winston-Salem, NC
Posts: 284
Quote:
Originally Posted by JeepHammer View Post
Angle iron with a center support under the batteries,
Center support makes a good place for tie down.

Just a square frame with center support, so it's not a big deal.
Here's some pics for us visually stimulated fabricators

http://cjoffroad.com/forums/topic.as...l,battery,tray

Later, T.J.
__________________
'79 CJ5 258 w/MC 2100 & Team Rushed, NP435/Dana300 <--twin sticked, NT Dana 44 (w/Aussie) rear, and NT Dana 44. 3" susp lift, Currie shackles, 1" body Lift, Durabaked tub inside & out.
Military members (current or completed service) check out
http://www.militaryjeepers.com/
JavaTee is offline   Reply With Quote
Unread 08-13-2009, 06:01 AM   #7
JeepHammer
Running On Empty...
1973 CJ5

Join Date: Aug 2007
Location: South West Indiana
Posts: 9,952
I used 'Nut-Serts', Also called 'Riv-Nuts'.
It's a threaded sleeve you can insert in sheet metal, expand, and leave behind threads to bolt something up.

Extra places to bolt to the firewall,
Then same support arms the single battery tray had.
Seems to be working OK so far, have about 4 years on it with no problems.
JeepHammer is offline   Reply With Quote
Unread 08-13-2009, 07:42 AM   #8
jatepper
Registered User
1985 CJ7

Join Date: Mar 2007
Location: Tucson, AZ
Posts: 2,274
Quote:
Originally Posted by JavaTee View Post
Thats more or less what I was looking for. Thanks for the link. The battery tray looks much easier to make with the fender off like the pictures in the link displays.
__________________
1985 Jeep CJ-7
Automatic-258 I6- Detroit lockers front/rear - Superior 1-piece axles, Ramsey Pro 9000 Winch, Quick Disconnects, 33 BFG AT's, 4.10 gears, Howell TBI, DUI HEI Ignition, Ground Pounder Rear Bumper / Tire Carrier Combo, Handen Fab integrated winch plate front bumper w/hoop, ORF weld-in front sport cage.

USMC 1999-2004 Semper Fi!

Hood Hi-Lift Jack Mounts for CJ/YJ/TJ/JK

Torchmate CNC Plasma Table Build / Projects

The Target Man, LLC - AR500 Shooting Targets
jatepper is offline   Reply With Quote
Unread 08-14-2009, 03:41 AM   #9
JavaTee
Registered User
1979 CJ5

Join Date: Nov 2008
Location: Winston-Salem, NC
Posts: 284
Quote:
Originally Posted by jatepper View Post
The battery tray looks much easier to make with the fender off like the pictures in the link displays.
I don't think it's easier, nor harder with the fenders off (esp. for a prior service Marine ). After you fab up the tray, and either weld the lower bolts to the tray, or fit/weld on the brackets for the lower support, it should be a 'slip-in and bolt-up event'.
I rebuilt my single tray to accept a larger battery. It took more time for the paint to dry than to cut, grind, fit and weld up the wider/longer tray.

Later, T.J.
__________________
'79 CJ5 258 w/MC 2100 & Team Rushed, NP435/Dana300 <--twin sticked, NT Dana 44 (w/Aussie) rear, and NT Dana 44. 3" susp lift, Currie shackles, 1" body Lift, Durabaked tub inside & out.
Military members (current or completed service) check out
http://www.militaryjeepers.com/
JavaTee is offline   Reply With Quote
Unread 08-14-2009, 08:40 AM   #10
jatepper
Registered User
1985 CJ7

Join Date: Mar 2007
Location: Tucson, AZ
Posts: 2,274
Yeah, my main concern was the weight of the extra battery, but it seems to be working for you guys. An extra battery is another 30-40 lbs or so and I just want to make sure I dont strip out any nutserts or anything with the extra weight and have the battery tray fall off while Im wheeling.
__________________
1985 Jeep CJ-7
Automatic-258 I6- Detroit lockers front/rear - Superior 1-piece axles, Ramsey Pro 9000 Winch, Quick Disconnects, 33 BFG AT's, 4.10 gears, Howell TBI, DUI HEI Ignition, Ground Pounder Rear Bumper / Tire Carrier Combo, Handen Fab integrated winch plate front bumper w/hoop, ORF weld-in front sport cage.

USMC 1999-2004 Semper Fi!

Hood Hi-Lift Jack Mounts for CJ/YJ/TJ/JK

Torchmate CNC Plasma Table Build / Projects

The Target Man, LLC - AR500 Shooting Targets
jatepper is offline   Reply With Quote
Unread 08-14-2009, 11:49 AM   #11
Stan99
Registered User
1978 CJ7

Join Date: Aug 2007
Location: Antioch
Posts: 869
Ive built a few of these. The way I do mine is to brace off of the fender instead of just the tub. I didnt have any of the original braces for the battery tray so I figured if I was going to do anything that wasnt stock then I might as well go a different route. It is made just like everybody else says, with some angle iron.

This is the only pic I have right now. I can post some more later if you like.

__________________
1978 Jeep Cj7 Soa, Shackle Reversle, 36x13.5x15 Irocks, 4.5 Stroker MPI, Dana 300 twin Sticked, 4.88's
Stan99 is offline   Reply With Quote
Unread 08-14-2009, 12:46 PM   #12
NWA_CJ7
Registered User
1983 CJ7

Join Date: Jul 2007
Location: Rogers, Arkansas
Posts: 569

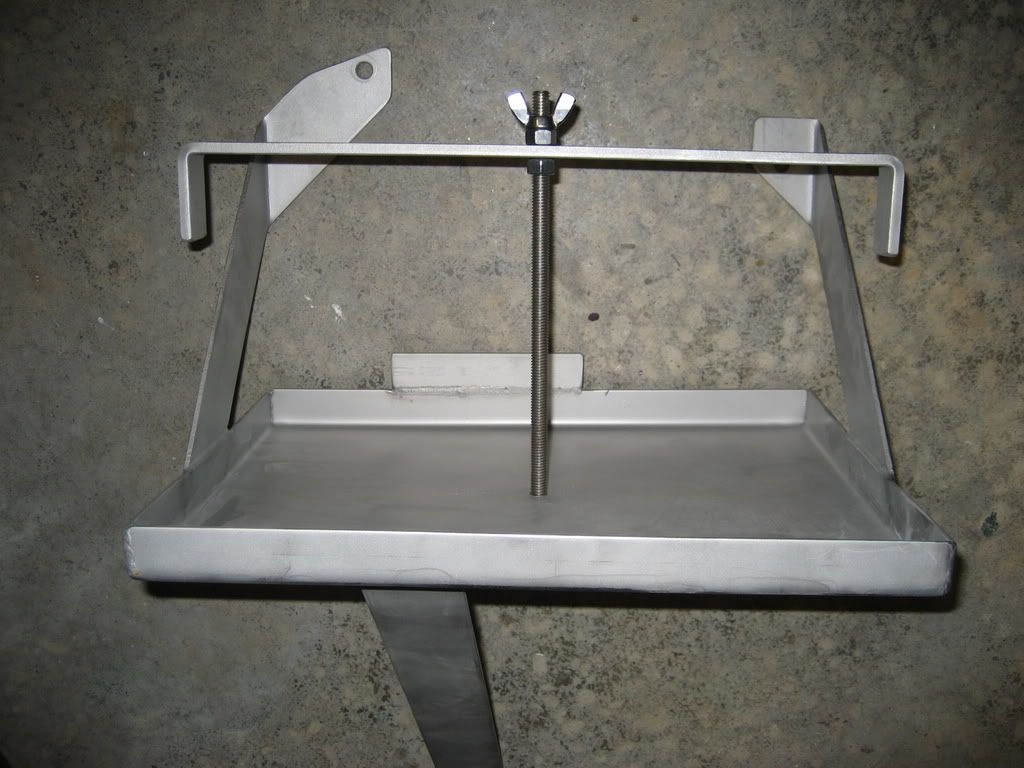

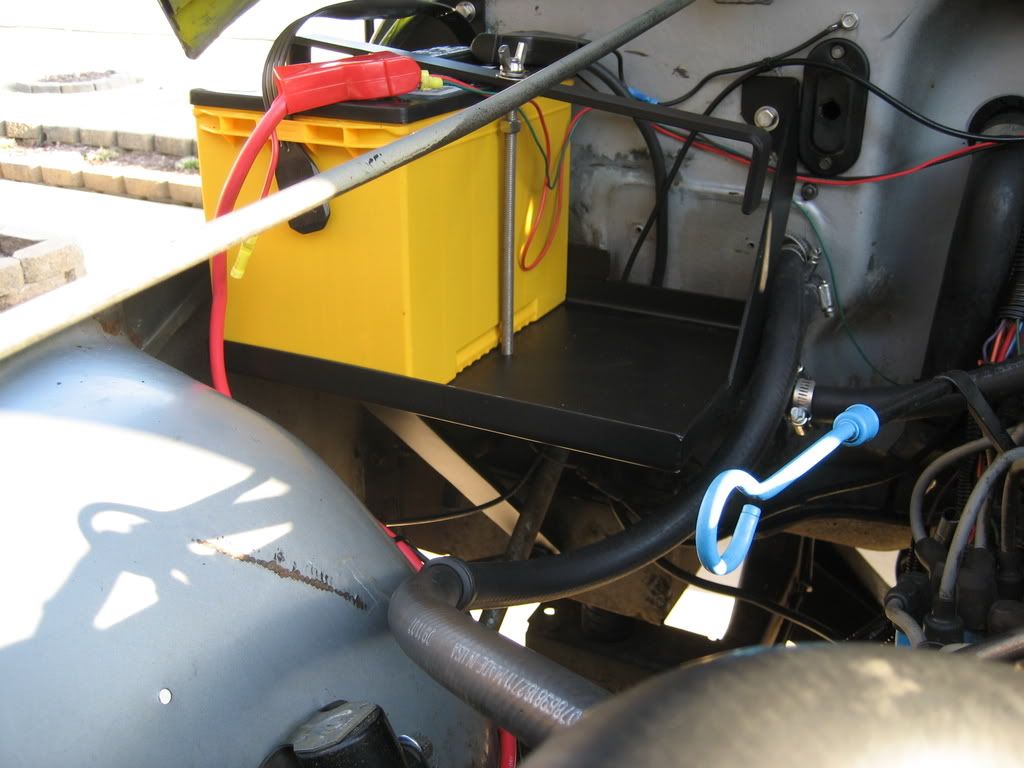

I made my own. While I do not have any directions I do have some pics. I have a source with an over abundant supply of stainless steel so that was my metal of choice. I'm not complaining.



__________________
83 CJ7 AMC 360, nuttered & team rushed. Dana 44 rear geared & locked, Dana 30 front geared & locked Dana 300 T. Case 4" Tough Country Lift, 1" daystar body lift, 1/2" shackle 35x12.50x15 MT MTZ's on MT classic 2's, Besrk Bumpers, Genright Tube Fenders
NWA_CJ7 is offline   Reply With Quote
Unread 08-14-2009, 01:07 PM   #13
xeroOTG
Registered User
1998 XJ Cherokee

Join Date: Nov 2008
Location: Las Cruces, NM
Posts: 187
Quote:
Originally Posted by NWA_CJ7 View Post
Thats absolutely beautiful! I believe I have been motivated! After I rewire my EFI... darn my redneck engeneering degree...
__________________
My jeep gives a whole new meaning to the phrase, Just Empties Every Pocket!

1975 Jeep CJ5 258 TBI EFI, T-18, D-20, D44 rear, 4.11.
1992 Jeep Cherokee 4.0L, AW4, NP231 October 2009 - August 2012
1998 Jeep Cherokee 4.0L, AX15, NP231 - August 2012
xeroOTG is offline   Reply With Quote
Unread 08-14-2009, 04:45 PM   #14
OMR
Registered User
1986 CJ7

Join Date: Mar 2008
Location: Nor-Cal
Posts: 108
Stan99 and NWA CJ7 great job on the boxes both

NWA I've been thinking of making an s/s box, then polishing the parts that show ... but then again, I come up with these hair-brain ideas and never get them done, so it will probably just be mild steel and painted
__________________
Mark

'86 CJ7 - 258 - Howell - 'Rushed' - 2.5" sl, 1" bl - T5 - d44 rear - 33 x 12.5
OMR is offline   Reply With Quote
Unread 08-15-2009, 06:35 AM   #15
JeepHammer
Running On Empty...
1973 CJ5

Join Date: Aug 2007
Location: South West Indiana
Posts: 9,952
ON the cheap side...

One time I made one of these for the natives, I said something about the materials going to cost around $100...

He ran out and brought me some bed frame rails, and went to the local second hand stores and got me a bunch more for about $5 a set...

Plenty of angle iron that worked fine for a battery tray,
(Battery trays are like beer, You don't OWN them, you only rent them from the corrosion gods!)
And I haven't ever forgotten about that cheap source of angle iron...

Yard sales, second hand stores, ect....
So if you are a cheap bastard like me, keep your eyes open, you might be surprised what you find in places like that!
JeepHammer is offline   Reply With Quote
Reply
Thread Tools


Suggested Threads





Jeep, Wrangler, Cherokee, Grand Cherokee, and other models are copyrighted and trademarked to Jeep/Chrysler Corporation. JeepForum.com is not in any way associated with Jeep or the Chrysler Corp.
