post #46 of 62 Old 06-24-2011, 04:32 AM Thread Starter
stgil
Registered User
1982 CJ7

Join Date: Apr 2010
Location: FRANCE
Posts: 618
Quote:
Originally Posted by LT1CJ7 View Post
No not really.
It just looked like the primary & secondary shoes looked to have the same length of material.
Usually the primary has less.

I've checked this at mount time... but now when I see my pics , It's looks like you're RIGHT


Here the old one : we clearly see the difference... It's NOT the case with NEW ones... I think REALLY I've done a mistake and mixed THEM!!!...



I'll check it again this afternoon...

I'll tell you...

Regards,

Gilles


FULL DANA 30 REBUILD->http://www.jeepforum.com/forum/f8/cj7-dana-30-full-rebuilt-setup-part-i-1121189
'82 CJ7 LAREDO REBUILD->http://www.jeepforum.com/forum/f8/82-cj7-laredo-diesel-restoration-1179198/
stgil is offline
Sponsored Links
Advertisement

post #47 of 62 Old 06-24-2011, 05:21 AM Thread Starter
stgil
Registered User
1982 CJ7

Join Date: Apr 2010
Location: FRANCE
Posts: 618
Well!

I've checked my other pics on the other side ... and you're definitively RIGHT there is only the smaller( primary shoes) :I've mixed them!!!



I'm VERY sorry about this mistake and I'll fix it as soon as possible

Very thanks! LT1CJ7

Regards

Gilles

FULL DANA 30 REBUILD->http://www.jeepforum.com/forum/f8/cj7-dana-30-full-rebuilt-setup-part-i-1121189
'82 CJ7 LAREDO REBUILD->http://www.jeepforum.com/forum/f8/82-cj7-laredo-diesel-restoration-1179198/
stgil is offline
post #48 of 62 Old 06-24-2011, 05:22 AM Thread Starter
stgil
Registered User
1982 CJ7

Join Date: Apr 2010
Location: FRANCE
Posts: 618
and...I have no mitigating with ALL this pics!!!

FULL DANA 30 REBUILD->http://www.jeepforum.com/forum/f8/cj7-dana-30-full-rebuilt-setup-part-i-1121189
'82 CJ7 LAREDO REBUILD->http://www.jeepforum.com/forum/f8/82-cj7-laredo-diesel-restoration-1179198/
stgil is offline
post #49 of 62 Old 06-24-2011, 06:19 AM
Sevenseejay
Registered User
1981 CJ7

Join Date: Nov 2009
Location: Italy
Posts: 92
I learned something.. Thank you LT1CJ7!

Oh no! On my CJ I have mounted my shoes conversely!
On the manual this difference is not in evidence..! I have read only primary and secondary shoe.. there difference only on the drawing, but can't see unless you know.

With the less shoe in the secondary position what happens?

What is the function of this difference?
Thanks..












Quote:
Originally Posted by LT1CJ7 View Post
No not really.
It just looked like the primary & secondary shoes looked to have the same length of material.
Usually the primary has less.
Sevenseejay is offline
post #50 of 62 Old 06-24-2011, 08:39 AM
LT1CJ7
Registered User

LT1CJ7's Avatar
1983 CJ7

Join Date: Aug 2004
Location: [duhm-as]
Posts: 4,512
Quote:
Originally Posted by stgil View Post
I'm VERY sorry about this mistake and I'll fix it as soon as possible

Very thanks! LT1CJ7

Regards

Gilles
Your very welcome!
No need to apologize,
Even the best of us goof or learn something new once in a while.
Keep up the good work.
LT1CJ7 is offline
post #51 of 62 Old 06-24-2011, 08:50 AM
LT1CJ7
Registered User

LT1CJ7's Avatar
1983 CJ7

Join Date: Aug 2004
Location: [duhm-as]
Posts: 4,512
Quote:
Originally Posted by Sevenseejay View Post
I learned something.. Thank you LT1CJ7!

Oh no! On my CJ I have mounted my shoes conversely!
On the manual this difference is not in evidence..! I have read only primary and secondary shoe.. there difference only on the drawing, but can't see unless you know.

With the less shoe in the secondary position what happens?

What is the function of this difference?
Thanks..
Your very welcome.
The smaller primary shoe will catch the drum surface and energizing the secondary into a rotational force pair.
The rotation of the drum will drag both of the shoes into the friction surface of the shoes, causing the brakes to bite harder, which increases the braking force.
I would change them around to be proper.
LT1CJ7 is offline
post #52 of 62 Old 05-21-2012, 05:54 PM
jcalhoon84
Registered User
1980 CJ5

Join Date: Mar 2011
Location: Newport News
Posts: 273
Shims

Just the left side that has a special features ...

It has a shim between the trumpet of the axle housing and the flange which we will try to find the right the thickness now...

So a shim (currently at random OR you can put your OLD shim)



the 4 new screws (ALWAYS GRADE 8)



To be continued...[/QUOTE]


When you say left are you talking the driver's side or the passenger side? Thanks for the write up!
jcalhoon84 is offline
post #53 of 62 Old 05-22-2012, 01:17 AM Thread Starter
stgil
Registered User
1982 CJ7

Join Date: Apr 2010
Location: FRANCE
Posts: 618
Hello,

This is, of course, the driver side

Thanks for the congrats

Regards,

Gilles

FULL DANA 30 REBUILD->http://www.jeepforum.com/forum/f8/cj7-dana-30-full-rebuilt-setup-part-i-1121189
'82 CJ7 LAREDO REBUILD->http://www.jeepforum.com/forum/f8/82-cj7-laredo-diesel-restoration-1179198/
stgil is offline
post #54 of 62 Old 03-19-2013, 10:16 PM
77repeej
Registered User
1977 CJ7

Join Date: Mar 2013
Location: nampa
Posts: 6
20 rebuild

Stgl, Can I just use the old shims off the carrier and the pinion if all I did was replace the original carrier with a limited slip stock unit? Even if I replaced all the bearings and crush sleeve. Thanks for your input.
77repeej is offline
post #55 of 62 Old 03-19-2013, 10:22 PM
77repeej
Registered User
1977 CJ7

Join Date: Mar 2013
Location: nampa
Posts: 6
model20 rebuild

Can I reuse the shims on the carrier and pinion if all I changed was the carrier? I made the mistake of not getting measurements on the pinion before I pulled it. Any help is great. I want to keep my 20. Thanks
77repeej is offline
post #56 of 62 Old 03-20-2013, 01:06 AM Thread Starter
stgil
Registered User
1982 CJ7

Join Date: Apr 2010
Location: FRANCE
Posts: 618
Quote:
Originally Posted by 77repeej View Post
Can I reuse the shims on the carrier and pinion if all I changed was the carrier? I made the mistake of not getting measurements on the pinion before I pulled it. Any help is great. I want to keep my 20. Thanks
Hello,

Not at all: you change one component (the carrier) so every measure must be checked. In other words you CAN'T reuse your old shims without checking all the measure: Backlash, pinion depth and so on...

BTW... you not only change the carrier... you replace its bearings too

Good luck...

Regards,

Gilles

FULL DANA 30 REBUILD->http://www.jeepforum.com/forum/f8/cj7-dana-30-full-rebuilt-setup-part-i-1121189
'82 CJ7 LAREDO REBUILD->http://www.jeepforum.com/forum/f8/82-cj7-laredo-diesel-restoration-1179198/
stgil is offline
post #57 of 62 Old 03-20-2013, 03:15 PM
77repeej
Registered User
1977 CJ7

Join Date: Mar 2013
Location: nampa
Posts: 6
amc20 rebuild pinion

stgil, can I check and set the pinion up without having the pinion depth tools?
77repeej is offline
post #58 of 62 Old 03-20-2013, 06:20 PM
keith460
Jeep. There's Only One

keith460's Avatar
1984 CJ7

Join Date: Jan 2007
Location: Doylestown, PA
Posts: 6,203
Quote:
Originally Posted by jcalhoon84 View Post
Just the left side that has a special features ...

It has a shim between the trumpet of the axle housing and the flange which we will try to find the right the thickness now...

So a shim (currently at random OR you can put your OLD shim)



the 4 new screws (ALWAYS GRADE 8)



To be continued...

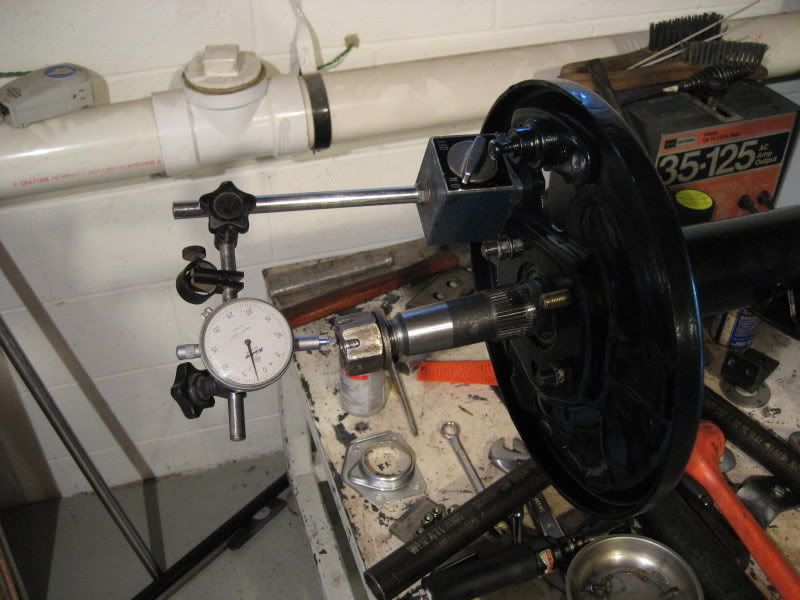

Add or delete shims until 0.004" - 0.008" End Play is achieved. You need a dial indicator mounted to check this.


.
1984 CJ-7 Renegade
__________________

Restoration Thread:http://www.jeepsunlimited.com/forums...d.php?t=434226
keith460 is offline
post #59 of 62 Old 03-21-2013, 03:49 AM Thread Starter
stgil
Registered User
1982 CJ7

Join Date: Apr 2010
Location: FRANCE
Posts: 618
Quote:
Originally Posted by keith460 View Post
Add or delete shims until 0.004" - 0.008" End Play is achieved. You need a dial indicator mounted to check this.

Hi Keith !



as shown >>> HERE <<< too, did I a mistake ?

@77repeej:

without depth tools... the only other way is the pattern reading (paint on gears)... a little bit fuzzy (and long) for beginners...

Regards,

Gilles

FULL DANA 30 REBUILD->http://www.jeepforum.com/forum/f8/cj7-dana-30-full-rebuilt-setup-part-i-1121189
'82 CJ7 LAREDO REBUILD->http://www.jeepforum.com/forum/f8/82-cj7-laredo-diesel-restoration-1179198/
stgil is offline
post #60 of 62 Old 11-13-2015, 12:16 PM
wm69
Registered User
1985 CJ7

Join Date: Jun 2003
Posts: 3,926
Know this is an old thread, but where did you get the "final shims" you used on the carrier?

Stacking thin shims thick enough to get the proper preload could make getting the carrier in place be horrible. I notice you didn't have to use a case spreader using the thick OEM type one piece shims.

85 CJ7 258, borla header, Team Rush, MC2100 ,optima batt, Warn 8274, agr super box 2 & pump, T5 w/ B&M shifter, centerforce 2, superior 1 piece axles, warn hubs 2.5 in lift, 31" BFG MT

85 CJ7 258, A/C, T176, MC2100, Team Rush, Warn XD8000i, superwinch hubs, 3in lift 31" BFG AT/KO
wm69 is offline
